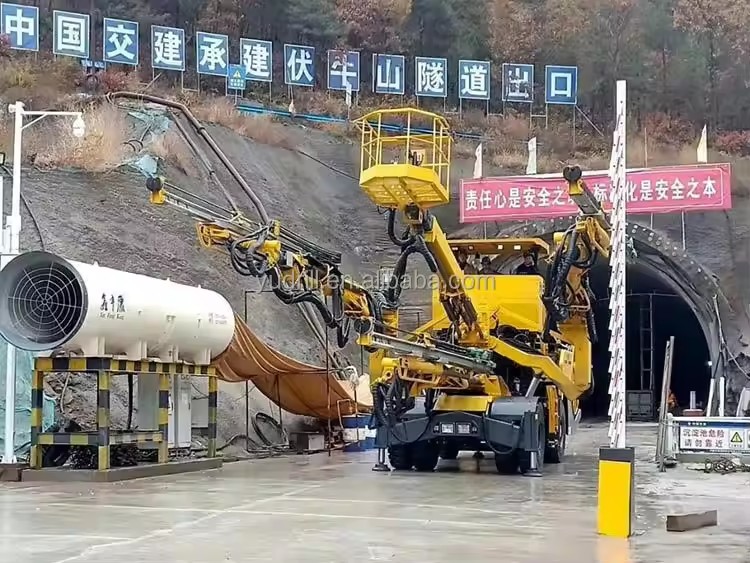

Product Importer Gallery 05 · f9154be203

Product video

TZ3S Hydraulic Underground Drill Rig Blaster 3-Booms Automatic Bore Hole Drilling Machine Pump Engine for Mining Blast

Name: TZ3S Hydraulic Underground Drill Rig Blaster 3-Booms Automatic Bore Hole Drilling Machine Pump Engine for Mining Blast
SKU: D7DT-VVHF-8KXH
Price: 176900.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 176,900.00 176900.0 USD $ 176,900.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Underground

Type

Rotary Drilling Rig

Drilling Depth

Max.6015mm

Drilling Diameter

43-140mm

Power Type

Diesel

Voltage

Diesel engine

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

1.Product introduction

Title	Weight of the machine（t）	Maximum working area (mm)	Drilling diameter (mm)	Drilling depth (mm)	Impact force during drilling (KW)
UDD124	10	5000*5000	45-102	28300/3440
UDD124S	10	5025*5000	45-102	2830/3440
UDD119P	8	4900*5100	38-64	2200/2500
UDD135	14	6600*6630	45-102/33-64	3400/4000
UDD145ED	13.6	13200*9400	45-89	3400+2800(6200)
UDD138B	13.5	6950*6550	33-64	3400/4000
UDD142I	14.5	7600*6900	33-64	3400/4000
UDD252	22	9052*6775	45-10/33-64	3400/4000
UDD138L	12.7	7600*6900	45-10/33-64	3400/4000
UPD120	10	4500*4500	64-76	20000
UPD240C	15.5	7500*5000	64-102	35000/4100
UPD241	17.5	7500*5000	64-102	35000/4100
UBD125	11.5	6550*5850	32-51	1630/1970/2120
UBD125	14	8800*7100	32-51	1970/2120/2320/2600
URB5000	20	4000*4000	311-5000	60METPOB

Title	Technical Parameters	parameter value
Basic Parameters
1	Weight(kg)	25,000
2	Overall dimensions(mm)	14,000×2,400×2,483(3183)
3	Operating range (W×H, mm)	11,212×7,677
4	Turning radius (mm)	7,300
5	Maximum coverage area (m2)	72
Equipment Configuration
1	Rock Drill	Model×Quantity	HC109×2
Brand (made by international famous manufacturers)	Montabert
System pressure (bar)	210
Impact power (kW)	18.8
Impact hydraulic oil pressure (bar)	135
Impact frequency (Hz)	47
Impact work per time (J)	400
Rotary hydraulic oil pressure (bar)	80
Rotary torque (N-m)	780
Rotary speed (r/min)	175
Mass (kg)	142
2	Drill jibs	Telescopic stroke (mm)	1250
Lifting angle (°)	+65°/-30°
Swing angle (°)	±45°
Thruster compensation stroke (mm)	1800
Full parallel hold	√
3	Push beams	Total length of propulsion beam (mm)	6012
Maximum propulsion force (kN)	22.5
Length of drill pipe (mm)	4305
Depth of drilling in one push (mm)	4000
Overturning angle (°)	±180°
Swing angle (°)	0~90°
4	Service Work Platforms	Platform lifting height (m)	8.7
Maximum covering width left and right (m)	13.4
Platform load capacity (kg)	400
Platform left-right swing angle (°)	±45
Up and down pitching angle (°)	30~65
5	Chassis	Traveling speed (km/h)	15
Climbing ability (°)	14
Ground clearance (mm)	229
Approach/Departure Angle/°	≥20/≥15
motor	Model	B5.9CS4 150C
Power(kW)	111
Emission and noise standard	National IV
Transmission Systems	Four-wheel drive
Braking Systems	Wet dual circuit emergency brake; parking brake: spring brake, hydraulic release
Steering System	Articulated steering
Fuel tank volume (L)	100
6	Drilling Hydraulic Systems	Anti-brazing function	Yes
Hydraulic oil tank volume (L)	280
Pressure oil and return oil accuracy (μm)	10
7	Aerosol Lubrication Systems	Displacement (L/min)/Pressure (bar)	700/8
Lubricating oil volume (ml/min)	1
8	Water System	Flow rate (L/min)	96.7
Minimum inlet pressure (bar)	2
9	Electrical system	Total input power (kW)	125
Motor power (kW) x quantity	55 x 2
Voltage (V)/Frequency (Hz)	380/50
Starting mode	Star/Triangle
Safety Protection System Functions	Leakage protection, overload protection, short circuit protection

Product Advantages

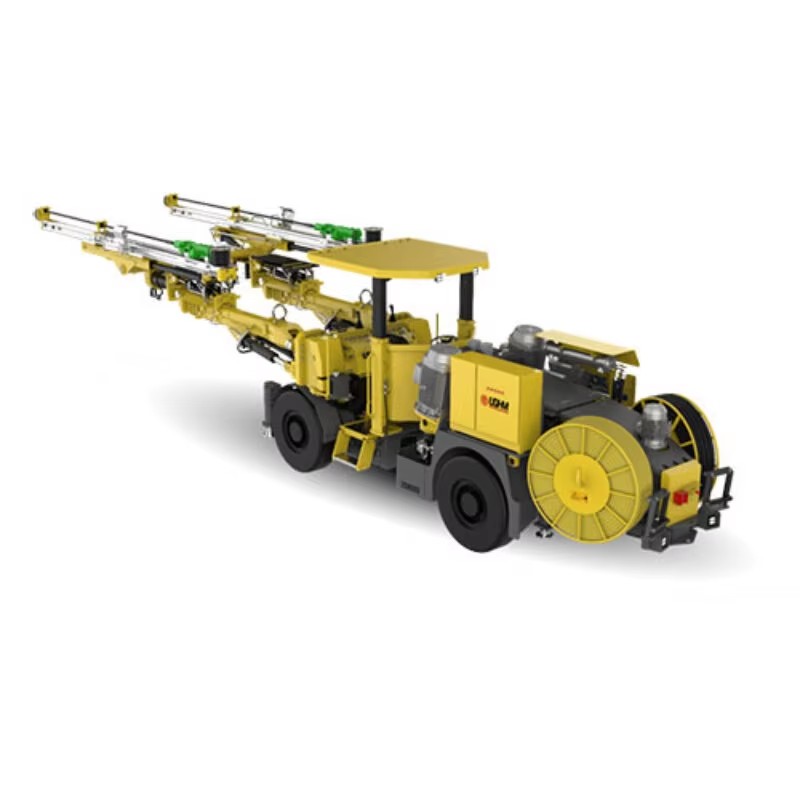

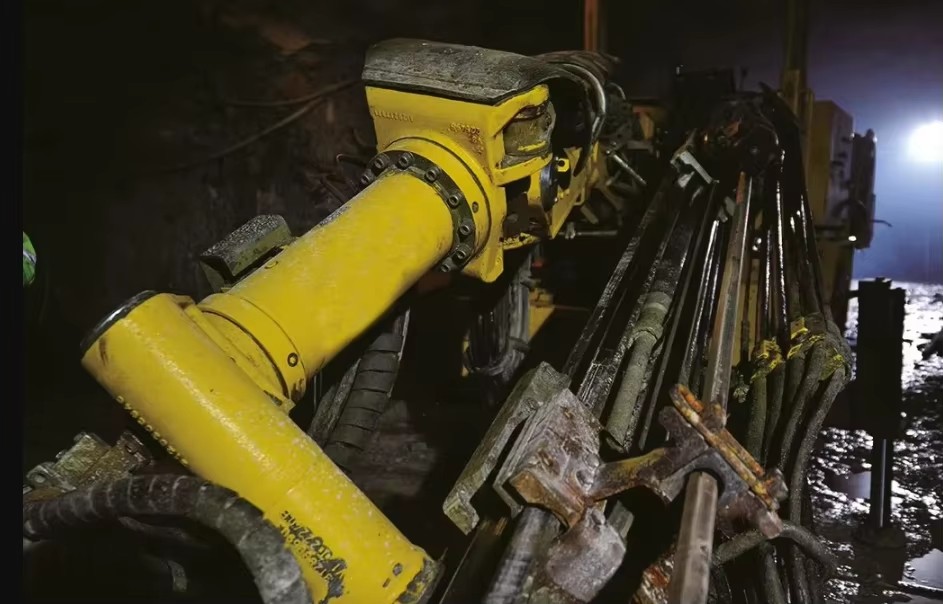

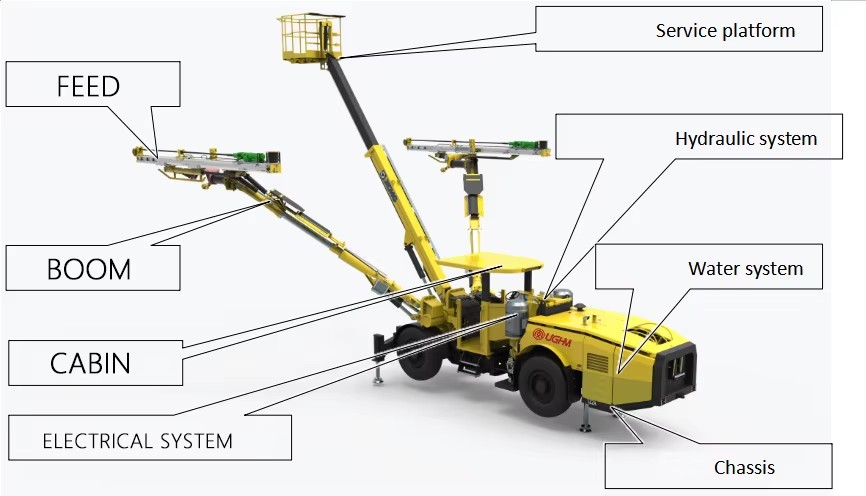

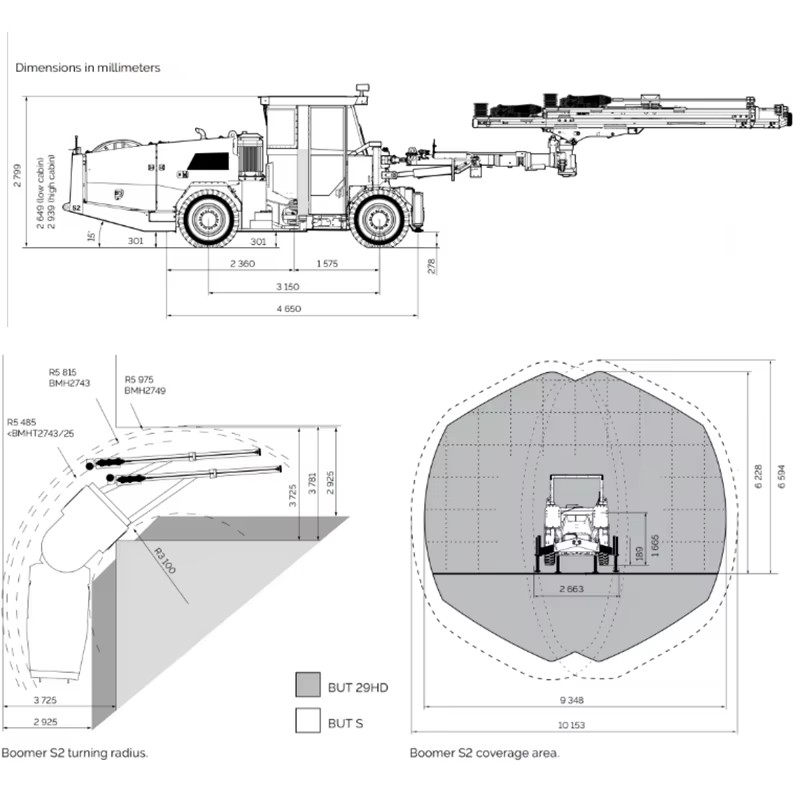

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Usage

Underground

Type

Rotary Drilling Rig

Drilling Depth

Max.6015mm

Drilling Diameter

43-140mm

Power Type

Diesel

Voltage

Diesel engine

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Automatic

Place of origin

China, Chongqing

Weight

50000 kg

Dimension (L*W*H)

17240*2926*3655mm

Mobility

YES

Maximum operation cover area

186.5m2

Drill hole depth

5140/6015mm

Impact power of gadder

18.8/31kW

Diameter for dill hole

43-140mm

Engine Power

186kW

Maximum traveling speed

20km/h

Propeller tit angle

360°

Impact frequency of gadder

47/(63-72)Hz

Booms

Selling Units

Single item

Single package size

17240X2926X3656 cm

Single gross weight

50000.000 kg

Model number

TZ3S

Power (W) (Product option)

210

Lead time

30 days

Minimum order

1 Units
