Name: Customized Energy Saving Gate Valve for General Industry, Pneumatic Drain Valve for Heat Tracing Pipeline Steam Equipment
SKU: B2B-71867
Price: 600.0 USD
Availability: PreOrder

Product description

Highlights at a glance

Energy Saving Design: Automatically discharges condensate to reduce energy loss and improve efficiency.

Pneumatic Actuation: Stable opening and closing for reliable operation in industrial settings.

High Temperature Compatibility: Suitable for steam and high-temperature media in demanding industrial applications.

Customizable Options: Supports custom logos and packaging for long-term partnerships.

Cast Steel Body: Durable and corrosion-resistant construction for long-lasting performance.

Frequently asked questions

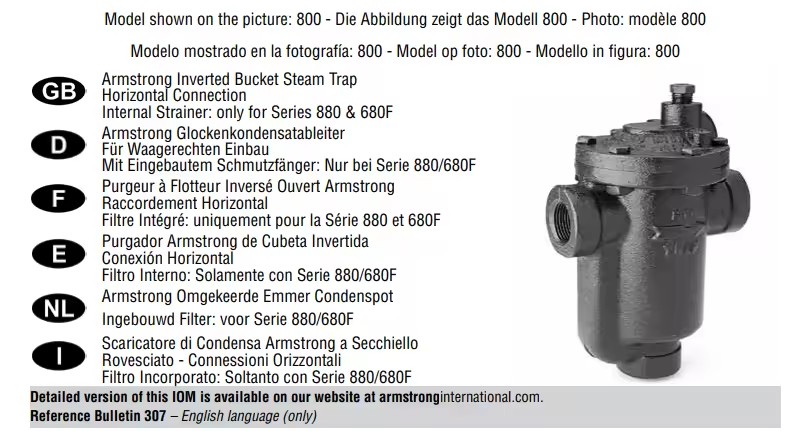

1.Float steam trap: Continuous large drainage capacity, suitable for heat exchangers, heaters and main heat exchange equipment terminals. 2. Inverted bucket steam trap: Excellent resistance to impurities and water hammer, ideal for boiler steam separators and main pipeline steam drainage. 3. Thermostatic steam trap: Suitable for trace condensate drainage, pipeline tracing and small equipment terminals, with automatic cold air exhaust function at low temperature.

Standard matching configuration: front stop valve + Y-strainer + steam trap + rear stop valve + check valve + bypass valve. Install at the lowest point of the equipment, and reserve a 3‰~5‰ pipeline slope to ensure automatic condensate flow, preventing steam blockage and non-drainage failure.

Purge the pipeline with the valve fully open. Never purge with the valve closed, as pipeline impurities will be clamped on the sealing surface and cause permanent internal leakage. Conduct thermal insulation construction after the completion of high-temperature pipeline installation to avoid condensate water accumulation and water hammer caused by temperature difference.

1. No drainage & cold valve: Filter blockage, pipeline steam blockage, or excessive back pressure at the valve rear; dredge the pipeline and reduce system back pressure. 2. Continuous steam leakage & hot valve: Valve disc wear and perforation or inverted bucket damage; replace the trap inner parts or the whole valve.

1. The valve is in half-open throttling state (common for gate valves); adjust to full open or full closed state. 2.Too fast opening/closing speed; install a slow-opening device. 3. Excessive condensate in the pipeline; add terminal steam traps and buffer tanks for the pipeline system.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Type

Gate Valves

Media

Steam

Port Size

Customizable

Temperature of media

High Temperature

Application

General

Power

pneumatic

Structure

Regulating

Customized support

OEM, ODM

Warranty

1 years

Place of origin

Zhejiang

Model number (Specification)

991/992/993/994/995/996/

Body Material

Cast Steel

Usage

Control Water Flow

MOQ

Packing

paper box and WOODEN FRAME

OEM

OEM Services Provided

Selling Units

Single item

Material (Product option)

Casting

Pressure (Product option)

Low Pressure

Size (Product option)

3/4IN 1in, 3/4IN 1in 1 1/4in, 1in 1 1/4in, 1 1/2in 2in

Lead time

15 days

Minimum order

1 Units
