Name: Customize PE EVA TPO Single Screw Plastic Sheet Processing Machinery Energy Saving Equipment with Calender for Small Production
SKU: B2B-33062
Price: 19450.0 USD
Availability: PreOrder

Product description

Highlights at a glance

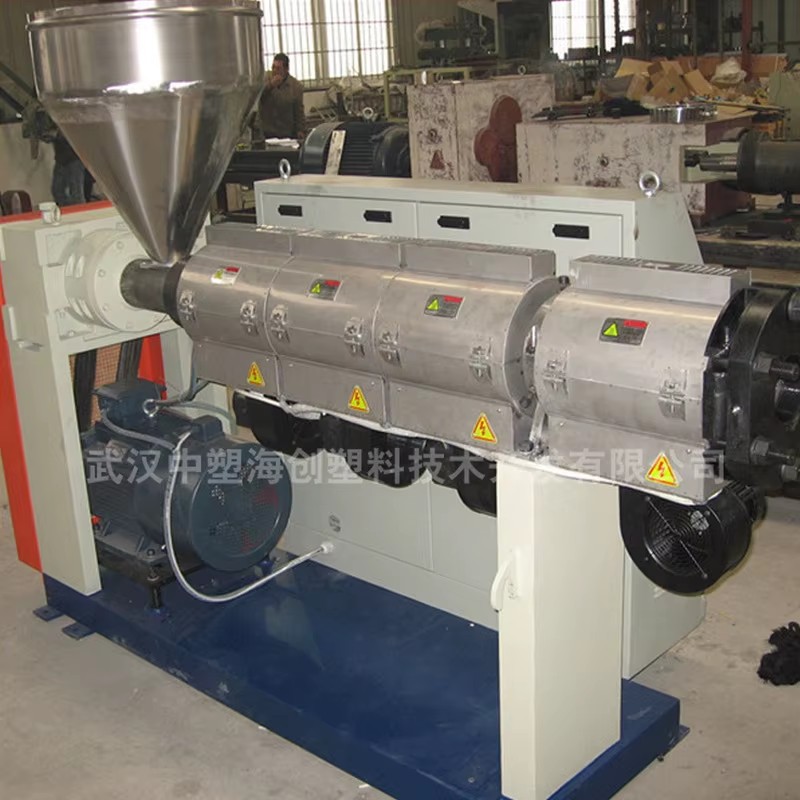

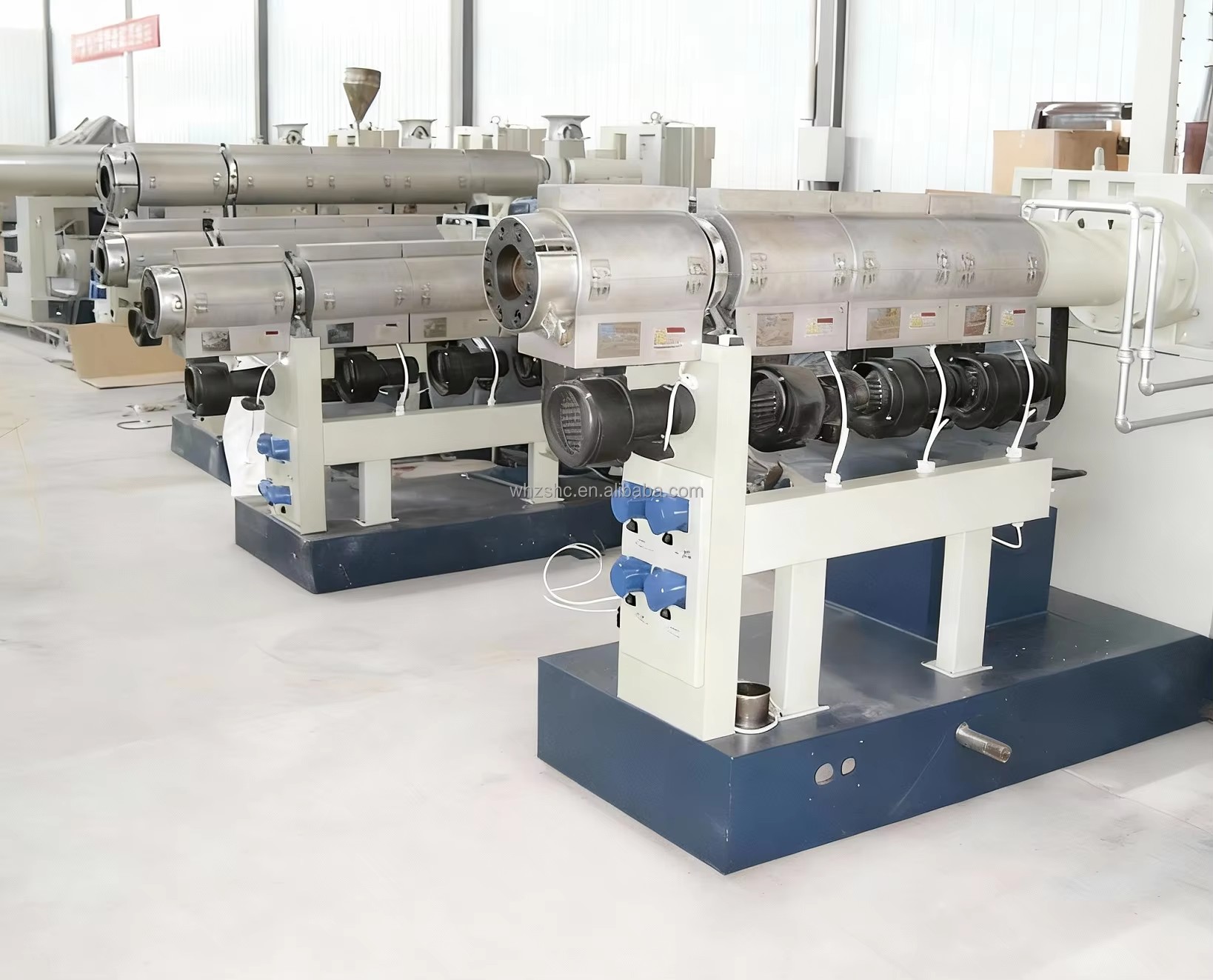

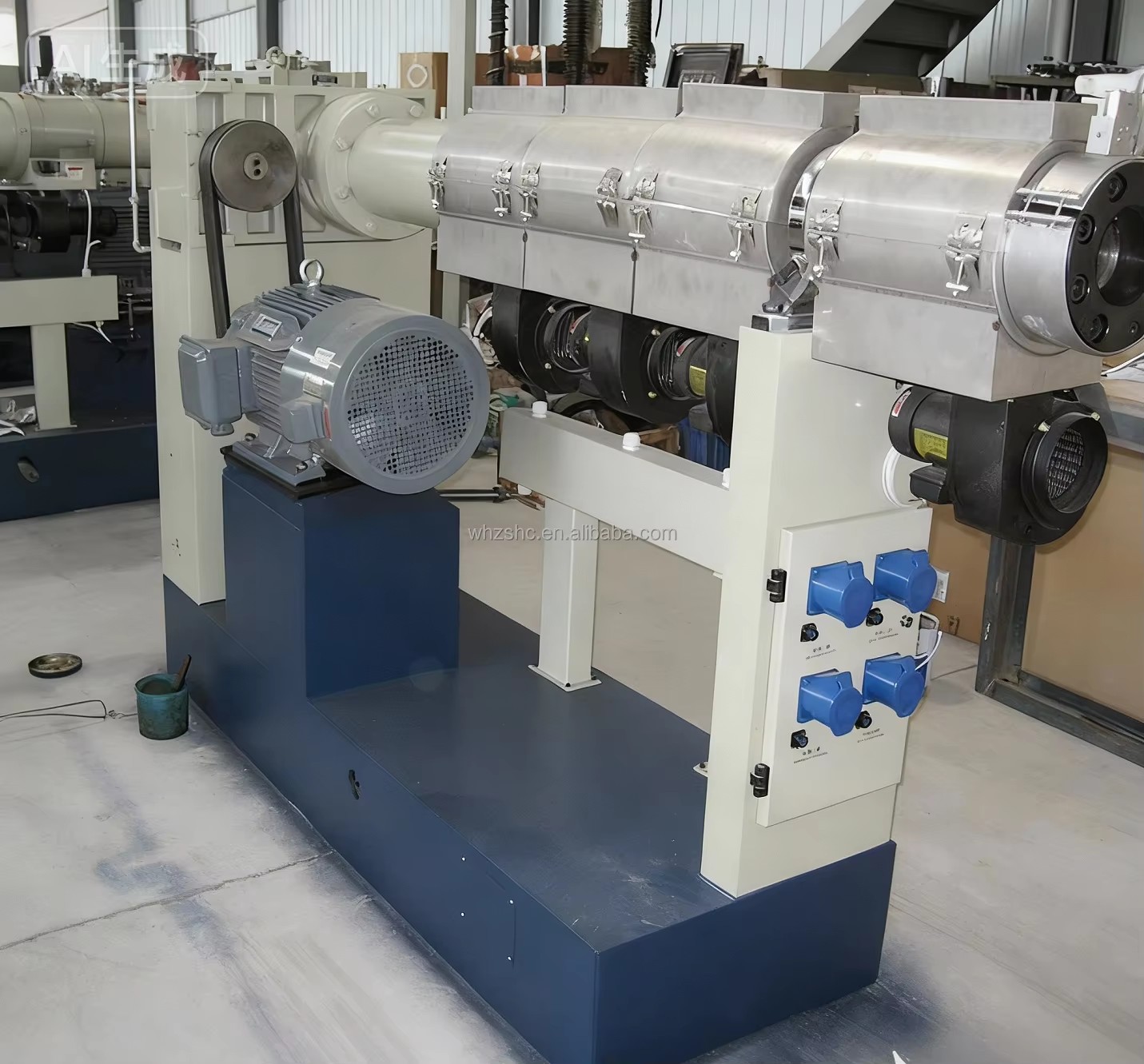

The SJ120/30 single screw extruder is a high-capacity industrial machine characterized by its 120mm screw diameter and a 30:1 length-to-diameter (L/D) ratio. This configuration is optimized for high torque and excellent melt homogenization, making it ideal for processing polyolefins (PE, PP), large-diameter pipe extrusion, and heavy-duty recycling applications.

1. Technical Specifications SJ120/30 typically features the following technical profile

1) Output Capacity: 350 - 550 kg/h, depending on material type and density.

2) Main Motor Power: Ranges from 110 kW to 160 kW, usually equipped with Siemens or ABB frequency inverters for energy efficiency.

3) Material Processing: Common uses include pelletizing PE/PP film flakes and producing thick plastic sheets or HDPE pipes.

4) Core Components: Features a high-torque gearbox and nitrided 38CrMoAlA steel screws, with bimetallic coatings available for processing abrasive recycled materials.

2. Primary Applications

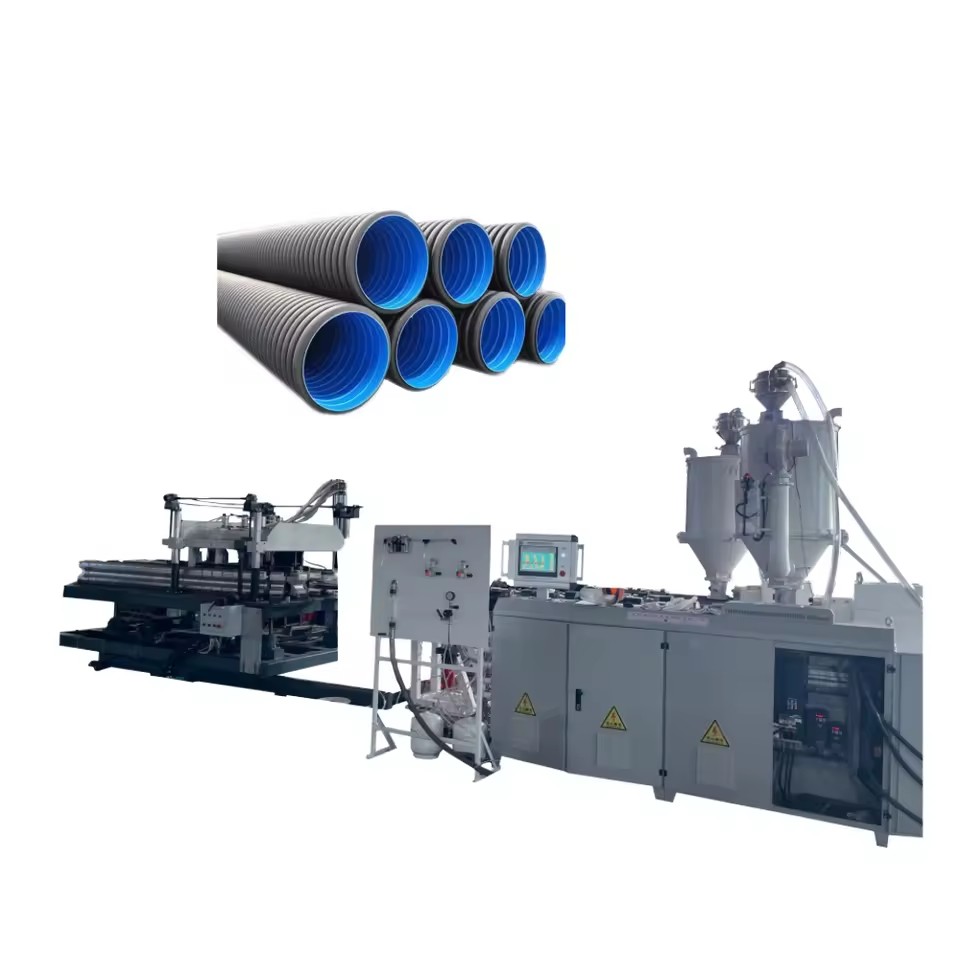

1) Pipe Production: Extensively used for manufacturing HDPE/PE water and gas pipes, PPR agricultural irrigation pipes, and PEX cross-linked pipes.

2) Sheet & Board Extrusion: Ideal for producing plastic plates, sheets, and boards (PVC, PP, PC, PS) used in packaging, automotive, and construction sectors.

3) Profile & Industrial Parts: Manufacturing of window profiles, cable conduits, monofilaments (silk), ribbons, and insulating barriers for electrical wires.

4) Granulation: Used in recycling lines to process plastic waste into pellets or for masterbatch blending.

3. Processing Materials

It is highly versatile, processing a wide range of materials including

1) Polyolefins: HDPE, LDPE, LLDPE, PP, and PPR.

2) Engineering Plastics: ABS, PET, PS, PC, etc.

3) Composite Materials: Wood-plastic composites (WPC) and various co-extruded polymers.

Frequently asked questions

(1)We have complete system of designing of extrusion equipment, so customize is available. (2)We can provide perfect extrusion management solutions and extrusion equipment. (3)We could make you in a leading position in the industry.

You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air compressor). We would supply workshop layout drawing for you.

First of all, we will test the machine before shipment. we will send our engineer to your factory to assemble and adjust the machine, and teach your operators to use the machine in the right way.

Within one year after installation under normal condition operation.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

120 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Application

XPS Foam

Plastic processed

PE, HDPE, LDPE, PP, ABS, PVC, EVA, WPC, TPU, LLDPE, PS, TPE

Extruder type

single screw

Screw diameter (mm)

45-250mm(1.77-9.84in)

Voltage

220 V, Customized

Screw L/D Ratio

30:1

Screw Material

38CrMoALA

Key selling points

Multifunctional

Machinery test report

Provided

Video outgoing-inspection

Provided

Warranty

1 Year

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other, Screw

Screw Design

Single-screw

Screw Speed (rpm)

Place of origin

China

Weight (kg)

5000

Dimension(L*W*H)

Customized

Power (kW)

560

Name

Plastic Sheet Machine

Processing Type

Extrusion Process

Function

Making Plastic Sheet

After Warranty Service

Service Machinery Overseas, On-line Technical Support

Screw Type

Single Srew

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

Output (kg/h)

100, 150, 300, 450, 180, 600, 800, 1000, 80

Lead time

120 days

Minimum order

1 Units
