Name: Custom Carbon Steel Knife Gate Valve Manual Slide Gate Valve for Industrial Pipeline Control Systems Zero Leakage Slide Gates
SKU: B2B-12662
Price: 1240.0 USD
Availability: PreOrder

Product description

Material Option: Carbon steel structure supports industrial pipeline control systems and can be customized with stainless steel or other materials by working condition

Valve Function: Designed for shut off isolation and flow control in pipeline systems hopper outlets bulk material discharge and service equipment connections

Sealing Support: Zero leakage requirement can be supported by suitable sealing structure plate machining and medium condition confirmation before final design

Manual Operation: Hand operated design is suitable for simple site control maintenance isolation and working positions without automatic actuation requirement

Application Scene: Suitable for industrial plants pipeline systems powder handling ash discharge water treatment and customized slide gate installation points

Custom Design: Valve size flange connection plate thickness sealing method mounting direction and inlet outlet structure can be customized by project drawing

Factory Support: Non standard manufacturing drawing confirmation OEM ODM and configuration selection support are available for project based procurement

Manual Slide Gate Valve
Category	C1×C1	B1×B1	A1×A1	H	℃	L	N-φ	Pressure
Unidirectional	306×306	250×250	200×200	100	≤150	720	8-φ13	0.1
326×326	270×270	220×220	100	760	8-φ15
346×346	290×290	240×240	100	800	8-φ15
366×366	310×310	260×260	120	840	8-φ18
386×386	330×330	280×280	120	880	8-φ18
406×406	350×350	300×300	120	920	8-φ18
426×426	370×370	320×320	120	960	8-φ18
446×446	390×390	340×340	120	1000	8-φ18
516×516	450×450	400×400	140	1120	8-φ18
556×556	490×490	440×440	140	1200	8-φ18
596×596	550×550	480×480	140	1295	16-φ18
660×660	610×610	500×500	140	1350	16-φ18
Bidirectional	706×706	660×660	600×600	160	1600	16-φ18
820×820	770×770	700×700	160	1800	20-φ18
920×920	870×870	800×800	180	2000	20-φ18
1030×1030	975×975	900×900	180	2300	24-φ23
1130×1130	1074×1074	1000×1000	180	2550	24-φ23
Note: Use the handwheel for heights less than 1.7 meters above ground level; use the chain wheel for heights greater than 1.7 meters.

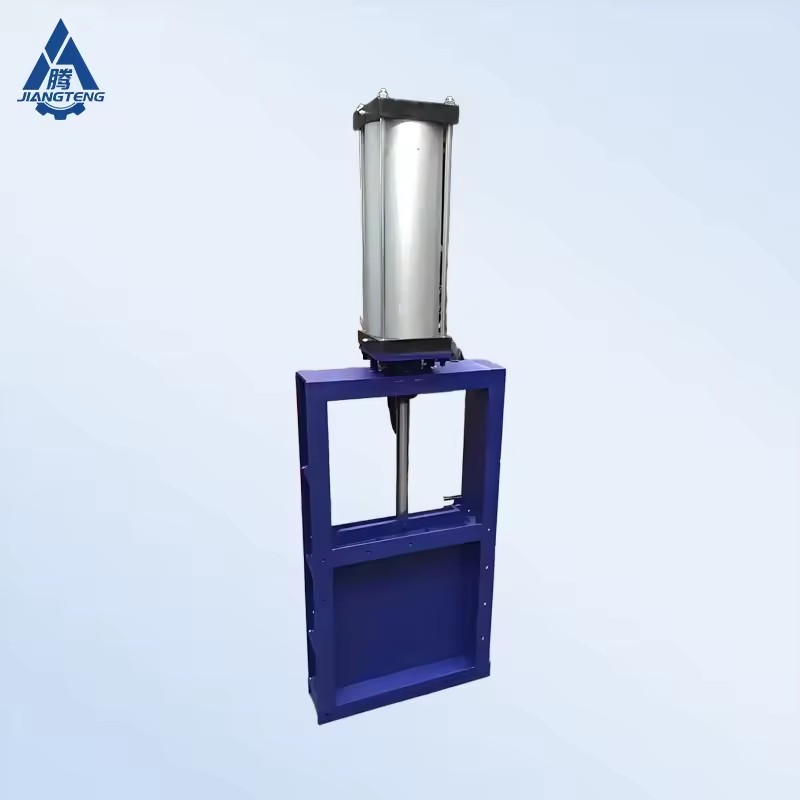

Pneumatic Slide Gate Valve
C	B	A	C1×C1	B1	A1×A1	H1	H	N-φ
φ200	260	φ300	200×200	250	300×300	200	200	8-φ11
φ220	280	φ320	220×220	270	320×320	200	200	8-φ11
φ240	300	φ340	240×240	290	340×340	200	200	8-φ13
φ260	320	φ360	260×260	310	360×360	200	200	8-φ13
φ280	340	φ380	280×280	330	380×380	200	200	8-φ17
φ300	360	φ400	300×300	350	400×400	200	200	8-φ17
φ320	380	φ420	320×320	370	420×420	200	200	8-φ17
φ340	400	φ440	340×340	390	440×440	200	200	8-φ17
φ400	460	φ500	400×400	450	500×500	220	220	8-φ17
φ440	500	φ540	440×440	495	550×550	220	220	12-φ17
φ500	560	φ610	500×500	555	610×610	220	220	12-φ17
φ540	600	φ650	540×540	600	650×650	220	220	12-φ17
φ600	660	φ720	600×600	660	720×720	240	240	12-φ20
φ650	720	φ770	650×650	720	770×770	240	240	12-φ20
φ700	770	φ820	700×700	765	820×820	240	240	12-φ20
φ750	820	φ870	750×750	825	870×870	240	240	12-φ20
φ800	870	φ930	800×800	870	930×930	270	270	12-φ20

Certifications & compliance

CE(2)

Complies with EU standards

Description images

Custom Carbon Steel Knife Gate Valve Manual Slide Gate Valve for Industrial Pipeline Control Systems Zero Leakage Slide Gates

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Service Equipment Type

Slide Gate Valve

Voltage

380 V, 220V/380V/110V/12V/24V

Power

6 kW

Mounting Type (Specification)

Pedestal

Model number (Specification)

Square Plug Valve

Place of origin

China, Jiangsu

Color

Customized Color

Size

Customized Size

Warranty

1 Year

Weights

220kg

Rated Turning Angle

0~90°

Leak rate

≤1.3x10-5Pa.L/S

Operating temperature

≤300°C

Function

Ventilation, cut-off

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Material (Product option)

Carbon Steel, 304 Stainless Steel

Certifications & Compliance

CE(2)

Lead time

15 days

Minimum order

1 Units
