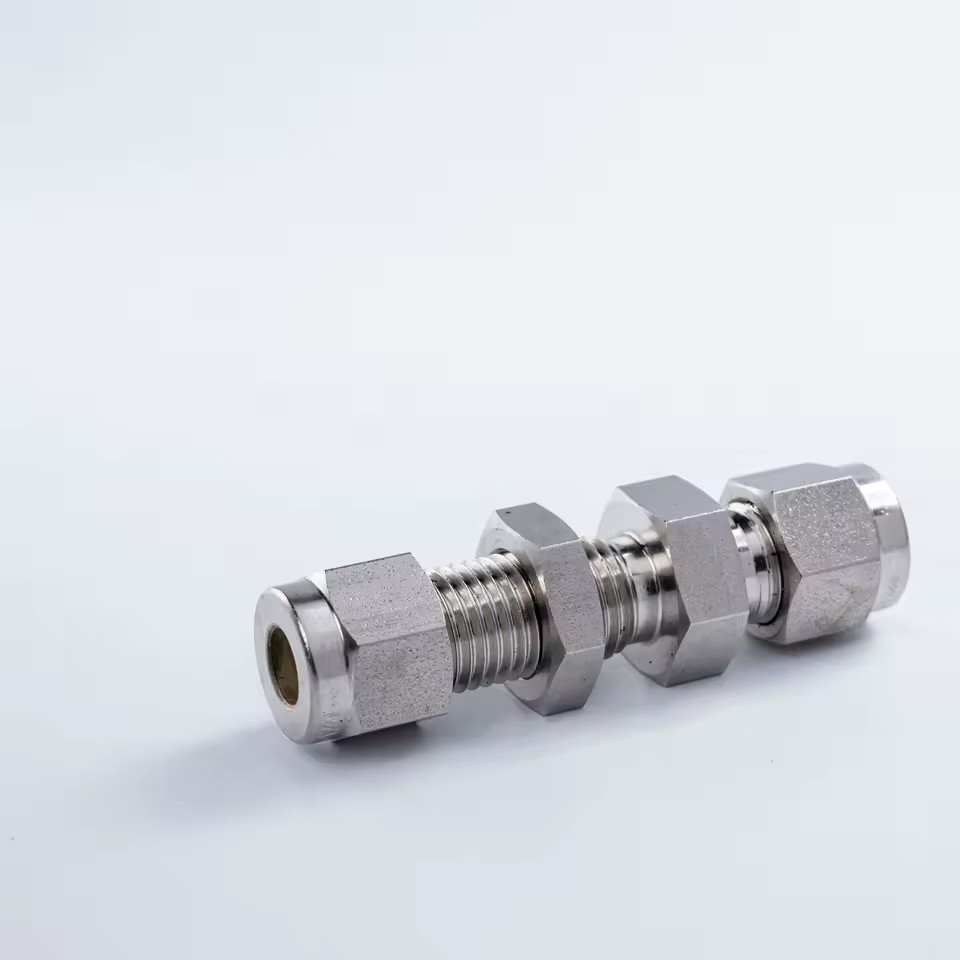

Compact Bulkhead Ferrule Connector BA Grade Gas Piping Systems Superior Sealing Reliable Safety High Pressure Valve Fitting

Available for enquiry 0.0 · 0 reviews
USD

$ 20.00 20.0 USD $ 20.00

Not Available For Sale

Minimum order quantity: 200 Units
  • Pipe Class
  • Thread Types
  • Connectivity
  • Pressure
  • Application
  • Surface Treatment
  • Pipe Features
  • Technic
  • Shape
  • System of Measurement
  • Head code
  • Mounting hole diameter
  • Overall Length
  • Customized support
  • Warranty
  • Place of origin
  • Medium
  • Temperature
  • Specification (Specification)
  • Selling Units
  • Type (Product option)
  • Pipe size
  • Material (Product option)

This combination is unavailable.

Key attributes

View all
Pipe Class
BA
Thread Types
G
Connectivity
Capsule
Pressure
High Pressure, 1000psi 3000psi 5000psi
Application
petrochemical industry, Petroleum and chemical industry
Surface Treatment
Polishing
Product description

Highlights at a glance

  • Manufactured from high-grade stainless steel, ensuring excellent corrosion resistance and durability, even in harsh environments. Utilizes advanced machining techniques for tight tolerances, providing leak-proof and reliable connections. Features a robust through-panel structure, offering enhanced vibration resistance and pressure endurance for secure pipeline integration. Modular Construction: Easy to install and maintain, with modular components allowing quick replacement and system upgrades without extensive downtime. Specialized for BA Grade Gas Pipeline Systems: Ideal for use in cleanroom environments and BA grade gas pipeline systems, meeting strict purity and safety requirements. Usage Method: Insert the tubing through the panel and fit the compression connector. Tighten the nut to achieve a secure, leak-free connection. Suitable for stainless steel, copper, or other compatible tubing. Function: Provides stable, airtight connections for high-purity gas transmission, ensuring system integrity and safety. Designed to minimize contamination risk and maintain gas purity throughout the pipeline network.
  • SUS316L Double Ferrule Bulkhead Union, Panel Through-Tubing Connection for High-Purity Specialty Gas
  • Extended Male Thread Locking Design, Fit Gas Cabinets & Panels of Various Thickness
  • Dual Ferrule Clamping Seal, Vibration & Thermal Cycle Resistant, Zero Helium Micro-Leakage
  • Mirror Polished Straight Flow Path, Dead-Space-Free for Semiconductor Cleanroom CIP & SIP
  • Full High-Moly SUS316L, Resist Hydrolytic Corrosive Gas Such as Silane & HCl, Anti-Pitting
  • Weld-Free Reusable Assembly, Dual Independent Ferrule Clamps for Fast Internal & External Tubing Connection
  • Body, double ferrules and lock nuts all forged SUS316L stainless steel with high molybdenum content, resist hydrolytic corrosive gas like SiHCl3, silane and HCl, anti pitting & salt spray. Copper-free structure avoids chemical contamination to ultra-pure process gas.
    • Frequently asked questions

    Our standard lead time is 2 weeks, significantly faster than the industry average of12-20 weeks. We achieve this through modular design and a strategic inventory ofcore components (SS316L bodies, diaphragms). For urgent project needs, pleasecontact our engineering team for "Fast-Track" options.

    Every single product undergoes a rigorous Helium Leak Test using ahigh-sensitivity mass spectrometer. We guarantee a leak rate of less than 1x10-3mbar-l/s. A detailed test report with a unique serial number is provided with eachdelivery.

    Yes. We hold the CE-PED (Pressure Equipment Directive) certification (NB0036/0035 equivalent). This is not just a general CE mark, but a specific safetycertification for high-pressure equipment, which is a mandatory requirement for 90%of industrial projects in Europe (,, etc.).

    We strictly use SS316L (VIM/VAR grade) for ultra-high purity and hydrogenapplications to prevent hydrogen embrittlement. All raw materials come with EN10204 3.1 Mill Test Reports. For corrosive gases, we offer Hastelloy and Elgiloydiaphragm options.

    Absolutely. We specialize in "Lego-style" modular customization. Whether it's a70MPa hydrogen manifold or a semi-automatic changeover system for a lab, ourengineers can provide a professional 3D design and technical datasheet within 24-48nours.

    Yes, we welcome sample orders. We understand that in the semiconductor andenergy sectors, "seeing is believing." You can test our Ra < 0.25um surface finish andoressure stability before committing to a bulk purchase.

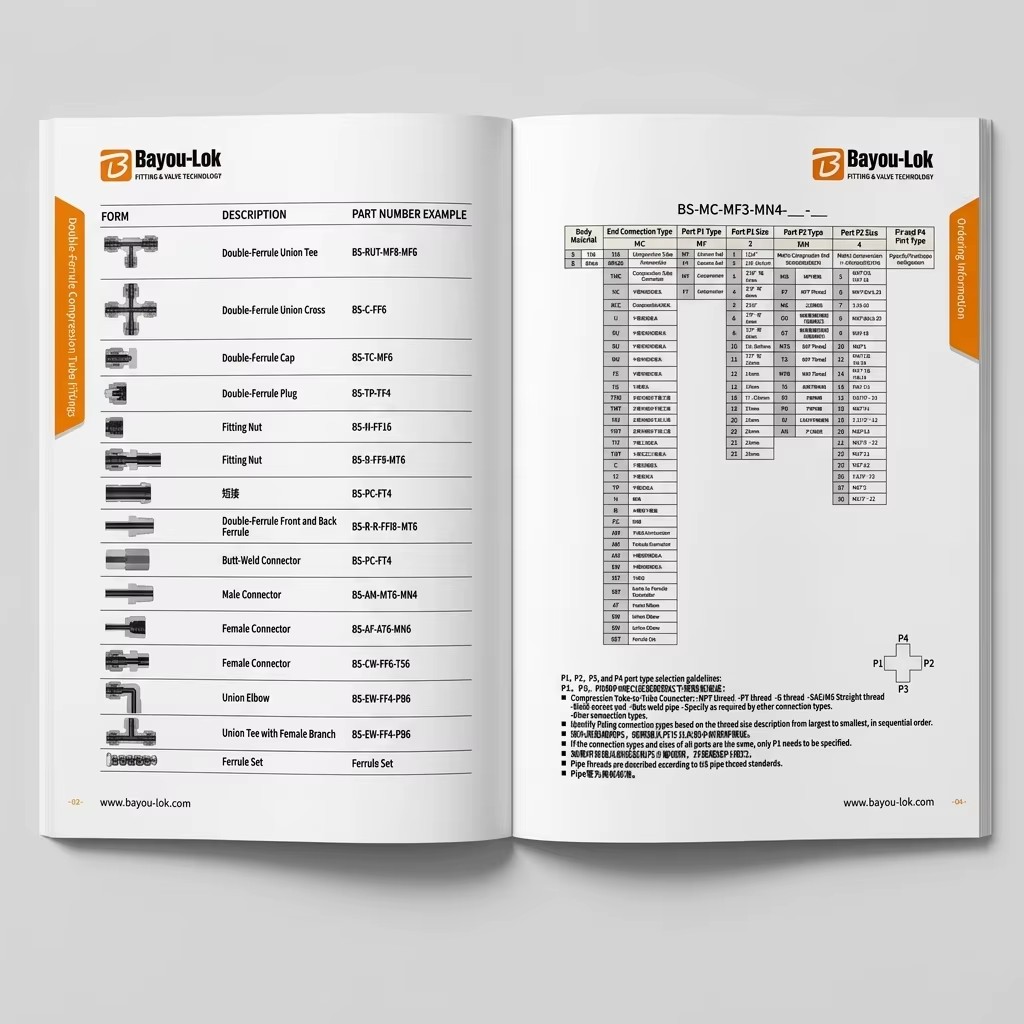

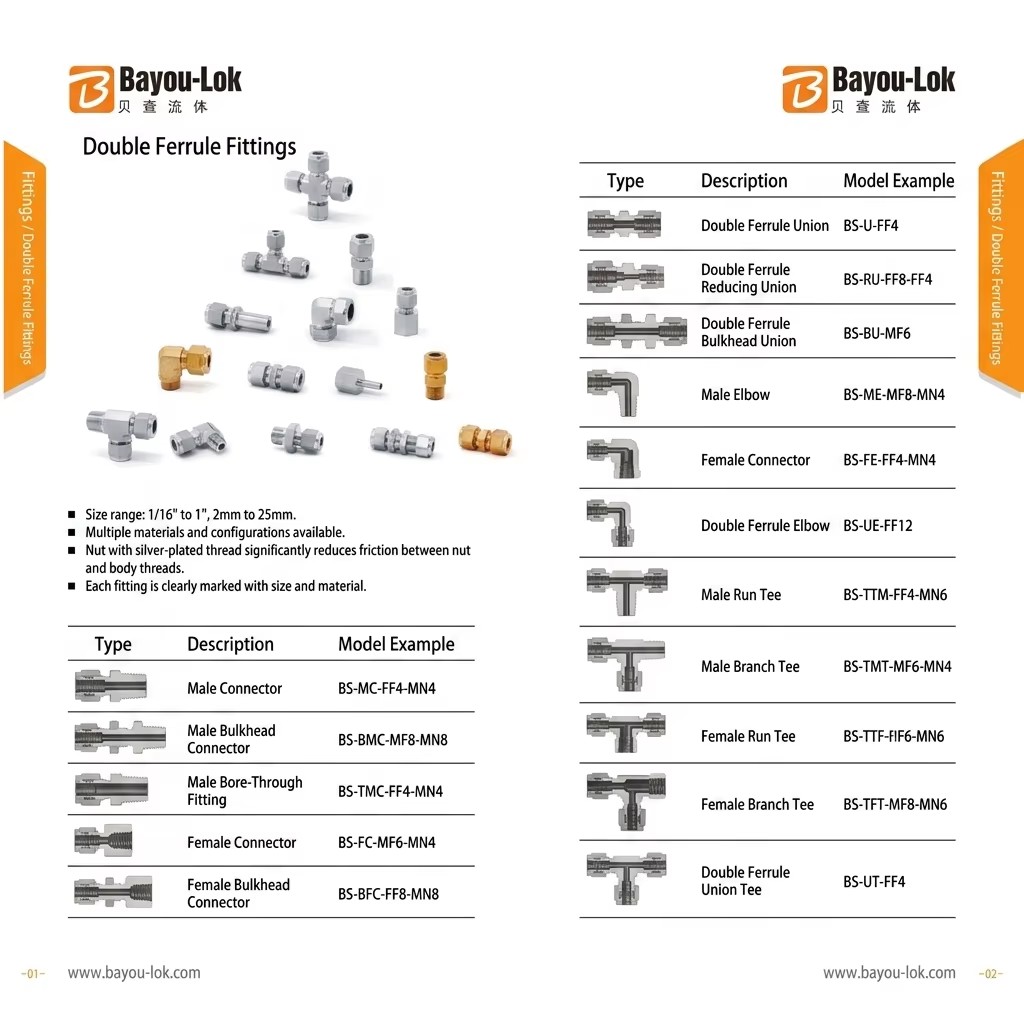

    Description images

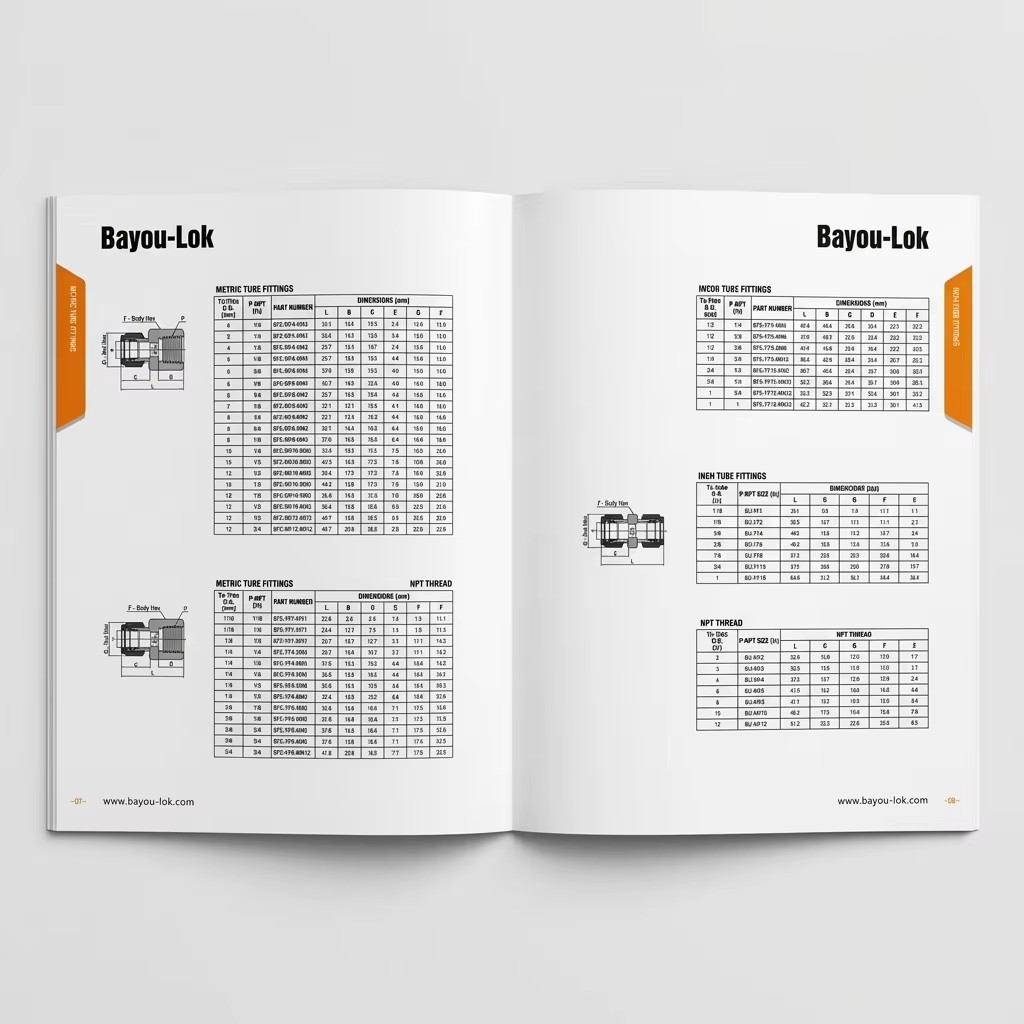

    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 200 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 23 fields
    Pipe Class
    BA
    Thread Types
    G
    Connectivity
    Capsule
    Pressure
    High Pressure, 1000psi 3000psi 5000psi
    Application
    petrochemical industry, Petroleum and chemical industry
    Surface Treatment
    Polishing
    Pipe Features
    Corrosion-resistant, Chemical Resistant
    Technic
    Die forging
    Shape
    Square
    System of Measurement
    inch
    Head code
    Square
    Mounting hole diameter
    0.19in
    Overall Length
    2 in
    Customized support
    OEM, ODM, OBM
    Warranty
    1 years
    Place of origin
    Shanghai
    Medium
    gas, Industrial gases, special gases, toxic gases, corrosive gases
    Temperature
    Low temperature Room temperature
    Specification (Specification)
    1/4" 3/8"1/2"3/4"
    Selling Units
    Single item
    Type (Product option)
    Direct-through through-board connector
    Pipe size
    10 mm, 12 mm, 14 mm
    Material (Product option)
    Stainless Steel, Brass, Alloy
    Lead time
    15 days
    Minimum order
    200 Units
