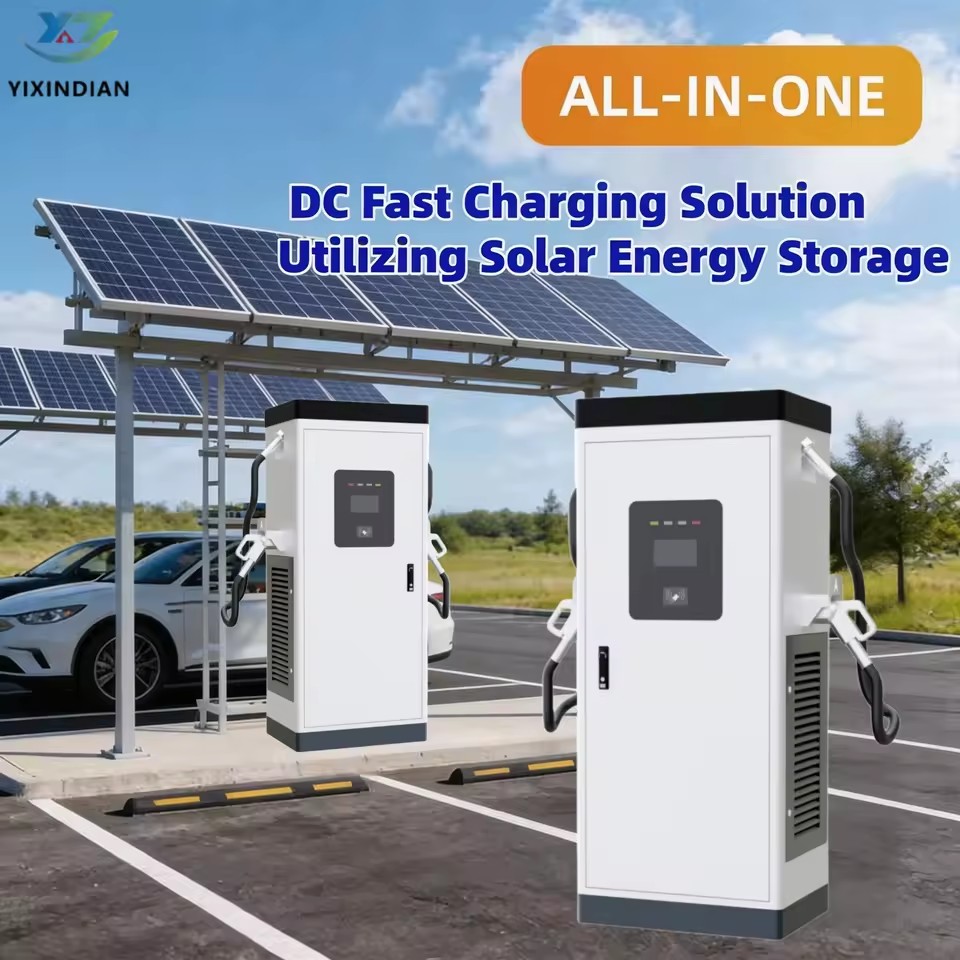

Name: Commercial DC Fast Charging Stations All-in-One Hybrid Solar 60kW EV Charger Off-grid Power Solution for Mining Sites
SKU: B2B-43864
Price: 7100.0 USD
Availability: PreOrder

Product description

Highlights at a glance

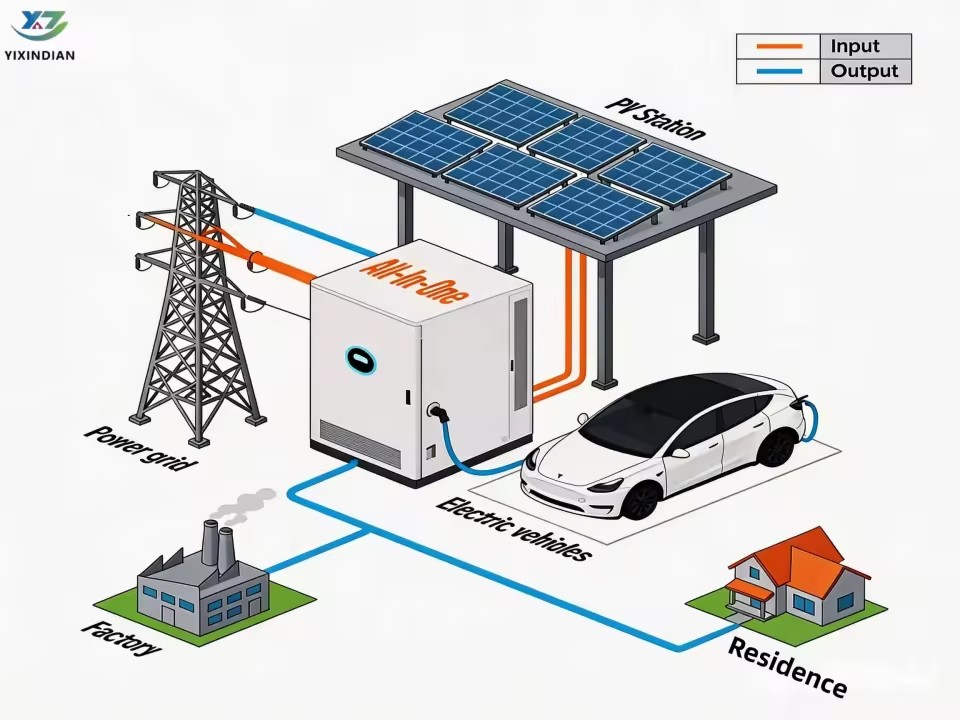

Tired of high electricity bills and expensive grid upgrades? Our Solar-Storage-Charging Integrated Station allows you to install DC fast chargers even on a weak grid. Cut energy costs by 30% with solar+storage, or run completely off-grid

Reduced Electricity Costs · Solar power generation reduces the amount of electricity purchased from the grid.

Demand Charge Management · The battery storage discharges during peak load hours, significantly lowering demand charges for commercial users.

Arbitrage Revenue · Charge the battery when electricity prices are low (e.g., at night) and discharge to charge EVs when prices are high (e.g., evening peak hours).

No Grid Upgrade Required · Eliminates the high cost and long waiting time of transformer expansion. Install DC fast chargers even on sites with grid capacity.

Plug-and-Play Installation · The system acts as a "power buffer" - when the grid falls short, the battery storage discharges to support EV charging.

Off-Grid Capability · Can operate independently as a microgrid or emergency power source in areas with unstable or no grid connection, ensuring 24/7 uninterrupted charging service.

Zero-Carbon Operation · Achieves truly green mobility, with the charging station itself operating at zero carbon emissions.

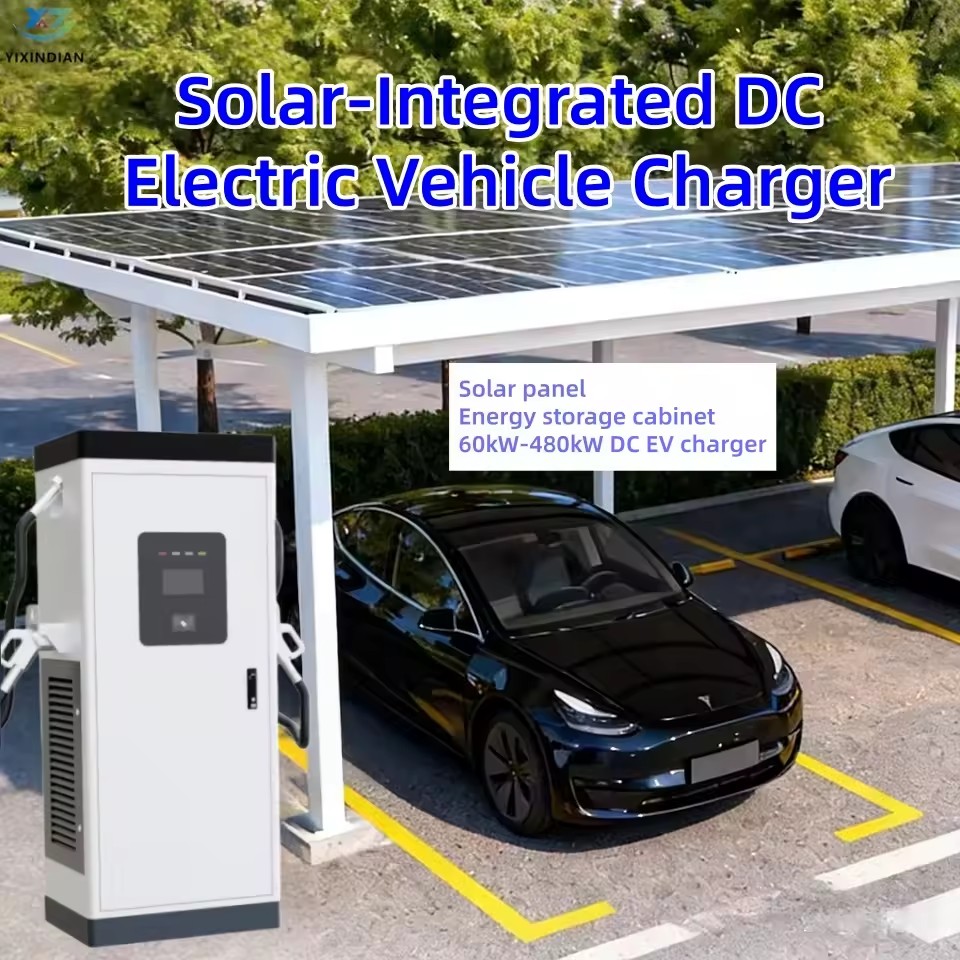

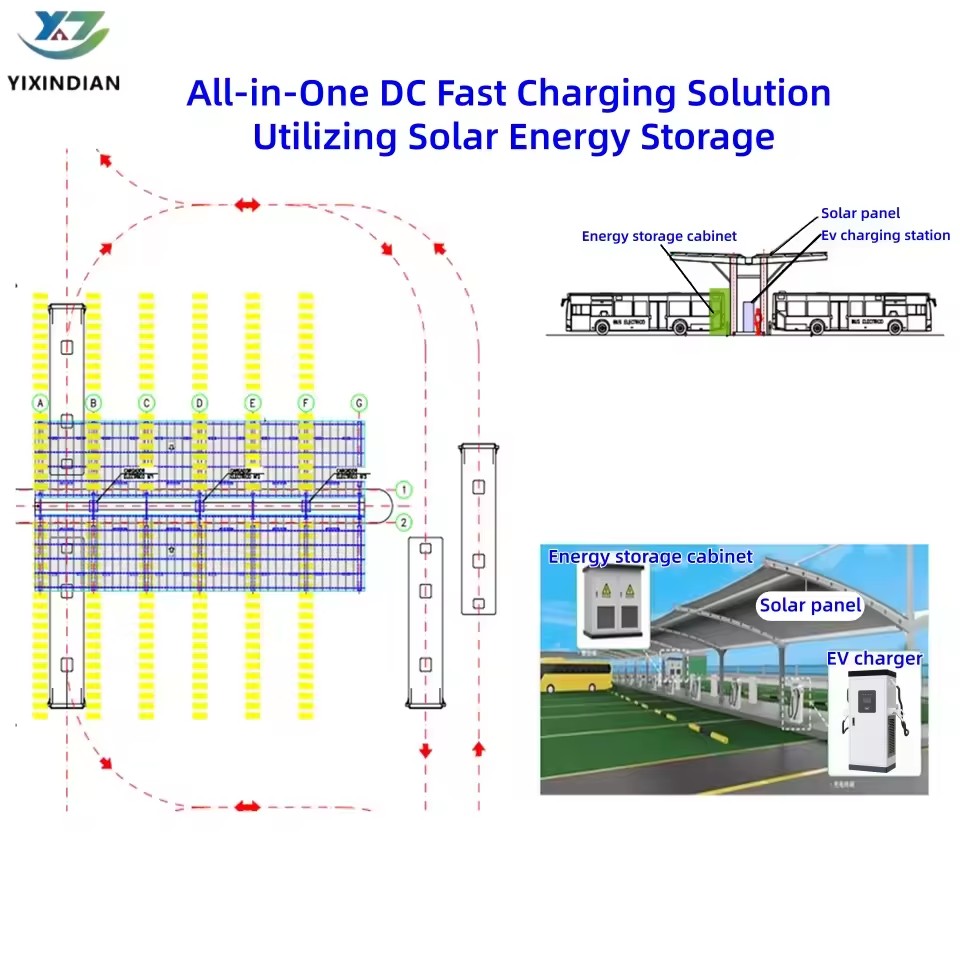

Enhanced Site Value · The solar canopy not only generates power but also provides shade and rain protection for vehicles, upgrading the appearance and technology image of commercial complexes.

Smooth Power Output · The energy storage system effectively smooths out fluctuations from solar generation and the impact of fast chargers on the grid, protecting battery life.

Stable Charging PowerDelivers more consistent and reliable charging power to EVs, improving user experience and equipment durability.

Frequently asked questions

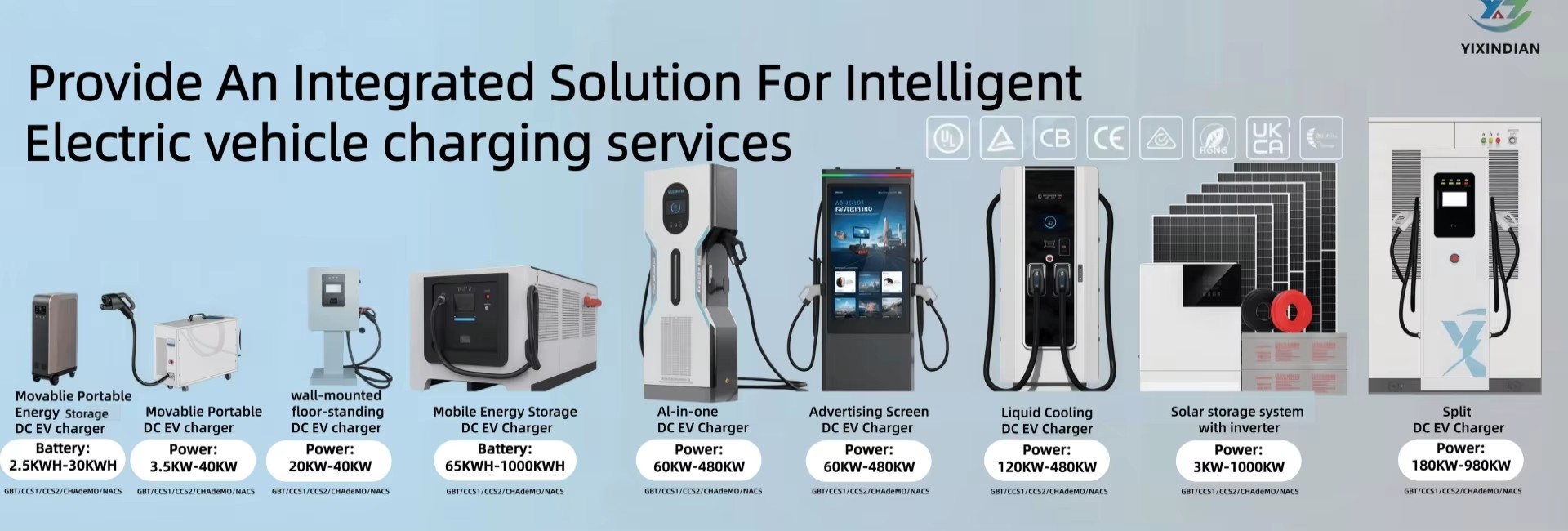

DC Charging Stations (20kW-600kW): Offered in wall-mounted, floor-standing, integrated, and split-type configurations. Solar Photovoltaic energy storage charging products (60kWh - 1MWh)

The whole unit is covered by a 3-year warranty, and the extended warranty service can be extended to 5 years subject to your specific requirements. Our customer service and engineering teams offer 24/7 response, and provide free customization of multilingual support for global users.

For non-human-induced damage, we offer free product return, replacement and repair services.

Yes. For household products, we provide a proprietary app for use; for commercial products, we can offer you an exclusive port to connect your own application.

The commercial model is equipped with OCPP1.6J/2.0.1J protocol, and can connect to the network via the protocol to access the billing and management system as well as online card information.

OCPP is abbreviated for open charging point protocol,it is a kind of networkprotocol. You can connected to our management system in PC via it, and then managethe EV charger and online cards. Also,you could position the EV charger via OCPP.or do you have your own management system?

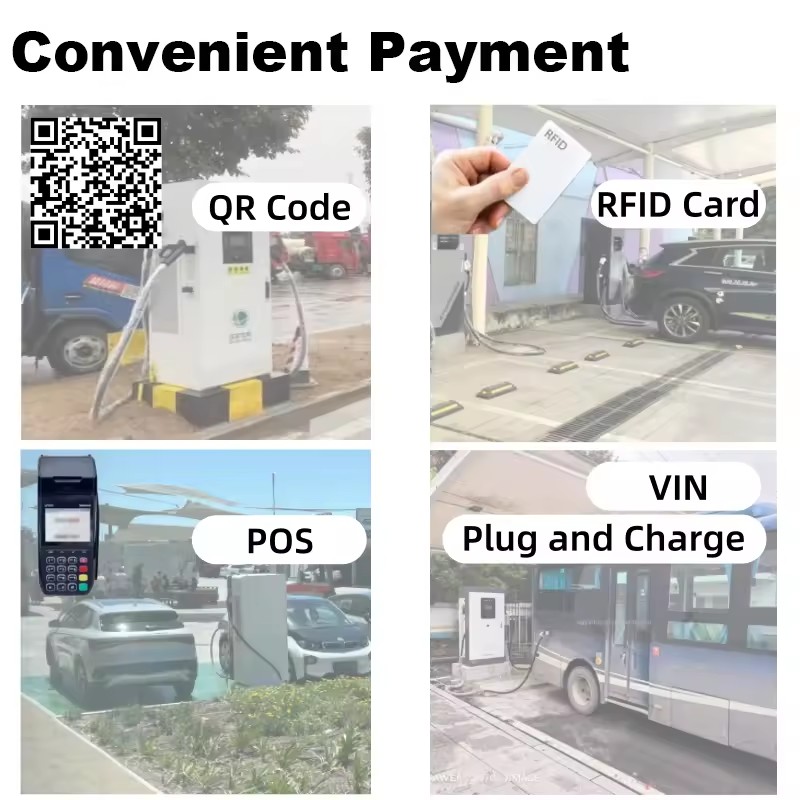

Two card reading modes are supported, as follows: 1. Offline cards without payment function: Simply touch the card to start the charging device, and no fee settlement is required. 2. Member cards / White cards / Online cards: The back-end system can be connected to the recharge and payment pro- gram. Users can swipe their cards to charge, and the system will automatically deduct the corresponding charging fees.

It depends on many factors, such as the battery capacity and output power of the charging station. For example, if the battery capacity is 50kWH and the charging station is 60kW, we usually slow down the charging speed to 80% of the battery to ensure its safety. Therefore, it may take approximately 60kW and 50kWH about need 50 minutes.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 1,703.95 for 1 piece · Estimated delivery: Oct 18–Dec 11 (44–98 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Output Power (Specification)

60kW 80kW 120kW 160kW 180kW

Interface Standard

CCS1/CCS2/CHADEMO/GB/T

Input voltage

AC400V±20%, 3P+N+PEAC

Output Current

Up to 250A

Purpose

Charging For EV

Condition

New

Model number (Specification)

D60-180

Place of origin

China, Guangdong

Charging Gun

Single/Double Guns (5 meters)/Customize for you

Protection by safety regulations

IP54,Insulation resistance≥10M, Withstand voltage 2500VAC

OCPP

OCPP 1.6/2.0J

Communication

4G+LAN standard/Wi-Fi Optional/Bluetooth

Start mode

Plug&Play, Password, Swipe Card, APP, RFID, POS

Warranty

36 months, warranty extension possible

Operating temperature

30°C to +50°C

Certificate

CE/CCC/CQC/ETL/FCC/UL/UKCA/IEC/RETIE/TUV

Customize

Logo/Connector count/Color/Type of connector plug/Packaging and more

Selling Units

Single item

Single package size

200X210X220 cm

Single gross weight

210.0 kg

Wattage (Product option)

60 kW, 120KW, 80kW, 160kW, 180kW

Lead time

25 days

Minimum order

1 Units
