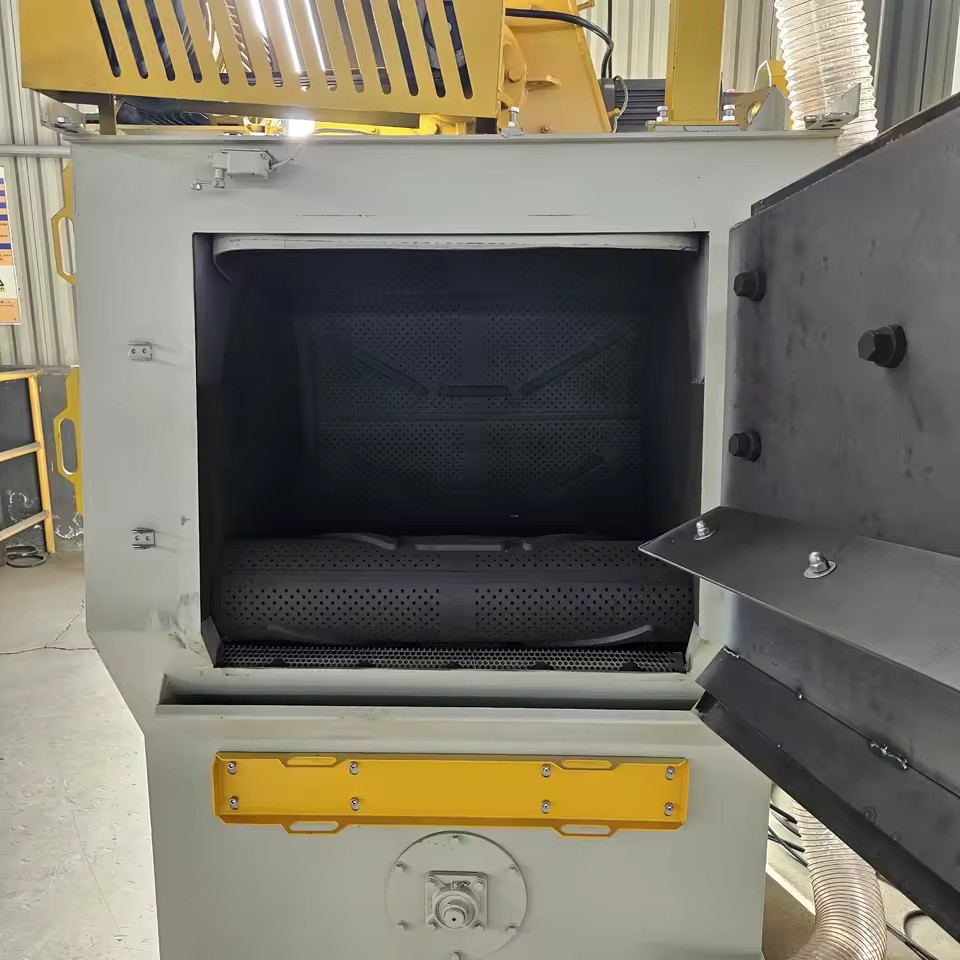

CE Certified Automatic Drum Shot Blasting Machine with Steel Construction and Gearbox for Small-sized Product Cleaning

Available for enquiry 0.0 · 0 reviews
USD

6,570.00 6570.0 USD 6,570.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Use
  • Cleaning process
  • Material
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Cleaning type
  • Key selling points
  • Power(w)
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Application
  • Abrator
  • After-sales Service Provided
  • Advantages
  • Dust collector
  • Color
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Feature (Product option)
  • Industry used (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Use
Descaling / Stripping, Burnishing, Deflashing
Cleaning process
steel shot cleaning
Material
Steel, Rolled manganese steel(mn13)
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Product description

Parameters and informationof various types of Crawler shot blasting machines

ModelQ326Q3210Q3215
Roller in long(mm)86011001550
Sideplate of diameter(mm)φ650φ1000φ1000
The working volume(m³)0.110.40.43
Single weight of workpiece(kg)1030227
Workpiece size(mm)L=600L=900L=1000
Loading capacity(kg)2006001000
Shot blasting amount(kg/min)160250200*2
Blast wheel power(KW)7.51511*2
Lifting quantity(t/h)81630
Separation amount(t/h)
Total air rate volume (m³/h)200035005300
Total Power(KW)142532
Machine size(I×w×h)(mm)2500×3500×42503500×4500×49804000×4500×5709
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Use
Descaling / Stripping, Burnishing, Deflashing
Cleaning process
steel shot cleaning
Material
Steel, Rolled manganese steel(mn13)
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Cleaning type
High Pressure Cleaner
Key selling points
Automatic, Easy To Operate, Competitive Price, High-Accuracy, Long Service Life, High Safety Level, Eco-Friendly, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Low Maintenance Cost, High Rigidity, Remote Control, Patented Product, Famous Brand Motor
Power(w)
14kw
Place of origin
China, Hebei
Weight (kg)
2800
Dimension(L*W*H)
1500mm*2500mm*3850mm
Application
Metal Surface Cleaning
Abrator
High Performance Shot Blasting Blade
After-sales Service Provided
Engineers
Advantages
Original factory, reasonable price
Dust collector
Bag
Color
Clients' Requirements
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
Q326
Feature (Product option)
Rust / Corrosion Inhibitor
Industry used (Product option)
Electronic Industry, valve, Oil pump, Steel and wood furniture, Locks, spring, flange, Short pipe, Ship spare parts, screw, nut, support frame, Hardware, Front bumper of a car
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
