Product description

Description of loading machine

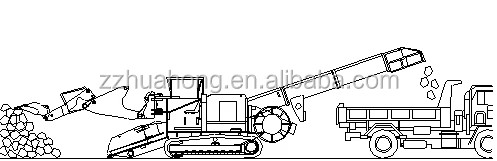

The loading machine is a kind of underground construction machinery typically used in the excavating of tunnel mining, mine engineering and hydraulic engineering. The mucking machine has five functions: hydraulic transmission, excavating and collecting, transport, loading and cleaning.

This loading machine is also utilized to collect and convey the gravelly soil in the process of production operation of small phosphate with narrow space and small scale of production.

Our loading machine can be divided into eight different types: coal mine, rock loading and excavation, tunnel excavation, underground engineering, to name a few.

While, according to the different mining or tunneling conditions, we especially designed all kinds of loading machine to meet the needs, such as crawler muck loader, track mucking loader, and wheel mucking loader and so on.

Main Features

Simple structure in linear type,easy in installation and maintation.

Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.

High pressure double crank to control the die opening and closing.

Running in a high automatization and intellectualization,no pollution

Apply a linker to connect with the air conveyor,which can directly inline with filling machine.

Technical parameters

Contents	Unit	Technical Parameters
ZWY-50	ZWY-60	ZWY-70	ZWY-80	ZWY-100
External dimension	mm	430015001500	430015001500	560017001700	600017001770	640017301650
wheel base	1300	1500	1500	1700	1700
Wheel tread	1600	1600	1700	1750	1750
Max material go through size	600*600	600*600	600*600	800*600	800*600
min distance from the ground	180	180	180	160	190
Total weight	T	4	4	4	5	5
Max lifting height	mm	1350	1350	2100	2100	2100
Max loading height	1200	1200	1500	1600	1500
Suitable height of charging carriage	1500	1500	1700-2100	1750-2500	1700-2100
Max extension of scraper bucket	1440	1440	1300	1800	1740
Max lift height	2150	2150	1900	2800	1600
Power	Kw	15	15	15	19	19
Working arm max turning angle	73	73	73	73	73
Traveling speed	Km/h	3/6	3/6	3/6	3/6	2.5/1.4
Max digging ability	KN	11.1	11.1	11.1	11.1	11.1
Loading capacity	T/h	60	60	70	80	100
Distance from cockpit to ground	mm	1700	1700	1700	1800	1800
Max belt slope	22	22	24	24	24
Adaptive tunnel dimension	m	1.5*1.8	1.5*1.8	1.8*2.2	2.6*2.6	3*3

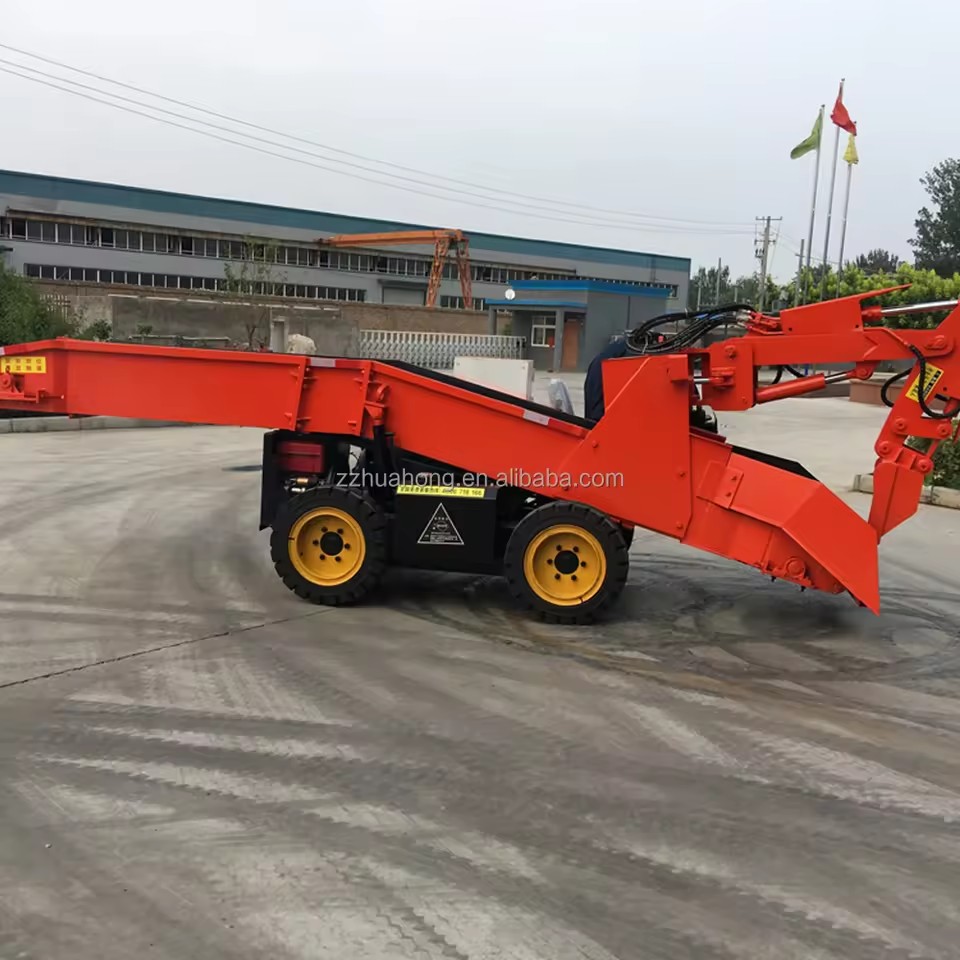

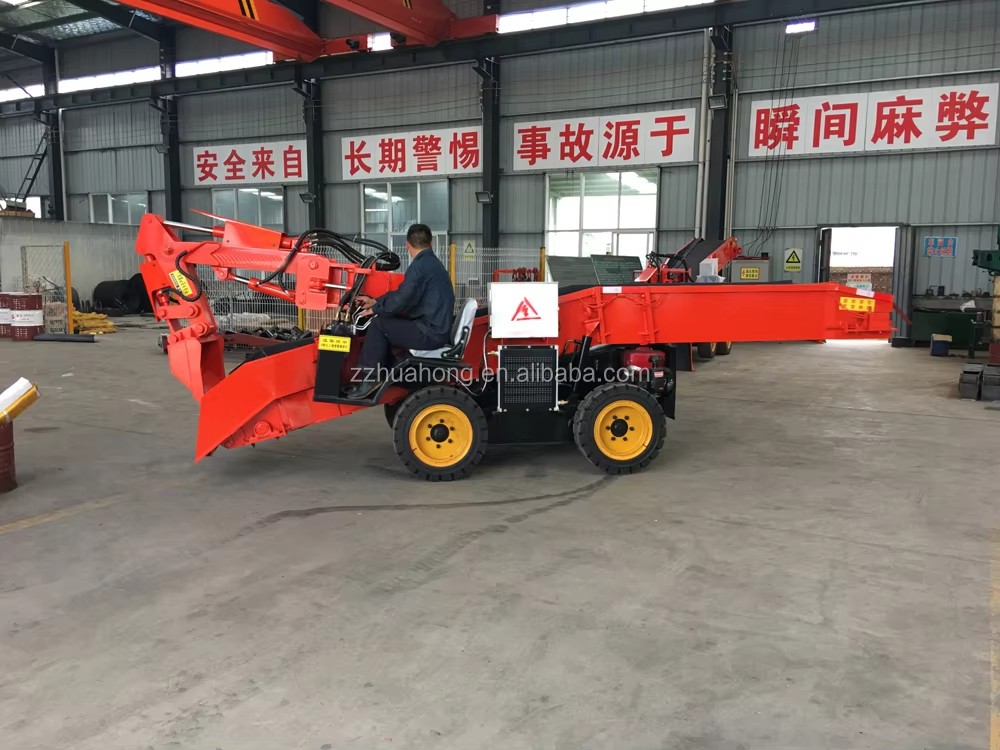

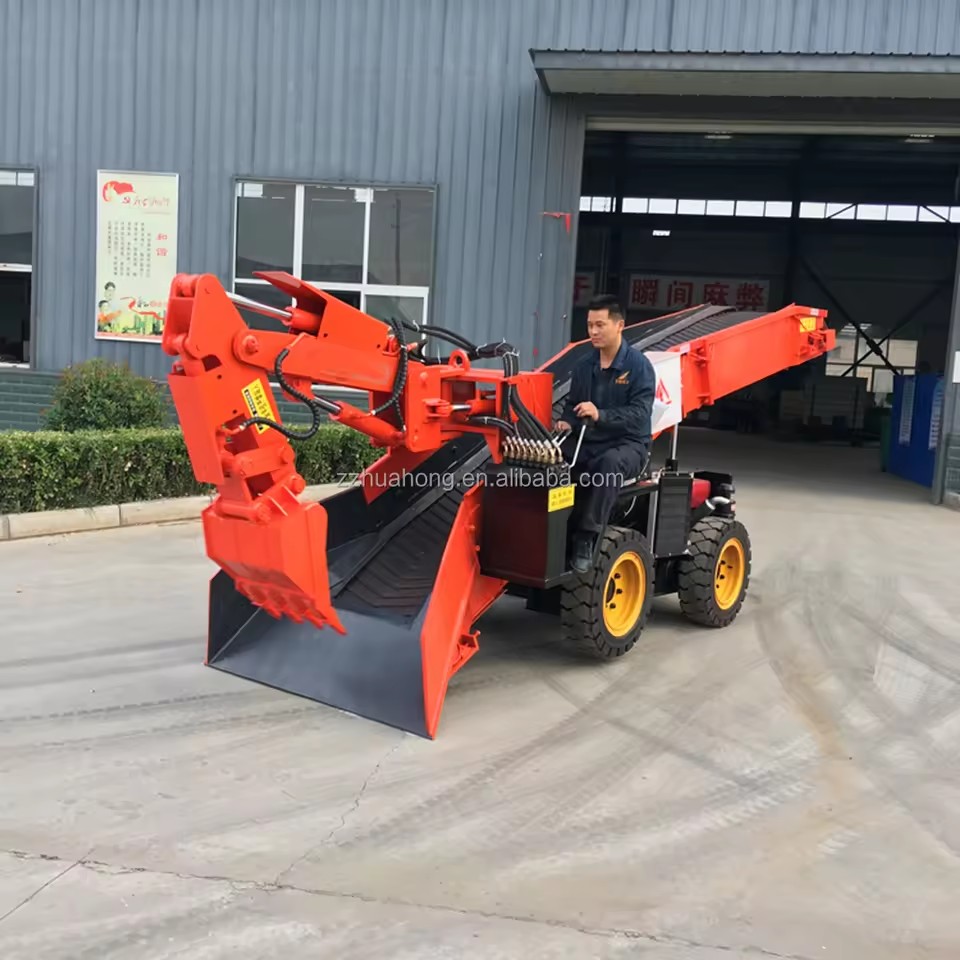

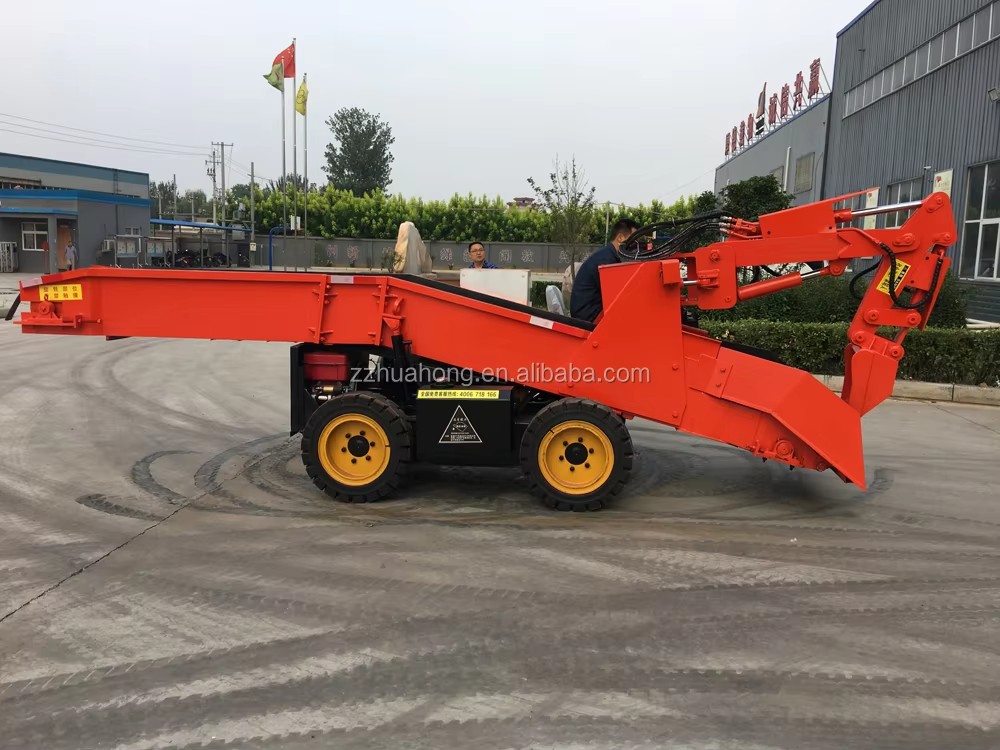

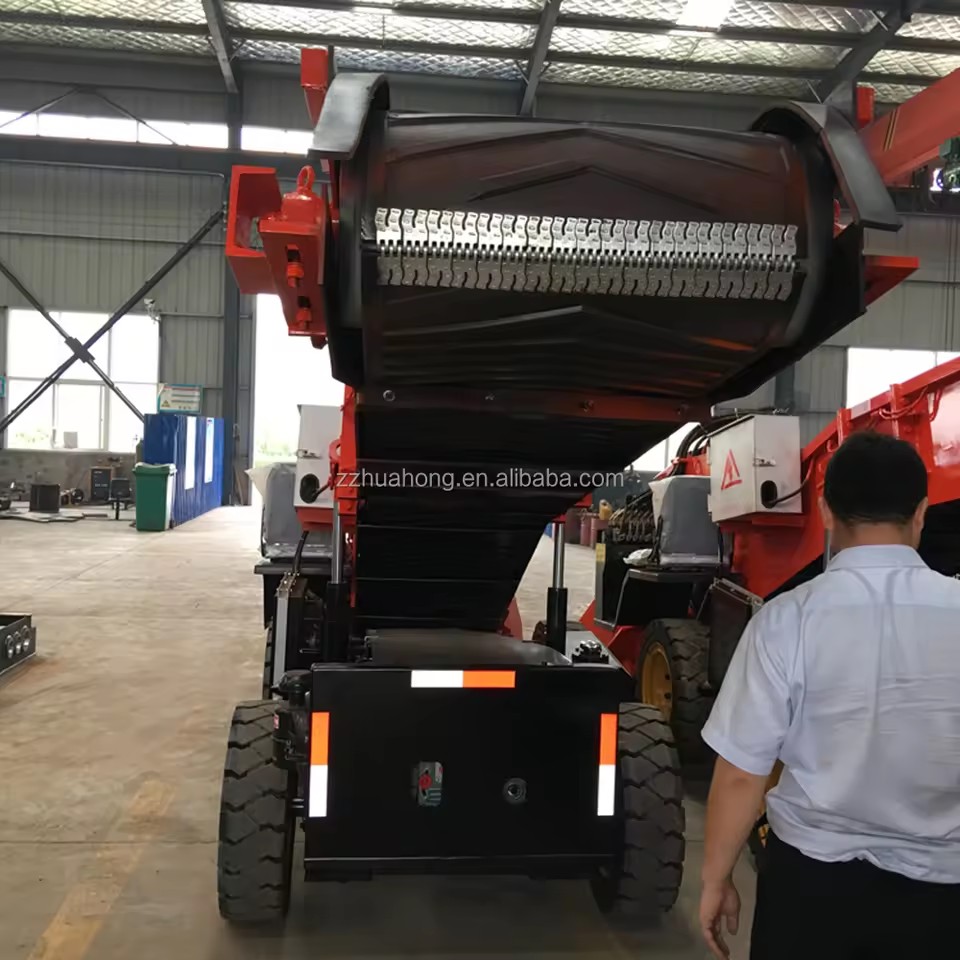

Wheel mucking loader

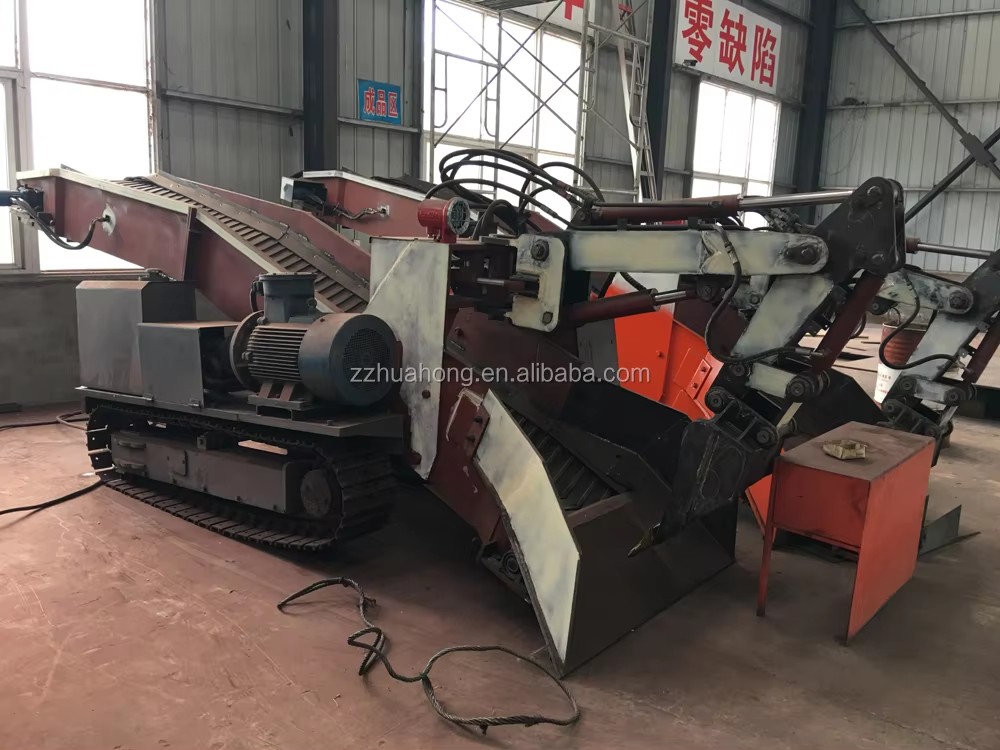

Crawler Mucking Loader

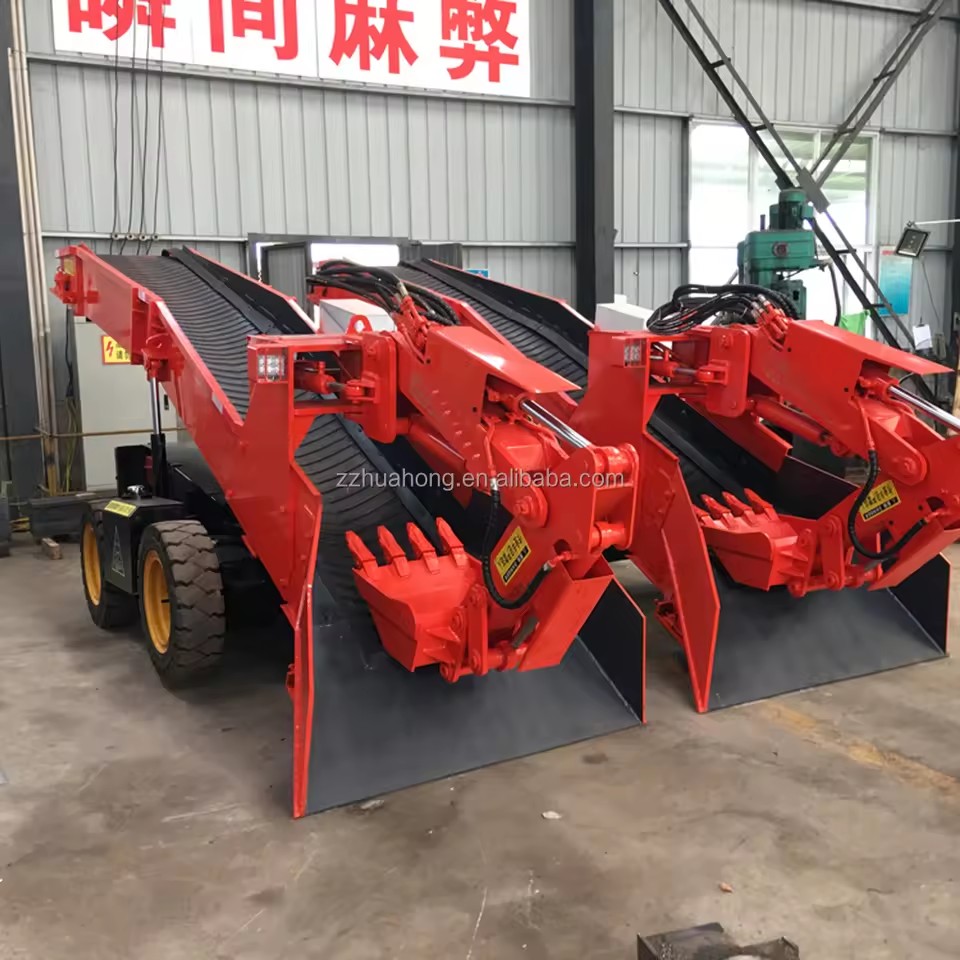

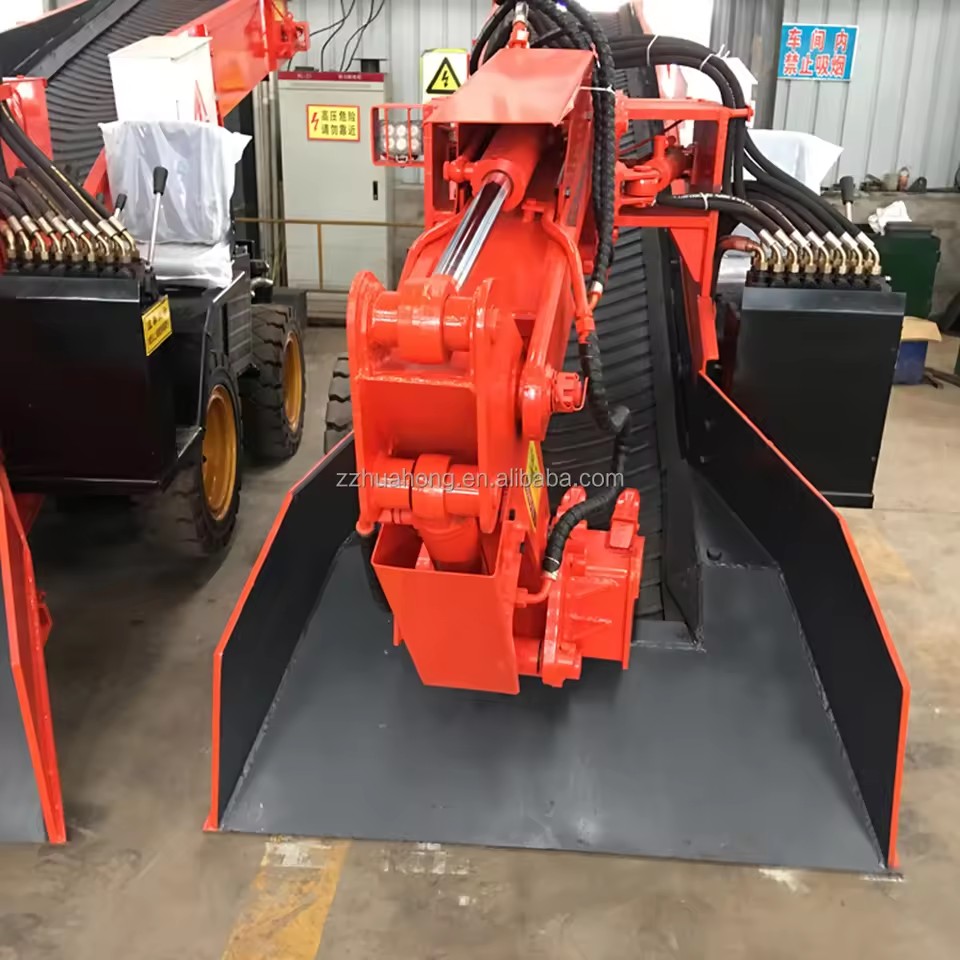

Working arm The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

Conveying belt It is made of high hardness material. The special design is to ensure the successful conveying of the rock.

Hydraulic system After many times updating, the whole design is advanced and top. The hydraulic system adopts famous brand at home and abroad, so it can ensure working stability. It is controlled by the secondary, equipped with imported hydraulic joystick.

Packaging Details

One set using nude packing,can be packaged according to customer requirements.20 GP can load ONE set,using complete delivery,have no any disassembly.If you purchase 40HQ (2 sets ) or more, you can have big discount.

Delivery

Under normal circumstances, 7 working days delivery.If you use

1. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.

2. We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.

3. We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.

4. Honesty and credit is our bussiness value, customer first.First-class quality and first-class service is the business life.

Thanks so much for you taking time to browse our product.

Any further questions, please feel free to
