Portable Mini Pneumatic Drive Rock Mine Drilling Rigs

Available for enquiry 0.0 · 0 reviews 1 sold
USD

$ 1,640.00 1640.0 USD $ 1,640.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Power Type
Electric
Voltage
380V
Warranty
1 Year
Place of origin
China, Henan
Product description

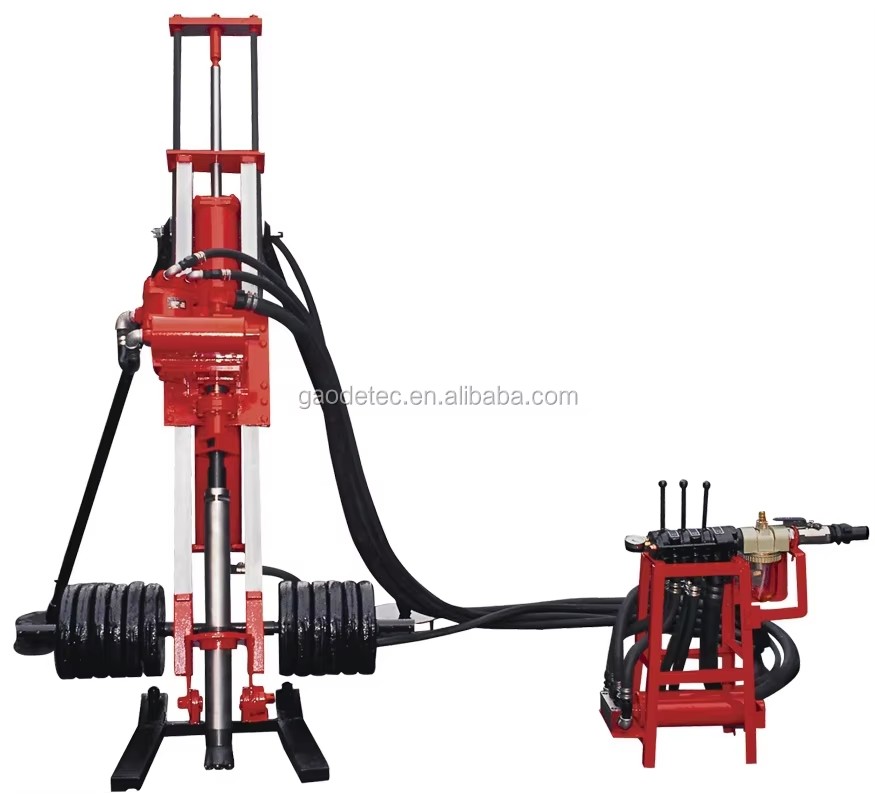

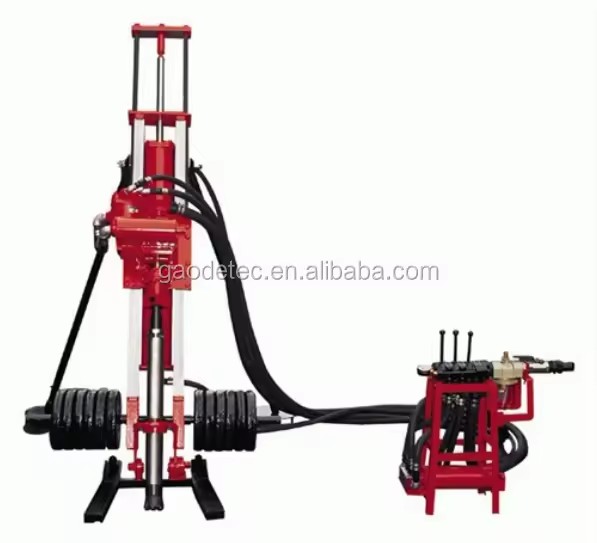

Portable Mini Pneumatic Drive Rock Mine Drilling Rigs

Description

Portable mini pneumatic rock mine drilling rig is u ltimate combination of performance and economy. The DTH system delivers the highest-possible drilling performance at low running cost. DTH rock drilling rig used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects, national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting. The rock mine drilling rigs can drill both horizontal and vertical, easy to install and disassemble in working site.

Technical Parameters

ModelGD100A
Bore Diameter80-130mm
Bore Depth≤30m
Rock Hardnessf=6-20
Pressure0.5-0.7Mpa
Air Consumption≥12m³/min
Rotating Speed0-93r/min

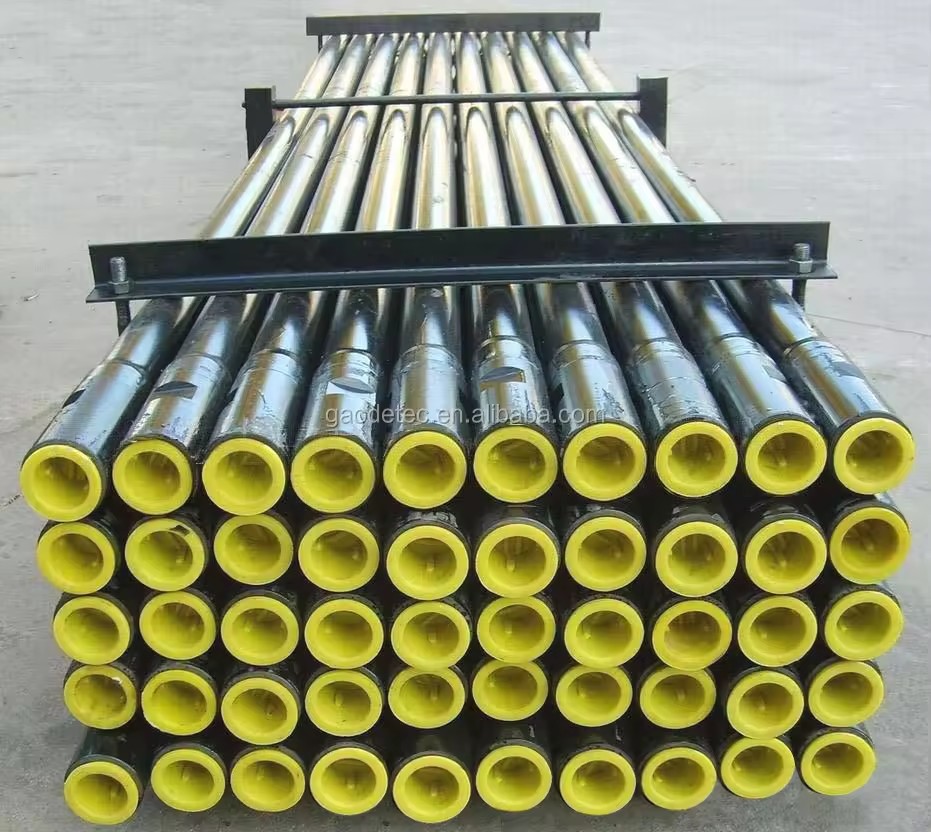

Drilling Rod60*1000mm
Max. Lifting Force9600 N

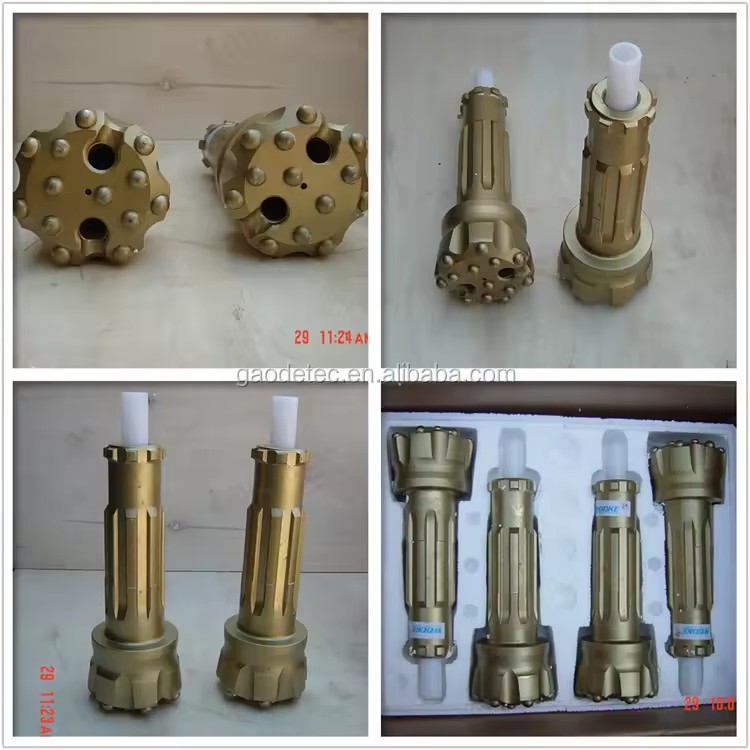

BitΦ90(76-100)

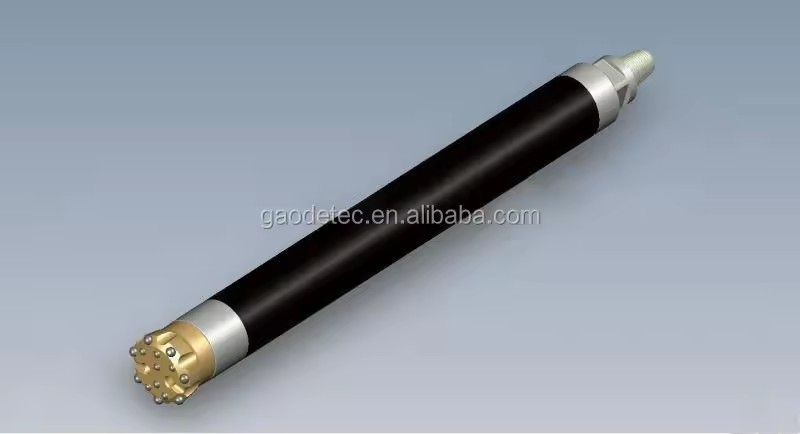

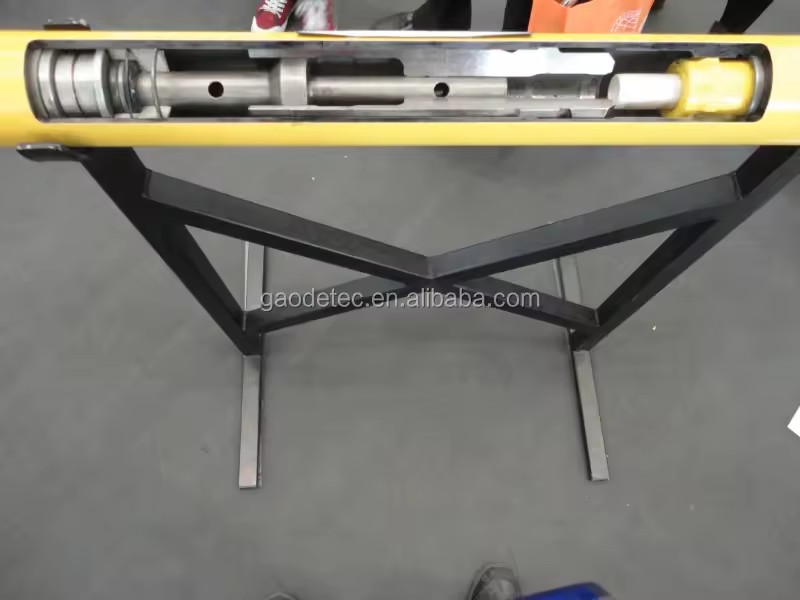

HammerQCZ90(QCW90)
Drilling ComponentsStandard (option)

We also have portable electric DTH drilling rig.

ModelHole Diameter (mm)Hole Depth (m)Rotating Speed (rpm)Working Pressure ( MPa )Rod φ (mm)Air Consumption (m 3 /min)Lift Force (N)Power (KW)
GD7060-80≥150-1250.5~0.740x1000≥3.540003
GD10080-100≥200-620.5~0.760x1000≥796004
GD100B80-100≥200-840.5~0.760x1000≥796004
GD12080-100≥200-620.5~0.760x1000≥996005.5
GD120B80-120≥200-780.7~1.060x1000≥996005.5
GD145B90-130≥500-600.7~1.476x1000≥12120007.5
GD150B90-130≥500-600.7~1.476x1500≥12120007.5
GD155B90-130≥500-600.7~1.476x1500≥12120007.5
GD165B90-150≥500-600.7~1.476x1500≥151200011
GD165Z90-160800-600.7~1.489×1500220-280120008.8
GD100A80-130≥200-930.5~0.760x1000≥129600Pneumactic

Main features

  • GD100A rock drilling machine is a highly adaptable full pneumatic rig
  • The propulsion, rotation and impact are all powered by compressed air, with simple structure, single power and convenient relocation.
  • Available in three single-tip, double-tip, and support-type support structures to accommodate any geological features.
  • The steering mechanism is concentrated and the operation is convenient and quick.
  • The unique double muffler has a good sound-absorbing effect and reduces environmental pollution.

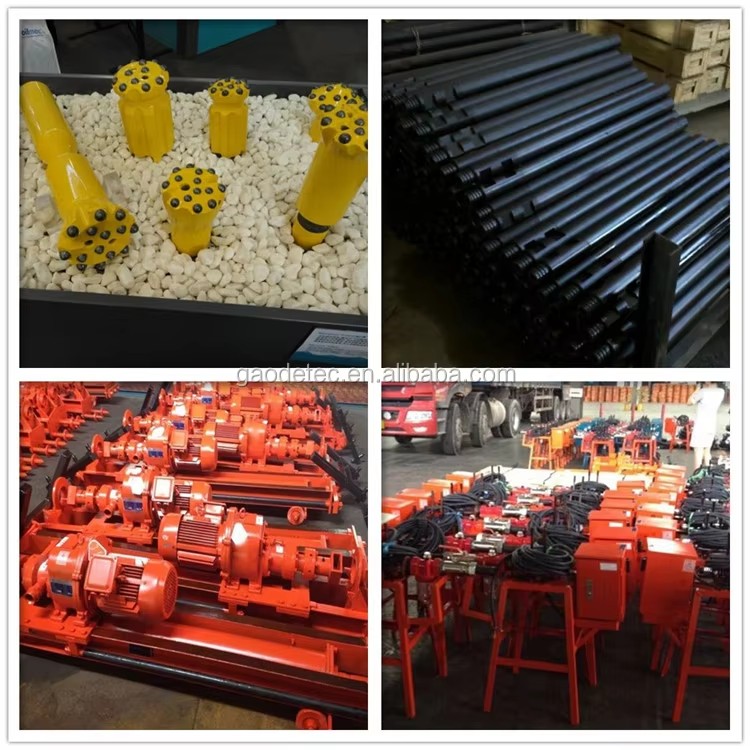

    • Detailed images

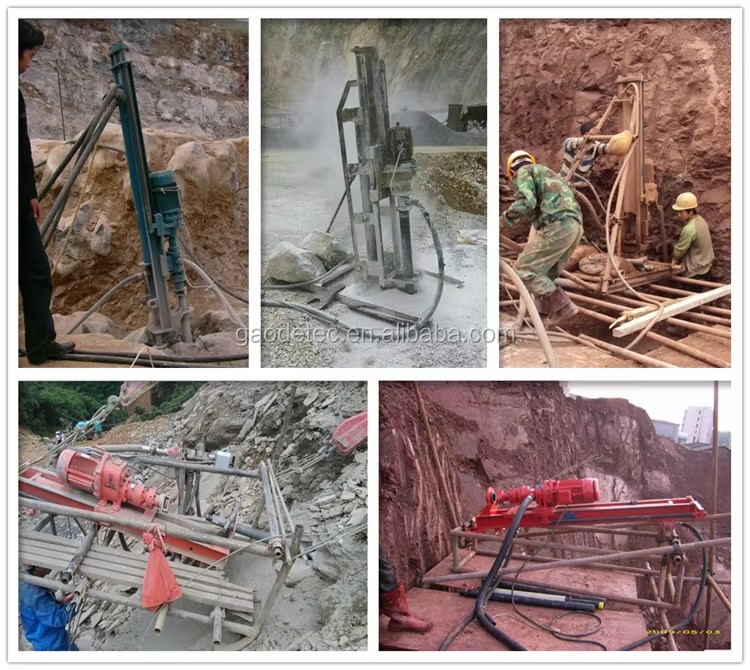

    Application

    The GD100A rock drill rig is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized mine, earth and rock engineering and so on.

    Pachaging

    In order to protect mini mine drilling rigs and avoid damage during transport, our rock drill rig adopts plwood box package. And we also provide customized package of our rotary drilling machine.

    Company

    Certifications & compliance
    CE
    Complies with EU standards
    Description images
    Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 29 fields
    Usage
    Ore
    Type
    Rotary Drilling Rig
    Power Type
    Electric
    Voltage
    380V
    Warranty
    1 Year
    Place of origin
    China, Henan
    Weight
    as per
    Dimension (L*W*H)
    as per
    After-sales Service Provided
    Video Technical Support, Online Support, Field maintenance and repair service, Field installation, commissioning and training
    Drilling Depth
    20-30m
    Drilling Diameter
    80-130mm
    Working Pressure(bar)
    0.5-0.7Mpa
    Air consumption
    ≥10m3/h
    Application
    Geological Exploration
    Color
    Customised
    Feature
    High Drilling Efficiency
    Name
    Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Keyword
    Mini Pneumatic Drive Rock Mine Drilling Rigs
    Certification
    iso ce
    Applicable Industries
    Construction works, Mini Pneumatic Drive Rock Mine Drilling Rigs
    Condition
    New
    Packaging Details
    portable drillig rig Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Port of dispatch
    Shanghai or other
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Supply Ability
    10000 sets per Month Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Model number
    GD100A Portable Mini Pneumatic Drive Rock Mine Drilling Rigs
    Certifications & Compliance
    CE
    Lead time
    15 days
    Minimum order
    1 Units
