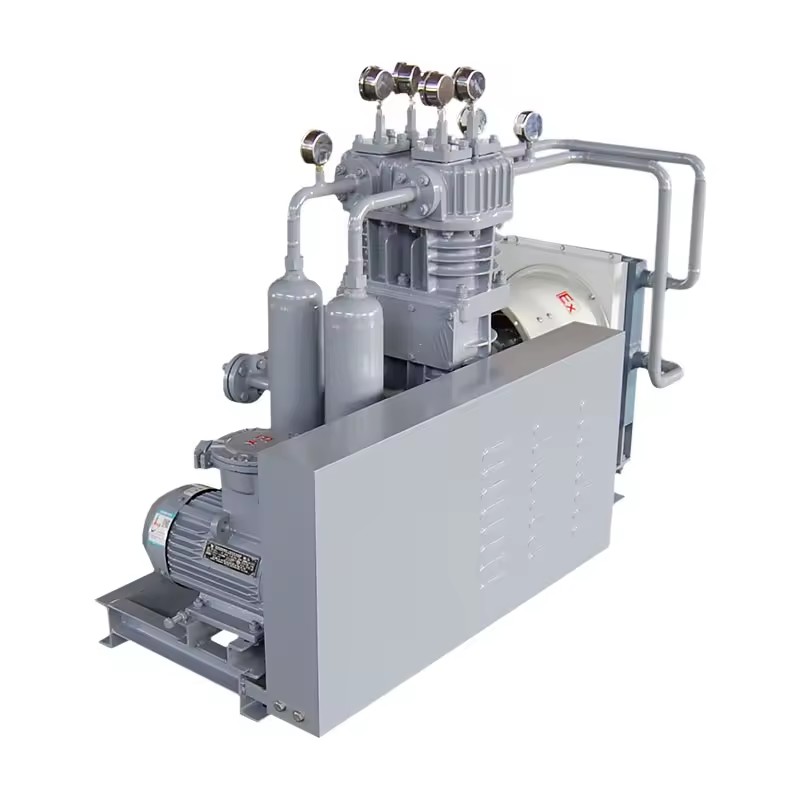

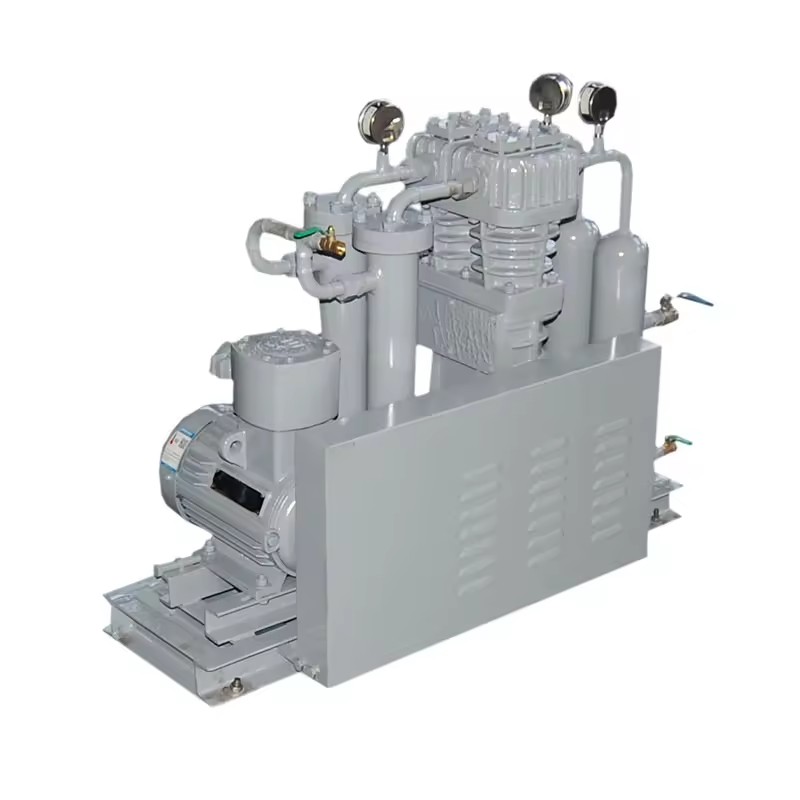

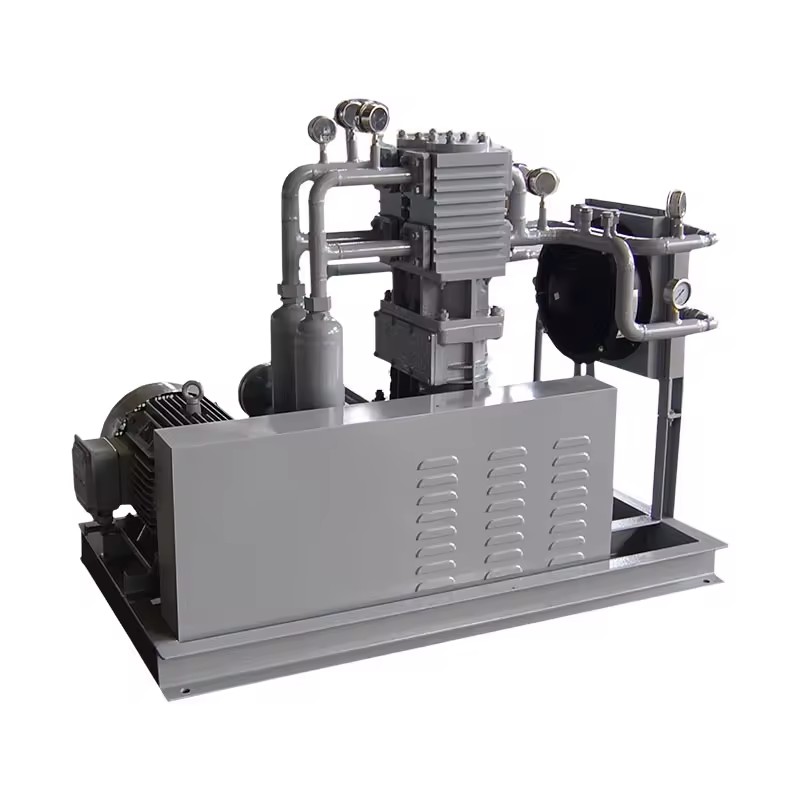

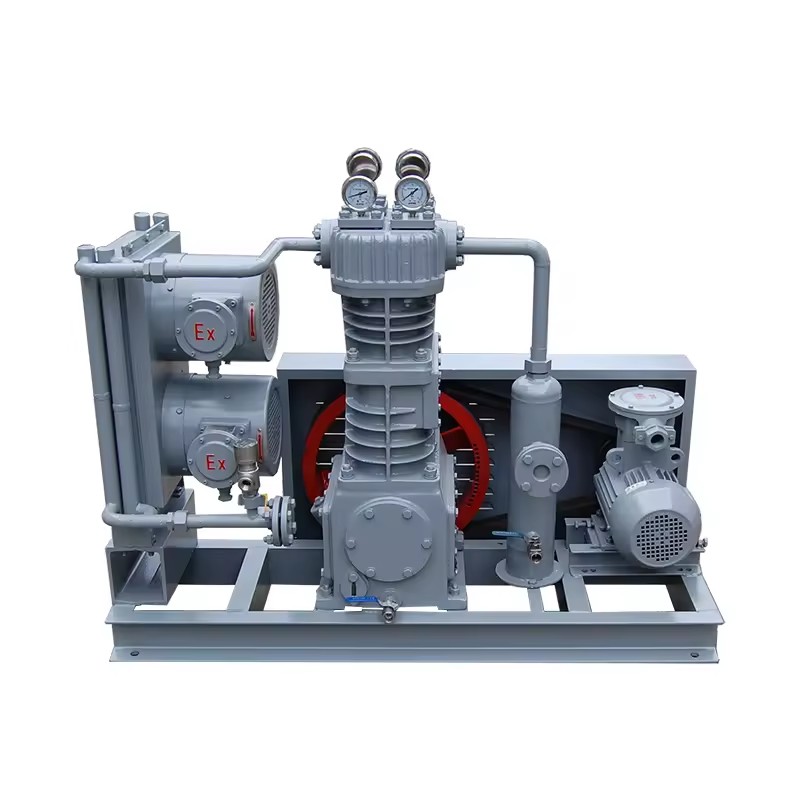

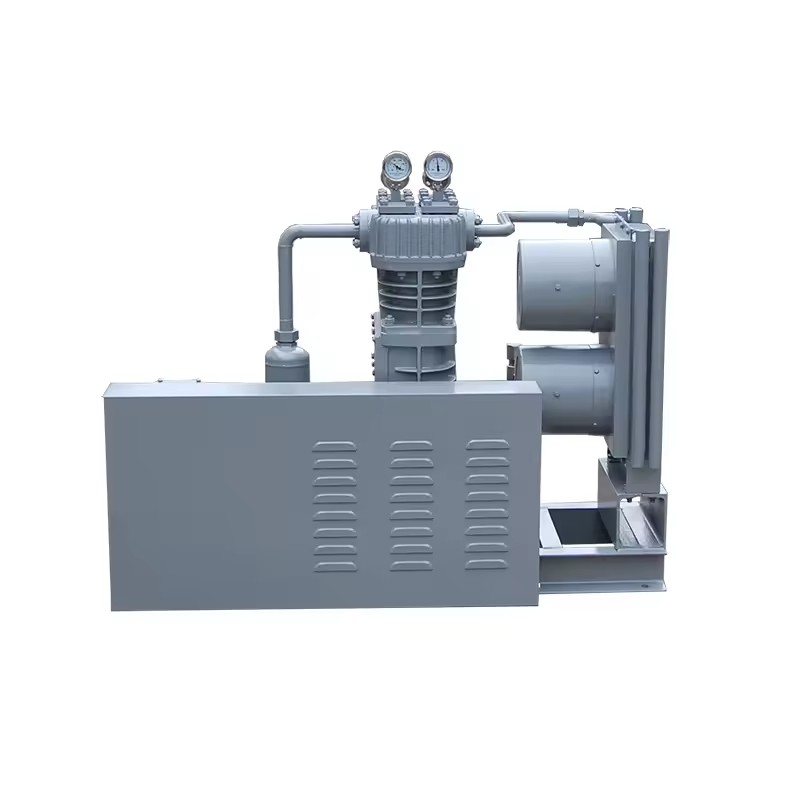

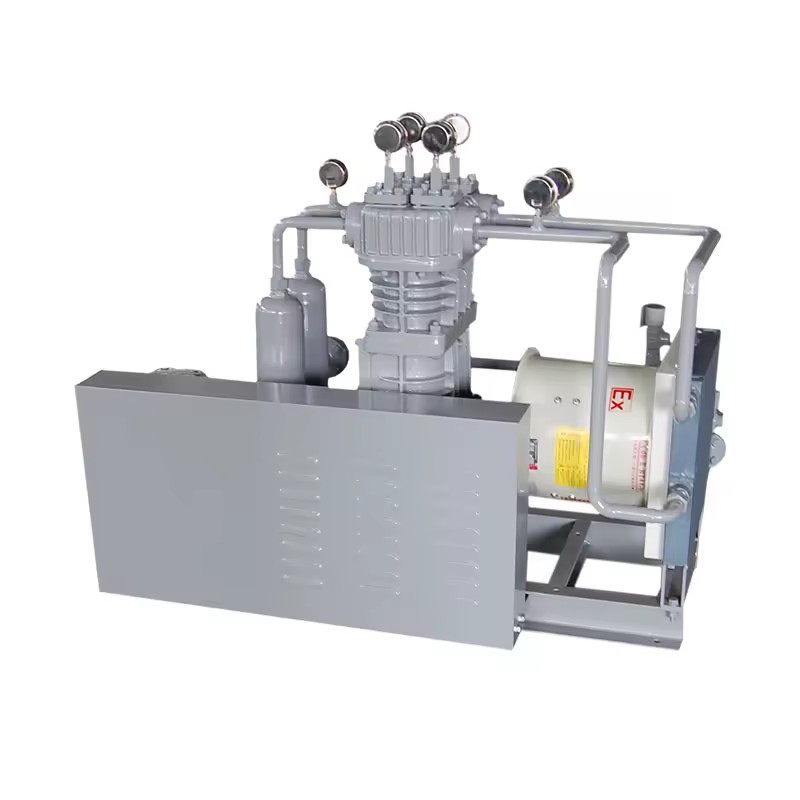

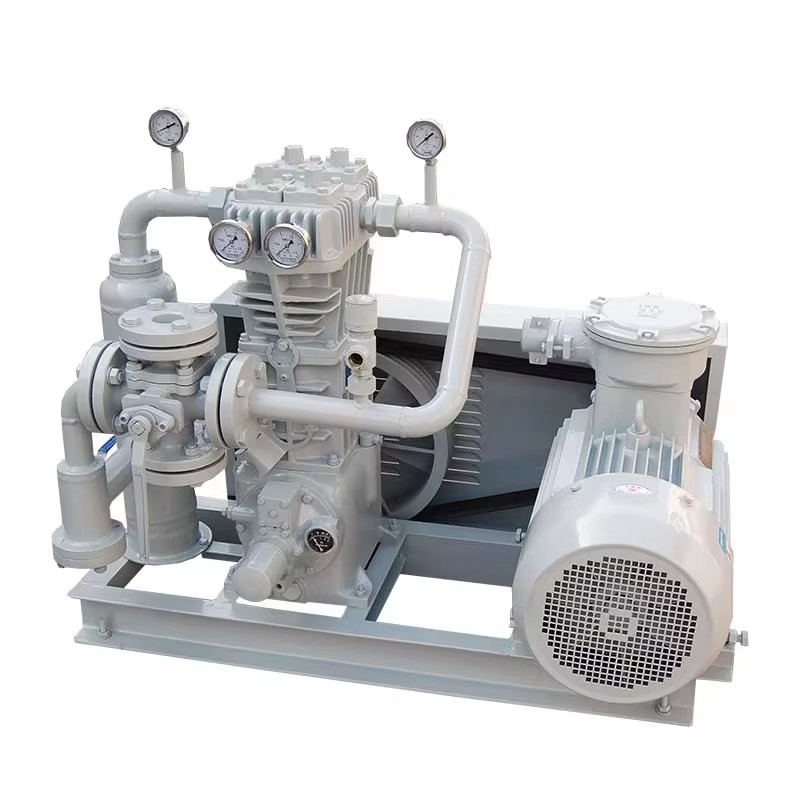

Name: Buy spare parts of coal gas compressor, gas valve packing, crosshead connecting rod, which is good for filling bottles?
SKU: B2B-51270
Price: 2410.0 USD
Availability: PreOrder

Product description

Product features: Oil-free lubrication is clean and pollution-free, can draw negative pressure, has high efficiency, low energy consumption and high reliability, and can run continuously for 24 hours. The unit is air-cooled or water-cooled to reduce the installation cost. Compact structure and low operation and maintenance cost.

Remarks: Recovery of residual gas from loading and unloading of liquefied gas station and tail gas from chemical plant, etc.

technical parameters

Compressor	Product Model	ZW-0.8/ ( 1~4 ) -16
Type	Z type
Compressed medium	coal gas
Standard volume flow (Nm³/min)	3.5
Compression stage	1
Cylinder number	2
driving mode	Belt
Noise (sound pressure level) dB(A)	≤ 75
Cooling mode	W ater cooling
Rotational speed (r/min)	550
Suction pressure( bar )	1~4
Discharge Pressure( bar )	16
Suction temperature (℃)	≤ 40
Discharge temperature (℃)	≤110 After cooling ≤ 40
Lubrication type	Crankshaft, connecting rod, cross head	Oil lubrication
Cylinder, Packing Cylinder, Packing	Oil-free lubrication
Motor	Model	YB X 3- 225S - 4
Explosion-proof grade	DIIBT4
The protection grades	IP55
Rotational speed (r/min)	1480
Rated voltage (V)	380
Frequency range(Hz)	50
Rated current (A)	35.3
Rated power (Kw)	18.5
Compressor size (L×W×H) mm	≈ 24 001 4 001 5 00
Weight (kg)	≈ 1500

No.	Name	Number	Note
1.	Compressor host	1
2.	Explosion-proof motor	1
3.	Gas-liquid separator	2 set
4.	The relief valve	2 set
5.	Shared chassis	1 set
6.	Belt	1 set
7.	Piping components	1 set
8.	Random spare parts	1 set
9.	The technical documentation	1 set
10.	water cooling system	2 set
11.	foundation bolt	1 set
12.	Explosion-proof control cabinet	1 set	Automatic alarm shutdown due to high intake pressure. Automatic alarm shutdown for low intake pressure. Automatic alarm shutdown for high exhaust pressure

Q2: Do you have your own R&D team? A2:Yes,we can customize products as your requirements

Q3: Do you provide free samples A3: Yes, Our MOQ is one 1 unit, As a sample.

Q4: How about the quality? A4: We have the best professional engineer and strict QA and QC system.

Q5: How's the package A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How's the delivery time? A6: It depends on the quantity you need, 1-25 days usually

Description images

Buy spare parts of coal gas compressor, gas valve packing, crosshead connecting rod, which is good for filling bottles?

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Piston

Gas type

Liquefied gas

Power source

AC Power

Lubrication style

Oil-Free

Cooling Method

Air Cooled

Configuration

Stationary

Voltage

380V/415V/220V/460V

Machinery test report

Not Available

Video outgoing-inspection

Provided

Mute

Warranty

2 Years

Core components

Bearing, Motor, Gear, Engine, Pump, Other

Weight (kg)

1000

Place of origin

Hong Kong S.A.R.

Dimension(L*W*H)

1600*900*1100

Air capacity

13000

Pressure

300bar/30Mpa

Warranty of core components

2 years

Weight

780

Selling Units

Single item

Single package size

100.00X80.00X100.00 cm

Single gross weight

280.0 kg

Working pressure (Product option)

8 bar(116.03psi), 10 Bar(145.04psi), 20 bar(290.08psi), 35 bar(507.63psi), 2 bar(29.01psi), 0.8 bar(11.60psi), 5 bar(72.52psi)

Power(W) (Product option)

1.5 kW(2.01hp), 7.5 KW(10.06hp), 2.2 kw(2.95hp), 15 kw(20.12hp), 11 kw(14.75hp), 90 kW(120.69hp), 250 kw(335.26hp), 110 kw(147.51hp), 15.7 kw(21.05hp)

Lead time

7 days

Minimum order

1 Units
