Api Welded Aluminium Alloy Casing Centralizers with Coating

Name: Api Welded Aluminium Alloy Casing Centralizers with Coating
SKU: BT5B-DGJG-WZ4F
Price: 40.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 40.00 40.0 USD $ 40.00

Minimum order quantity: 50 Units

Key attributes

View all

Warranty

1 Year

Core components

bow

Place of origin

China

Usage

Oilfield Drilling Equipment

Size

1-1/2"

Standard

API Spec

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Casing centralizer is one of the necessary conventional casing accessories, upon well operations completion, the rational use of casing centralizer can play the role of:Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position

Technical Parameter
Spring Casing Centralizer	Size(In)	OD(mm)	IN(mm)	Height(mm)	Max Start-up Force(N)	Min Reset Force(N)
20"	680	512	575	≤16725	≥8363
13-3/8"	455	342	560	≤10853	≥5427
9-5/8"*12-1/4"	335	248	560	≤7117	≥7117
7"	235	181	560	≤4626	≥4626
6-5/8"*8-3/4"	238	171	560	≤4270	≥4270
5-1/2”*8-1/2”	235	142	560	≤2758	≥2758

Rigid Centralizer	13-3/8"	437	344	180
9-5/8"*12-1/4"	305	248	120
7"	210	182	120
6-5/8"*8-3/4"	215	171	120
5-1/2"*8-1/2"	210	142	120

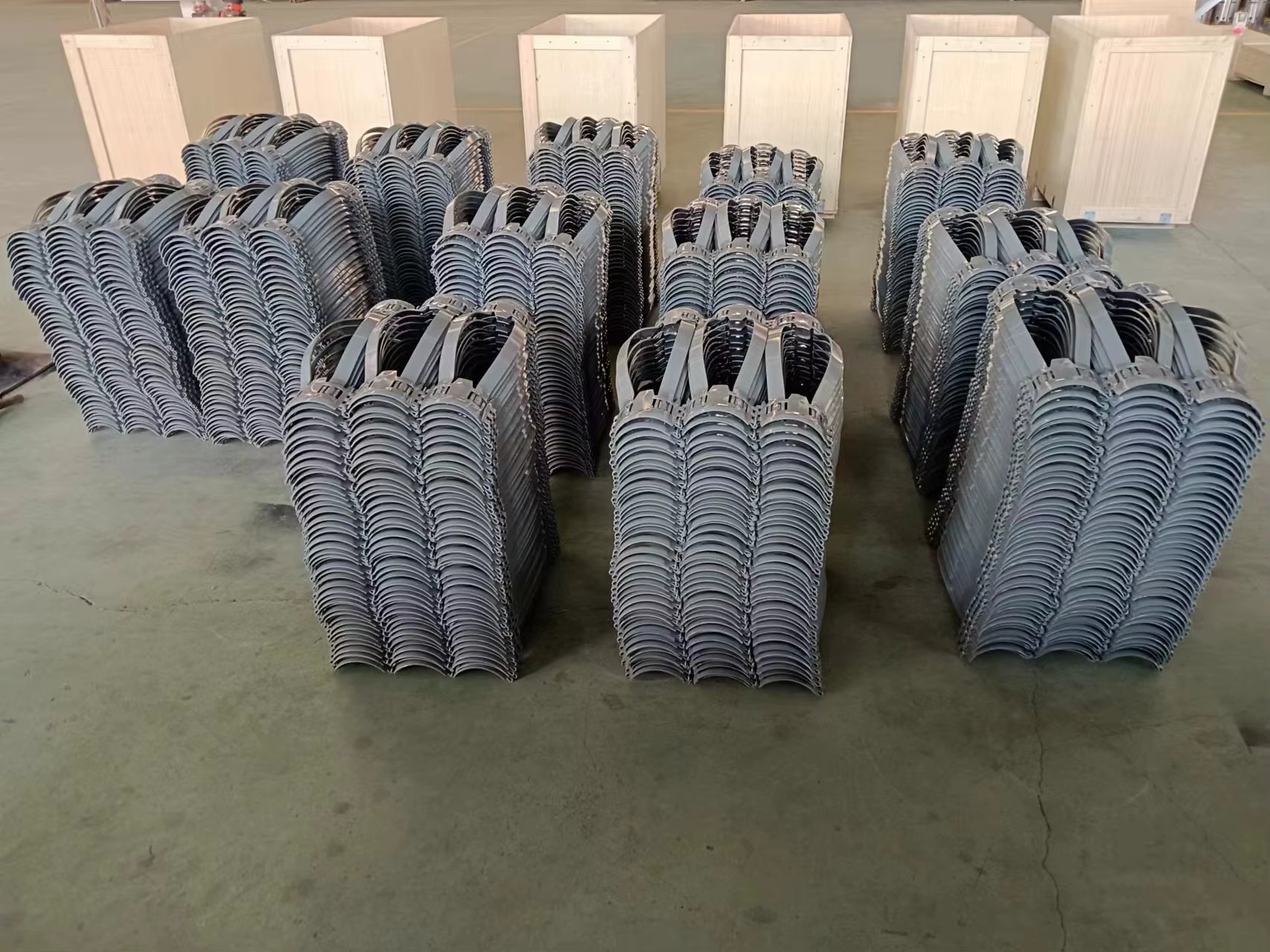

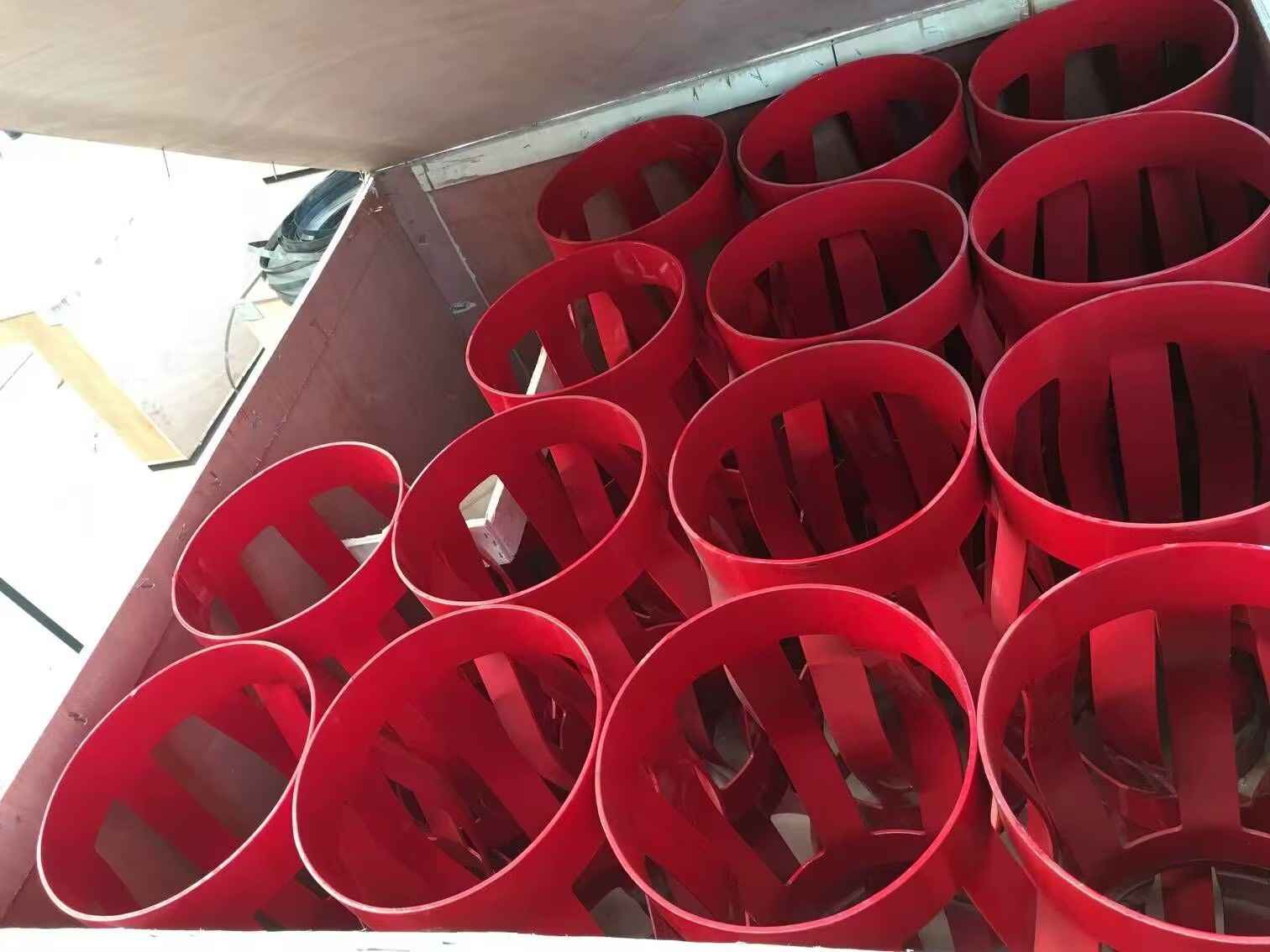

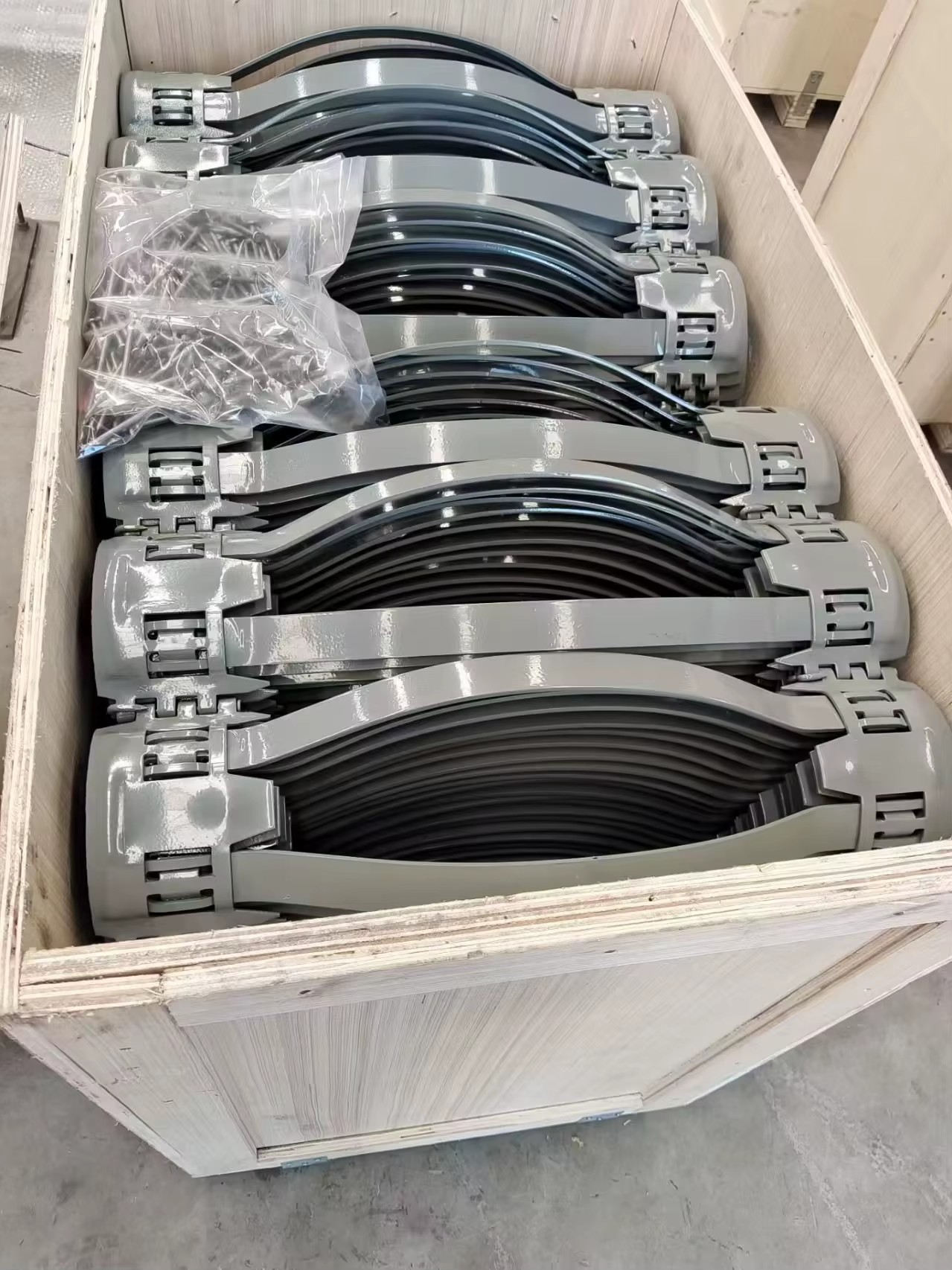

Bow-spring centralizer 1.These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical,Horizontal and Deviated well 2.Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant 3.Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

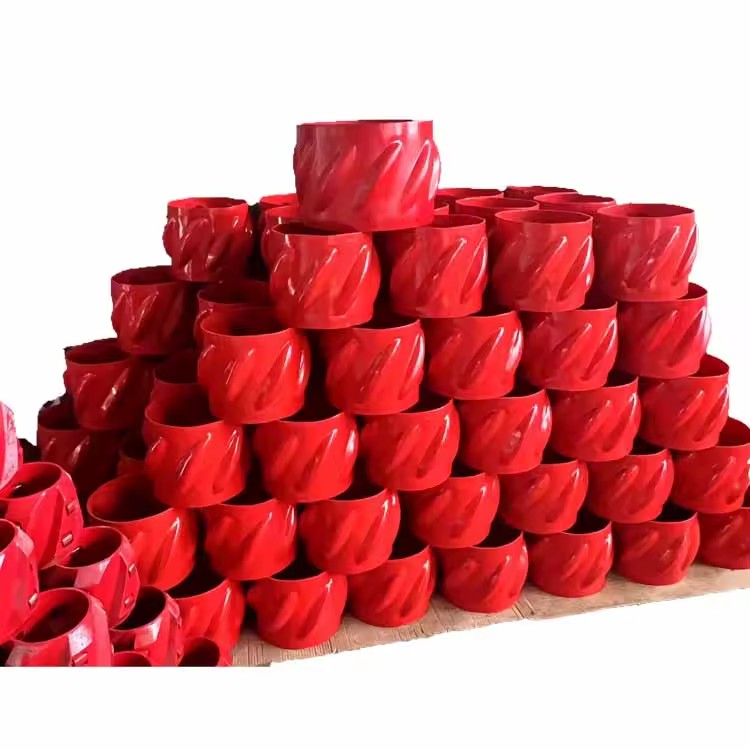

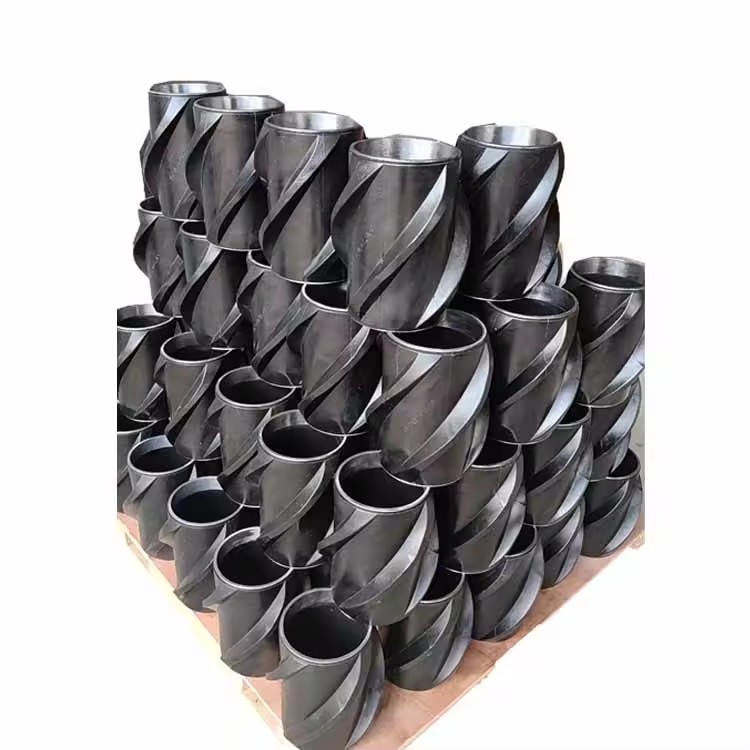

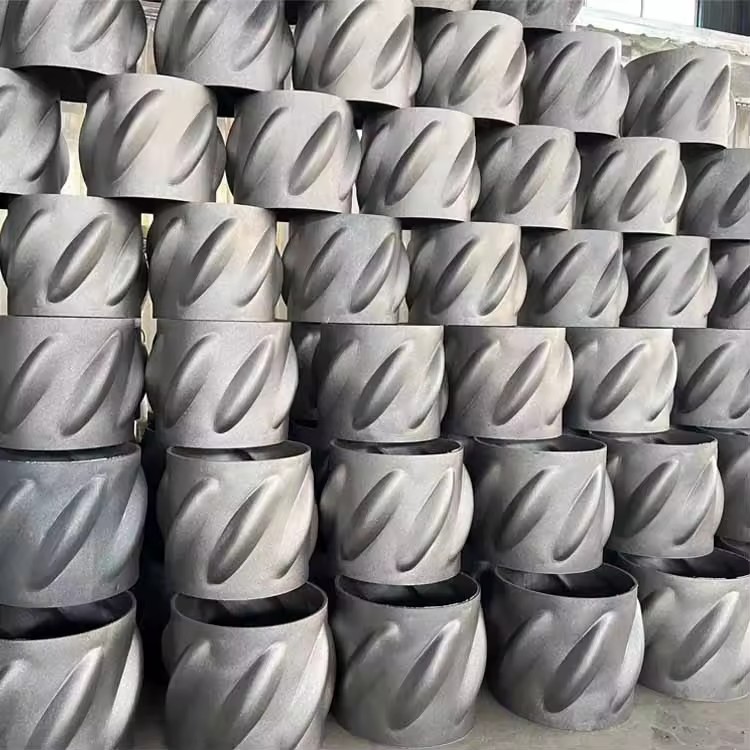

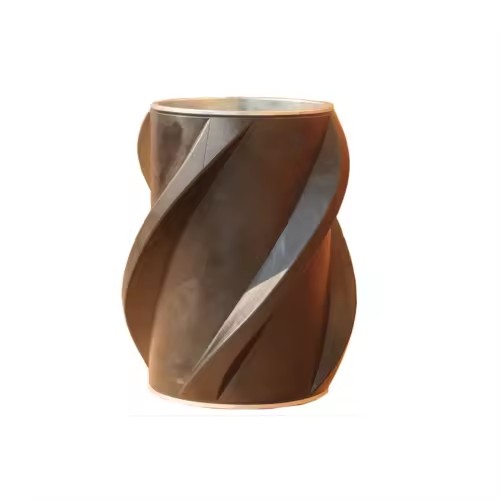

Rigid roller centralizer Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid roller centralizer that can keep casing from contacting the well bore wall

All products purchased in

Q

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance.

Tina Chen

E-maile

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 50 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 13 fields

Warranty

1 Year

Core components

bow

Place of origin

China

Usage

Oilfield Drilling Equipment

Size

1-1/2"

Standard

API Spec

After-sales Service Provided

Video Technical Support

Color

Customer Request

MOQ

50 Sets

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

11/2

Lead time

30 days

Minimum order

50 Units
