Commercial Air Cooled Condensing Unit
Bitzer Semi-Hermetic Compressor · R404A / R507A · Complete Plug-and-Install System for Cold Storage Rooms
1. Product Overview

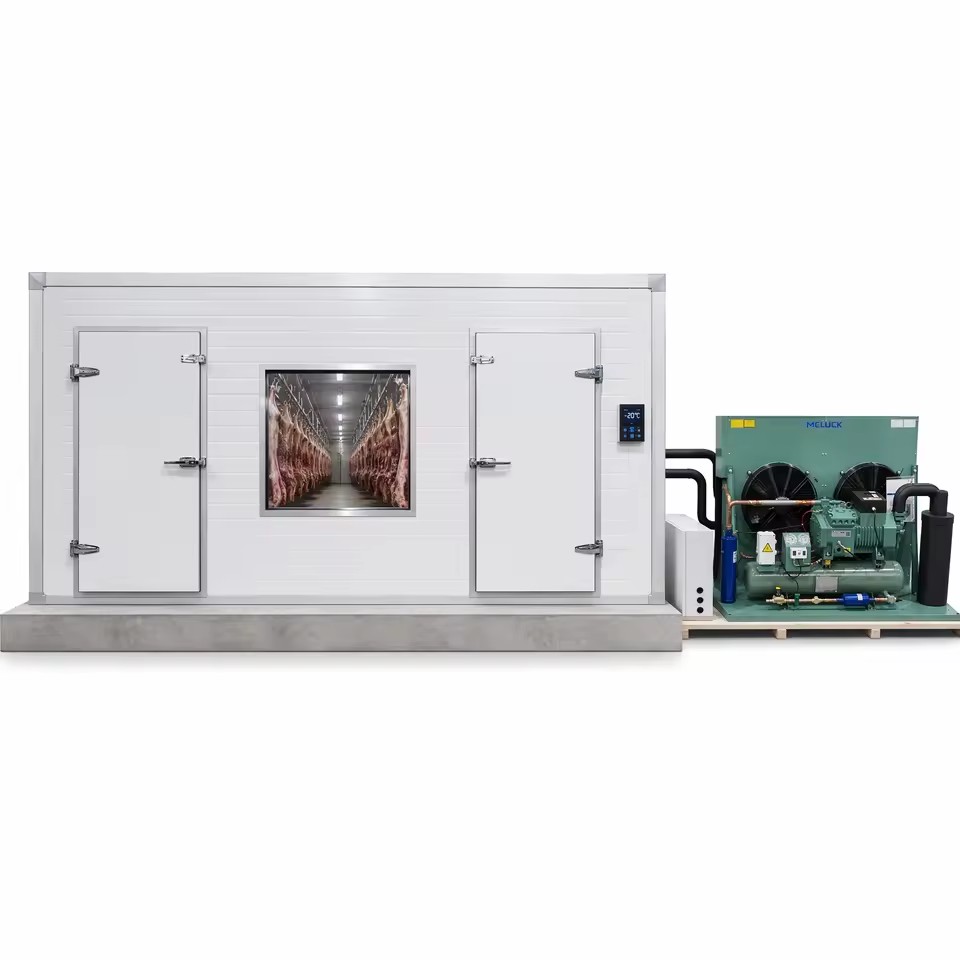

The JZBF series air cooled condensing unit integrates the compressor, condenser, receiver and full control system on a pre-assembled steel frame. Designed for 24/7 commercial cold storage operation, it delivers stable cooling for chiller rooms and freezers with minimal on-site work.
Compressor: Bitzer semi-hermetic piston, German-engineeredRefrigerant: R404A / R507ACooling capacity: 61.8 kWRoom temperature: -20°C ~ +8°C (chiller & freezer)Series range: JZBF02 – JZBF50 · 2 – 50 HP · 20 – 1000 m³Voltage: 220V / 380V / 440V · 50/60 Hz (customizable)Weight: 500 kg (this model)Color: Blue + Green (OEM colors available)2. Key Specifications
| Product Name | Commercial Air Cooled Condensing Unit (Cold Room Refrigeration) |
| Series | JZBF Series — Chiller Room & Freezer Room Models |
| Compressor Brand | Bitzer (Copeland / Frascold on request) |
| Compressor Type | Semi-hermetic piston (reciprocating) |
| Refrigerant | R404A / R507A |
| Cooling Capacity | 61.8 kW |
| Applicable Temperature | 20°C ~ +8°C (evaporating -25°C ~ +8°C) |
| Power Supply | 220V / 380V / 440V, 50Hz / 60Hz, customizable |
| Weight | 500 kg |
| Color | Blue + Green |
| Warranty | 1 Year (free replacement parts) |
| Certifications | CE · RoHS · ISO9001 |
| Place of Origin | Anhui |
| After-Sales Service | Overseas service center · Video technical support · 24/7 hotline |
3. Core Selling Points
Bitzer Semi-Hermetic Compressor — German-engineered quality core, built for continuous 24/7 operation in demanding cold storage environments. Low vibration, high reliability, easy field maintenance.Powerful Cooling Capacity — up to 61.8 kW; one unit powers cold rooms from 20 m³ to 200 m³ down to -25°C (33.5 kW typical), without supplementary cooling.CE Certified & Factory Tested — every unit passes pressure testing, vacuum testing and 48-hour run-in before shipment. CE certification ensures smooth customs clearance in Europe, Middle East and Southeast Asia.Smart Control Ready — digital control panel (POWER / COMP RUN / EVAP FAN / DEFROSTING / ALARM indicators). Supports remote monitoring and multi-unit cascade control.Complete System, Plug & Install — compressor, condenser, receiver tank, filter drier, sight glass, pressure gauges, solenoid valve and control panel pre-assembled on a steel frame. 50+ overseas installation technicians available.Factory Direct & OEM/ODM — direct factory pricing; full OEM/ODM capability for brand, colors and specifications.4. System Components — What's Included

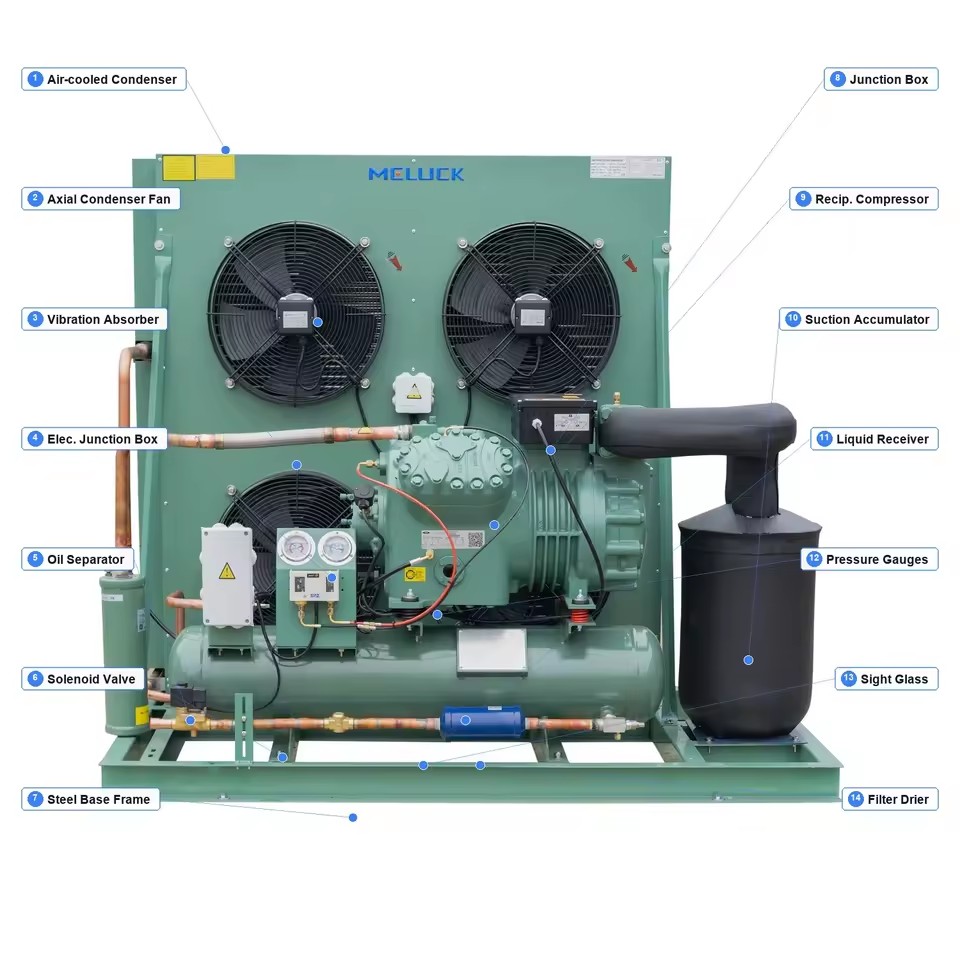

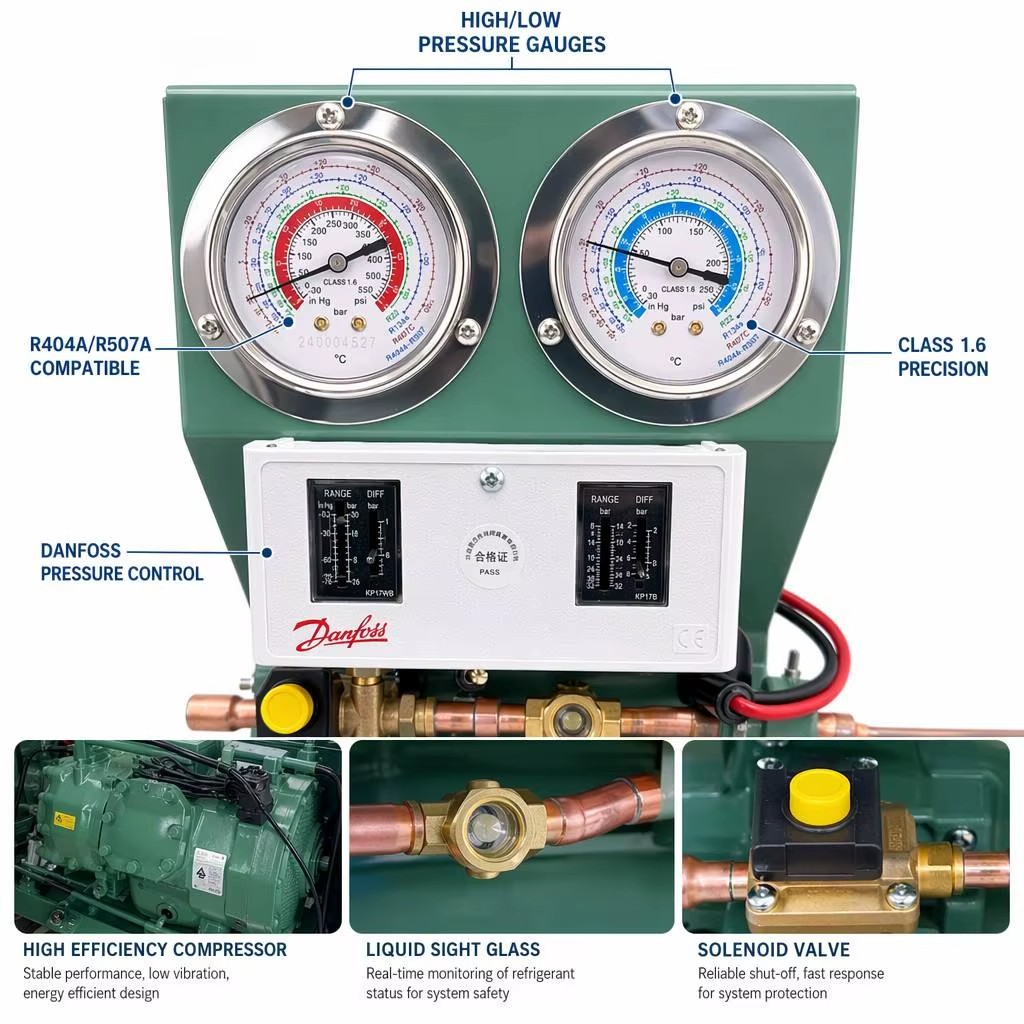

Bitzer compressor — semi-hermetic, oil sight glassAir cooled condenser — high-efficiency fin coil, dual fansLiquid receiver tank — with identification plateFilter drier — protects the refrigeration circuitSight glass — real-time refrigerant status monitoringHigh / low pressure gauges — class 1.6 precisionSolenoid valve — reliable shut-off, fast responsecontrol panel — digital display + status indicatorsSteel base frame — pre-assembled, ready to installChiller Room Series (-10°C ~ +5°C) — JZBF02MY – JZBF50MY

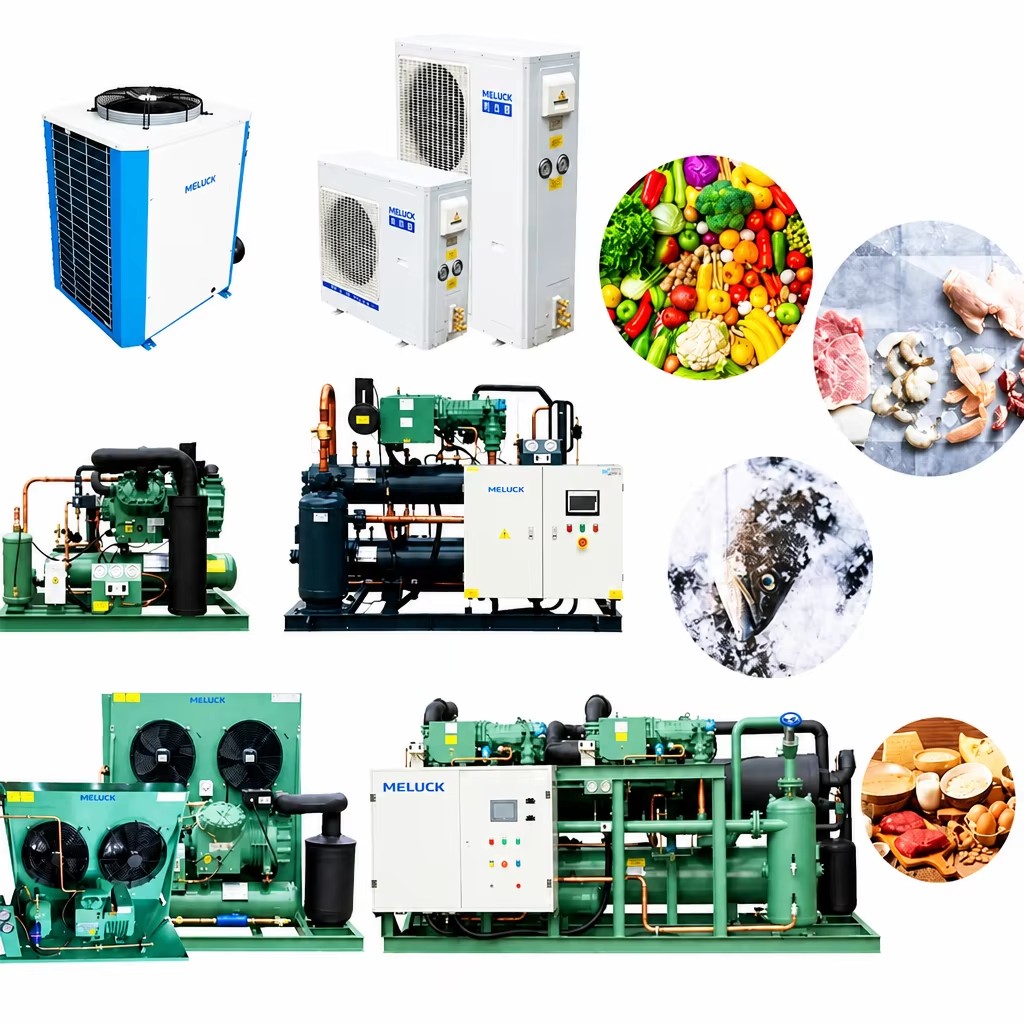

Fresh fruits & vegetablesDairy products & eggsBeverages & packaged foodFlowers & pharmaceutical goodsFreezer Room Series (-15°C ~ -30°C) — JZBF02L – JZBF44L
Meat, poultry & seafoodFrozen food & ice creamQuick-freezing & blast storageCold chain logistics hubs6. Model Selection — JZBF Series
33 standard models cover cold rooms from 20 m³ to 1000 m³. Custom configurations available on request — our engineers will run a free cooling load calculation for your exact room.
Chiller Room Series (-10°C ~ +5°C)
| No. | Model | Compressor | HP | Volume (m³) | Input Power (kW) | Fans |
|---|
| 1 | JZBF02MY | 2GES-2Y | 2 | 30 | 1.81 | 1 |
| 2 | JZBF02MY | 2FES-3Y | 3 | 50 | 2.25 | 1 |
| 3 | JZBF03MY | 2EES-3Y | 3 | 65 | 2.56 | 2 |
| 4 | JZBF03MY | 2DES-3Y | 3 | 85 | 3.13 | 2 |
| 5 | JZBF04MY | 2CES-4Y | 4 | 100 | 3.84 | 2 |
| 6 | JZBF05MY | 4FES-5Y | 5 | 125 | 4.17 | 2 |
| 7 | JZBF06MY | 4EES-6Y | 6 | 150 | 5.34 | 2 |
| 8 | JZBF07MY | 4DES-7Y | 7 | 175 | 6.30 | 2 |
| 9 | JZBF09MY | 4CES-9Y | 9 | 200 | 7.51 | 2 |
| 10 | JZBF12MY | 4TES-12Y | 12 | 300 | 9.28 | 4 |
| 11 | JZBF15MY | 4PES-15Y | 15 | 350 | 10.27 | 4 |
| 12 | JZBF20MY | 4NES-20Y | 20 | 450 | 12.48 | 4 |
| 13 | JZBF25MY | 4HE-25Y | 25 | 500 | 16.89 | 2 |
| 14 | JZBF30MY | 4GE-30Y | 30 | 600 | 20.10 | 2 |
| 15 | JZBF35MY | 4FE-35Y | 35 | 800 | 23.90 | 3 |
| 16 | JZBF40MY | 6GE-40Y | 40 | 900 | 30.10 | 3 |
| 17 | JZBF50MY | 6FE-50Y | 50 | 1000 | 36.00 | 3 |
Freezer Room Series (-15°C ~ -30°C)
| No. | Model | Compressor | HP | Volume (m³) | Input Power (kW) | Fans |
|---|
| 1 | JZBF02L | 2FES-2Y | 2 | 20 | 1.64 | 1 |
| 2 | JZBF02L | 2EES-2Y | 2 | 20 | 1.79 | 1 |
| 3 | JZBF02L | 2DES-2Y | 2 | 20 | 2.14 | 1 |
| 4 | JZBF03L | 2CES-3Y | 3 | 30 | 2.76 | 2 |
| 5 | JZBF03L | 4FES-3Y | 3 | 40 | 3.06 | 2 |
| 6 | JZBF04L | 4EES-4Y | 4 | 50 | 3.84 | 2 |
| 7 | JZBF05L | 4DES-5Y | 5 | 65 | 4.41 | 2 |
| 8 | JZBF06L | 4CES-6Y | 6 | 85 | 5.36 | 2 |
| 9 | JZBF09L | 4YES-9Y | 9 | 100 | 6.35 | 2 |
| 10 | JZBF12L | 4PES-12Y | 12 | 125 | 6.88 | 2 |
| 11 | JZBF14L | 4NES-14Y | 14 | 150 | 8.58 | 4 |
| 12 | JZBF18L | 4HE-18Y | 18 | 250 | 12.00 | 4 |
| 13 | JZBF23L | 4GE-23Y | 23 | 300 | 14.27 | 4 |
| 14 | JZBF28L | 4FE-28Y | 28 | 400 | 17.13 | 4 |
| 15 | JZBF34L | 6GE-34Y | 34 | 450 | 21.80 | 2 |
| 16 | JZBF44L | 6FE-44Y | 44 | 600 | 26.20 | 2 |

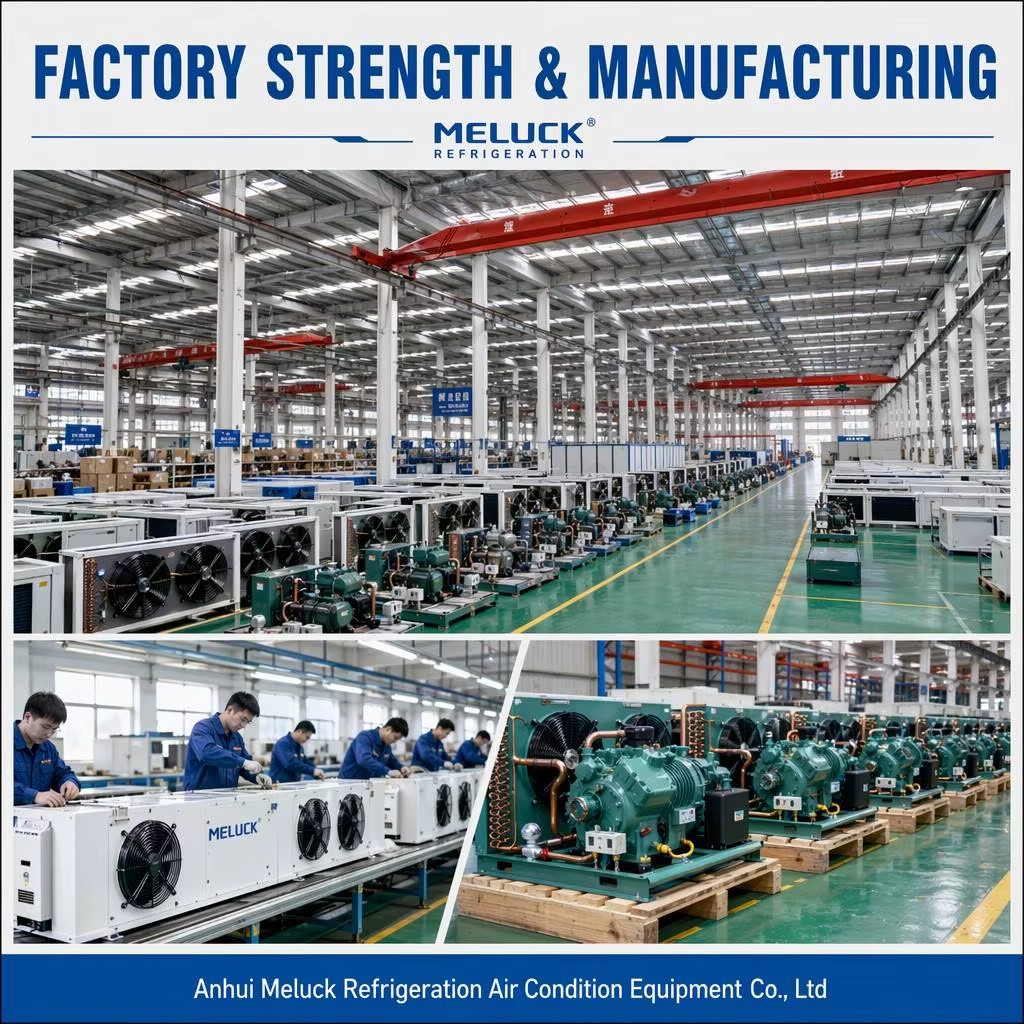

7. Factory Strength
34+ years of expertise — leading manufacturer of industrial refrigeration equipment since 199255,165 m² modern production facility418 skilled employees, including 24 dedicated QC inspectors5,000+ projects delivered to 50+ countries≥89% on-time delivery rateCNC punching, automatic welding and helium leak detection production linesISO9001 quality management system · CE & RoHS certifiedPressure test + vacuum test + 48-hour run-in before shipmentVideo outgoing inspection provided with every order1-year full warranty with free replacement parts · spare parts availability for 5+ years24/7 video-call technical support, wiring diagrams and installation manuals8. Packaging & Delivery

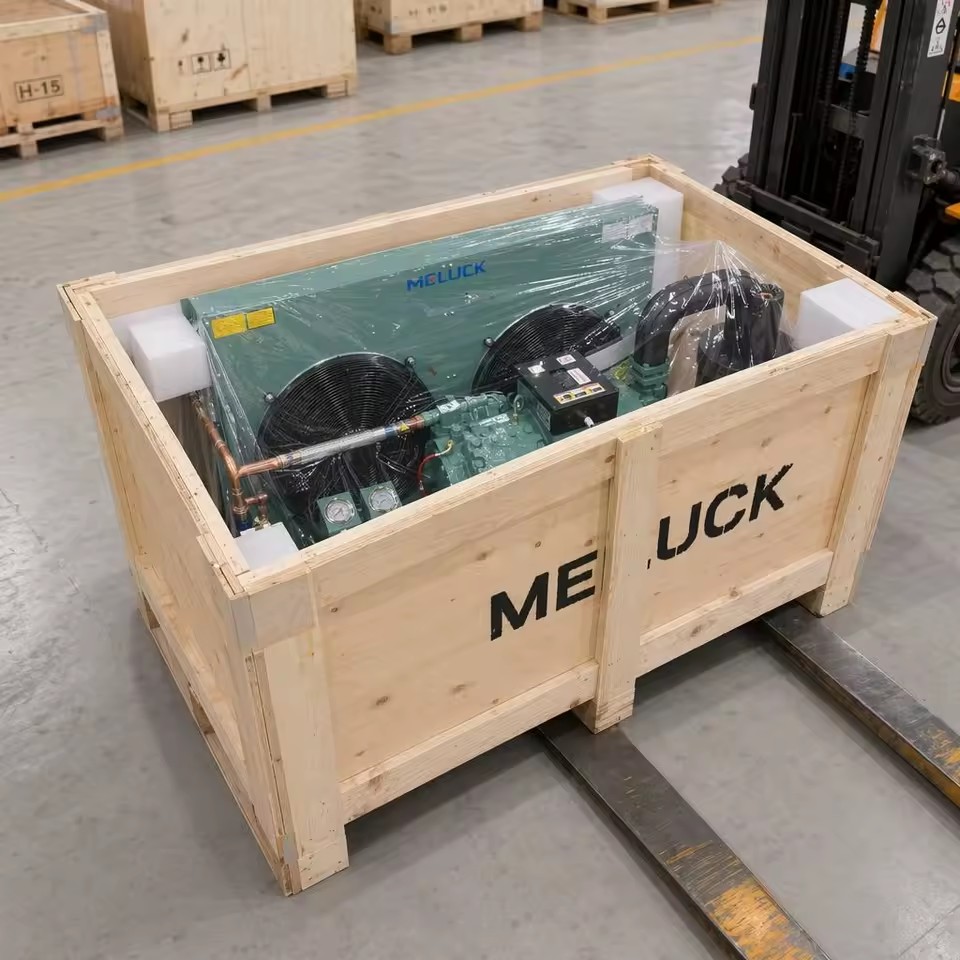

Packing: sturdy wooden crate with foam cushioning, export-readyMOQ: 1 setLead time: 35 days (1 – 10 sets); > 10 sets: to be negotiatedShipping: ocean freight available (e.g. Maersk), worldwide deliveryInspection: video outgoing inspection provided before shipment9. FAQ (Frequently Asked Questions)
Q: Can you customize the voltage for my country? A: Yes — we provide 220V / 380V / 440V at both 50Hz and 60Hz to match your local power grid (e.g.,, Africa).
A: Yes — we provide 220V / 380V / 440V at both 50Hz and 60Hz to match your local power grid (e.g.,, Africa).
Q: Which compressor brand is used? Can I choose Copeland instead? A: Standard configuration uses a genuine Bitzer semi-hermetic compressor. Upon request we can also supply Copeland (Emerson) scroll, Frascold or other brands — tell us your preference and budget when inquiring.
A: Standard configuration uses a genuine Bitzer semi-hermetic compressor. Upon request we can also supply Copeland (Emerson) scroll, Frascold or other brands — tell us your preference and budget when inquiring.
Q: What temperature range can this unit achieve? A: Evaporating temperatures from -25°C to +8°C, corresponding to cold room temperatures from about -20°C (freezer) to +5°C (chiller). For ultra-low temperature applications below -30°C, we provide two-stage or cascade systems.
A: Evaporating temperatures from -25°C to +8°C, corresponding to cold room temperatures from about -20°C (freezer) to +5°C (chiller). For ultra-low temperature applications below -30°C, we provide two-stage or cascade systems.
Q: Do you provide installation services? A: Every order comes with a detailed English installation manual and wiring diagram. We also provide 24/7 video-call technical support during commissioning.
A: Every order comes with a detailed English installation manual and wiring diagram. We also provide 24/7 video-call technical support during commissioning.
Q: How long is the warranty? A: 12 months for the whole system, with long-term spare parts availability for 5+ years.
A: 12 months for the whole system, with long-term spare parts availability for 5+ years.
10. Get Your Custom Quote Today
Send us an inquiry and receive within 24 hours
Free professional cooling load calculation tailored to your cold room dimensionsRecommended condensing unit model with detailed quotationDimensional drawing & installation layoutReference project list in your region
