Coconut Shell Charcoal Making Machine Wood Biomass Briquette Machines

Main Features of charcoal carbonizing machine

The new environmentally friendly horizontal carbonization furnace adds a flue gas recovery device on top of the original carbonization furnace. After flue gas recovery, it can achieve dust-free and smokeless conditions. The recovered flue gas can be ignited like liquefied gas, used for heating, cooking, and drying machines.

The new environmentally friendly carbonization furnace has the function of one machine for both purposes, and the materials can also be directly carbonized, or the rods can be made first and then carbonized

1. The carbonization furnace adopts a horizontal manufacturing process. The carbonization furnace has a total of three parts structure, and there is a lightweight high-temperature insulation material in the middle of the interlayer, which can always maintain the temperature inside the furnace without emitting

2. The furnace door is sealed with high-temperature rock wool using boiler packing, which will not introduce any air and has a much higher carbon output rate than conventional carbonization furnaces

3. The reason why it is called an environmentally friendly carbonization furnace is because wooden rods produce a lot of light yellow combustible gases during the carbonization process. These gases can be diverted to the combustion area of the carbonization furnace through the pipes provided by the furnace itself for secondary heating, which is more environmentally friendly and fuel saving

4. The excess gas from the carbonization furnace can be used for drying sawdust or burning boilers

5. After the carbonization furnace is completed, the cooling time for charcoal burning is shorter, and the gap in the interlayer is used to cool the carbonization furnace naturally with water, which is faster and more convenient

6. The environmentally friendly airflow carbonization furnace is equipped with tracks and kiln cars, making it more convenient to use and reducing labor intensity for workers

The customer's purchase of this carbonization furnace truly achieves simple operation, low labor intensity, convenient carbon loading and discharging, greatly reduced cooling time, and significantly increased production of the carbonization furnac

Parameters of charcoal cooking furnace

Install of carbonization furnaces

Firstly, find a flat piece of land for the carbonization furnace and place it. Open the furnace door and put in the raw materials that need to be carbonized. Try to fill the furnace as solid as possible. Next, use wood to ignite the bottom. When the temperature gauge inside the furnace rises to 150-200 degrees, the gas will be discharged from the inside of the furnace. The gas will enter the combustion part through the furnace's own pipeline and ignite spontaneously; After a 5-hour carbonization process, when the internal combustible gas is exhausted, the flame will become smaller and smaller until the fire is extinguished. The carbonization is completed, and the next step is to use the furnace's own spraying system to add some water appropriately (or wait for the furnace surface temperature to drop below 50 degrees Celsius) to directly open the furnace door and discharge carbon. Note: Do not open the furnace door to discharge carbon until the temperature drops below 50 degrees Celsius without adding water, otherwise the carbonized raw materials in the furnace will self ignite due to high temperature

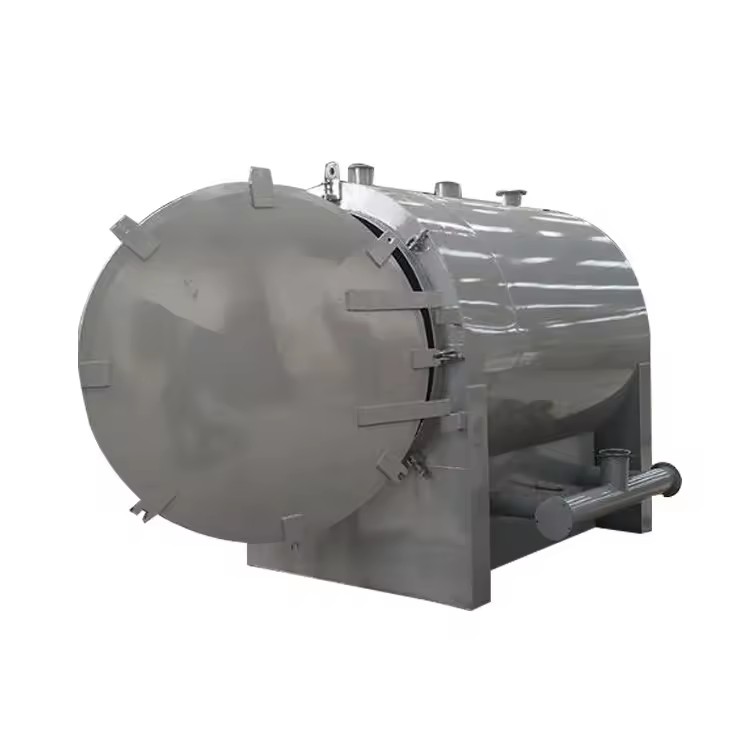

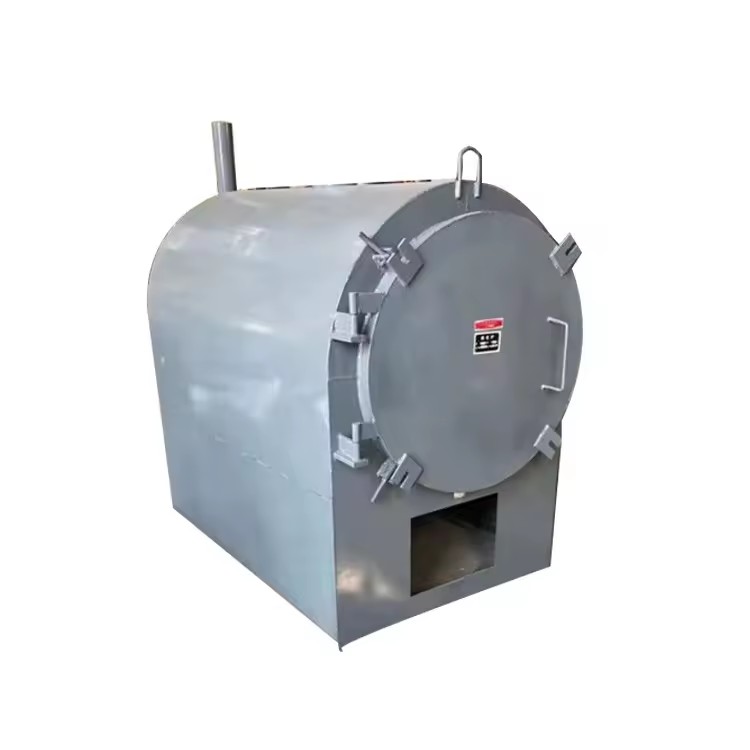

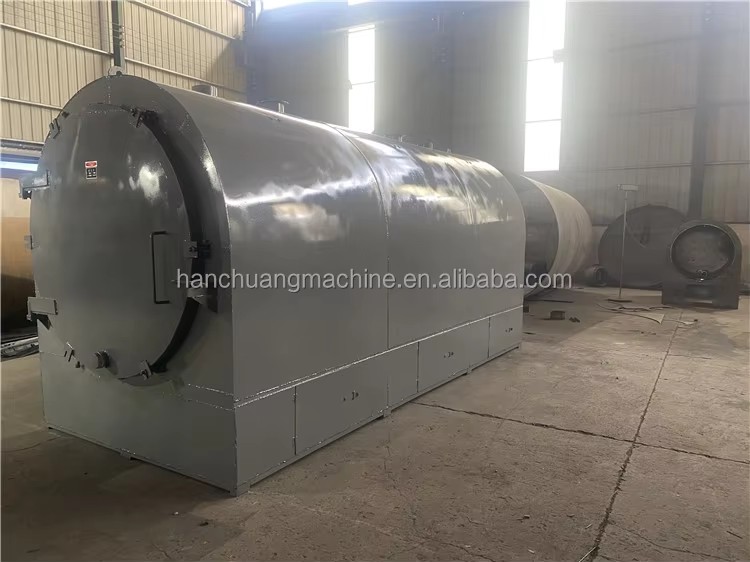

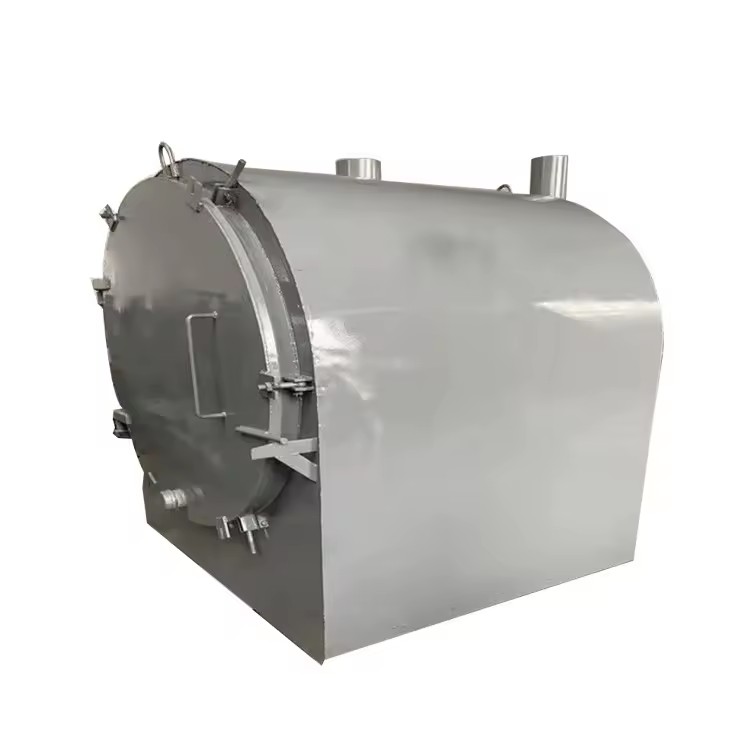

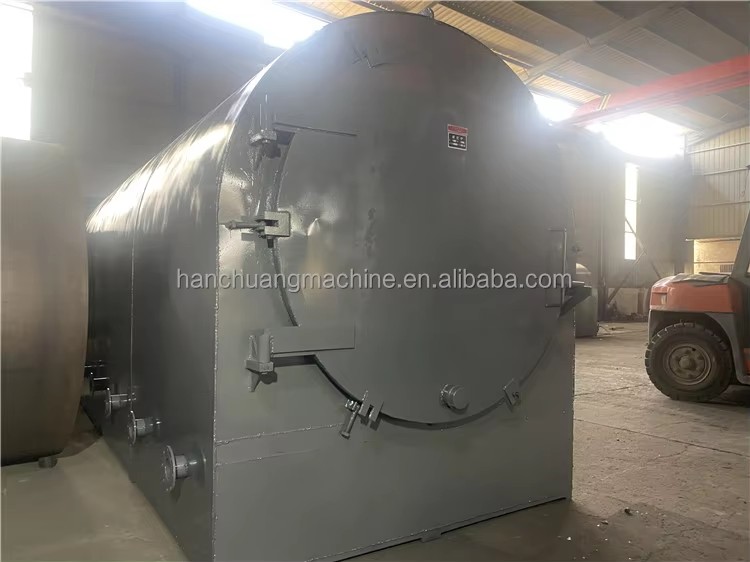

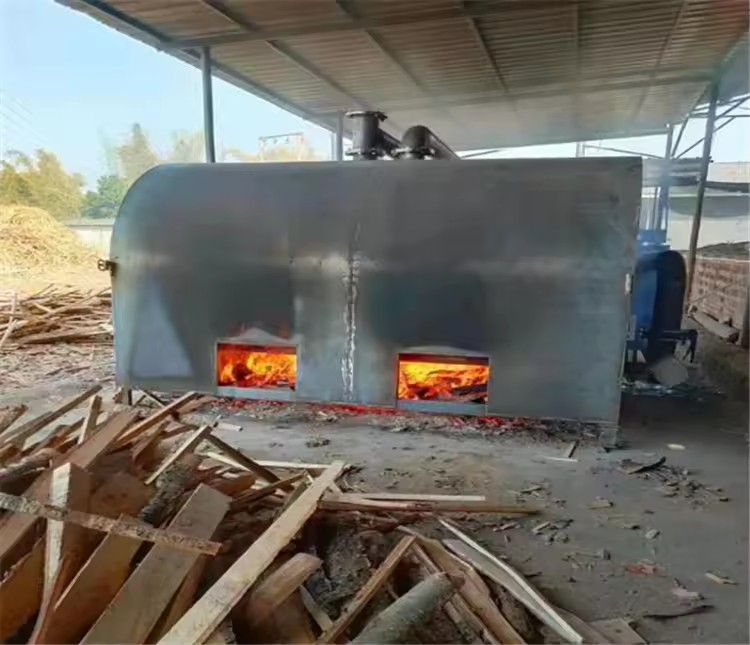

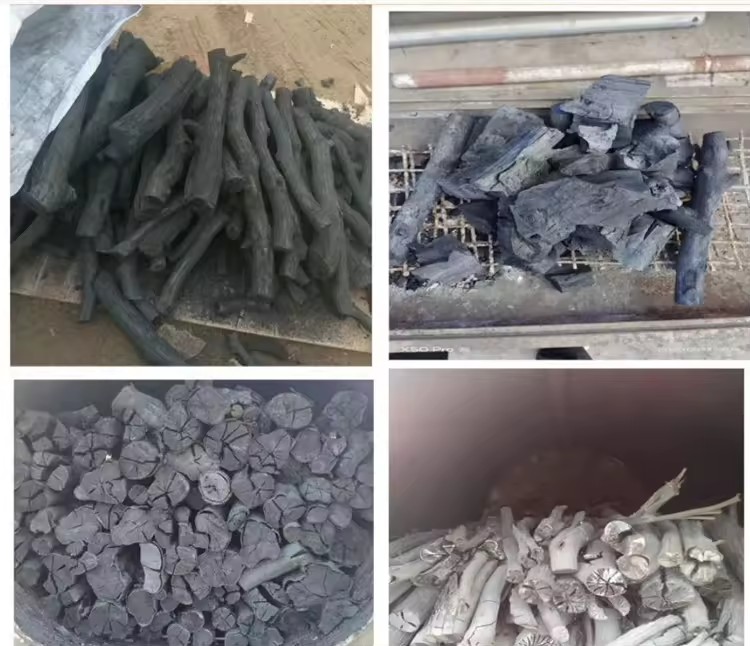

Pictures of wood charcoal carbonization furnace

1. Testing Machine before package

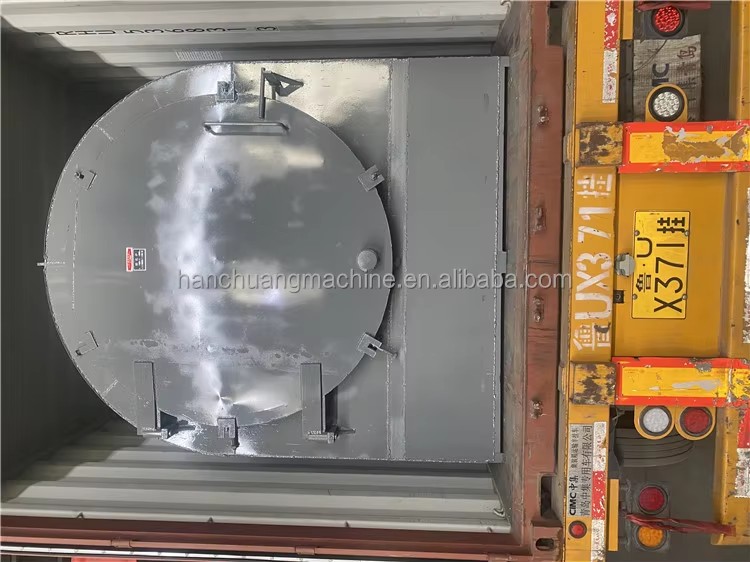

2. Package: Inside plastic bag, outside wooden case.

3. Shipping: By sea, By air.

By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.

By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.

Pre-sale service 1.Related machines’s technical parameter will be supplied to customer. 2.According to customer’s factory size, factory layout can be provided in advance.

3. According to customer’s material cost, general formulation can be prepared well. 4.Special machine can be supplied as customer’s request. 5.Professional Advice about Market, machines, processing, materials, packing can be supplied 6. Suggesting professional ship agent or helping book ship as customer request.

After sale service
