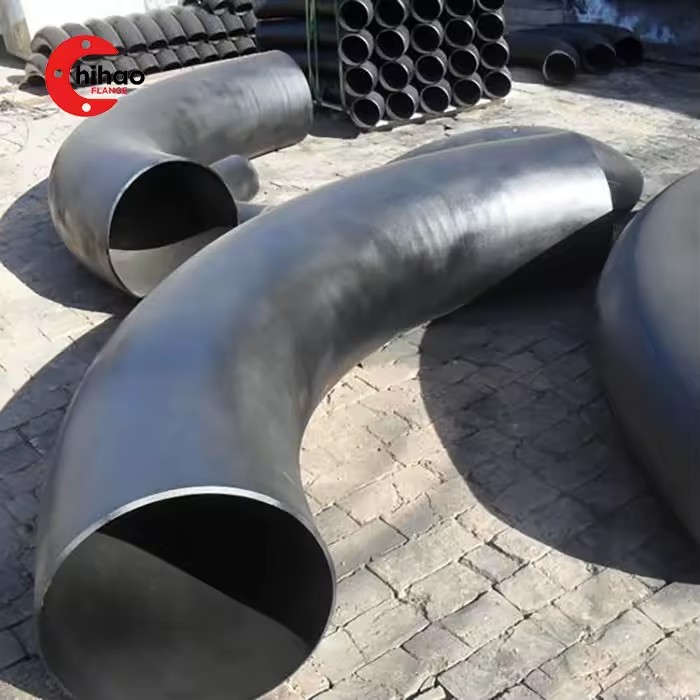

Name: ASTM A234 WPB Carbon Steel 45°/90° 2D 3D 5D 10D BW Elbow ASME B16.9 XS 10" Black Painted for Refinery Process Pipeline System
SKU: B2B-68198
Price: 20.0 USD
Availability: PreOrder

Product description

Highlights at a glance

High Load-Bearing: Supports heavy industrial and mining applications.

Sturdy Construction: Robust casting ensures durability.

Wide Compatibility: Fits various sizes from DN15 to DN1000.

Precision Engineering: Precision welding ensures leak-tight connections.

Customizable Options: Available in OEM and ODM configurations.

Frequently asked questions

Our standard production range covers NPS 1/2" to 48" (DN15-DN1200). Wall thickness options include SCH 10, SCH 40, SCH 80, XS, XXS, as well as customized thicknesses.

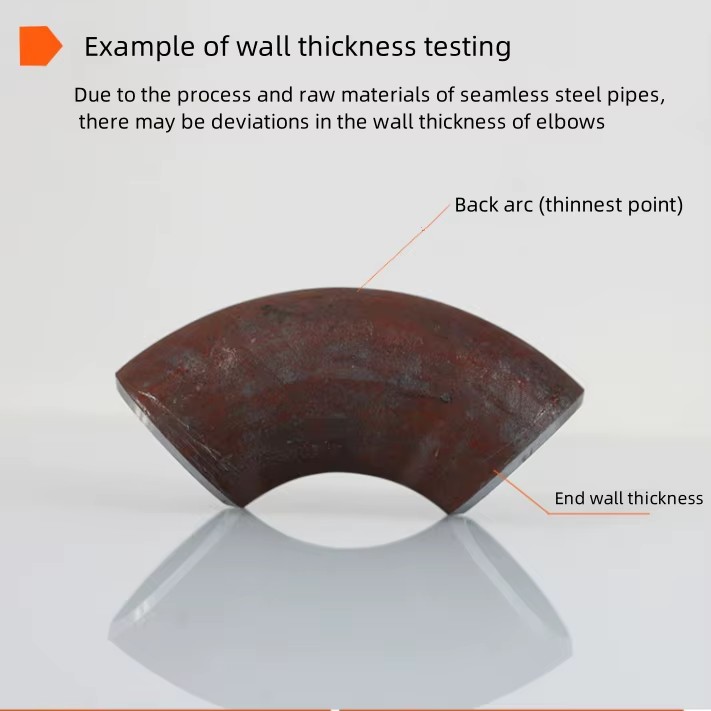

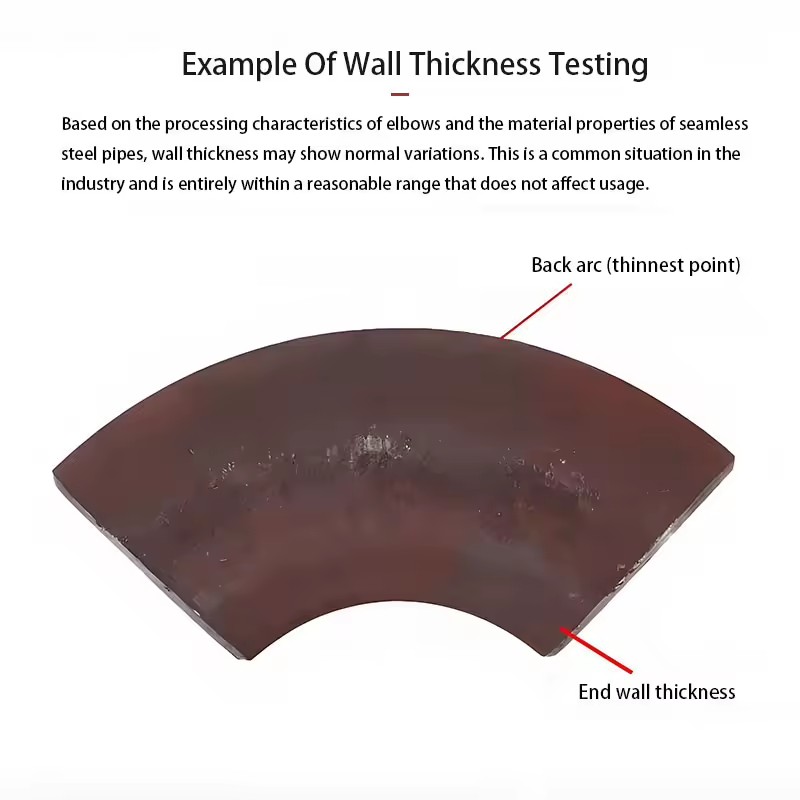

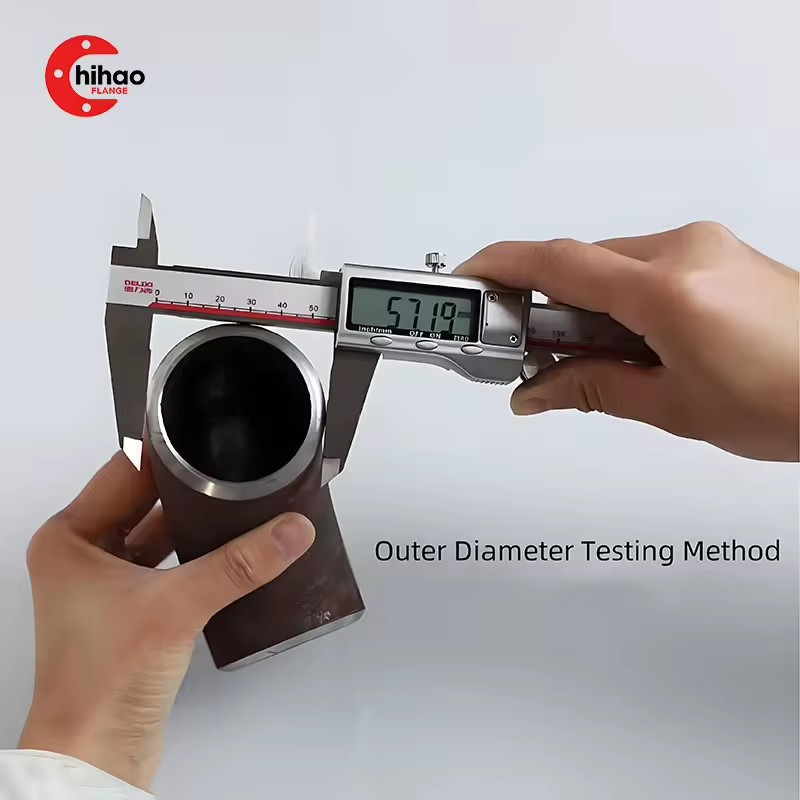

All elbows are produced under strict quality control procedures and inspected according to ASME B16.9 tolerances, including checks on angle accuracy, ovality, and wall thickness.

Our pipe elbows are manufactured in accordance with ASME B16.9 and relevant ASTM material standards. For the Russian market, elbows can also be supplied according to GOST 17375 / GOST 17376, based on customer requirements.

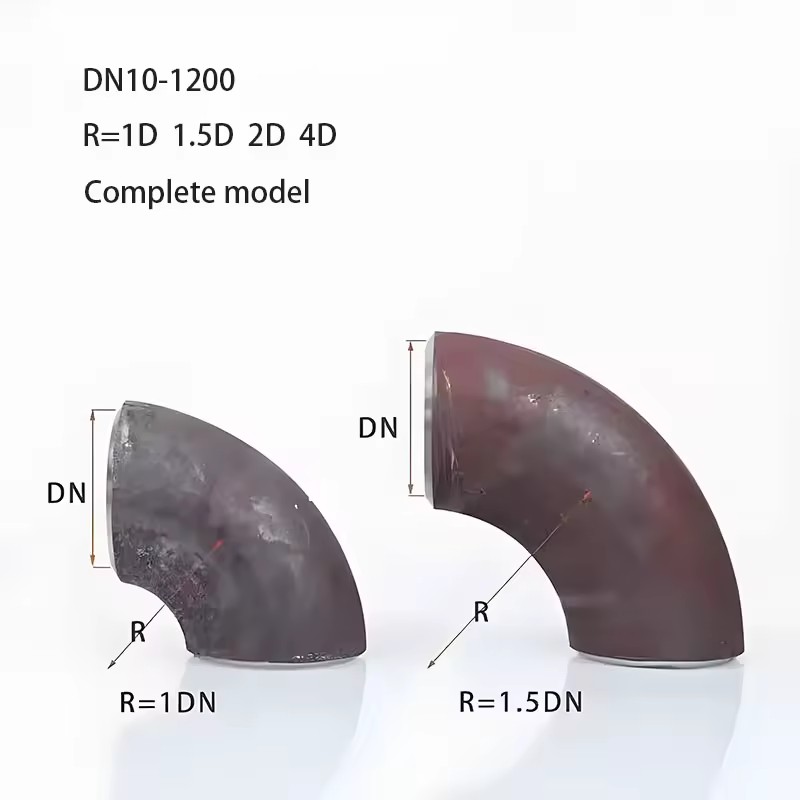

We supply a full range of pipe elbows, including: Angles: 45°, 90°, and 180° Radius: Long Radius (LR) and Short Radius (SR) Custom angles and special bending requirements can be produced upon request.

Available materials include: Carbon Steel: ASTM A234 WPB / WPC Alloy Steel: ASTM A234 WP11 / WP22 / WP91 Stainless Steel: ASTM A403 WP304 / WP316 / WP316L Each batch is supplied with EN 10204 3.1 material test certificates.

Both seamless and welded elbows are available. Seamless elbows are recommended for high-pressure and critical service conditions. Welded elbows are suitable for general industrial applications and large diameters. Manufacturing method can be selected according to project specifications.

Standard inspections include visual inspection, dimensional checks, and chemical & mechanical testing. Additional NDT such as UT, RT, or PMI is available. Third-party inspection by SGS, BV, TUV, DNV, or client-nominated agencies is fully supported.

For standard sizes and commonly used materials, we usually keep regular stock and can arrange shipment within 3-7 days. For customized elbows, including special sizes, wall thicknesses, angles, or material grades, the typical delivery time is 15-30 days, depending on order details and quantity. Exact lead time will be confirmed after order specification review.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Pipe Class

CLASS125-2000

Connectivity

Flange

Pressure

High Pressure

Application

water supply and drainage systems, oil & gas industry, natural gas pipeline installation, natural gas & petroleum industry, oil and natural gas

Surface Treatment

Sandblasting

Pipe Features

Corrosion-resistant, Chemical Resistant, underground rated

Technic

Casting

Shape

Equal

System of Measurement

Metric & inch

Head code

Round

Mounting hole diameter

1/2" ~ 48"(DN15-DN1200)

Overall Length

Customized

Customized support

OEM, ODM

Warranty

1 years

Model number (Specification)

Weld Elbow Pipe Fitting

Place of origin

China, Hebei

Height

1in-48in

Connection

Welding

Size

DN15-DN1000

Color

Black

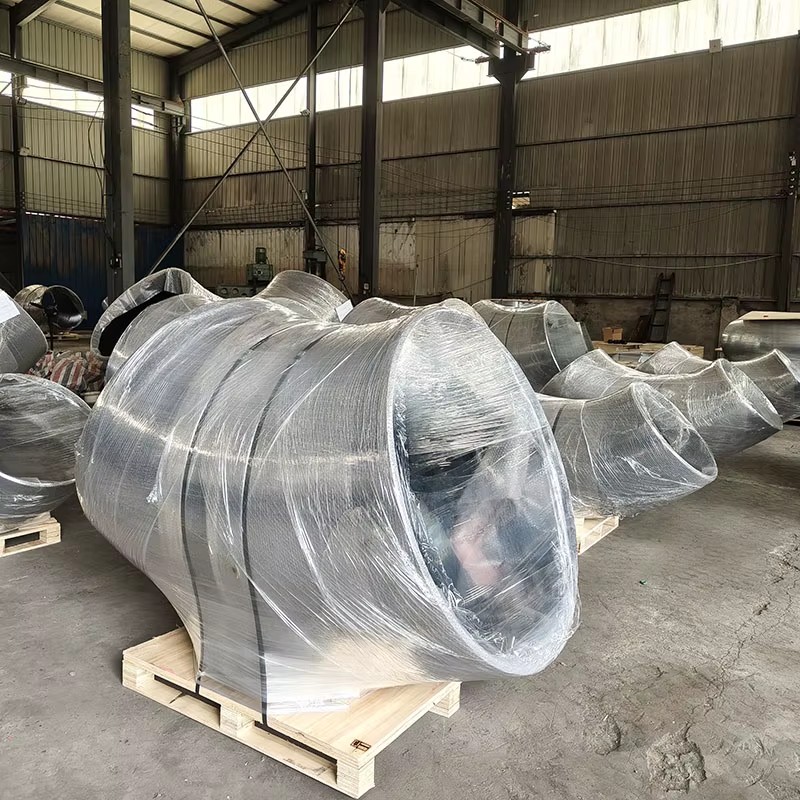

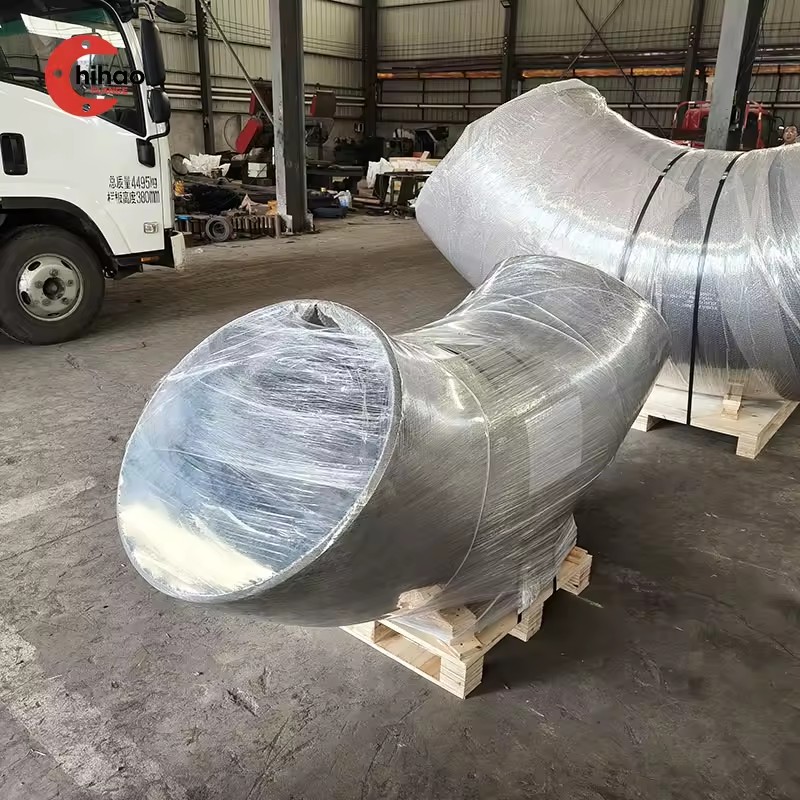

Packing

Wooden Case

MOQ

50pc

Technics

stamping, Hot Pushing, Squeezing

Usage

Connecting the bending part of the pipeline

Selling Units

Single item

Single package size

100X100X100 cm

Single gross weight

100.000 kg

Type (Product option)

Butt Weld Elbow

Material (Product option)

Carbon Steel

Pipe size

10 mm, 12 mm, 14 mm, 50 mm, 30 mm, Customized

Lead time

31 days

Minimum order

10 Units
