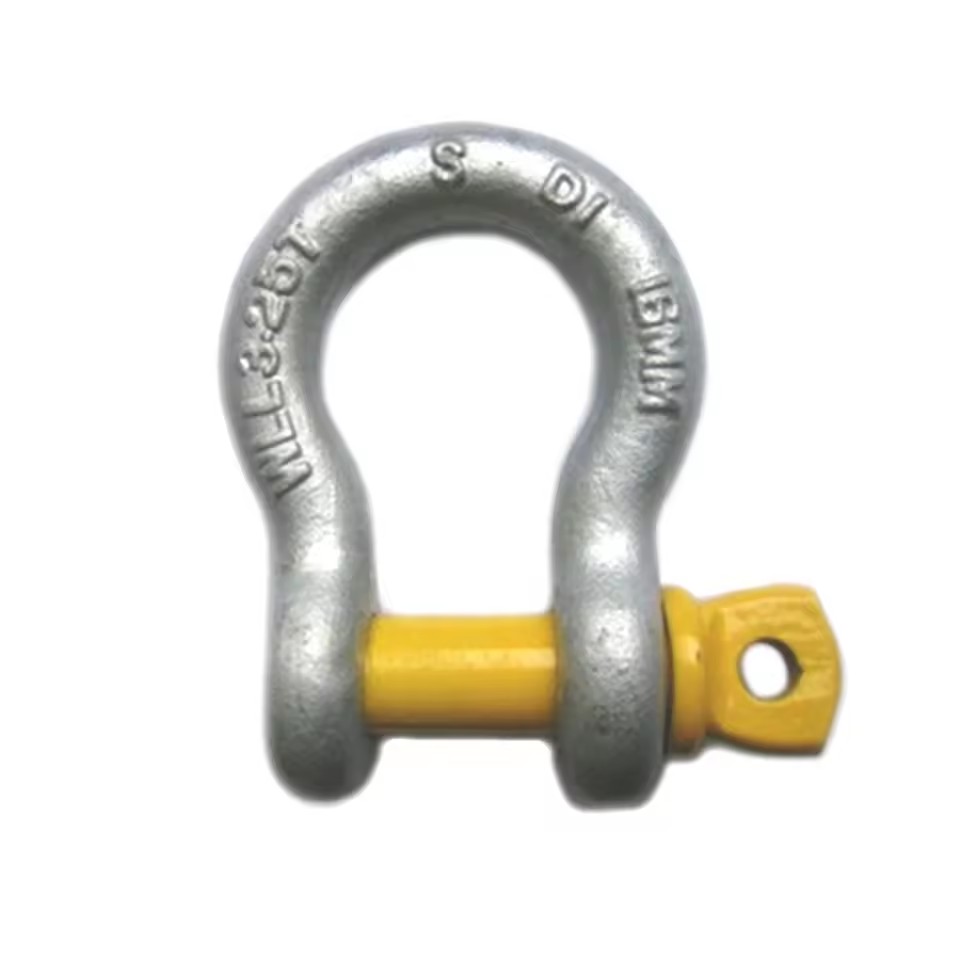

Name: AS2741 Australian Standard Bow Shackle High Strength Grade S Forged in Plastic Galvanized Shackle
SKU: B2B-27035
Price: 20.0 USD
Availability: PreOrder

Product description

AS2741 Australian Standard Bow Shackle High Strength Grade S Forged In Plastic

Brand Name:CHONGHONG

Product Name:Bow Shackle with Screw Pin

Standard:Australian Standard,AS2741

Material:Carbon steel

Size: 6-63mm

Surface Treatment:In plastic

Also Available in Alloy steel,Hot Dipped Galvanized, Electro Galvanized,Stainless steel 304 or 316,High polished,Color Painted, or Self colored etc.

Body Forged Carbon Steel,and pin Forged Alloy Steel.

Quenched & Tempered.

Test Load is 2.2 times the Working Load Limit.

Ultimate Load is 5 times the Working Load Limit.

Technology:Drop forged

Application:Wire Rope Fittings

Usage:Lifting and connecting

Packaging:Polybag, carton or as per customer's requirements

Special specifications can also be produced according to drawing and sample.

Related Standard: U.S. G209,G210,G2130,G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.

Dimensions(mm)
Size(mm)	W L L(tons)	D	L	P	W
6	0.5	6	29	8	12
8	0.75	8	31	10	15
10	1	10	37	11	17
11	1.5	11	43	13	18
13	2	13	48	16	21
16	3.2	16	61	19	27
19	4.7	19	72	22	32
22	6.5	22	84	25	37
25	8.5	25	95	29	43
29	9.5	29	108	32	46
32	12	32	119	35	52
35	13.5	35	133	38	57
38	17	38	146	41	60
44	25	44	178	51	73
51	35	51	197	57	83
63	55	53	267	70	105

M.O.Q	100PCS
Delivery time	10-20days after order confirmation
Notes	Special specifications and marks can be made according to customers requirements
Other	Eye bolts,Turnbuckles,Wire Rope Clips,Shackles,Chain accessories,Load binders,Hooks,Thimbles,Connecting Links,Master Links,Anchors,Lashing fittings and many other rigging hardwares.

Chonghong supply a huge range of stainless steel wire rope,lifting, marine, rigging hardware and fittings. Under ISO 9001 standard and over 20 years of manufacturing, we are very sure that our best quality control, prompt delivery and after service will be fully satisfied with you.

Chonghong is specialized in producing, supplying, developing Anchors, Anchor Connectors, Marine Hardware Cleats, Hinges, Hold Down Clamps, Rigging Hardware like Snap Hooks, Quick Links, Spring Snaps, Spring Hooks, Turnbuckles, Shackles, Snap Shackles, Wire Rope Thimbles, Wire Rope Clips, Wire Ropes, Swivels, Pulleys, Tri-glides, Belt Buckles, Swage Sleeves, Eye Bolts, Eye Nuts, Eye Plates, S Hooks, O Rings, D Rings, Triangle Rings, Brass Hardware, Chains,Gas Spring, Gas Spring accessories and so on.

Chonghong also has ability to make the customized products for you. You are welcome to send us your drawings or samples for tooling with us. We are very, very happy to deal with everybody with the same level of good old fashioned service.

Please feel free to

Certifications & compliance

RoHS

RoHS compliant

Description images

AS2741 Australian Standard Bow Shackle High Strength Grade S Forged in Plastic Galvanized Shackle

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1000 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Material

Carbon Steel, alloy steel

Shackles type

Bow Shackles

Shape

bow

Shackles pin type

with screw collar pin

Surface Treatment

In plastic

Measurement system

Metric

Application

General Industry, Lifting Fittings

Type

Australian Type

Place of origin

China

Model number (Specification)

CHYXAS0309

Standard

Australian Standard

Size

6-60MM

Usage

Lifting and connecting

Packing

Carton

OEM

Packaging Details

Carton or as per customer's requirements, Polybag

Port of dispatch

ANY CHINA PORT

Selling Units

Single item

Single package size

10X10X5 cm

Single gross weight

2.0 kg

Supply Ability

5000000 pieces per Month

Load Capacity (Product option)

Customization

Shackles diameter

10 mm, 11 mm, 16mm, 19 mm, 22 mm, 32mm, 25mm, 35 mm, 38mm

Shackles pin diameter

10 mm, 11 mm, 13 mm, 16mm, 19 mm, 22 mm, 32mm, 25mm, 35 mm, 38mm, 6 mm, 8 mm

Certifications & Compliance

RoHS

Lead time

20 days

Minimum order

1000 Units
