Name: Arc Light Protection System 4ms Trip Time Optical Sensor Low Voltage Switchgear Power Distribution Equipment
SKU: B2B-48590
Price: 80.0 USD
Availability: PreOrder

Product description

Highlights at a glance

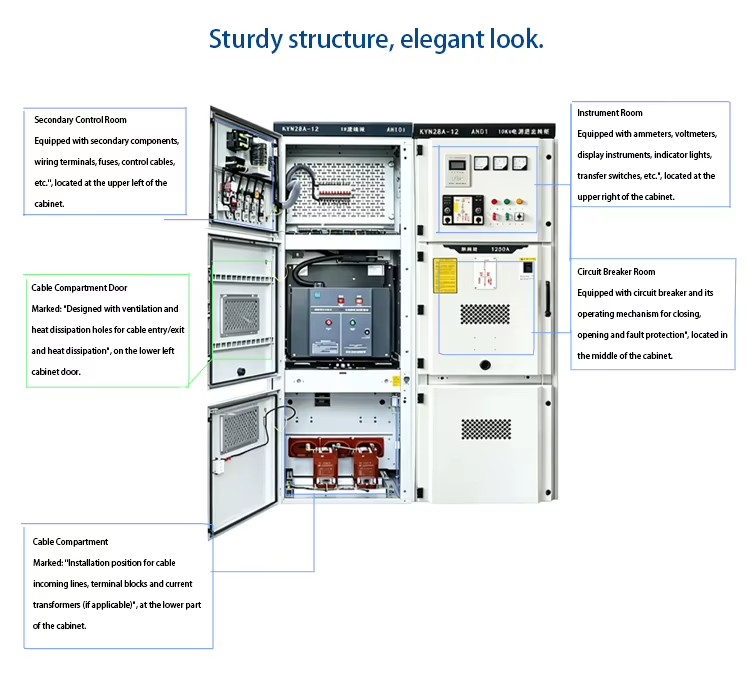

Incoming and Outgoing Line Cabinet is a critical component in power distribution systems, designed to manage the safe and efficient flow of electricity between the main power source and distribution circuits. This cabinet serves as the interface between incoming power lines from transformers or generators and outgoing lines to various electrical loads. The incoming line section is equipped with high-quality circuit breakers or disconnect switches that provide reliable protection against overloads, short circuits, and ground faults. The outgoing line section features multiple configurable distribution circuits, each with independent protection devices to ensure selective coordination and minimize system downtime during fault conditions. Built with robust steel enclosure and premium internal components, the cabinet offers excellent mechanical strength and electrical performance. The clear internal layout with labeled components ensures easy identification and quick maintenance. Busbars are made of high-conductivity copper or aluminum, minimizing power losses and ensuring efficient power transmission. The cabinet incorporates comprehensive safety features including IP30-IP54 protection rating, arc flash protection, and clear electrical isolation points for safe operation and maintenance. Ventilation design ensures effective heat dissipation, maintaining optimal operating temperature for extended equipment lifespan. Suitable for industrial plants, commercial buildings, infrastructure projects, and renewable energy systems, this cabinet provides flexible configuration options to meet diverse application requirements. ensures strict quality control and provides professional technical support to guarantee reliable performance in demanding environments.

Frequently asked questions

Our entire product range, including Circuit Breakers, Fuses, and Connectors, complies with essential international standards such as TUV, CE (Conformité Européenne), and UL (Underwriters Laboratories) for North American markets, ensuring global market acceptance and safety.

Our focus is on DC system reliability. We implement a rigorous three-step QC process: material inspection, in-process testing for breaking capacity and arc extinction, and final functional testing of completed assemblies before shipment.

Yes. We offer specialized lines of DC Circuit Breakers and Fuses designed specifically for the higher demands of 1000V DC and 1500V DC photovoltaic systems, covering essential components like MCCBs and String Fuses.

Absolutely. While we supply standard IP65/IP66 enclosures in materials like PC/ABS and Stainless Steel, we frequently customize dimensions, cable gland positions, and internal component layouts to meet specific OEM or project requirements.

Our PV Connectors (MC4 style) use PPO/PA material for UV-resistant housing and tinned copper for high-conductivity terminals. Our Solar Cables feature highly stranded tinned copper conductors and XLPE sheathing, certified for extreme outdoor use.

For standard, high-volume components like MC4 connectors and string fuses, our lead time typically ranges from 15 to 25 days after order confirmation. Custom or large-scale project orders may require a longer timeline, which is quoted individually.

We offer complimentary technical consultation based on your projects specifications (voltage, current, string count, required certifications). Our goal is to ensure you select components that guarantee system safety and compliance.

Yes, we manage DDP, FOB, CIF, and other incoterms. We utilize long-term logistics partners to ensure timely and safe delivery globally, specializing in securing optimal freight rates for bulk electrical components.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 14 fields

Rated voltage

380V / 400V

Rated current

100A ~ 4000A, 630A ~ 3150A

Application

Outdoor

IP level

IP66

Type

Distribution Box, LV Switchgear Cabinet

Number of Sockets

other

Lock Type

other

Place of origin

China

Model number (Specification)

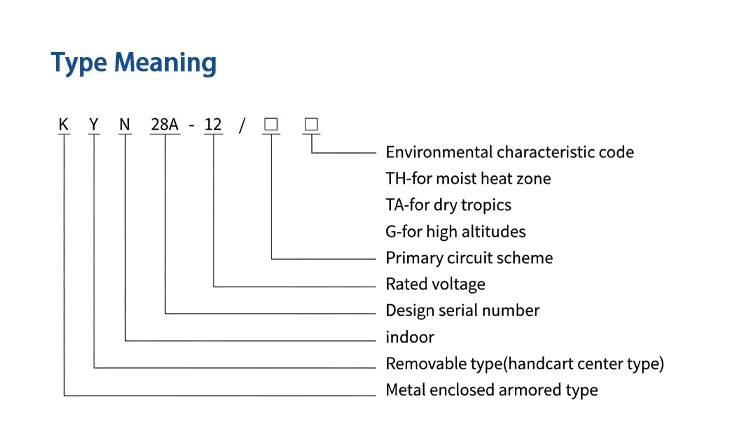

Bus Coupler Tie Cabinet (Incomer & Feeder )

Selling Units

Single item

Single package size

500X500X500 cm

Single gross weight

1000.0 kg

Material (Product option)

Galvanized Steel

Size (Product option)

800x1000x2200mm(31.50x39.37x86.61in), 600x800x2200mm(23.62x31.50x86.61in), 800x800x2200mm(31.50x31.50x86.61in), 1000x800x2200mm(39.37x31.50x86.61in), 1000x1000x2200mm(39.37x39.37x86.61in)

Lead time

31 days

Minimum order

1 Units
