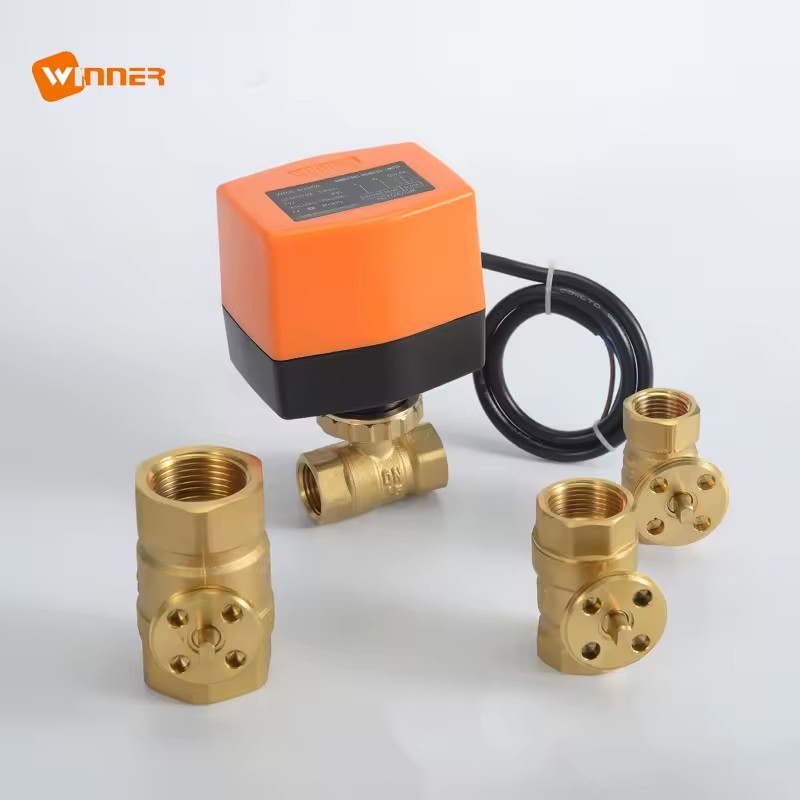

Name: AC220V DN15 DN20 DN25 Two Way Brass Motorized Valve 2 Way Proportional Electronic Ball Valve
SKU: B2B-12760
Price: 50.0 USD
Availability: PreOrder

Product description

Description of Motorized Water Valve

m otorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application of Motorized Water Valve

HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode of Motorized Water Valve

motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN20 Pipe connector: internal thread

Ambient temp. range: −5…+60°C;0…90%RH

Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: chrome-plated brass stem: EPDM O-rings

Ball Valve

Model No.	Inner Dia.	Inch	Kvs(m3/h)	Pmax(KPa)	Ps(KPa)
W8BV215	2 -way	12mm	1/2”	8.6	1000	1400
W8BV220	15mm	3/4”	21	1000	1400
W8BV225	20mm	1”	26	1000	1400

Actuator

Function ( 3-point or on/off type )

The actuator is controlled by a modulating on/off or 3-point control signal, using r eversible synchronous motor and gear speed reducer drive to fix and lock.

WRA-63… 3-point type

B lack wire is power on Valve closed

B rown wire is power on Valve open

Black or brown wire is power off Valve k eep the current position

Bl ue wire is connected to the n ull wire. Also can be used as on/off type.

WRA-63…A on/off type

B lack wire is the control wire. Power on: valve open, power off: valve close

Brown wire is connected to the power wire.

Blue wire is connected to the com. Only can be used as on/off type.

Installation

insert the valve stem to the b o tto m of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve ’ s mounting hole. Then screw down the brass cap nut

Model No.	Working Voltage	Actuator type	Output torque	Consumption	On/off time	Valve body
WRA-6320	230VAC±15% 50/60Hz	3-point or on/off	3.5N.m	5W	50Hz:16S 60Hz:12S	W8BV215 W8BV220 W8BV225
WRA-6320A	On/off

WRA-53 Series	220v ON/OFF, 3-Point
WRA-63 Series	220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series	220V/24V ON/OFF, Proportional
WRA3-.. AC Series	220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series	24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series	24V/12V/3V, ON/OFF, Proportional

Certifications & compliance

Complies with EU standards

RoHS

RoHS compliant

Description images

AC220V DN15 DN20 DN25 Two Way Brass Motorized Valve 2 Way Proportional Electronic Ball Valve

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Media

water,50glycol

Power

Motorized

Port Size

1/2'', 3/4'' and 1''

Application

Water Treatment, Chemical equipment, HVAC system

Temperature of media

Medium Temperature

Structure

Ball

Customized support

OEM, ODM

Place of origin

China, Hunan

Model number (Specification)

WRA-6320

Standard or Nonstandard

Standard

Ball Valve Material

Brass/Bronze/SS304

Valve threaded

BPS/NPT Threaded

Valve port

Full Bore/Reducing Port

Actuator Control type

ON/OFF or 3~Point or Modulating

Valve Application

HVAC System, Chemical equipment, Water treatment

Packaging Details

57 pcs per carton, carton size: 50*33*29cm

Port of dispatch

Changsha

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

2800 sets per Week

Material (Product option)

Brass

Pressure (Product option)

Medium Pressure

Size (Product option)

1/2 in, 3/4 in, 1 in

Certifications & Compliance

CE, RoHS
