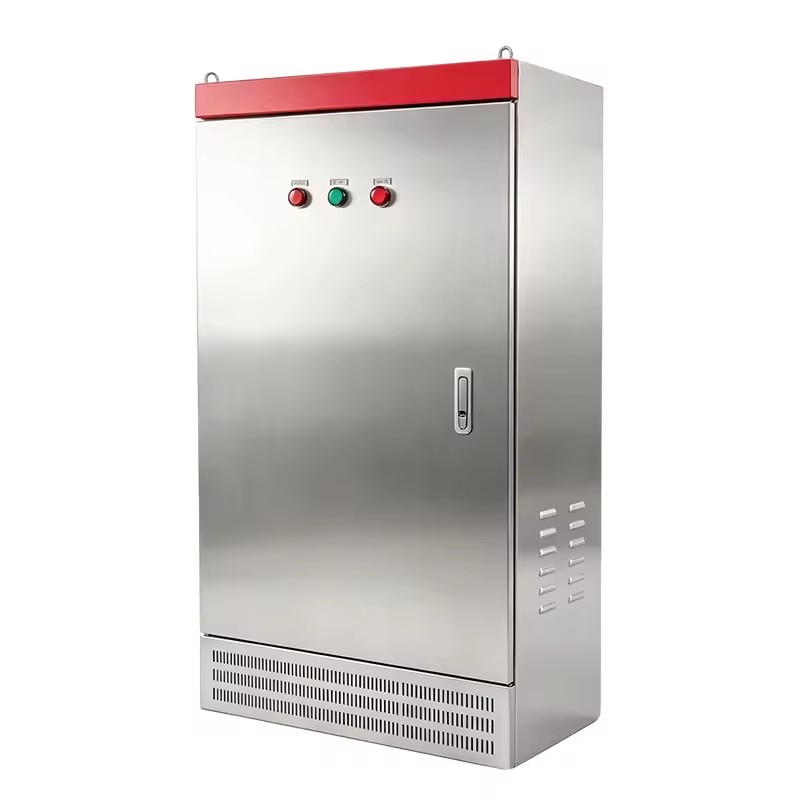

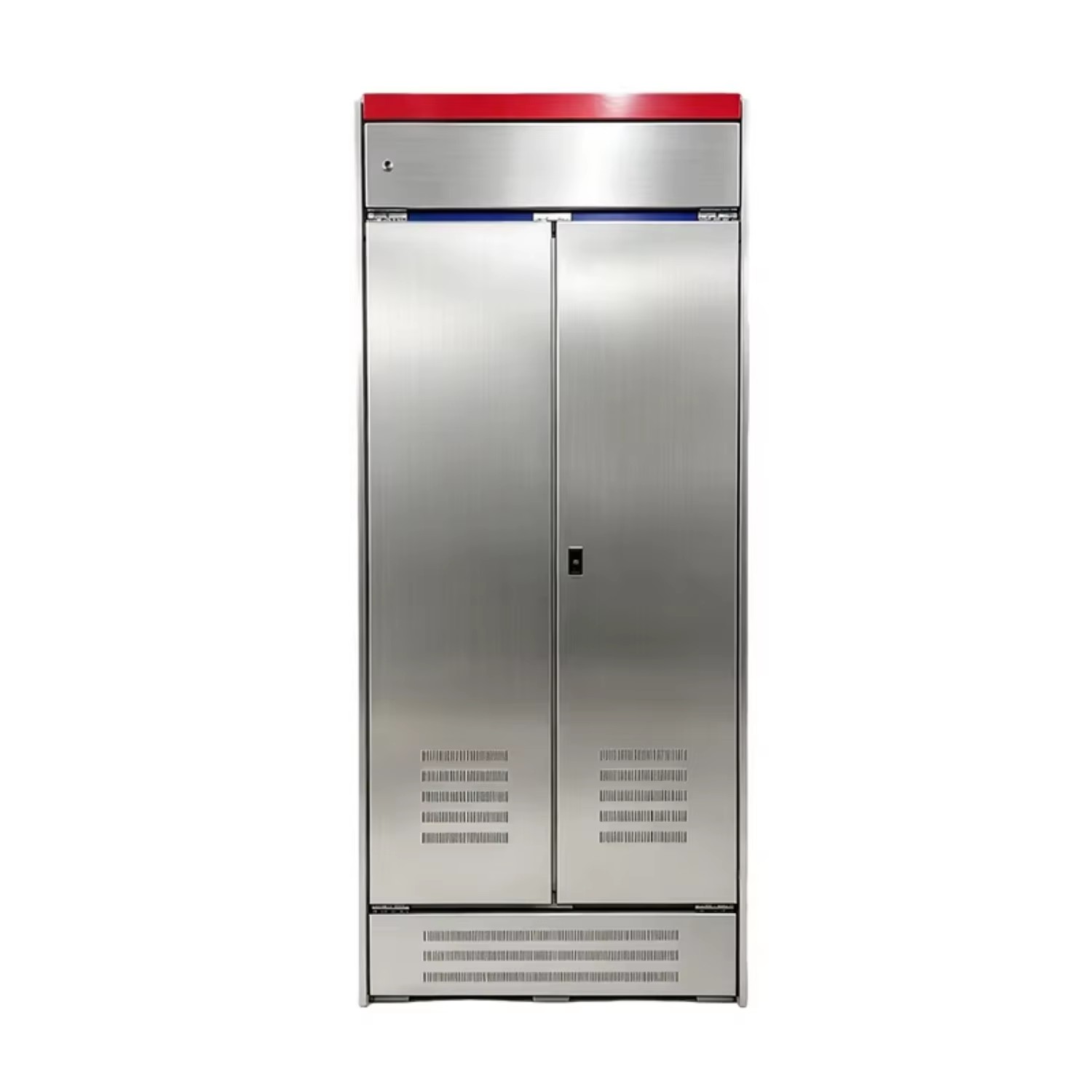

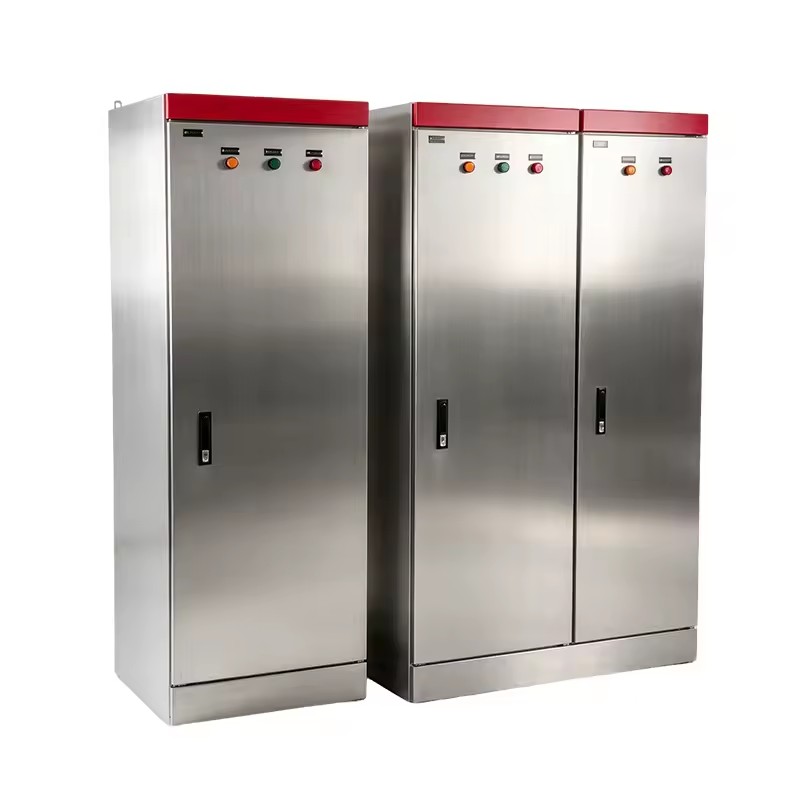

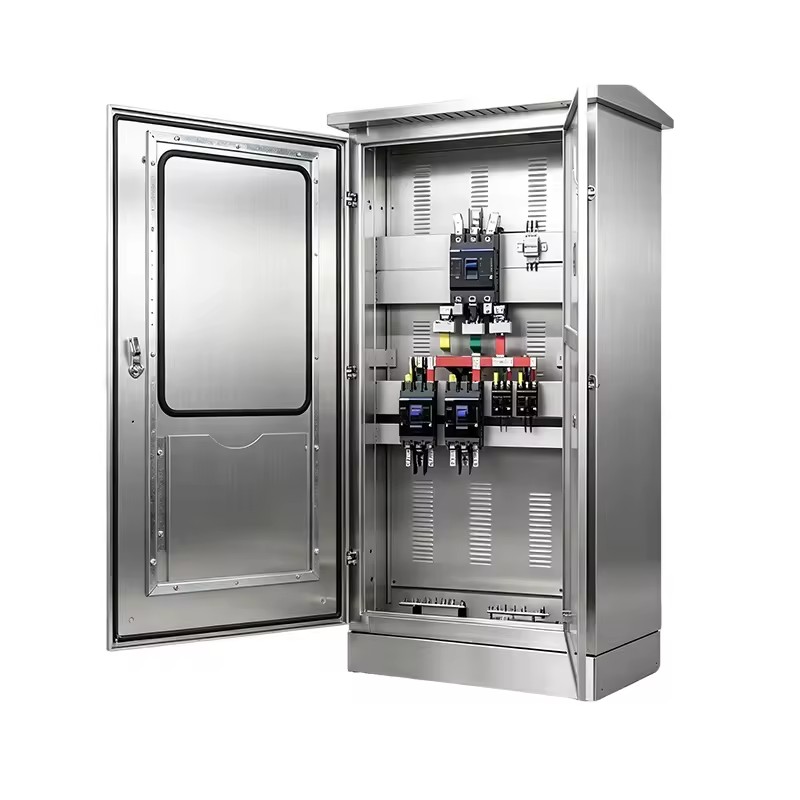

Ventilated Stainless Steel Full Set Distribution Cabinet Complete Electrical Switchgear for Island Power Supply

Available for enquiry 0.0 · 0 reviews
USD

$ 280.00 280.0 USD $ 280.00

Not Available For Sale

Minimum order quantity: 5 Units

Key attributes

View all
Rated voltage
220/380/415/440/460/480V, AC 380V/220V
Rated current
custom made, 630A (Customizable by Model)
Application
Outdoor, Industrial, Indoor, Electric Power Transm
IP level
IP55
Type
Distribution Box
Number of Sockets
6
Product description

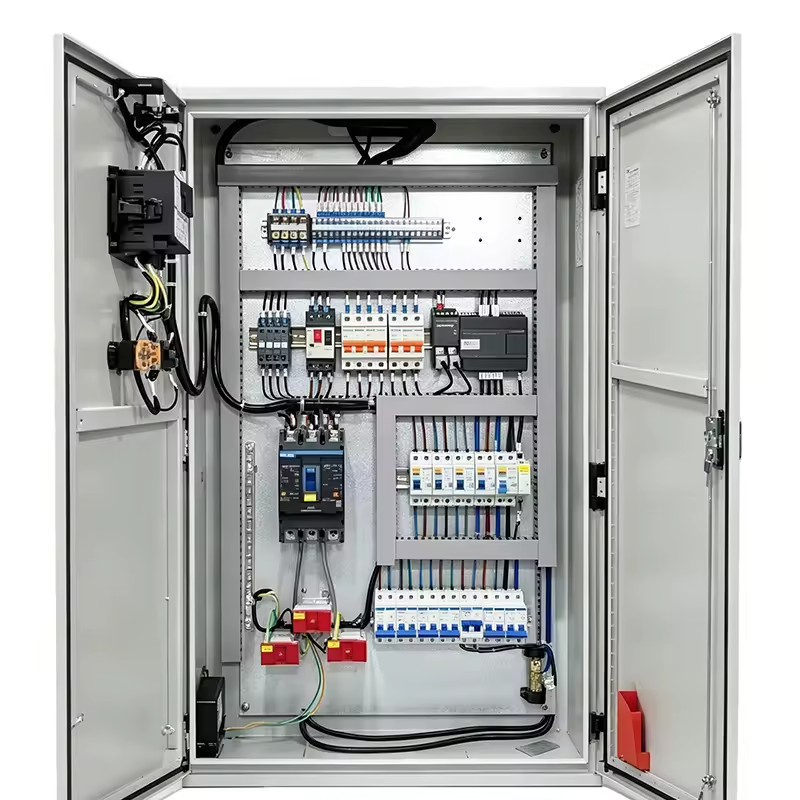

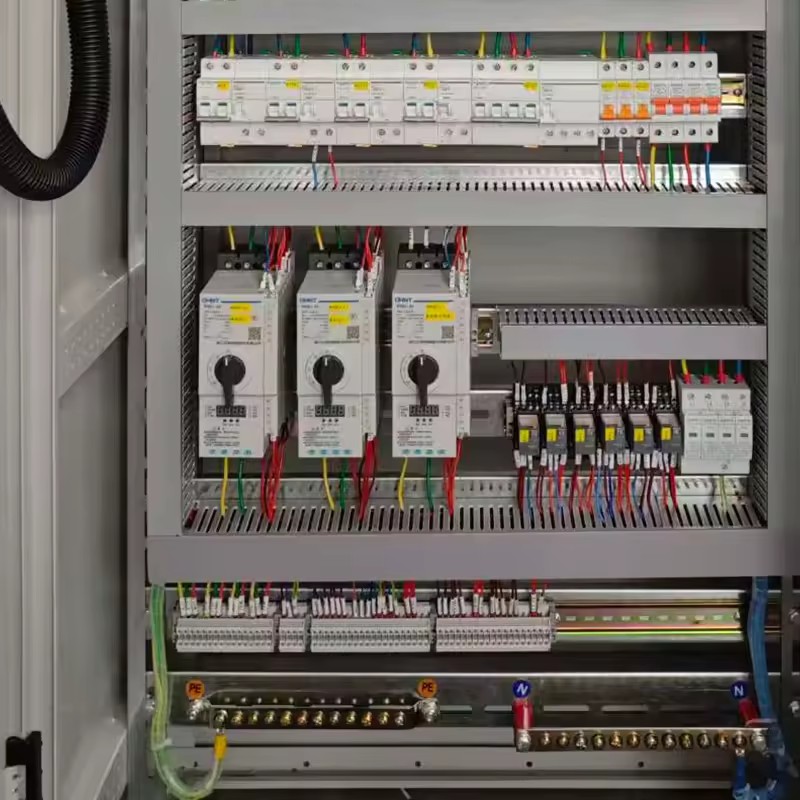

  • Internal Components
  • Core Switch Element: Equipped with Schneider Electric intelligent circuit breakers, which feature multiple protection functions against overload, short circuit, and leakage. They have strong breaking capacity to quickly cut off fault currents, forming a solid safety barrier for power transmission in island photovoltaic systems.
  • Busbar System: Adopts large-section copper busbars in brown, orange, and yellow. With excellent conductivity and low resistance loss, they can efficiently transmit three-phase large currents, meeting the high-power power transmission demands of island photovoltaic systems.
  • Intelligent Monitoring Module: Integrates multifunctional meters and control units, enabling real-time monitoring of electrical parameters like voltage, current, and power. It supports remote communication, allowing operation and maintenance personnel to grasp the operation status of the distribution cabinet at any time and realize intelligent management.
  • Product Advantages
  • Weather Resistance in Island Environments: The cabinet is made of stainless steel, offering excellent corrosion and salt spray resistance. It can operate stably for a long time in the harsh environment of high humidity and high salt spray on islands, significantly extending the service life of the equipment.
  • High Protection Reliability: With a high protection rating, it can effectively prevent dust and water ingress. The rational layout of internal components and standardized wiring process greatly reduce the failure rate, ensuring the continuity of island photovoltaic power supply.
  • Adaptability to Photovoltaic Scenarios: Optimized grid-connected control logic for photovoltaic system characteristics enables efficient collection and distribution of photovoltaic power. It is compatible with photovoltaic arrays of different powers and supports flexible switching between grid-connected and off-grid modes, meeting the diverse operational needs of island photovoltaic systems.
  • Application Scenarios
  • Island Photovoltaic Power Stations: As the core equipment for power distribution and protection in centralized photovoltaic power stations, it efficiently transmits power from photovoltaic modules to energy storage devices or the power grid, promoting stable power generation and consumption in island photovoltaic power stations.
  • Island Livelihood Electricity Supply: Serves public facilities such as island residential communities, schools, and hospitals, providing stable photovoltaic power for domestic and public scenarios. It solves the pain points of insufficient traditional power supply and high costs on islands.
  • Island Commerce and Infrastructure: Applied in small commercial venues like island homestays and fishery processing sites, as well as infrastructure such as lighthouses and communication base stations. It ensures the reliability and sustainability of their power supply, contributing to the economic development and functional improvement of islands.
    • Product NameControl cabinet/panelBox/cabinet sizeCustomizable
    Product typeOne control by oneFuntionStart Stop
    SpecificationsSupport customizationWeightCustomizable
    Box/cabinet thickness0.8/1.2/1.5mmWarrantyA year
    Voltage220/380/415/440/460/480VInstal typeWall mounting/console mode
    FeatureOverload protectionPhase protectionShort circuit protection
    Description images
    Ventilated Stainless Steel Full Set Distribution Cabinet Complete Electrical Switchgear for Island Power Supply
    Ventilated Stainless Steel Full Set Distribution Cabinet Complete Electrical Switchgear for Island Power Supply
    Ventilated Stainless Steel Full Set Distribution Cabinet Complete Electrical Switchgear for Island Power Supply
    Ventilated Stainless Steel Full Set Distribution Cabinet Complete Electrical Switchgear for Island Power Supply
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 5 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      31 days

    • Step 3

      Packaging and dispatch

      Ocean + Truck via Maersk · Approx. shipping fee: $ 319.60 for 5 sets · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 20 fields
    Rated voltage
    220/380/415/440/460/480V, AC 380V/220V
    Rated current
    custom made, 630A (Customizable by Model)
    Application
    Outdoor, Industrial, Indoor, Electric Power Transm
    IP level
    IP55
    Type
    Distribution Box
    Number of Sockets
    6
    Lock Type
    Hybrid Lock
    Place of origin
    China, Fujian
    Model number (Specification)
    distribution box JHD-GF11
    Rated frequency
    50Hz
    Busbar Material
    Copper
    Installation method
    Floor-Mounted
    Monitoring Module Functions
    Voltage, Current, Power Monitoring, Remote Communication
    Switch Operation Mode
    Electric/Manual Compatible
    Selling Units
    Single item
    Single package size
    75X30X210 cm
    Single gross weight
    100.0 kg
    Color (Product option)
    Gray
    Material (Product option)
    Stainless Steel
    Size (Product option)
    75X30X210 cm
    Lead time
    31 days
    Minimum order
    5 Units
