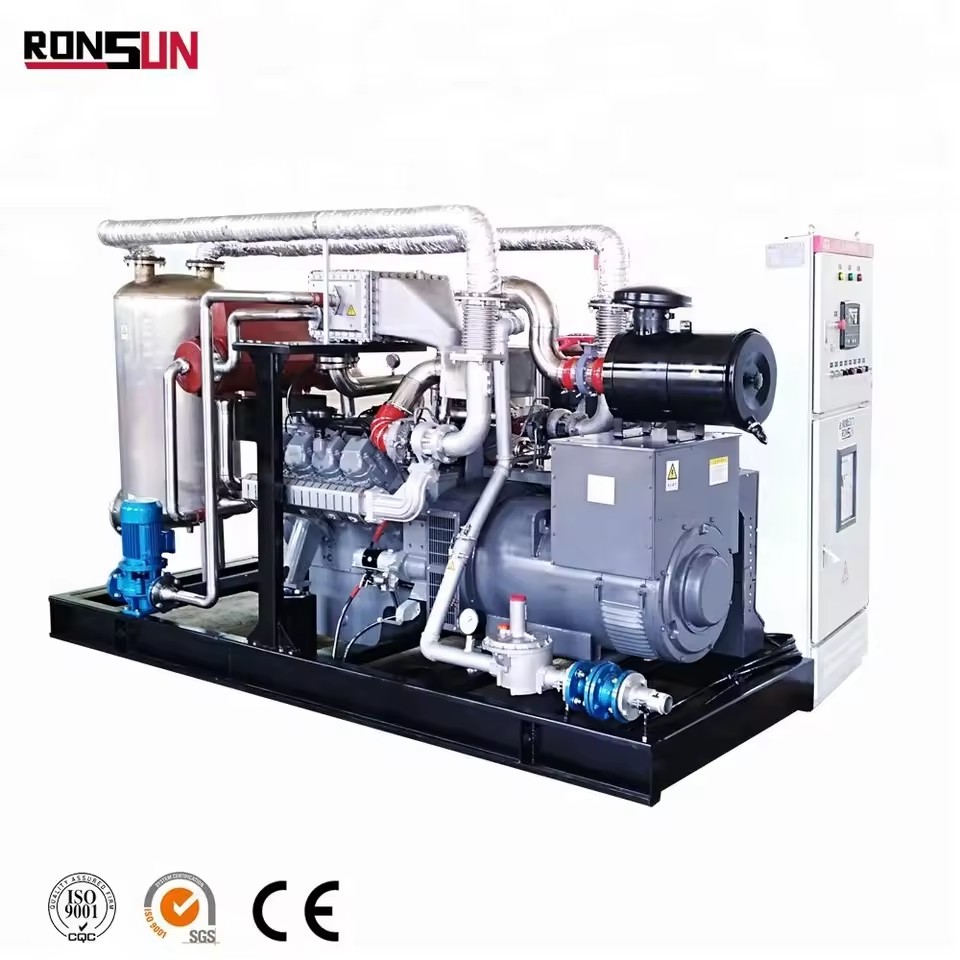

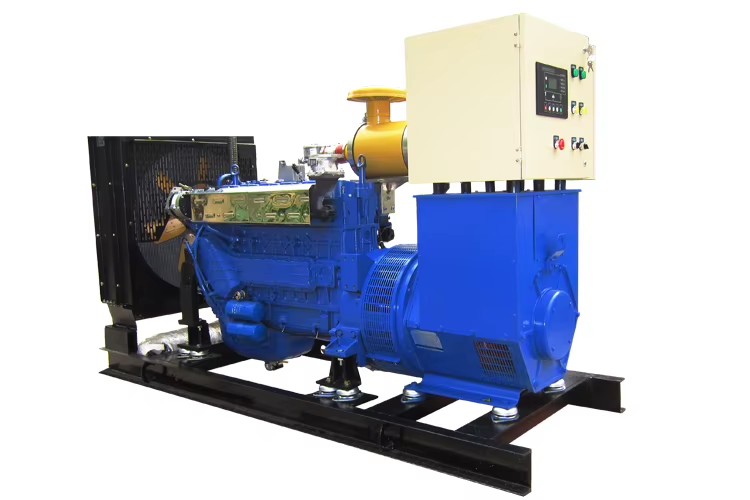

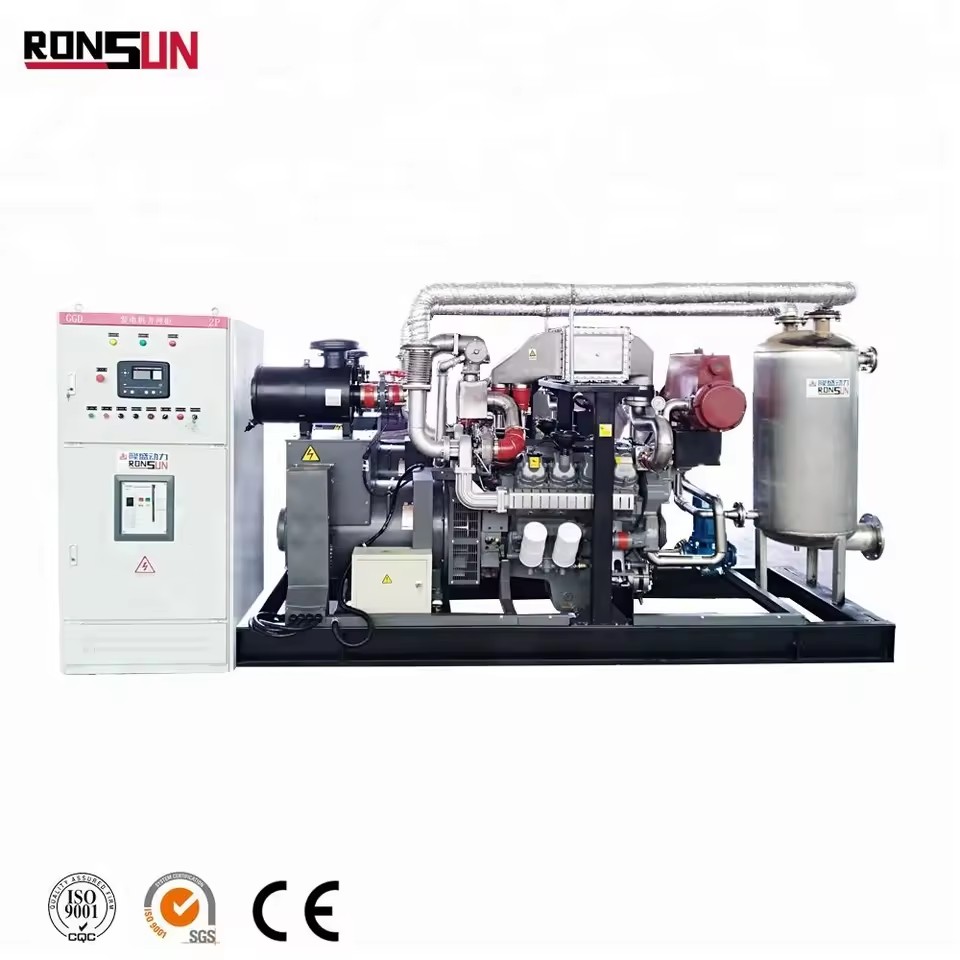

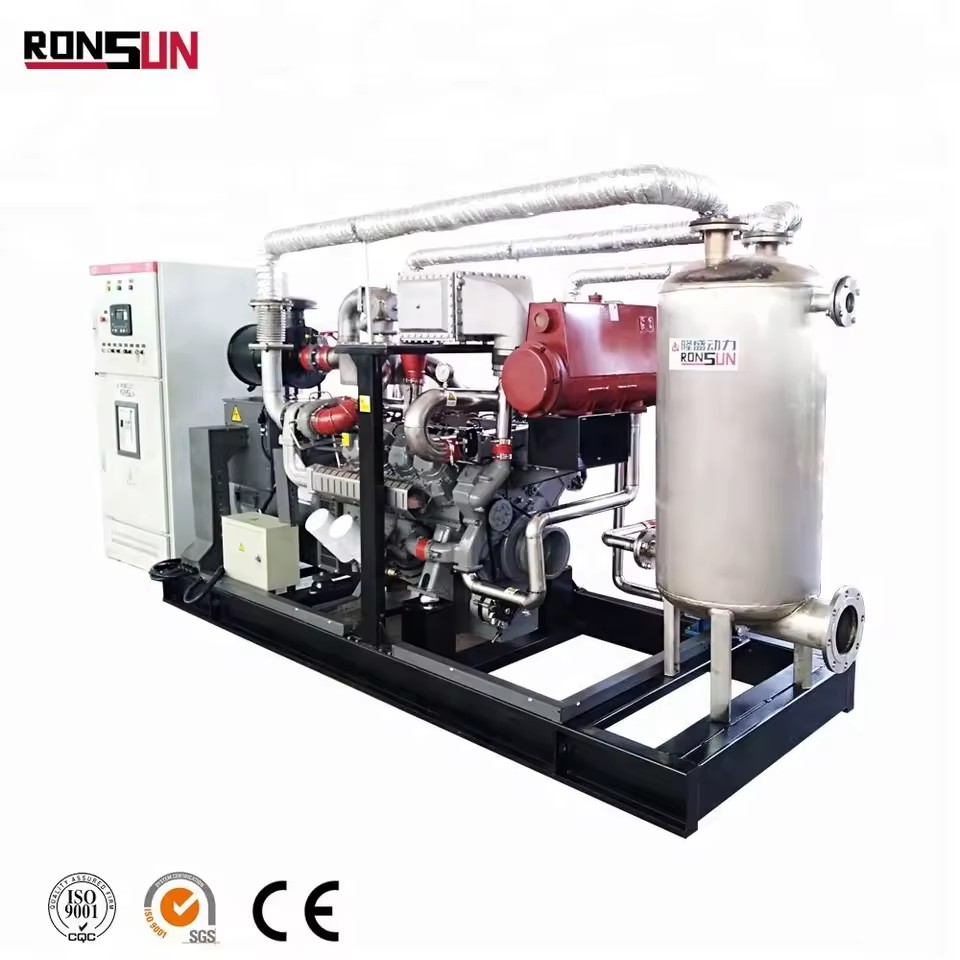

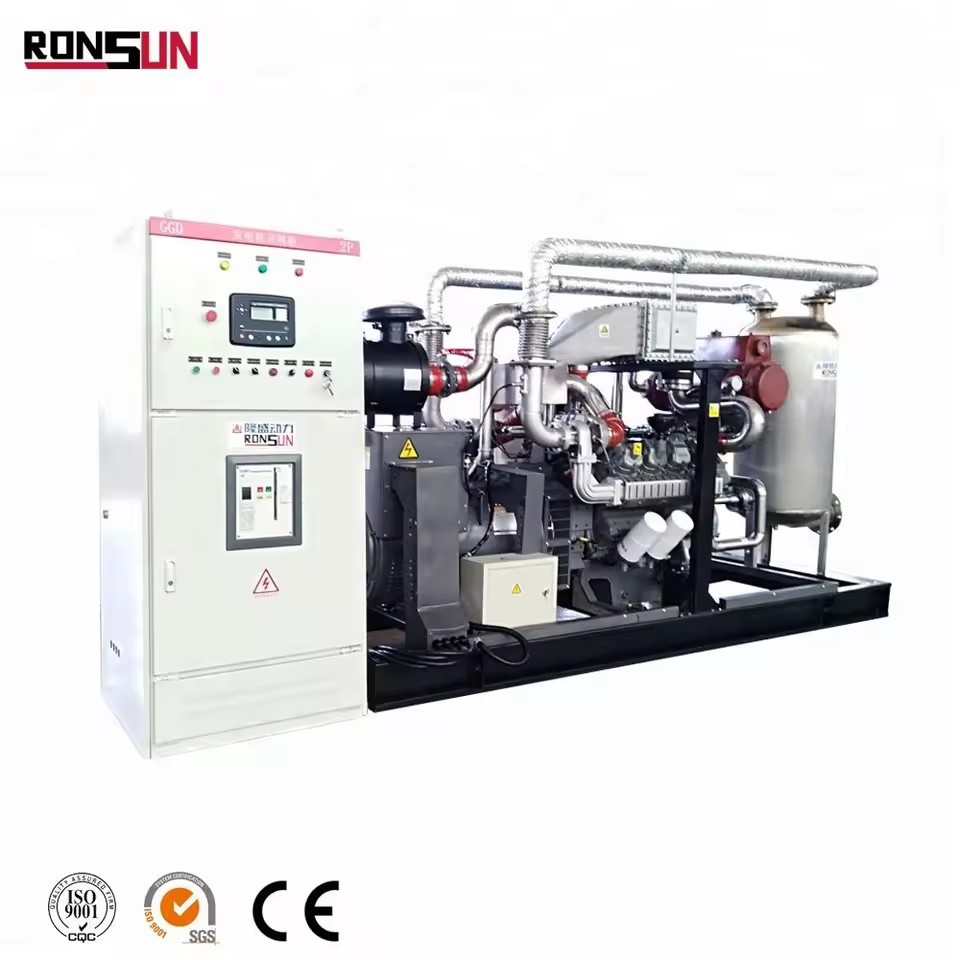

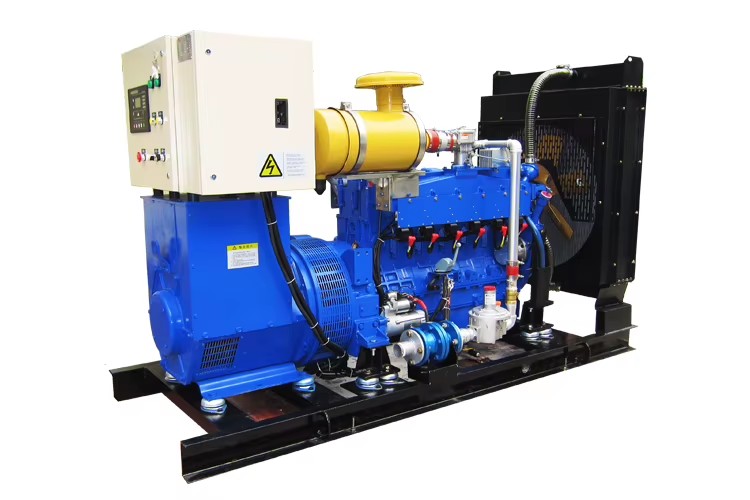

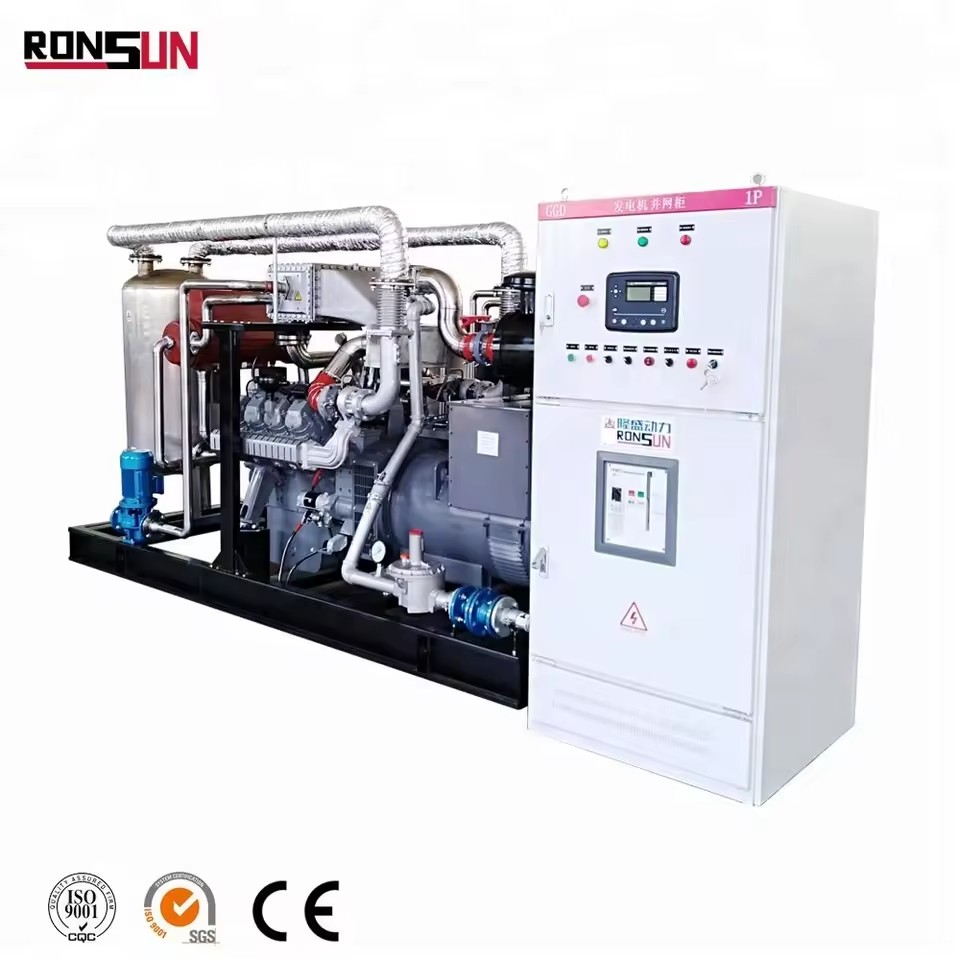

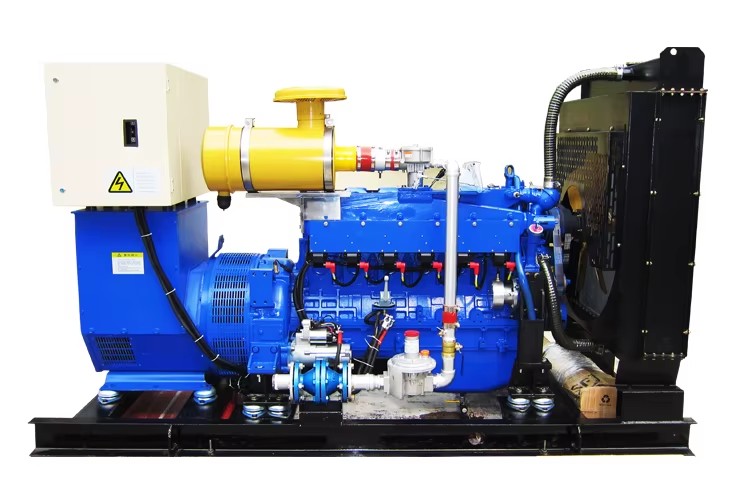

Methane/Natural Gas Generator/Gas Generator Set

Power company has a big range of its products, which covers nearly all kinds of gas generator sets, such as Natural Gas Generator Set, LPG Gas Generator Set, Methane Generator Set, Syngas Generator Set, Biomass Gas Generator Set, etc. And the power range differs from 10KW to 1000KW.

The Power regards the quality of the products as the most important thing. The quality of 's products and service have met the requirement of clients at home and abroad. has many gas generator running in food service, animal husbandry, aquaculture and oil interests industries. And its products are exporeted,, Czech,, and dozens of countries in Southest Asia, South America and Africa.

Standard Working Conditions

1. Biomass Gas Generator can run for continuously at rated power on the conditions of

Atmospheric Pressure: 100kPa, Ambient Temp: 20° C, Relative Humidity: 30%.

2. Gas Generator can also run stably and reliably on the conditions of

Ambient Temp -40° C~+40° C, Relative Humidity <90%(20° C), Altitude ≤ 1000m above sea level

Fuel Requirements If Fuel Is Methane 1. Adapted Gas: Methane 2. Acceptable Methane pipeline pressure: 2~12kPA 3. Gas heat value≥ 5500kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value Increase, if use low heat value gas for fuel(Heat value<5500kcal/Nm3, it willl lower the power efficiency. 4. CH4 content ≥ 50%. 5. Gas doesn't include free water or free materials (the size of impurities should be less than 5μ M. ) 6. Sulphur content≤ 200mg/Nm3, the excessive sulphur in impurity gas should be removed. (Note: Excessive sulfur contents can do serious damage to engine elements. )

Main Technical Parameters

Function Of Methane Gas Generator Set

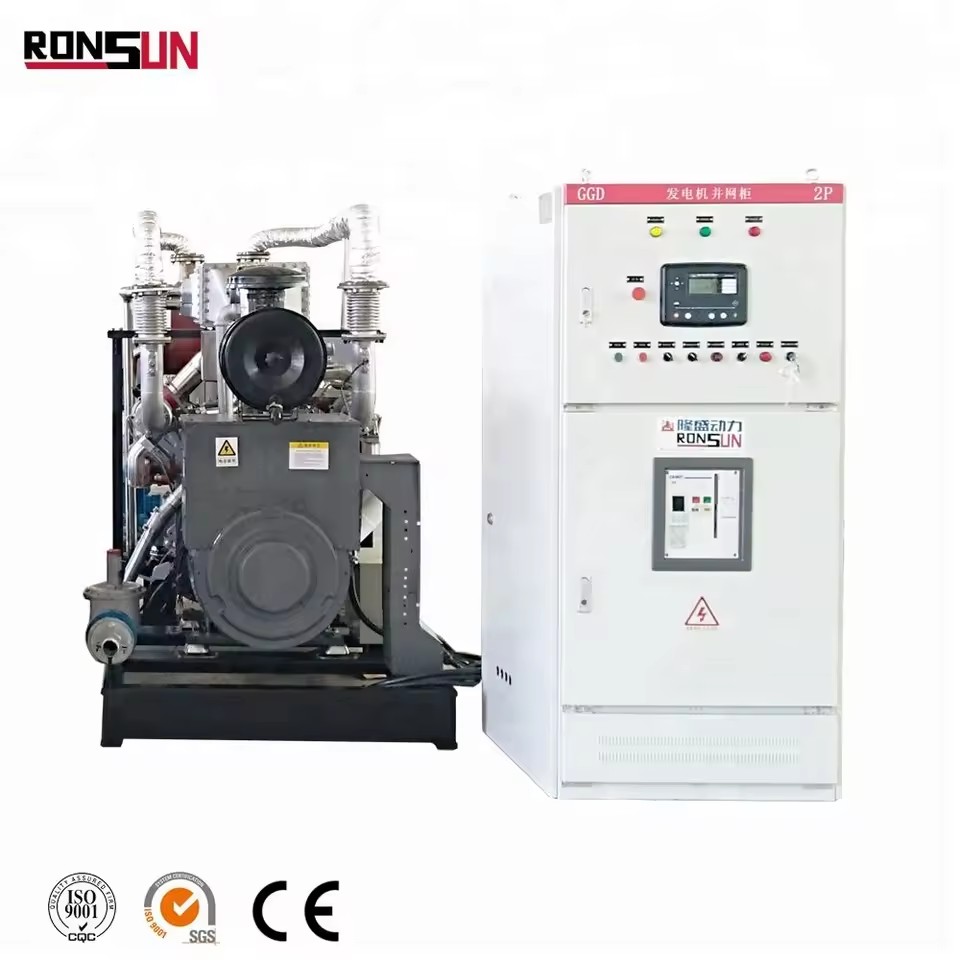

1. Adopt Gen-set controller with LCD display, taking microprocessor as the core.

2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity

3. The monitor and display on the voltage, current, frequency, active/apparent power, power factor of the generated

electricity /grid electricity etc.

4. The monitor and display on the gen-set’s water temperature, oil pressure, rotational speed, battery voltage, running hours

accumulative total power and number of starts

5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current

over voltage, over frequency and phase failure etc.

Main Technical Advantages Of Methane Gas Generator Set 1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology. 2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film. 3) Change the duration of the ignition control,long-life spark plugs. 4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.

Optional Equipment

1.Oil/coolant heater

2.ATS(Automatic Transfer Switch)

3.Soundproof canopy

4.Parallel system

5.Grid-connect system

6.CHP/Cogeneration

FAQ

1.What is your warranty period?

A: Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Does your generator have global warranty?

A: Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

n you accept OEM?

A: Yes, we can accept OEM.

4.What is your payment terms?

A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

5.What is your delivery time?

A: Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
