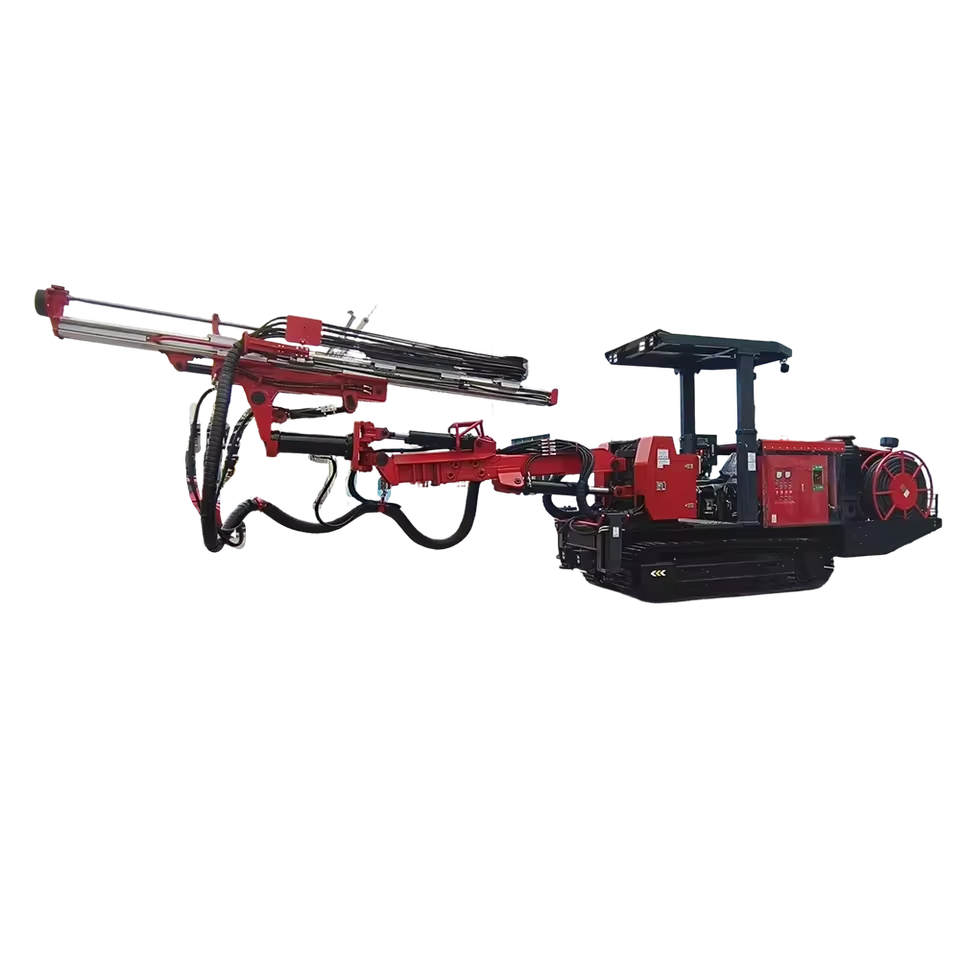

Underground Mining Rotary Drilling Rig Diesel-Powered Rock Drill Engine Motor for Narrow Roadway Mine Work Max.20m Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 128,710.00 128710.0 USD $ 128,710.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig
Drilling Depth
Max.20m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
380 V
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Product description
No.CategoryTechnical Parameters
1Basic Parameters
1.1Equipment Weight (kg)10000
1.2Dimensions (mm) L x W x H9841×1300×2883（2183）
1.3Maximum operating range (width x height, mm)5760×6116
1.4Min. Turning Radius (mm)3000/5415
1.5Max. Coverage Area (㎡)30
1.6Tunnel Size (mm)2X2
2Equipment Configuration
2.1Rock DrillModelStandard PD380 (optional)
Brand
Impact Pressure (bar)200
Impact Power (kW)18
Impact Frequency (Hz)380
Max. Rotation Torque (N·m)820
Rotation Speed (r/min)220
Lubrication Air Consumption (L/min)3.3
Water Consumption (L/min)30-50
Drilling Diameter (mm)φ45-φ102
2.2Drill armThruster compensation stroke (mm)1500
Parallel maintenance throughout the whole processYes
Coverage area (㎡)24
Coverage width/height (mm)5025/5000
Boom lifting angle43°—+52°
Boom swing angle±30°
2.3Propulsion beamTotal Length of Feed Beam (mm)4740（standard）/5400
Max. Thrust Force (kN)15
Drill Steel Length (mm)3090（standard）/3700
Drilling Depth per Feed (mm)2830（standard）/3440
Oscillation Angle±180°
Pitch Angle3°—+90°
2.4ChassisClimbing Capacity (°)20
EngineManufacturerYuchai
Power (kW)55.8
Maximum torque310Nm/1600rpm
Emission and noise standardsNational IV (EURO IV)
Transmission systemTracked walking
Travel speed (km/h)0~15
Wheelbase (mm)220
2.5Drilling Hydraulic SystemHydraulic Control TypeManual Valve Control
Motor Power (kW)55
Hydraulic Oil Tank Volume (L)180
Pressure Oil & Return Oil Filtration Accuracy (μm)10
2.6Water SystemBooster Pump Power (kW)3
Rated Displacement (L/min)52（12bar）
Outlet Water Pressure (bar)12
Min. Inlet Water Pressure (bar)2
2.7Electrical SystemMain Electrical Components ManufacturerABB
Voltage (V)/Frequency (Hz)380/50
Starting MethodStar/Delta
Safety Protection FunctionsLeakage Protection, Overload Protection, Short Circuit Protection

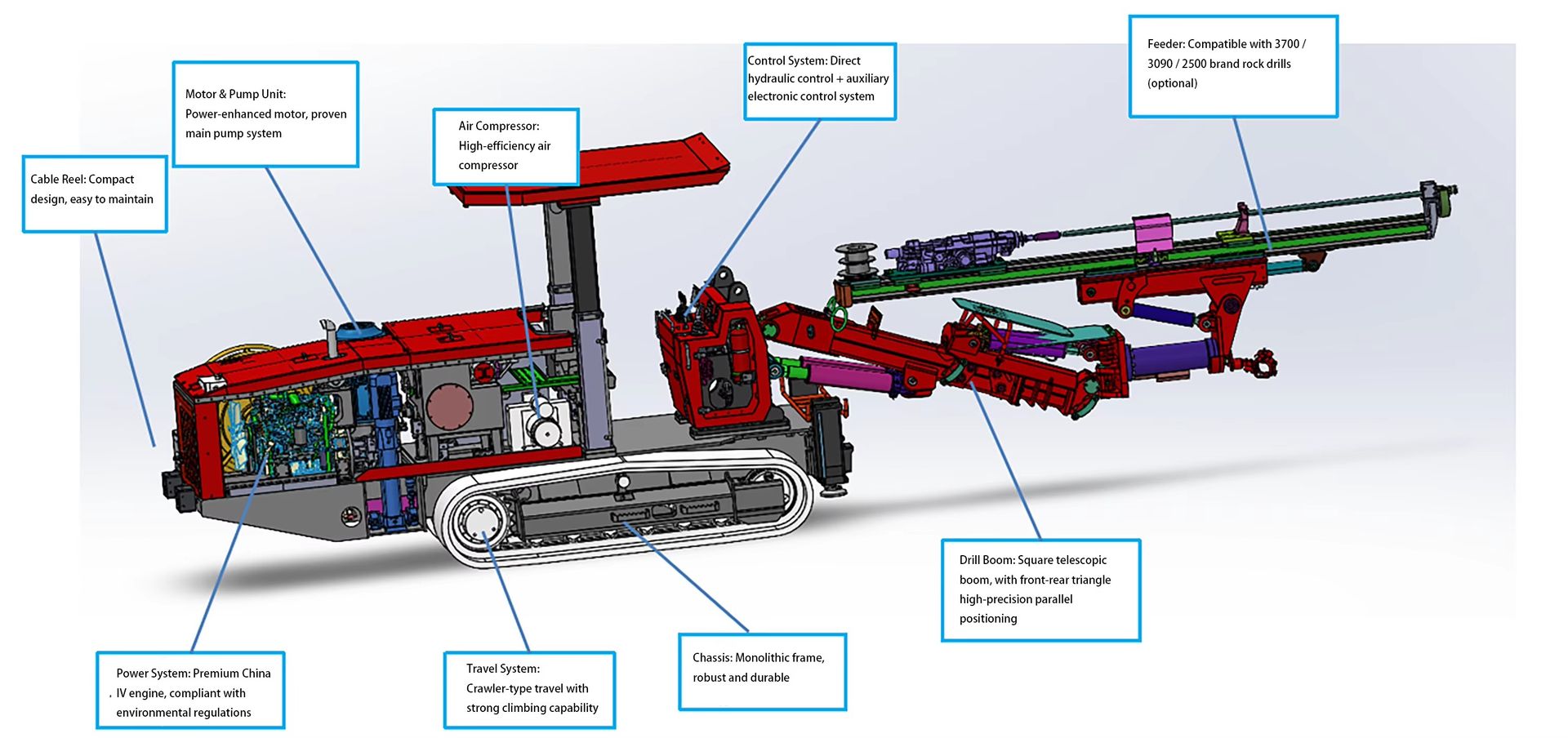

Description images

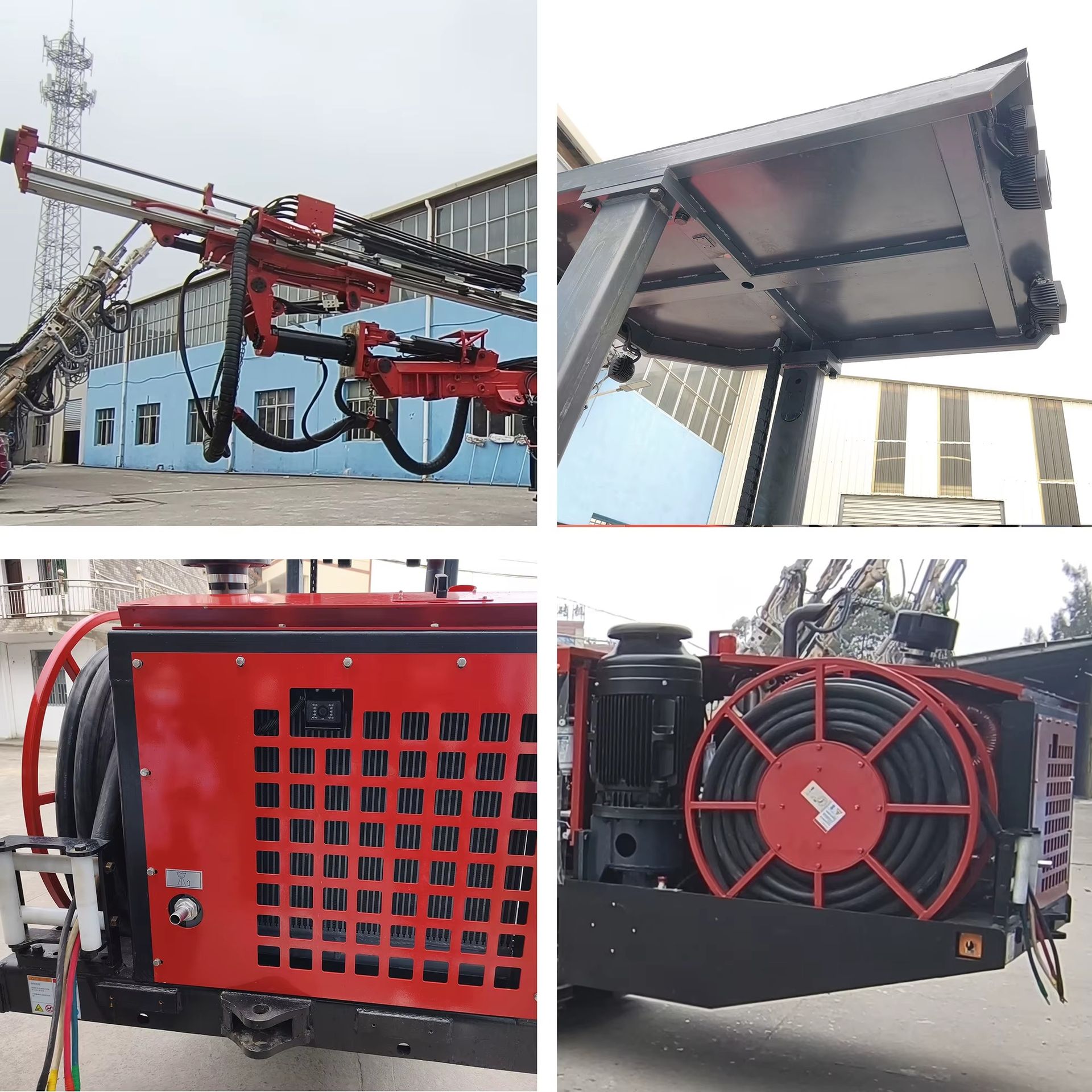

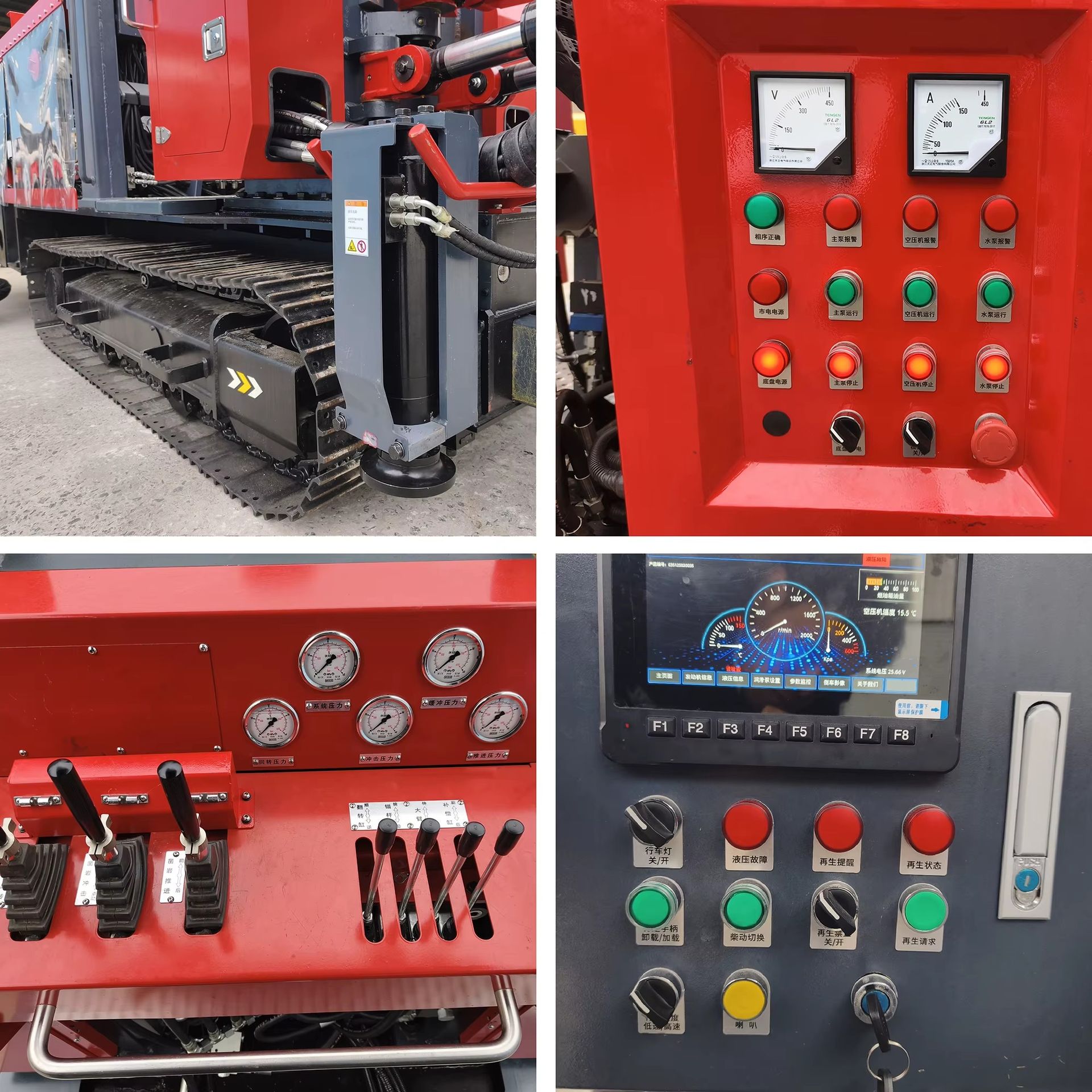

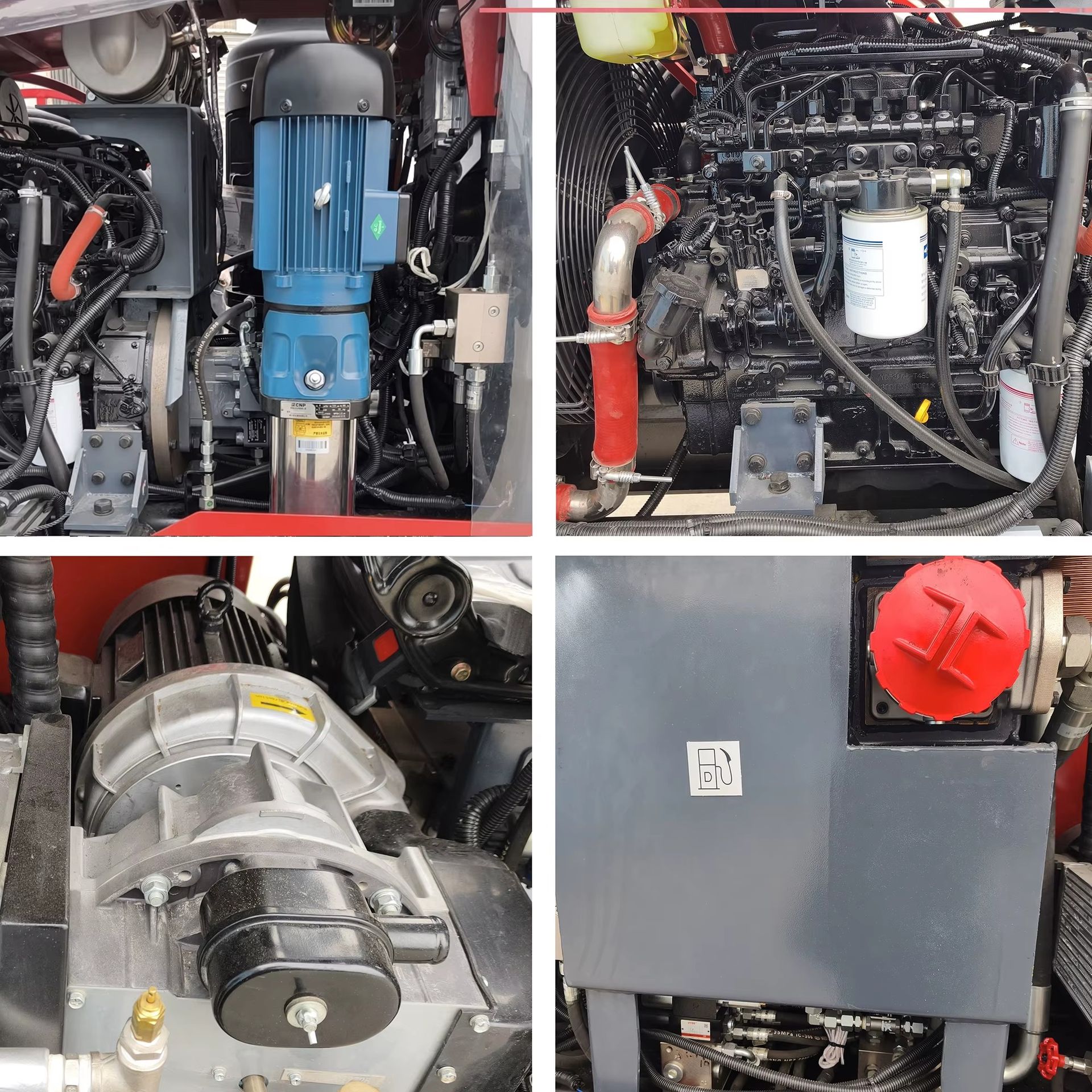

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
Rotary Drilling Rig
Drilling Depth
Max.20m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
380 V
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Fujian
Weight
3300 KG
Dimension (L*W*H)
9841*1300*2883
Mobility
15km/h
Impact Pressure (bar)
200
Impact Power (kW)
18 kw
Impact Frequency (Hz)
380
Rotation Speed (r/min)
220
Thruster compensation stroke (mm)
1500
Tunnel Size (mm)
2X2
Min. Turning Radius (mm)
3000/5415
Selling Units
Single item
Single package size
1100X205X280 cm
Single gross weight
12000.0 kg
Model number
AZK125B
Power (W) (Product option)
55 kW
Lead time
30 days
Minimum order
1 Units
