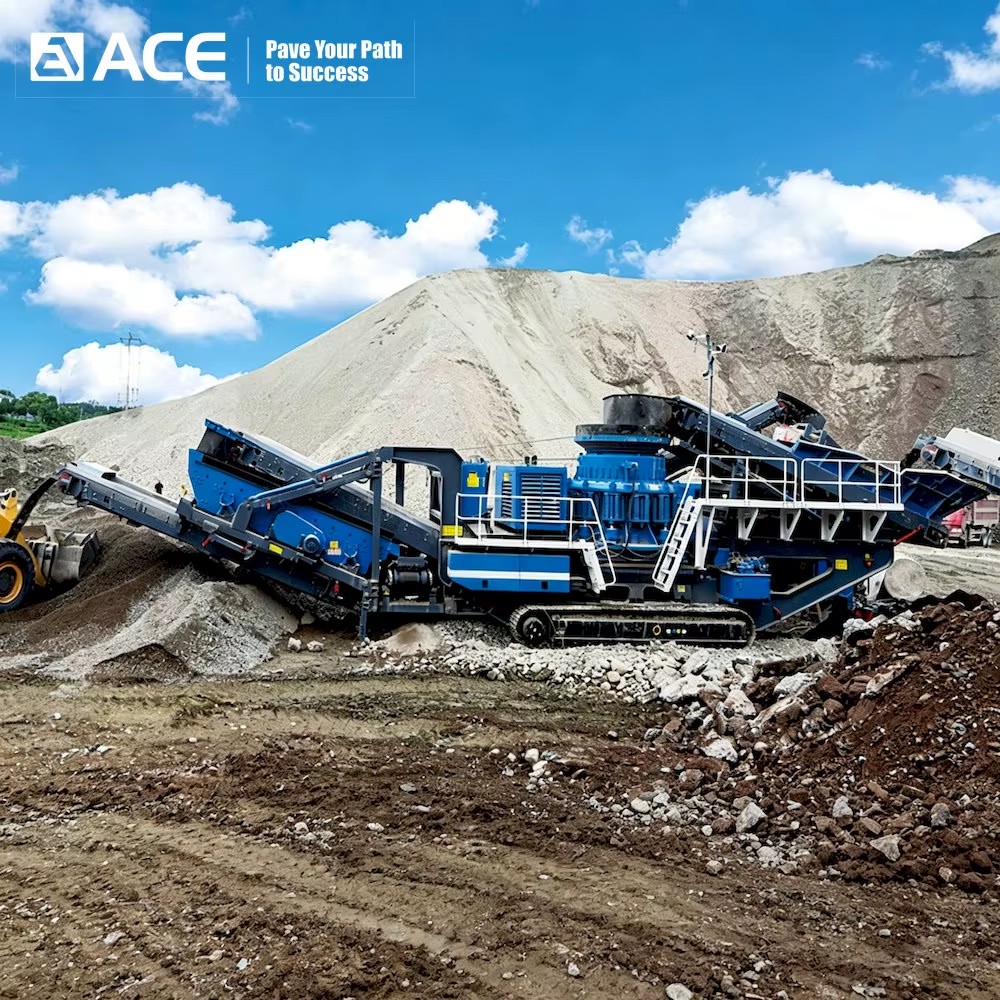

ACE Group AMC300 Crawler

Name: ACE Group AMC300 Crawler
SKU: 9BKG-88E5-QASY
Price: 229480.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 229,480.00 229480.0 USD $ 229,480.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Cone Crusher

Capacity(t/h)

Max.300t/h

Motor Type

AC Motor

Machinery test report

Provided

Warranty

1 Year

Core components

Bearing, PLC, Motor, Engine

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

1. Compacted and integrated structure with Strickland track for movement, convenient for mobilization in working site.

2. The whole machine can climb onto a lowbed semitrailer all by itself for long distance transportation. It doesn't require cranes, break up, re-assemble or foundations. Fast and easy relocation with extremely low costs.

3. The main machine is multi-cylinder hydraulic cone crusher, which is outsourced from the top manufacturer of. Reliable quality, stable performance, longer service life.

4. Intelligent control, travel track controlled by a hand-hold controller. Operation can be conducted in a central control room. Whole production process is under automation control, labor-saving, efficient and safe.

5. The crawler

6. World famous key devices are employed, Schneider electrical elements, Cummins diesel engine, Eaton hydraulic plunger pump, Strickland track, Bonfiglioli /Brevini hydraulic motor. Performance, service life and value of the crusher is guaranteed.

ACE Group AMC300 Crawler

Frequently asked questions

It is usually caused by loose bolts, tramp iron inside crushing chamber, uneven feeding or worn liners/gears. Shut down to fasten bolts, clear foreign objects, adjust uniform feeding and replace worn parts, and fix blocked lubrication lines.

Blocking results from wet muddy material, oversized feed, overfeeding or too small discharge gap. Control feed size and moisture, slow down feeding, widen discharge opening, clean conveyor buildup and fit a magnetic iron remover.

Common faults include internal leakage of the hydraulic system, insufficient accumulator pressure or damaged airbag, out-of-round liners caused by long-term wear, pressure relief of safety valves and unstable feeding volume. Solutions: Overhaul sealing leakage of hydraulic oil pipes, recalibrate nitrogen pressure of accumulators, inspect and replace worn liners, calibrate or replace failed safety valves, and adopt full-chamber even feeding mode to stabilize the CSS discharge gap.

Fault causes: insufficient lubricating oil volume, deteriorated oil quality, blocked cooler with poor heat dissipation, blocked oil pipelines and damaged internal bearings. Solutions: Add qualified lubricating oil or replace all oil completely, disassemble and clean the cooler and oil filter, dredge blocked oil passages, inspect and replace damaged bearings after machine shutdown, and enhance ventilation and heat dissipation under high-temperature working conditions.

Root causes: inconsistent tension of left and right crawlers, uneven wear of four wheels and one belt on single side, deformed crawler frame and large height difference of construction ground. Solutions: Stop the machine to adjust the tension pressure of both crawlers uniformly, replace worn driving wheels, guide wheels and supporting wheels in pairs, correct deformed crawler frame, operate the machine on flat ground as much as possible, and avoid sharp turning in situ.

Excessive feeding, hard raw material, chamber blockage, poor lubrication or slipping drive belts lead to high current and low output. Cut feeding rate, clear chamber blockages, service lubrication system and adjust or replace slipping belts.

Oil shortage, dust contamination or damaged thrust bearing trigger cone runaway after tramp iron intrusion. Shut down immediately without restarting, check shaft and liner clearance, clean oil impurities, replace damaged bearings and strengthen tramp iron prevention.

Sticky clay causes chamber clogging, screen blinding, belt slip and accelerated crawler mud wear. Pre-remove mud from feed, clean chamber regularly, install belt scrapers, wash crawlers daily and limit feed moisture below 8%.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Cone Crusher

Capacity(t/h)

Max.300t/h

Motor Type

AC Motor

Machinery test report

Provided

Warranty

1 Year

Core components

Bearing, PLC, Motor, Engine

Video outgoing-inspection

Provided

Key selling points

High Productivity

Color

Blue, Customer Requirement

Place of origin

China, Henan

Weight

55000 KG(121254.24lb)

Application

Mining Quarry Stone Crushing Plant

Dimension (L*W*H)

14800*3800*4450

Keyword

Portable Stone Crusher

Applicaton

Mining Quarry Stone Crushing Plant

Advantage

High Efficiency Low Energy

After-sales Service Provided

Engineers

Processed Materials

200 Kinds Materials(<300 Mpa)

Certification

ISO9001:2008

Processing capacity (t/h)

100-300

Crawler chassis

DL375

Selling Units

Single item

Power (W) (Product option)

289700

Model number

AMC300

Lead time

25 days

Minimum order

1 Units
