Zhongde Large Capacity Spiral Classifier Sand Washer Pump AC Motor Mineral Washing Machine for Construction Mining

Spiral classifiers can grade different particles in ore slurry during the metal beneficiation process as well as deslime and dehydrate in the washing operation. They are widely used to separate ore sands by forming a closed-circuit with the ball mill in concentrators, or in gravity concentrators to classify ores and fine muds.

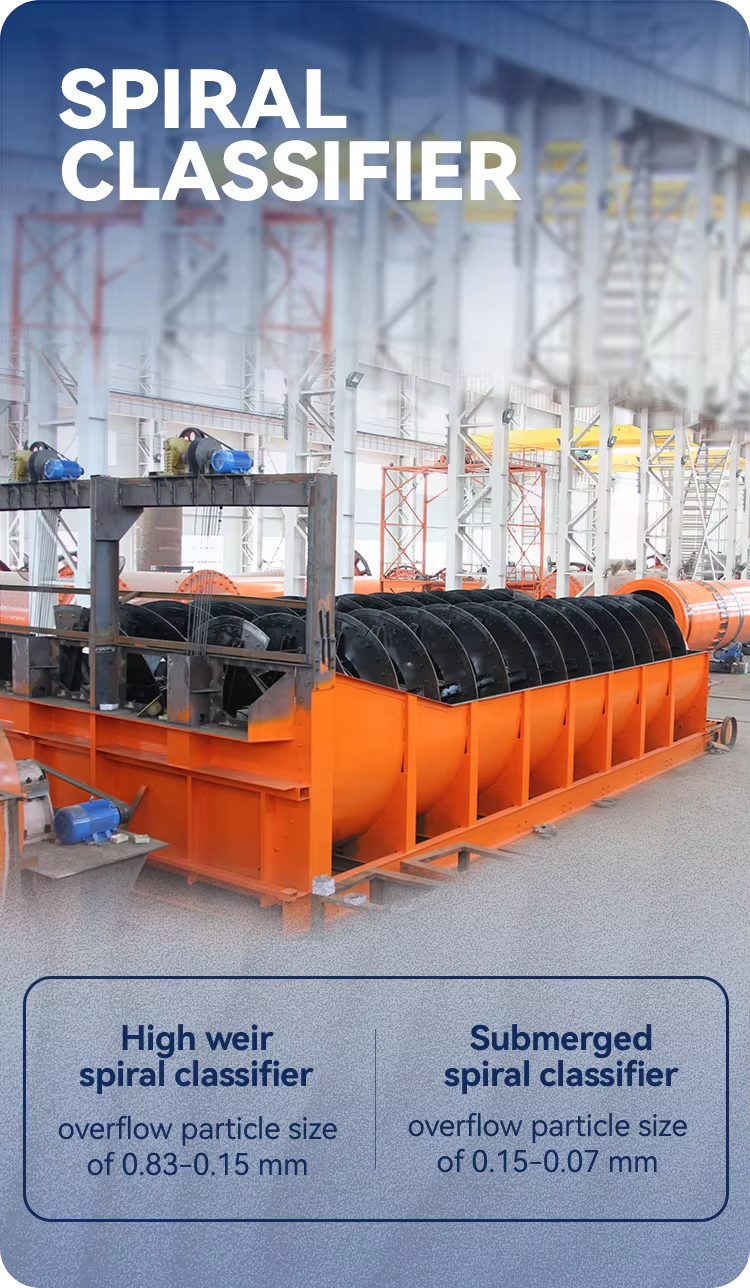

The classifier mainly includes four types: high weir single spiral, high weir double spiral, submerged single spiral, and submerged double spiral.

Applicable Materials

In the metal beneficiation process including gravity concentration and ore washing of the materials such as quartz, gold ore, iron ore, copper ore, ore, ore pulp, fine mud, cement clinker, magnetite, etc.

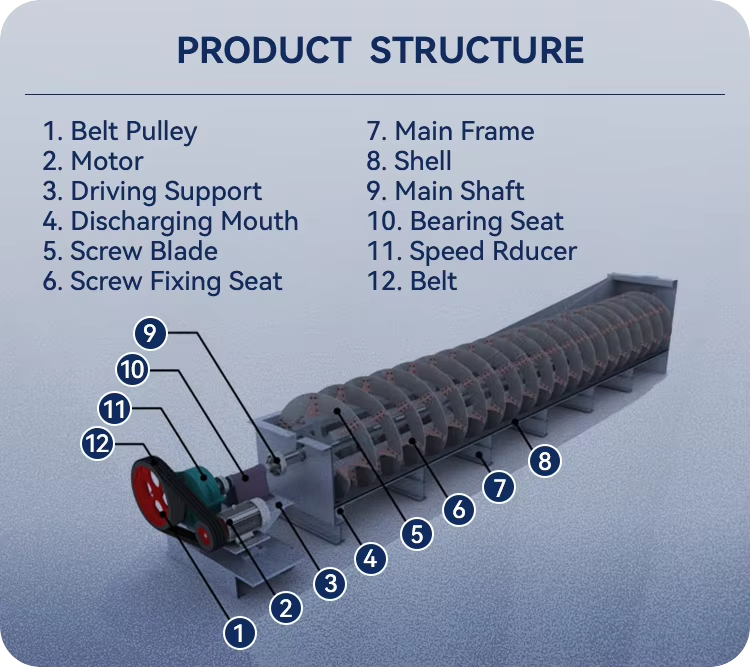

Product Structure

The classifier is mainly composed of the transmission device, spiral, lower support, tank, drain valve and lifting mechanism.

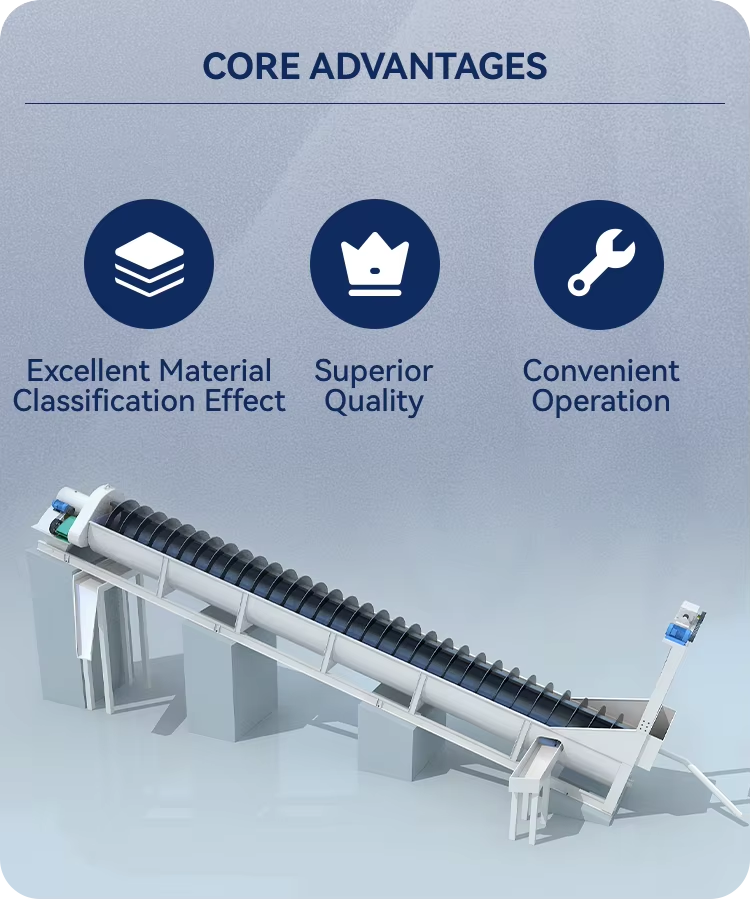

Outstanding Advantages

1. Excellent Material Classification Effect: Sufficient settling area and elongated tank prolong the suspension time of materials in water, which is conducive to material classification.

2. Superior Quality: The machine is lined with tile, resulting in low maintenance rate. The base is made of channel steel and the body is welded with steel plates, ensuring high quality and strong wear resistance.

3. Convenient Operation: The spiral classifier adopts frequency control technology, making it easy to control the quality of stone powder. The stone powder content of 0.00-0.75mm can be adjusted between 2% and 15%.

The spiral classifier is a mechanical classification device that utilizes the principle of different sedimentation velocity of solid particles in a liquid due to varying sizes and densities. It works by agitating the slurry with low-speed spiral rotation, allowing fine particles to overflow at the weir while coarse particles settle at the bottom and are conveyed by the screw to the discharge port.

Our Services

1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.

2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.

3. We visit customers regularly to provide lifelong service and technical support.

4. Except for wearing parts, we provide one-year warranty, long-term supply of spare parts, and two-year maintenance of major parts if used correctly.

Quality Control

1. Our equipment holds ISO 9001, CE, and GOST certifications and all equipment undergoes pre-wiring, assembled, and factory tested at our manufacturing facility.

2. We take a test on each machine before delivery.
