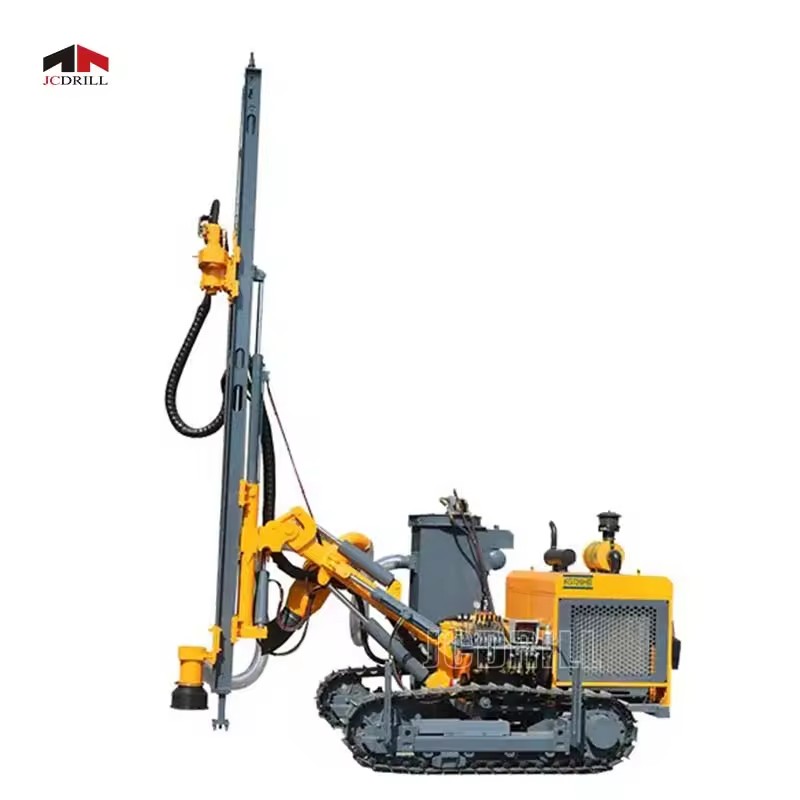

Wholesale High Efficiency Blasting Explosive Rock Mining DTH Drilling Machine Rig for Heavy Duty Applications

Available for enquiry 0.0 · 0 reviews
USD

$ 155,730.00 155730.0 USD $ 155,730.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
bore pile drilling machine
Type
hydraulic drilling
Drilling Depth
Max.25m
Drilling Diameter
90-115 mm(3.54-4.53in)
Power Type
Diesel
Voltage
24v
Product description

>> Product Description

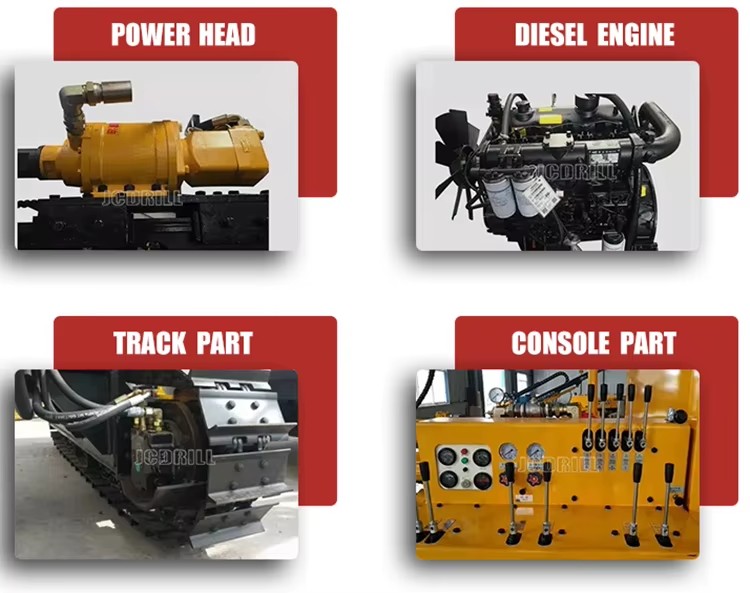

The KGH5AIII down the hole dril rig for open use hydraulic system adopts variable system, its main valve and main pump adoptfamous products,to ensure quality, and has the advantage of energy saving and oil saving, The control handle adopts pilot proportionhandle, which has the advantages of sensitive operation and labor-saving.The guide rail adopts high-strength and large-section aluminumalloy profles, and the push chain adopts increased single-row roler chain. At the same time, the slide plate layering adopts wear-resistantmaterials to ensure the service ife of products. Propulsion and rotation adopt two speed.to ensure that the dril car can drll diferent rockstrata with eficient driling speed: Propulsion motor adopis high pressure piston motor to improve lifting force and reliability.

>> Specifications

KGH5AIII
Rock rigidityF=6-20
Diameter of holeΦ80-115mm
Optium drilling depth25m
Rotation speed107r/min
Rotation torque1400N.m
Lift power15 KN
Feed wayoil cylinder-chain
Feed distance3000mm
Walk speed0-1.8 km/h
gradeability30°
Ground clearance290mm
Weight4000kg
Size of drill machine4400*2200*2050mm
Sliding carriage pitch angleBlow 135°,elevation5°, total 145°
Sliding carriage swing angleLeft100°,right45°,total 145°
Drill boom pitch angleBlow 50°,elevation25°, total 75°
Drill boom pitch swing angleLeft44°, right45°, total 89°
Sliding carriage suppling length900mm
powerYC4D80(58kw 2200r/min)
Drill pipeΦ64
Working air pressure1.0-1.7Mpa
Air consumption9-16 m³/min
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours.>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special requirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress.>>

>>

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''. We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002. With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> Certification

>> FAQ

Q: Are you original manufacturer?Q: Which payment terms are available to us?Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery and we have the whole series products you need.A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?Q: How aboutQ:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
Certifications & compliance
CE
Complies with EU standards
Description images

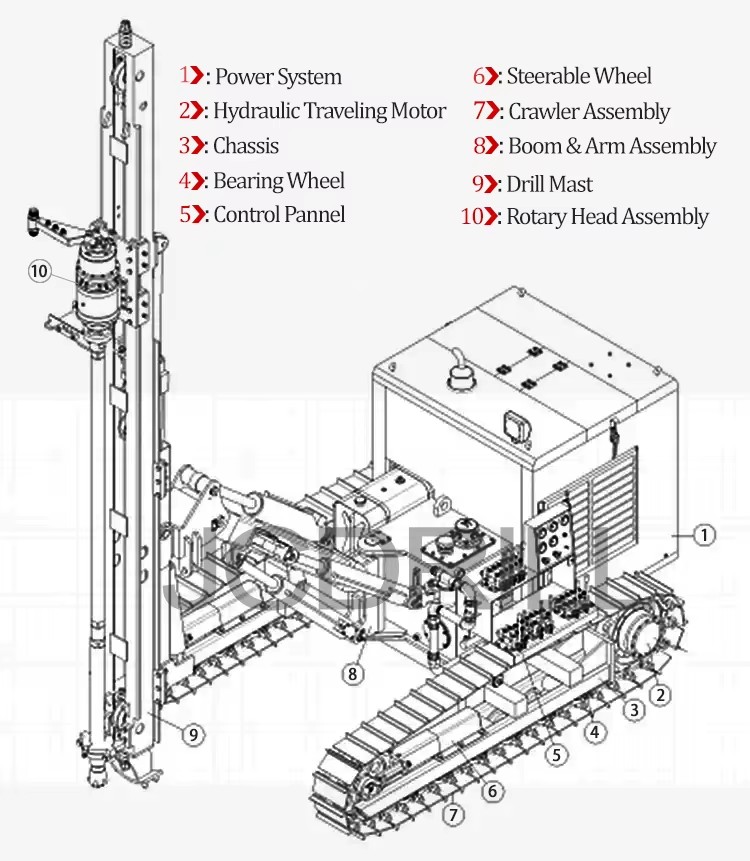

Wholesale High Efficiency Blasting Explosive Rock Mining DTH Drilling Machine Rig for Heavy Duty Applications

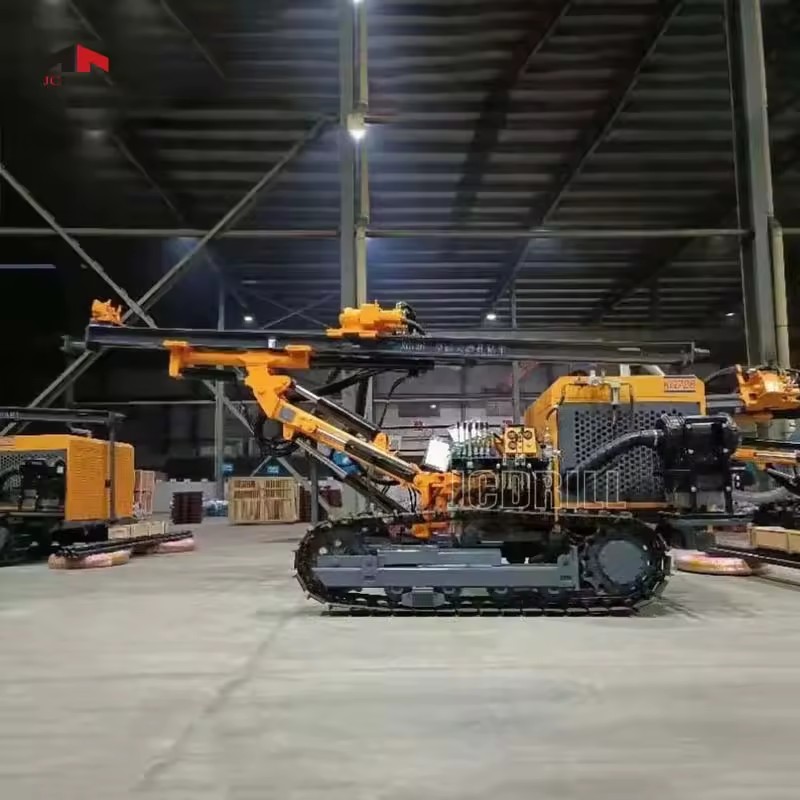

Wholesale High Efficiency Blasting Explosive Rock Mining DTH Drilling Machine Rig for Heavy Duty Applications
Wholesale High Efficiency Blasting Explosive Rock Mining DTH Drilling Machine Rig for Heavy Duty Applications
Wholesale High Efficiency Blasting Explosive Rock Mining DTH Drilling Machine Rig for Heavy Duty Applications
CE

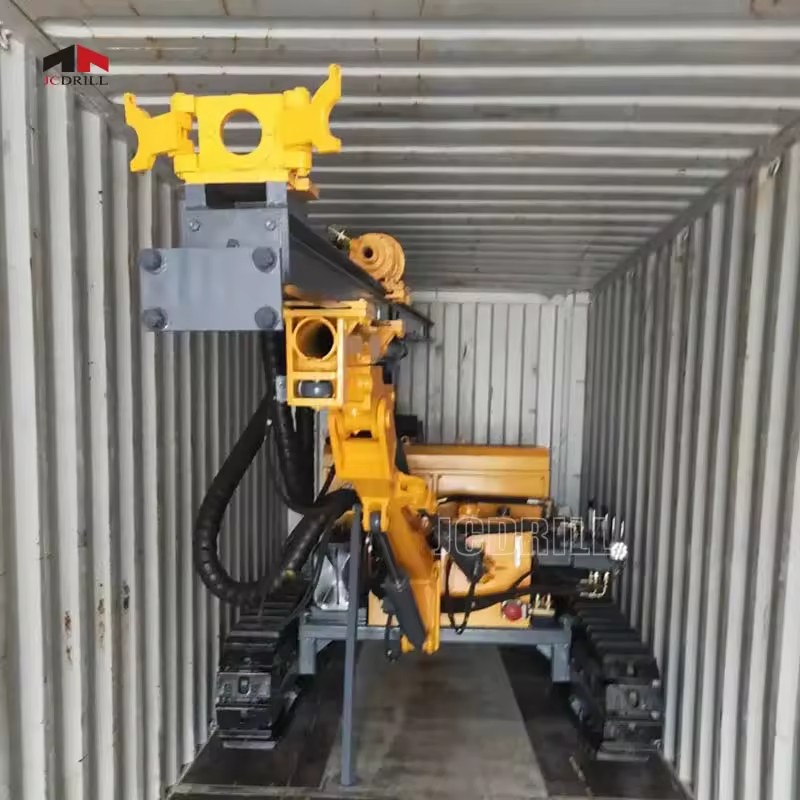

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
bore pile drilling machine
Type
hydraulic drilling
Drilling Depth
Max.25m
Drilling Diameter
90-115 mm(3.54-4.53in)
Power Type
Diesel
Voltage
24v
Core components
Bearing, Motor, Gear, Engine, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Beijing
Weight
4000 kg(8818.49lb)
Dimension (L*W*H)
4400*2200*2050mm(173.23*86.61*80.71in)
Mobility
Crawler Mounted
Diameter of hole
80-115mm
Depth of economical drilling
25m
ROTATION SPEED
107r/min
Ground Clearance
290mm
Lift power
15KN
Rotation torque
1400N.m
Feed distance
3000mm
Walk speed
0-1.8 km/h
Selling Units
Single item
Model number
KGH5AIII
Power (W) (Product option)
58kw(77.78hp)
Certifications & Compliance
CE
Lead time
30 days
Minimum order
1 Units
