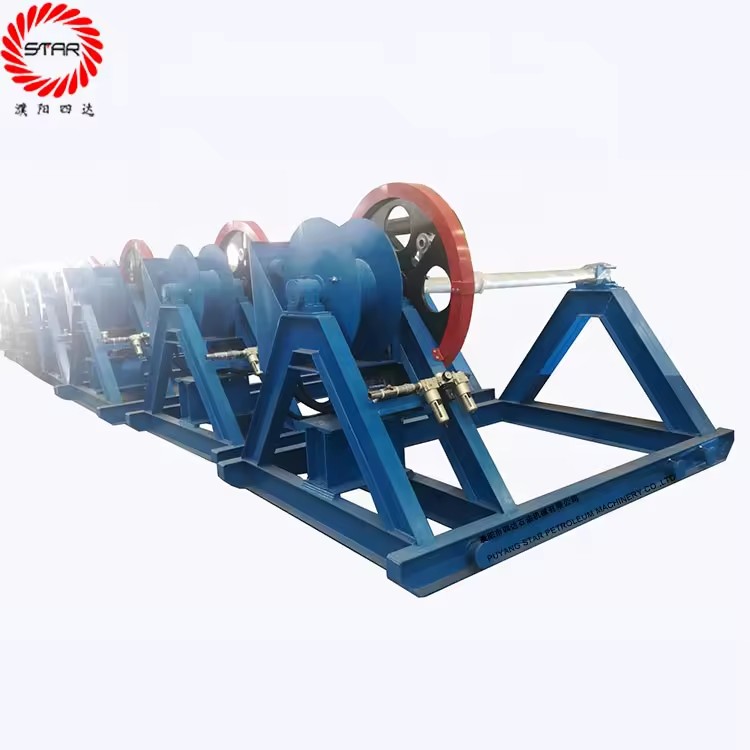

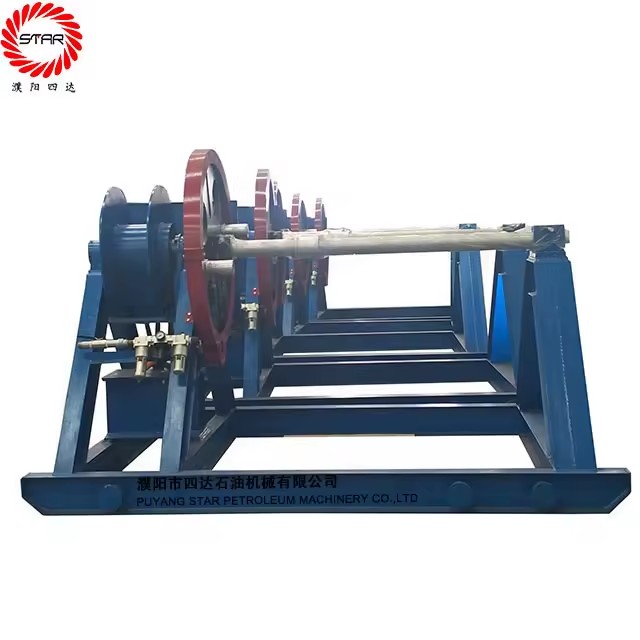

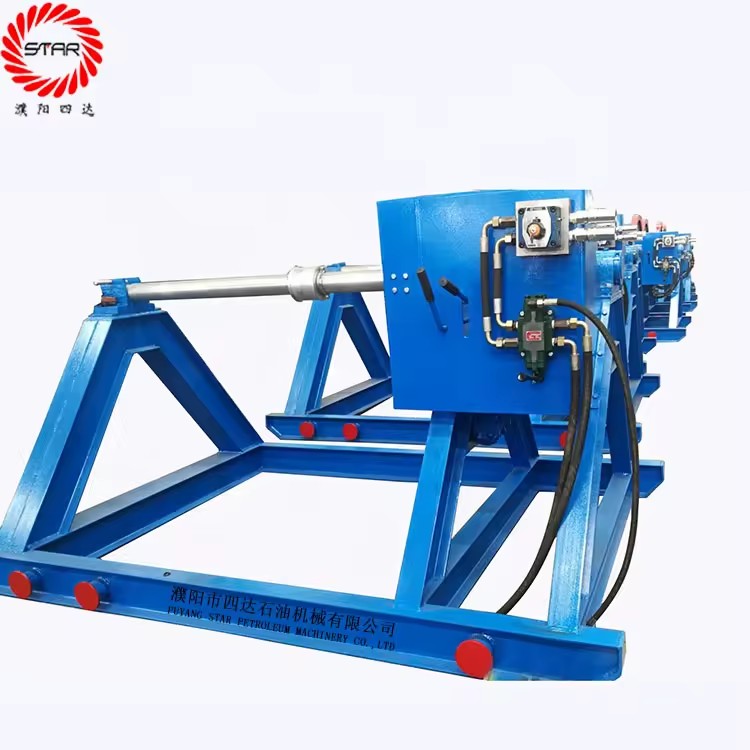

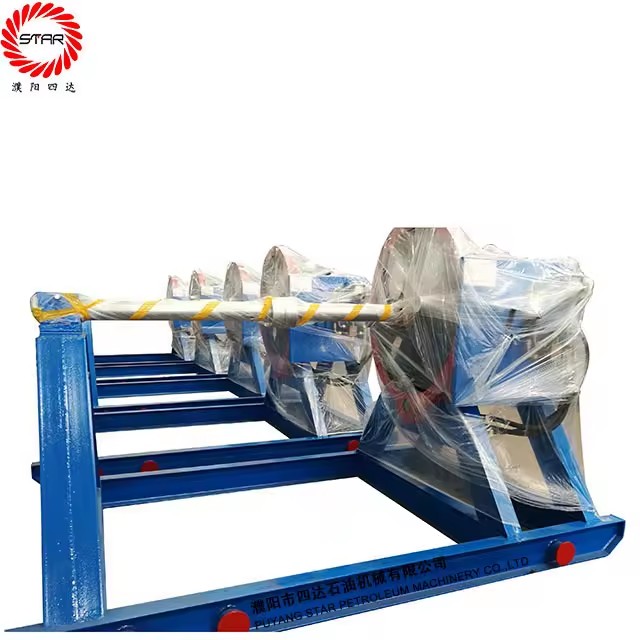

Cable Retractable Rope Reversing Machine Cable Spooler

Product Importer Gallery 01 · f5ffa08f80

Product Importer Gallery 02 · 6f7728f45b

Product Importer Gallery 03 · 865a36b6ef

Product Importer Gallery 04 · 9c31cda23e

Product Importer Gallery 05 · 7f3f52d800

Product video

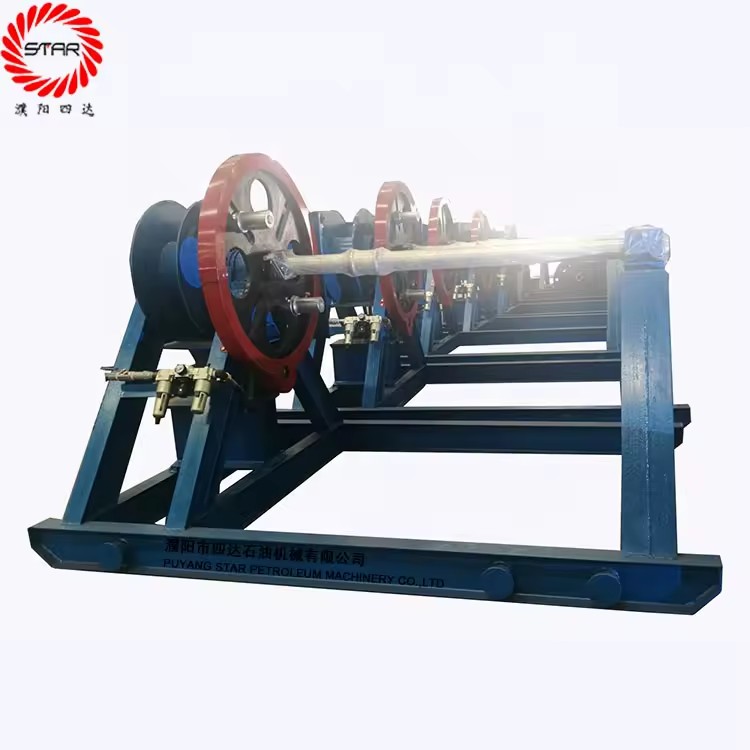

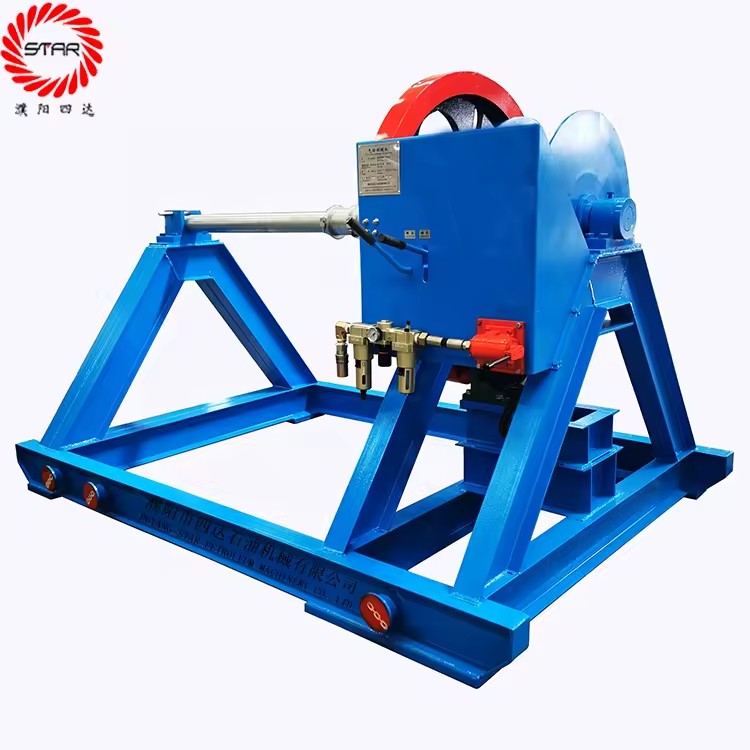

Cable Retractable Rope Reversing Machine Cable Spooler

Name: Cable Retractable Rope Reversing Machine Cable Spooler
SKU: 8X4M-4KNM-838Y
Price: 7370.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 7,370.00 7370.0 USD $ 7,370.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Drilling Rig Parts

Power Type

Gasoline

Voltage

none

Machinery test report

Provided

Warranty

2 Years

Core components

Motor, Gear, ROLLER, Main Body, Shaft, Brake Machanism, Variable Transmission

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model/Product Name	Cable Spooler
Drive Type	Pneumatic
Support Spacing (mm)	1320
Height of Center (mm)	1640
Rated Output Torque (kN.m)	10
Rated Speed (RPM)	0.6-0.9MPa
Motor Power (MPa)	7.5kw 380V /50Hz 460V/60Hz
Max Workload (Kg)	15000
Weight (Kg)	1800
Dimension (mm)	3045x2050x1845

Product Application

Cable Spooler Technical Parameters
SPEC/Model	DSJ8-D	DSJ15-D	DSJ8-Y	DSJ15-Y	DSJ15-Q
Drive Type	Electric	Hydraulic	Pneumatic
Support Spacing (mm)	1260	1320	1260	1320	1320
Height of Center (mm)	1105	1640	1105	1640	1640
Rated Output Torque (kN.m)	10
Rated Speed (RPM)	3.7-18	0.55-17.5	0.5~13rpm
Motor Power (kw)	5.5kw (380V/50Hz 460V/60Hz)	7.5kw (380V/50Hz 460V/60Hz)
Hydraulic Pressure (MPa)	16MPa Flow:100L/min
Gas Consumption	≤15m3/min(≈6 m3/min)
Max Load (Ton)	8	15	8	15	15
Remarks	Customized production on request, such as load, canopy, with wire rope drum, single drum，etc.

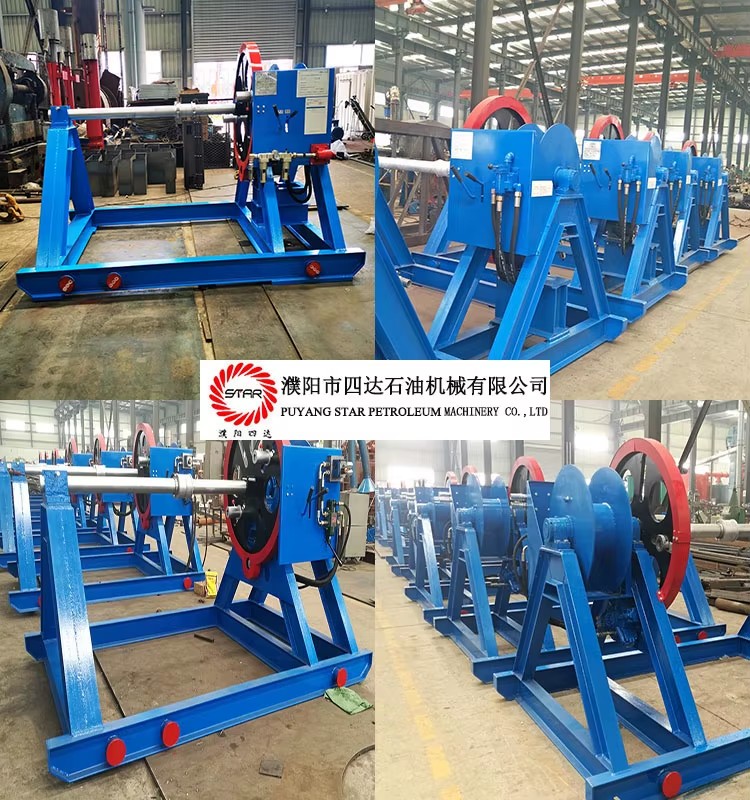

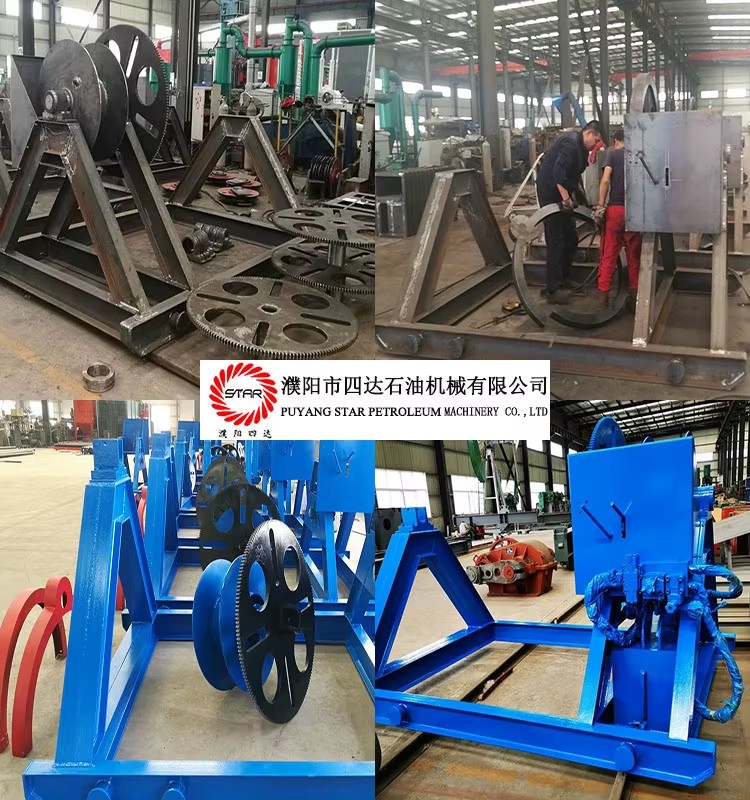

Cable Spooler Production

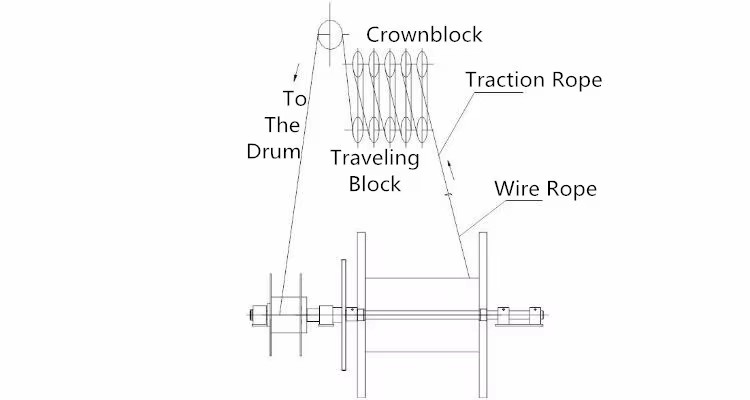

Cable Spooler Drill Line Threading Method

Want to know more,please be free to contact Lillian

1.By Trademanager

2.By Following information

Remark:please supply more detail require specification,that I can back the

Liquid Gas Separator

91.8% Response Rate

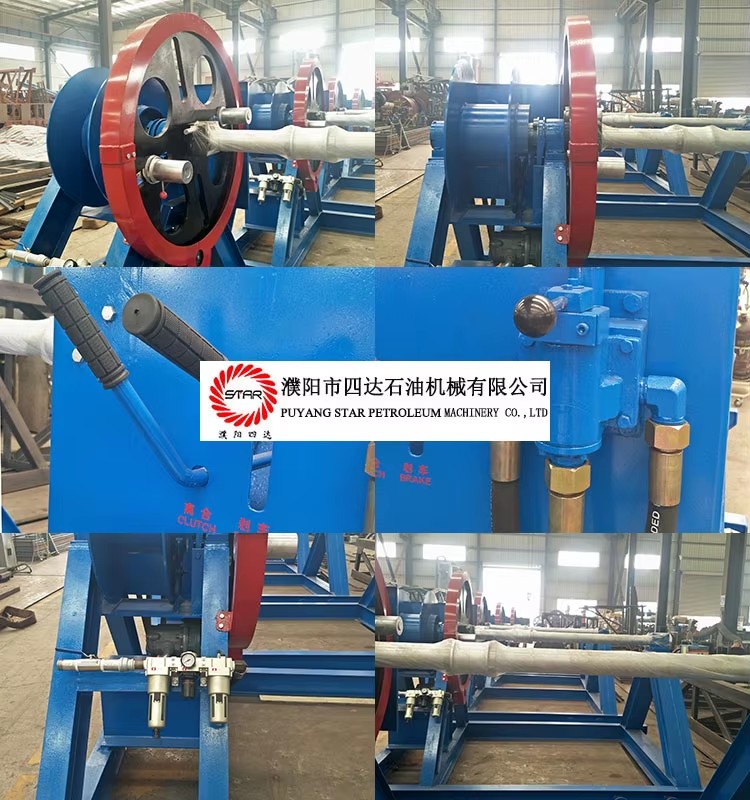

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Drilling Rig Parts

Power Type

Gasoline

Voltage

none

Machinery test report

Provided

Warranty

2 Years

Core components

Motor, Gear, ROLLER, Main Body, Shaft, Brake Machanism, Variable Transmission

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight

1800 KG

Dimension (L*W*H)

3050x2050x1845mm

Model

DSJ15-Q

Drive Type

Pneumatic

HS CODE

8431100000

Company Nature

Factory

Model Mark

DSJ

Color

Green, red, Blue or according to the requirement

Product Category

Drilling Rig Auxiliary Equipment

Remarks

Not only for oilfield, port and other operation can use it too.

Packaging Details

Cable Spooler: 1.Naked into the container. 2.Transport to the port. 3.Shipping to the destination port by sea.

Port of dispatch

Qingdao, ShangHai, tianjin, Guangzhou, Lianyungang, Ningbo etc.

Selling Units

Single item

Supply Ability

50 sets per Month

Power (W) (Product option)

None

Model number

DSJ15-Q

Lead time

15 days

Minimum order

1 Units
