Product video
Certifications CE

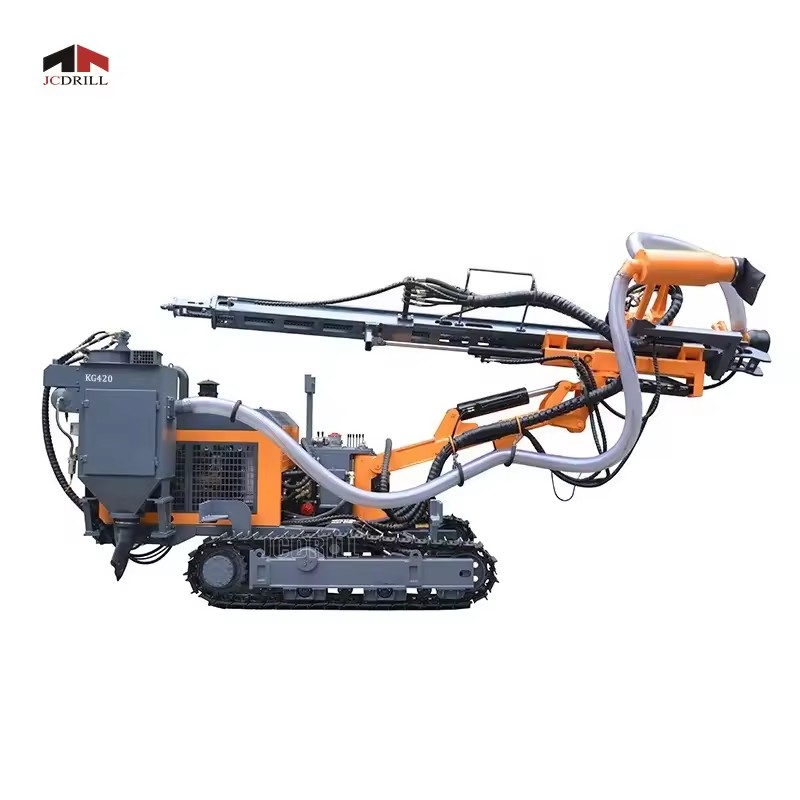

Portable Pneumatic DTH Drilling Rig Kaishan KG610 Small Rotary Borehole Drill Rig Machine for Mining Rock Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 155,730.00 155730.0 USD $ 155,730.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
bore pile drilling machine
Type
hydraulic drilling
Drilling Depth
Max.50m
Drilling Diameter
90-127 mm(3.54-5in)
Power Type
Diesel
Voltage
24v
Product description

>> Product Description

The KG420/KG420H down the hole Mine+Drilling+Rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine ( III), the drill rig meets national standards for emissions and environment.The folding frame track and four-wheel drive are adopted; Add track leveling cylinders and the plunger piston tramming motor improves the working pressure and increase the rotary torque and revolving speed; and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

>> Specifications

Model of drill rigKG420KG420H
Weight of complete machine5200KG5400KG
Outer dimensions6000×2150×2500mm6000×2250×2500mm
Drilling hardnessf=6-20
Drilling diameterΦ90-115mm
Depth of economical drilling25m
Rotary speed0-120rpm
Rotary torque1800N·m
Lifting force40KN
Method of FeedOil cylinder-leaf chain
Feed stroke3980mm
Travelling speed0-2.5km/h
Climbing capacity≤30°
Ground clearance500mm
Tilt angle of BeamDown: 135°, up: 50°, total: 185°
Swing angle of boom100°, right: 45°, total: 145°
Pitch angle of drill boomDown: 50°, up: 25°, total: 75°
Swing angle of drill boomLeft: 44°, right: 45°, total: 89°
Leveling angle of track±10°
Compensation length of beam900mm
Supporting powerYuchai YCD4R23T8-80 (59KW/2400r/min)
DTH hammerM3
Drilling rodΦ64×3m
Air consumption10-17m3/min
Maximum height of horizontal hole2750mm
Minimum height of horizontal hole750mm
>> Pre-sale service Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement. >> Select suitable model & matched equipment. >> Strong technical support. Reply clients' questions within 24 hours.>> Service During Sales We have responsible team from raw material to finished products, and guarantee 100% pass rate. >> Design and manufacture products basis of client's special requirement >> Inspect each machine & matched accessories strictly before delivery >> Timely inform client of production progress.>>

>>

JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''. We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002. With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

>> Certification

>> FAQ

Q: Are you original manufacturer?Q: Which payment terms are available to us?Q: Which Incoterms 2010 terms can we work?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery and we have the whole series products you need.A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?Q: How aboutQ:Spare Parts When You Need Them
A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
Certifications & compliance
CE
Complies with EU standards
Description images
Portable Pneumatic DTH Drilling Rig Kaishan KG610 Small Rotary Borehole Drill Rig Machine for Mining Rock Drilling
Portable Pneumatic DTH Drilling Rig Kaishan KG610 Small Rotary Borehole Drill Rig Machine for Mining Rock Drilling
Portable Pneumatic DTH Drilling Rig Kaishan KG610 Small Rotary Borehole Drill Rig Machine for Mining Rock Drilling
Portable Pneumatic DTH Drilling Rig Kaishan KG610 Small Rotary Borehole Drill Rig Machine for Mining Rock Drilling
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
bore pile drilling machine
Type
hydraulic drilling
Drilling Depth
Max.50m
Drilling Diameter
90-127 mm(3.54-5in)
Power Type
Diesel
Voltage
24v
Core components
Bearing, Motor, Gear, Engine, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Beijing
Weight
5800 kg(12786.81lb)
Dimension (L*W*H)
6000*2200*2700mm(236.22*86.61*106.30in)
Mobility
Crawler Mounted
After-sales Service Provided
Engineers available to service machinery overseas
Impact method
DTH hammer
Hole Diameter
90-127 mm
Hole depth
25m
Grade Ability
30°
Air Consumption-Flow rate
10-17m3/min
Rotation torque
1800N m
ROTATION SPEED
0-90r/min
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KG420
Power (W) (Product option)
58kw(77.78hp)
Certifications & Compliance
CE
Lead time
30 days
Minimum order
1 Units
