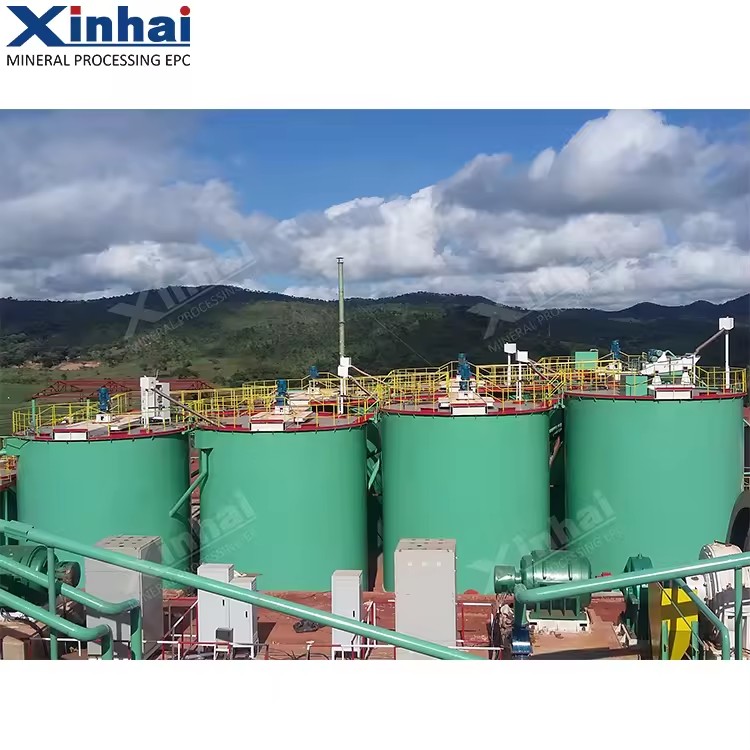

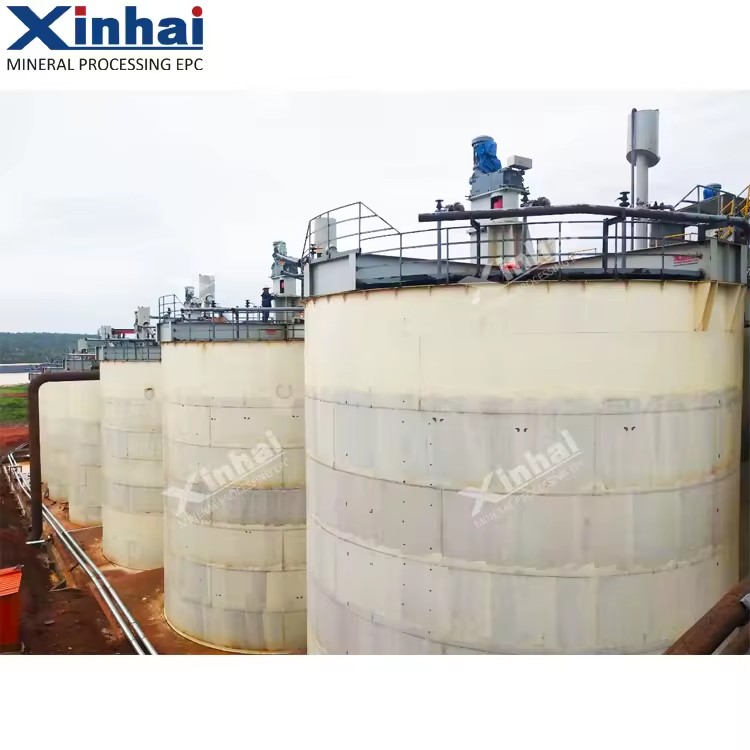

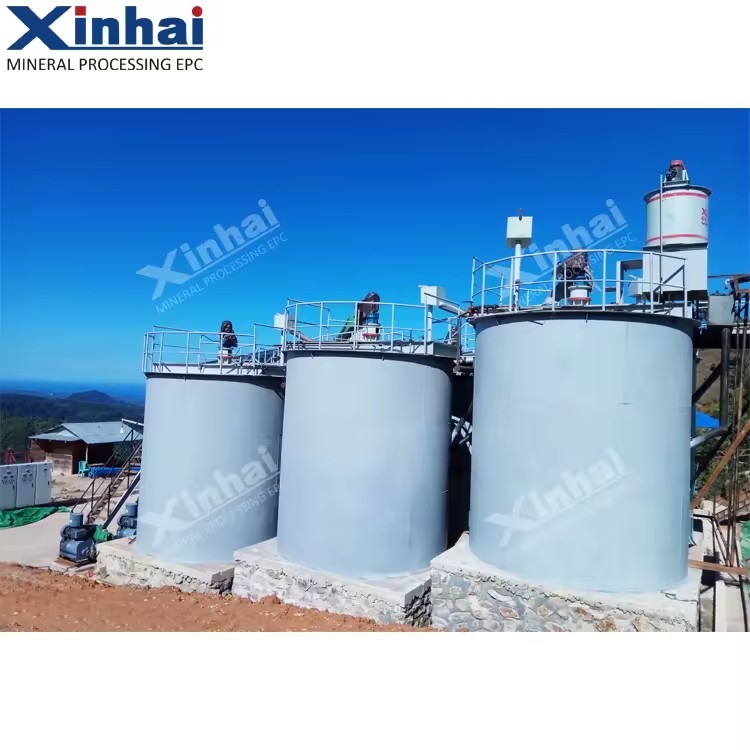

Mixing Leaching Tank/ Gold Mining Agitation Leaching Tank

Mixing Leaching Tank/ Gold Mining Agitation Leaching Tank

Gold Leaching Tank —Introduction

[Introduction]: Leaching agitation tank is a leaching equipment for cyanide leaching by referring technical design.

[Capacity]: 6-395m³

[Improvement]: Leaching agitation tank for gold extraction is improved with double impeller, uniform mixing, low energy consumption; the impeller coated by rubber, long service life; multi points to supply with the gas, uniform inflation.

Gold Leaching Tank — advantage

1.The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed, and long service life. 2.Moderate agitation intensity, and uniformly distributed in pulp concentration and fineness, which can improve the leaching rate of cyanidation and the adsorption rate of carbon; 3.Adopt two new impellers, the agitation tank is featured with a large impeller diameter, low rotation speed, small power consumption, which can reduce the wear of carbon; 4.The air enters the tank through the transmission hollow shaft, and the air disperses evenly with the blade agitation; 5.Smooth movement of ore flow, even pulp mixture, less power consumption; pact structure, easy to maintain; 7.Hollow shaft is ventilated to the bottom end, and the air enters into the tank with uniform distribution and small bubbles

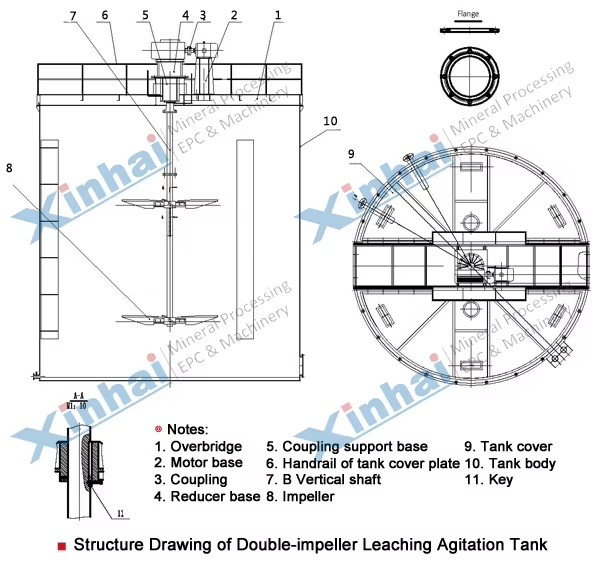

Gold Leaching Tank — Working principle

With dual impellers rotating and agitating, ore pulps move downward and then diffuse along with the damping plate. Air is fed in the tank from the lower end of the shaft and blended with ore pulps to form a uniform suspending mixed liquid.

In the gold cyaniding process, a leaching agitation tank is applied to leach and carbon-absorb ore pulps whose fineness is -200 meshes and whose density is less than 45%. Under similar circumstances, it is also applied to agitation and leaching in metallurgy, chemical, and light industry.

Gold Leaching Tank — Technical parameters

Laboratory: Strive for the best recovery for you with rigorous test, accurate data and detailed report

Institute: Certified grade A of mineral design institute, high quality drawing, simulate mineral plant with CAD and 3D, guarantee the construction period

F actory: We have three production factories, hundreds of suppliers. Some products reach the international leading level with own characteristic.

Technology & Equipment Inc has been committed to providing high quality and efficient mineral processing equipment for the past 20 years, our clients have spread all over the world.

With the continuous development and innovation, won innumerable honors, including certificates awarded by government organization, media and market research agencies, praises from by the public etc. is proved by these honors.
