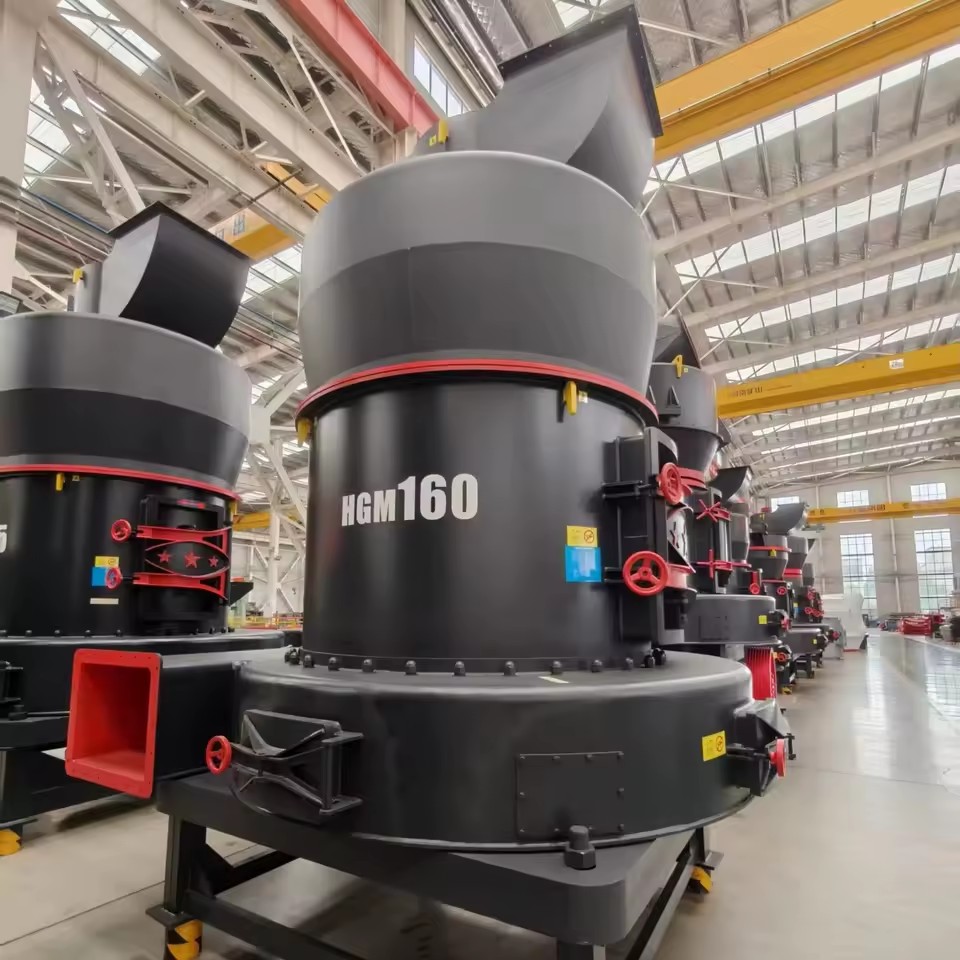

Stone Powder Raymond Grinding Mill

Available for enquiry 0.0 · 0 reviews
USD

$ 133,200.00 133200.0 USD $ 133,200.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Grinding Equipment
Motor Type
AC Motor
Core components
Bearing, Plum blossom frame, Grinding roller assembly, Grinding ring, Scraper assembly
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Product description

Highlights at a glance

  • 1. High Efficiency and Energy Saving.Utilizing a high-pressure centrifugal fan, it is energy-efficient and highly effective, ensuring a stable airflow for system operation.
  • 2. Low Maintenance Costs.The unique thin oil lubrication structure for the main shaft and grinding roller assembly significantly improves lubrication, extending bearing life to 3-10 years and requiring lubrication every 6 months, simplifying maintenance.
  • 3. High Grinding Pressure and Increased Output. The grinding roller linkage pressurization technology increases the crushing pressure to 2.5 tons, significantly enhancing the ability to crush hard materials, while increasing the output of ordinary materials by more than 10%.
  • 4. High Transmission Efficiency.V-belt and gear drive result in a compact structure, smooth transmission, and low noise.
  • 5. High and Wide Classification Accuracy.The continuously variable frequency turbine classifier improves classification efficiency and accuracy, allowing the finished particle size to be adjusted arbitrarily between 50 mesh and 800 mesh, with a screening rate adjustment range of 80-99%.
  • 6. Clean and Environmentally Friendly. Equipped with a dedicated pulse dust collector, the dust removal efficiency can reach 99.9%, and the emission concentration is ≤10mg/Nm³, which is better than the national environmental protection emission standards, realizing dust-free operation in the production workshop.
    • Frequently asked questions

    Severe wear of grinding rollers, grinding rings, and shovels, resulting in insufficient grinding and feeding; replace with original wear-resistant parts. Clogged circulating air ducts, cyclone collectors, and elbows due to powder accumulation, resulting in insufficient airflow; stop the machine and clean the dust. Slipped fan belts, resulting in insufficient airflow; tighten or replace the belt. Excessive feed causing machine stalling, or excessively wet material causing clumping and blockage.

    Uneven fan impeller with accumulated dust: clean the fan blades of powder accumulation. All anchor bolts are loose: stop the machine and tighten all anchor bolts. Iron blocks or hard debris are inside the grinding chamber; immediately stop the machine, disassemble, and clean the foreign objects. Damaged grinding roller bearings, lack of lubrication causing overheating. Thin material layer causing dry grinding, resulting in severe machine vibration; increase the feed rate appropriately.

    Excessive feeding, excessively fast discharge, overloading; High material moisture content causing sticking and clumping; Insufficient fan airflow, unable to blow away powder; Leaking cyclone separators and ducts, resulting in negative pressure imbalance; Insufficient grinding roller clearance causing material to become stuck in the grinding chamber.
    Description images

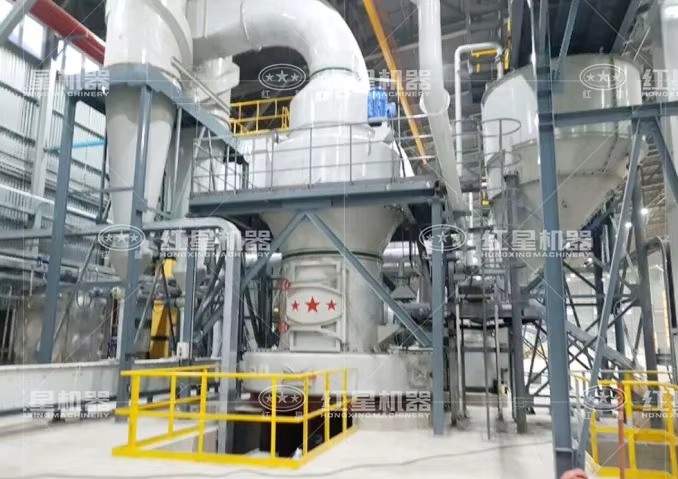

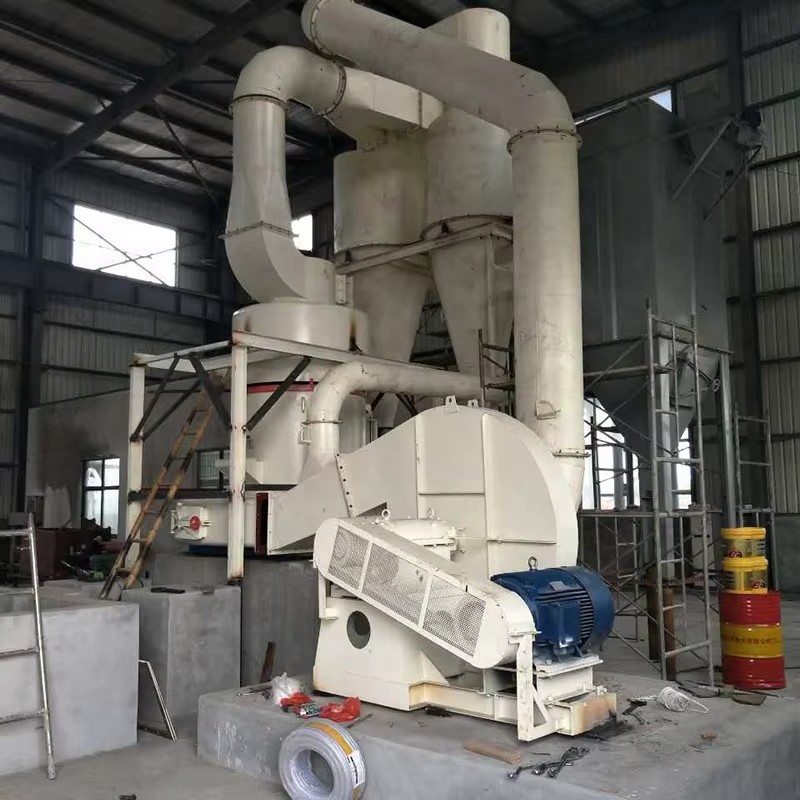

    Product detail

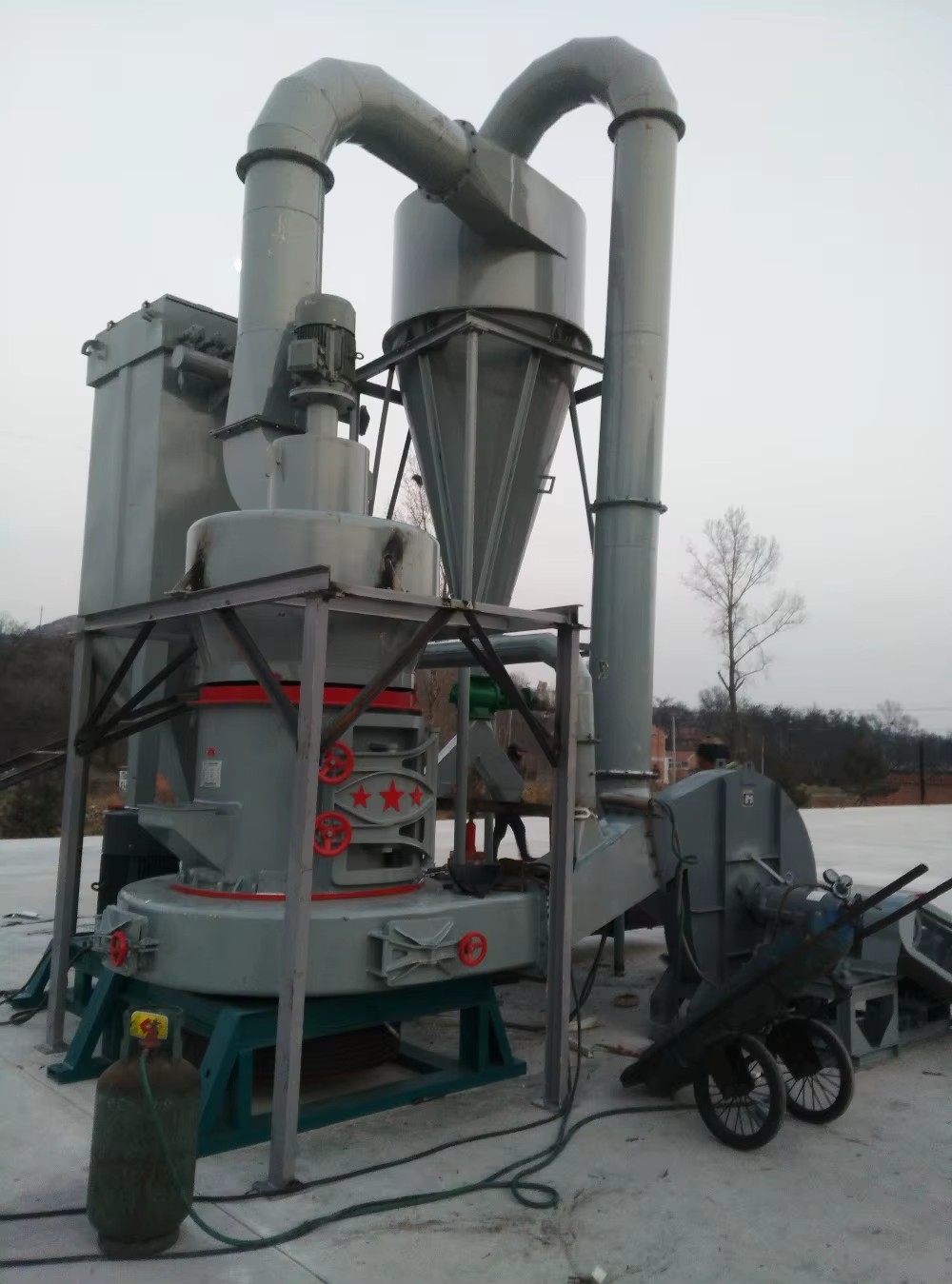

    Product detail

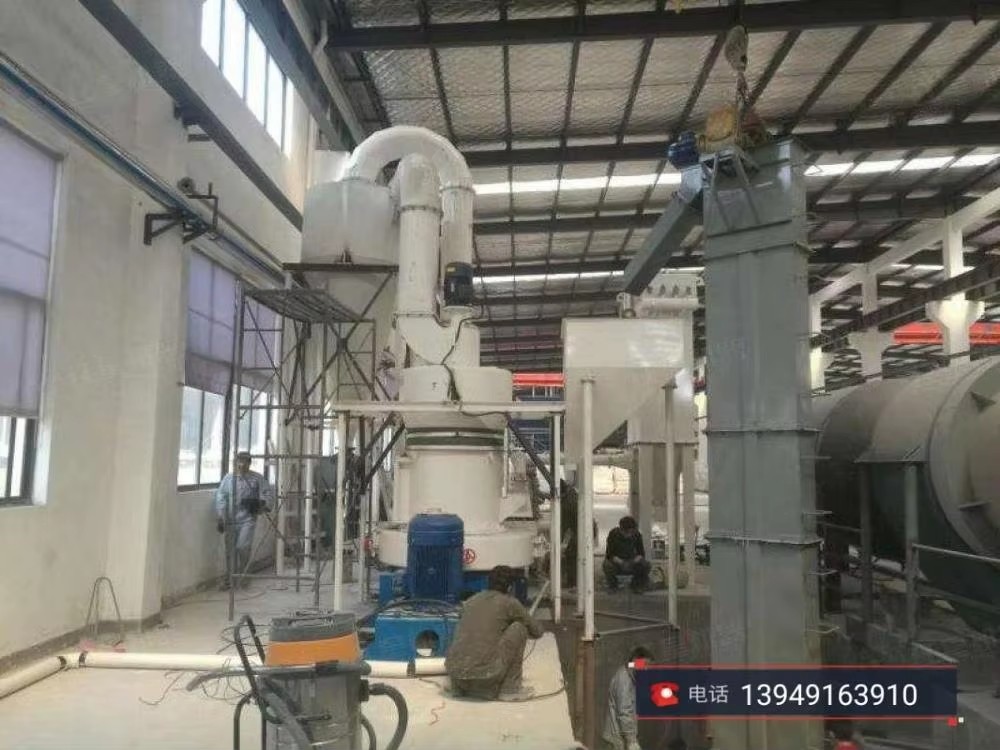

    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 25 fields
    Type
    Grinding Equipment
    Motor Type
    AC Motor
    Core components
    Bearing, Plum blossom frame, Grinding roller assembly, Grinding ring, Scraper assembly
    Machinery test report
    Provided
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Capacity(t/h)
    3-28
    Place of origin
    China, Henan
    Weight
    16500 kg
    Dimension (L*W*H)
    depending on the model
    Max Feeding Size (mm)
    30
    Finished product size (mm)
    0.25-0.038
    Grinding ring diameter (mm)
    1770
    Number of grinding roller
    5
    Main machine power (kw)
    132
    Fan power (KW)
    160
    Powder classifier power (KW)
    30
    Color
    Customer Requirement
    Factory Visit
    Welcome anytime
    Applications
    Used in mineral, chemical, and construction powder processing.
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Power (W) (Product option)
    0
    Model number
    H5M160
    Lead time
    30 days
    Minimum order
    1 Units
