API XJ350 550 750 Drilling & Workover Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 141,590.00 141590.0 USD $ 141,590.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig, XJ 350 550 750
Power Type
Gasoline
Machinery test report
Provided
Warranty
1 Year
Core components
Motor, Gear, Engine, Pump
Video outgoing-inspection
Provided
Product description

API XJ 550 Workover Rig

NOItemSpecificationDescription
A:Main Description
A1Workover depth3200m(2-7/8″)
Nominal workover depth2000m(2-7/8″)
Hook load rating400kN
Max. hook load675kN
Rated power175KW
Working Height21m
Hoisting System3×4
Wire Line DiaDia 22mm
B:Main Truck
B1Chasis DescriptionFrame girder is made of 16 mn steel plate compound special reinforced beam, the front has drag traction ring, respectively. Axle choose wide-track, heavy axle load.
Drive Type6 × 4
Min. clearance(full load)285mm
Max. climbing degree32%
Max. road speed78km/h
B4Subframe
B2Power UnitEngine modelWP10.290
Rated power213KW
Max.Torque1194.0/1400 (N-m)/(rpm)
B3Hydraulic Transfer CaseModel9JS119
B4MastHoisting system3×4
Design per API SPEC 4F
Max.static load700kN
Working height21m
Angle5.5°/4.5°
Wind resistance capacity110km/h
B5Crown blockFast rope wheel diameterDia 600mm
Rope wheel diameterDia 600mm
Max.load800kN
Wire Line DiaDia 22mm
B6JC12 DrawworkModelJC12
Drum diaDiameter 360mm 7/8″
Brake drum diameterDiameter 970mm
Drum width260mm
Wire Line DiaDiameter 22mm
Max. speed15m/s
Clutch
Type
ModelATD-224Hpush plate clutch
Brake band angle340°
B7Angle gear boxModelJX70A-00
put torque7000N.m
put rotary speed2100rpm
B8Traveling HookModelYG - 70
Max.load700kN
Sheave no3 piece
Hook turn angle360°
Wire Line DiaDia 22 mm
B9Line DiaMain lineDia 22× 180m 6×19S-Dia 22-FC-EIPS
Wind ropeDia 22 16m
Small winch wire ropeDia 13 60m
ManufactureXianyang
B10Hydraulic WinchUsing wire rope diameter13mm
Max. pull force30kN
B11Hydraulic SystemHydraulic system used in vehicle leveling, landing and telescopic mast, the use of small hydraulic winch, and for workover hydraulic clamp oil supply
B12PumpModelCBG63
Oil pump displacement113.4L/1800r/min
Pressure16MPa
B13Pneumatic systemPneumatic system includes air supply system, pneumatic system, chassis pneumatic system of hoist, driller control box, etc. Air supply system mainly includes air compressor, pressure reducing valve, dryer, air cylinder, antifreeze, etc. To the supply of clean compressed air. Main drum hoist of pneumatic control valve is installed on the driller control box that is used to control the main roller clutch pneumatic flux to snuff out. The lateral driller control box is placed in the derrick. Control box equipped with main cylinder control valve, winch emergency braking, crash-proof reset, such as engine throttle control valve. Chassis pneumatic control in driving indoor, can control the engine start, flameout, transmission shift, vehicle braking and parking brake. Air compressor:0.500m
B14Electrical systemWorking voltage 24 v electrical system, mainly used for all kinds of light truck chassis system and diesel engine starting, etc. With derrick lights (explosion-proof xenon lamp only 3, 24 v)
B15Low pressure searchlight
B16Operation control systeMainly include the operation valves and meters

Now we have some workover rigs in store

if you need,welcome to contact me.

Zhao Liwei

86 13839309922

pyzyzliwei(a)

Description images

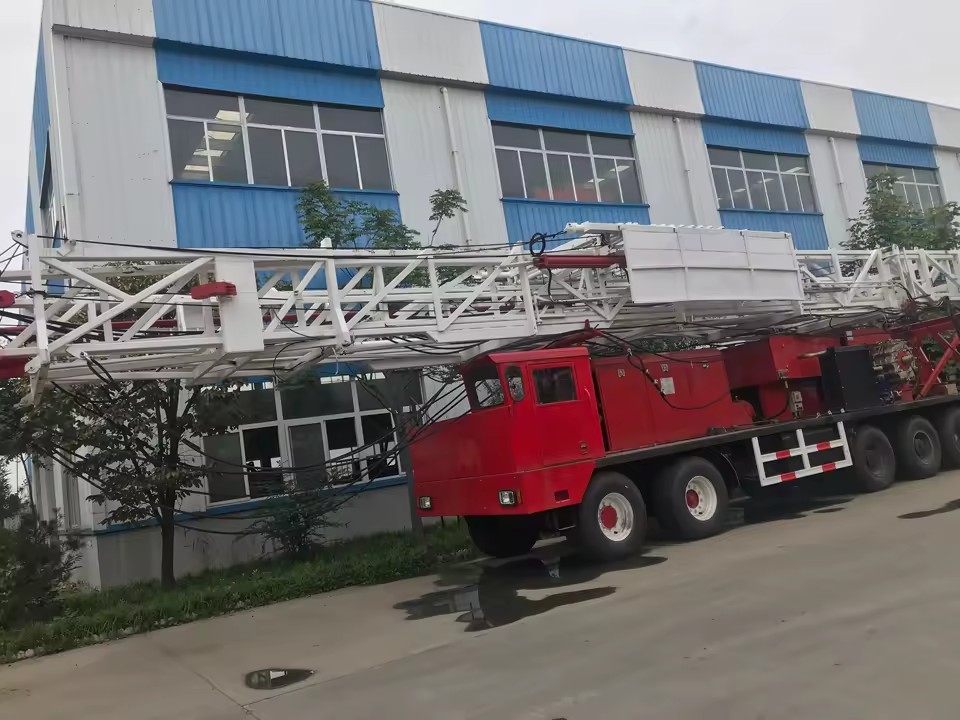

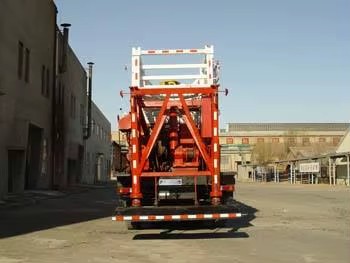

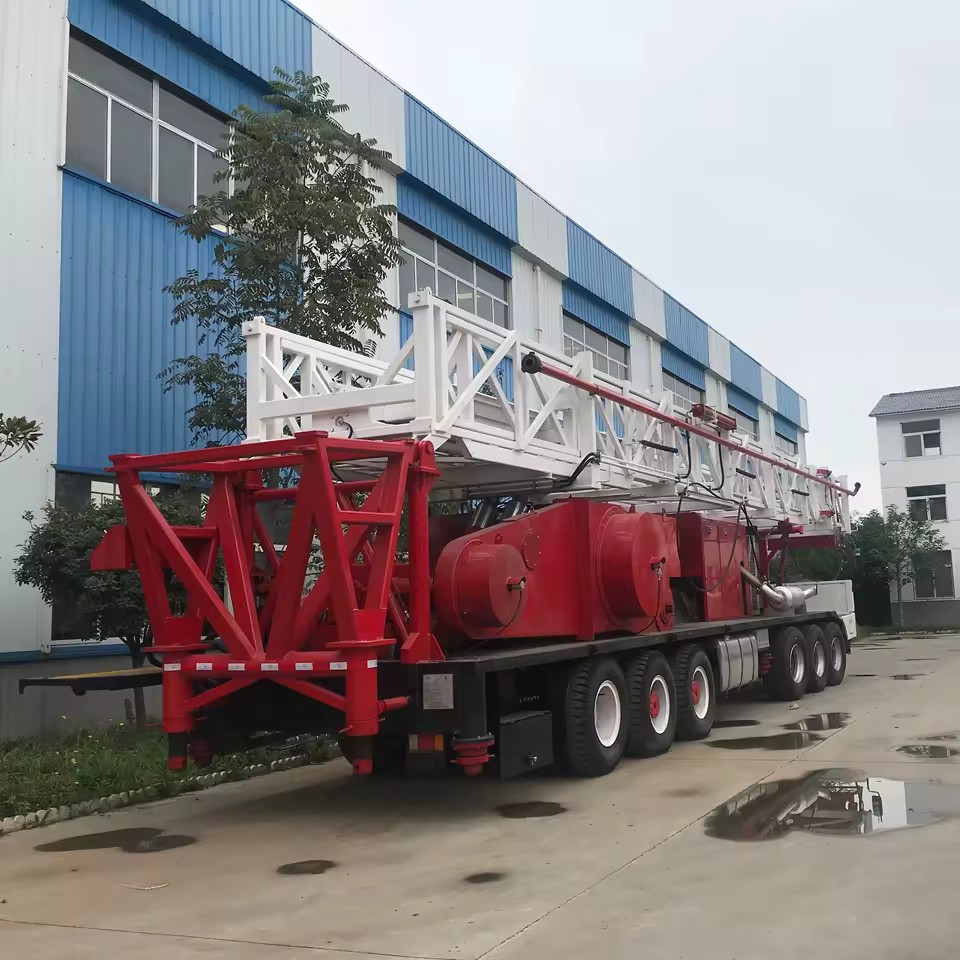

API XJ350 550 750 Drilling & Workover Rig

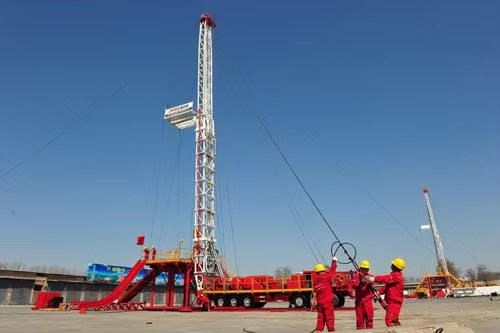

Product detail
API XJ350 550 750 Drilling & Workover Rig
API XJ350 550 750 Drilling & Workover Rig
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 15 fields
Type
Rotary Drilling Rig, XJ 350 550 750
Power Type
Gasoline
Machinery test report
Provided
Warranty
1 Year
Core components
Motor, Gear, Engine, Pump
Video outgoing-inspection
Provided
Place of origin
China, Henan
Model number (Specification)
DFL-909
Material
Steel
Color
Green, red, white or customed
Usage
Oil filed
Packaging Details
Wooden case, wooden pallet, By carton, or by requirements of customers.
Port of dispatch
tianjin China&Shanghai China
Selling Units
Single item
Supply Ability
300 sets per Year
Lead time
30 days
Minimum order
1 Units
