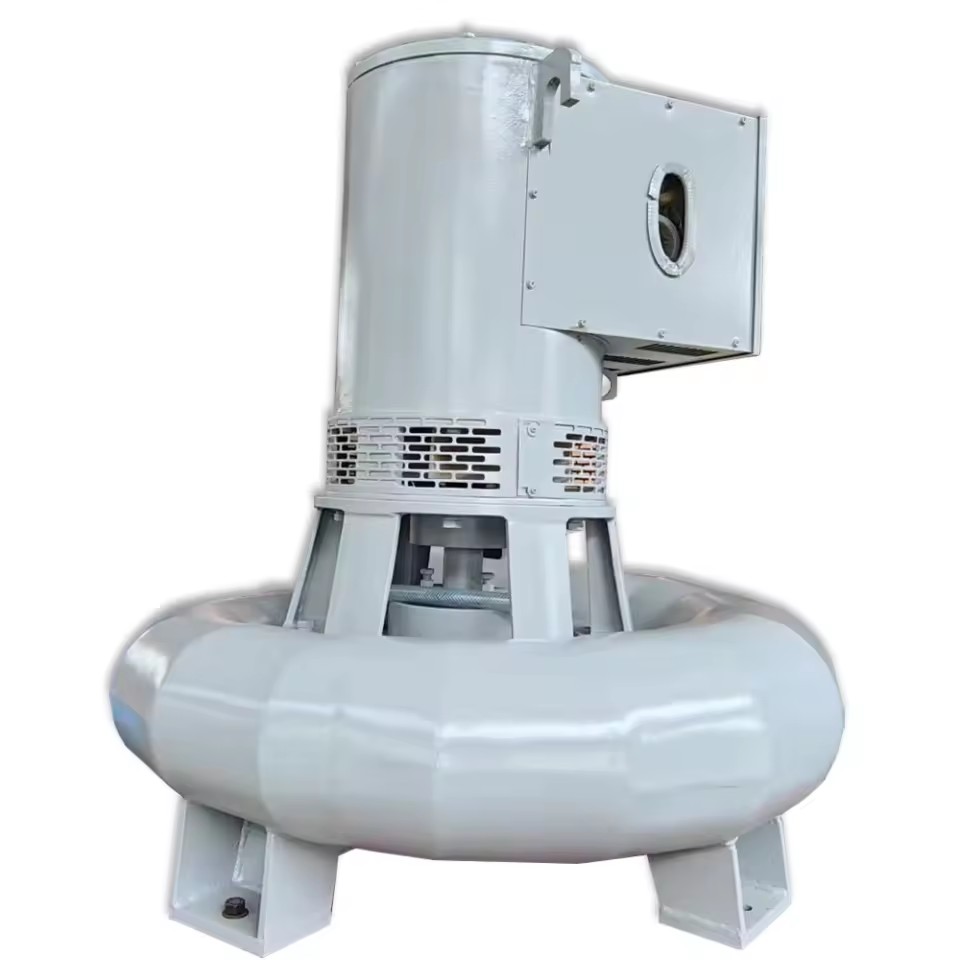

New Water Generator Electric Power 50kW Hydro Electric Genaretor Hydro Turbine Systems

New Water Generator Electric Power 50kW Hydro Electric Genaretor Hydro Turbine Systems

Our main products included

1, Axial flow type turbine generators series

2, Turgo turbine generators series, e.g. vertical type and horizontal type.

3, Tubular turbine generators series, e.g. Bulb type and shaft extension type

4, Francis turbine generators series

5,Impulse turbine generators series and double turbine generators series and so on.

Product Features

1, Power station from water to water direction is basically the axial direction penetration.such as bulb turbine hydro power station of the feed water control and outlet pipe bend, simple shape, the path of circulation of hydraulic damage reduction,convenient construction.

2, Tubular turbine has high flow ability and larger specific speed, so when the head and power are under the same conditions,tubular turbine diameter is about 10% smaller than T urn to paddle

3,Hydro-power unit structure is compact,compared with the same specifications of paddle unit,Its size is small,and it can be decorated in dam body,cancel the complex diversionsystem,reduce the construction area of factory building,reduce the excavated volume and the amount of concrete,according to the relevant data analysis,construction cost can be saved 20%-30%.

4, Tubular turbine work for reversible pump turbine running, d ue to the in and out of the water without a sharp turn working condition of pump and the turbine can get a better hydraulic performance.Such as tidal power station can be two way with applications in power generation,pumping,drainage and other three kinds of functions.Therefore,it is suitable for comprehensive exploitation and utilization of low head hydraulic resource.

5,Hydro - power is short in construction period, and results fast generally than vertical axial-flow hydro - power station.

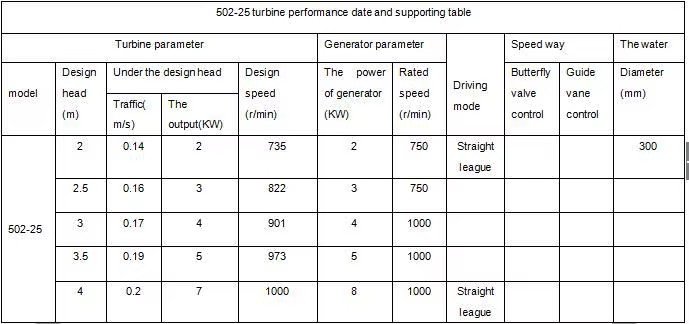

Product Parameters

1. You are a trading company or a manufacture?

We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to

2. How to choose a right turbine? There are so many models offering on your

Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).

3. What information shoul I provide for getting the quotation?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.

4. When my turbine shut down, who can help me solve the problem?

You are free to call me day or night at my

n you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

6. How can I trust you?

Pay us via

Q7,Does your company have its own independent official

Of course, and we can see more information about

Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.

1.Flow rate ( lit/sec or m³/sec?) 2.Water head ( m?) 3.Total power you need( KW?) equency ( 50 hz or 60 hz?) 5. Voltage( V?) 6. On grid or off grid? 7. Voltage of transmission line if it is on grid( V?) 8. Elevation(MSL) 9. Is it clean fresh water(with our sand, stone and silt ect,.) By the way,could you tell me your
