Magnesium Glass Sheet Automatic Production Line

shandong magnesium glass sheet automatic

Production process

All the required componments of the main board processing line are supplied by Chinese addition they provide all the ancillary equipment such as mixers.

Raw Material Delivery

Raw materials arrive at the plant via truck and rail transport in a variety of forms and packaging.mgo power is delivered via pneumatic trailer and piped into outside 150-ton

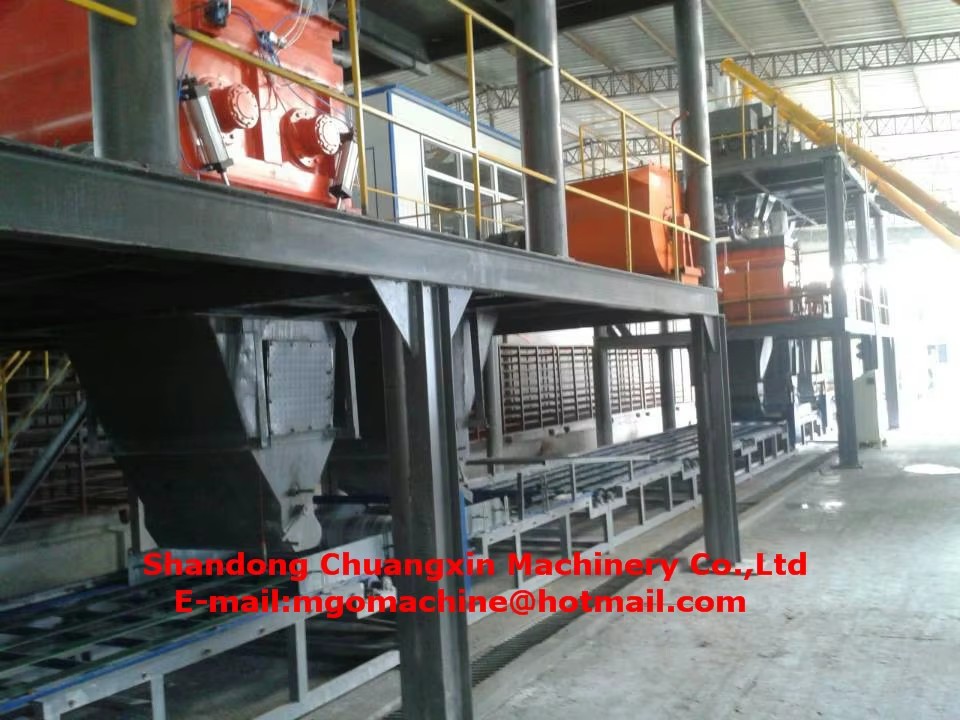

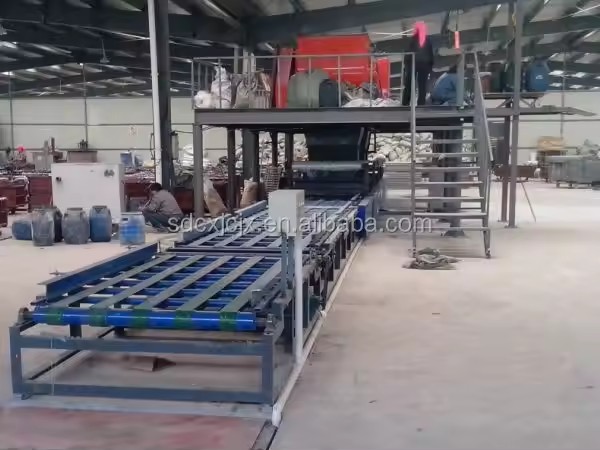

Mixing and batching platform

A steel superstructure of several 1000 sq. Ft.sits above the beginning of the board processing line.this elevated platform or second level is where all the recipe ingredients for the board is collected,batched and mixed. Ingredients arrived at the platform via fluid piping,pneumatic or screw conveyor into batch containers such as 5-ton silos and tanks,any baggede material for the recipe is opened on the ground floor in a bag-breaking machine and conveyed up the intermadiate storage on the platform.

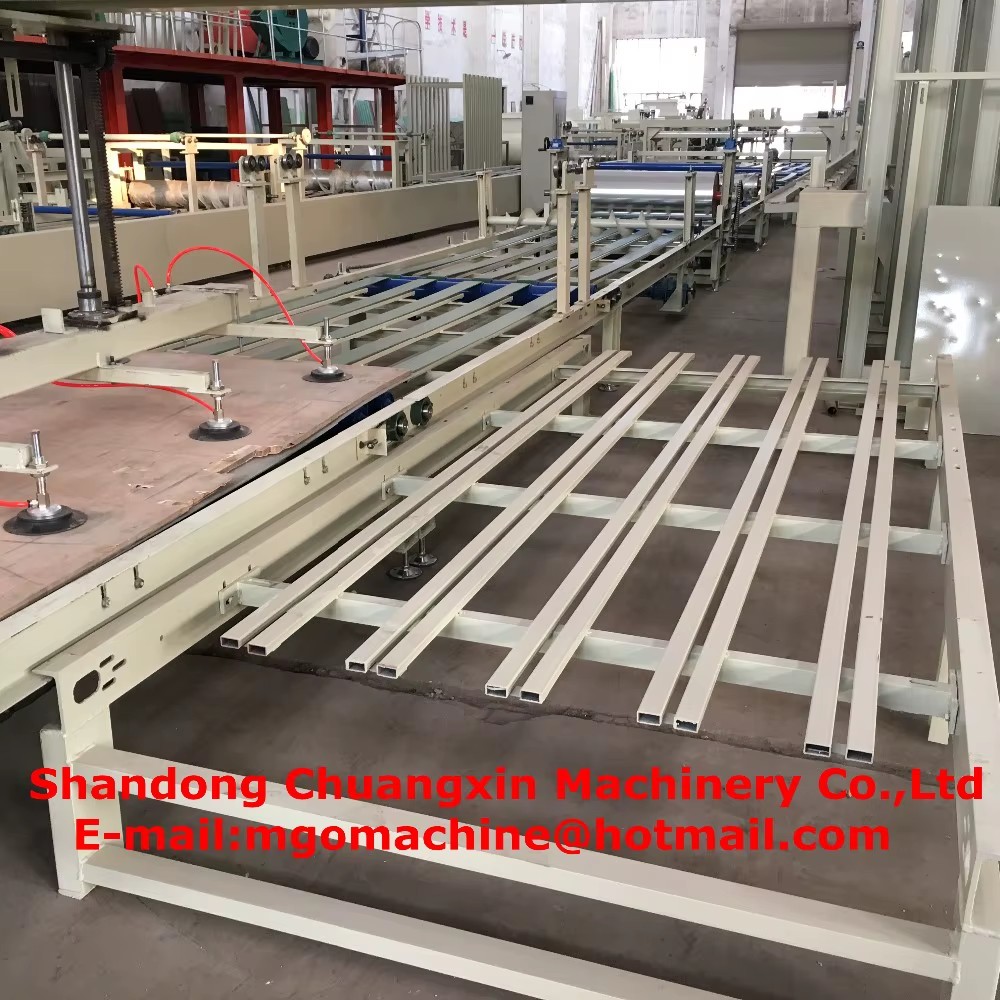

Ingredients are weighted and measured in batches and mixed in alternating mixers.the recipe is then dumped into an elongated funnel opening on the platform floor that gravity feeds the mixture onto PVC sheets moving forword on the board processing line below.lagre quantities of the mixture cannot be made or stored even for short period of times due to the chemical reations that start to take place immediately,at the start of the board processing line PVC panels are robotically removed from a stack and placed on the board processing line.

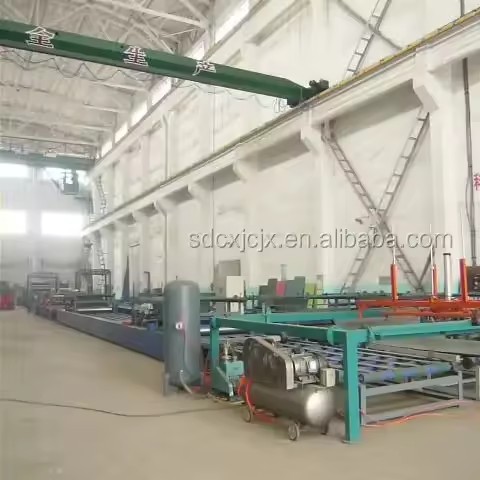

Board processing line

The board machine system is overall 160 ft long with all components.

Forming

After receiving the board mixture on the PVC sheets the mixture is squeezed through pinch rollers that determine the board thickness,these rollers can be adjusted to a variety of spacing providing the boards final thickness.

Fabric sheet

Spindles above the board processing line hold spools of meshed fiberglass or basalt fiber material that are rolled out into the board mixture,this adds strength to the board and multiple layers of mesh material can even make the board bullet proof.

Cutting

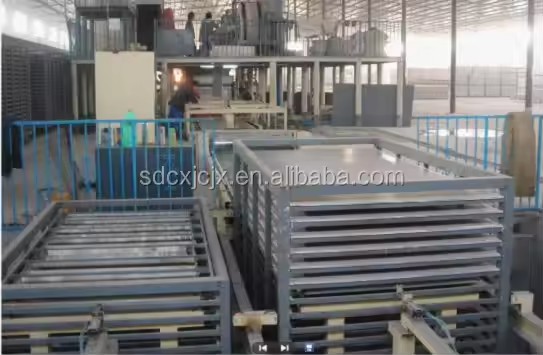

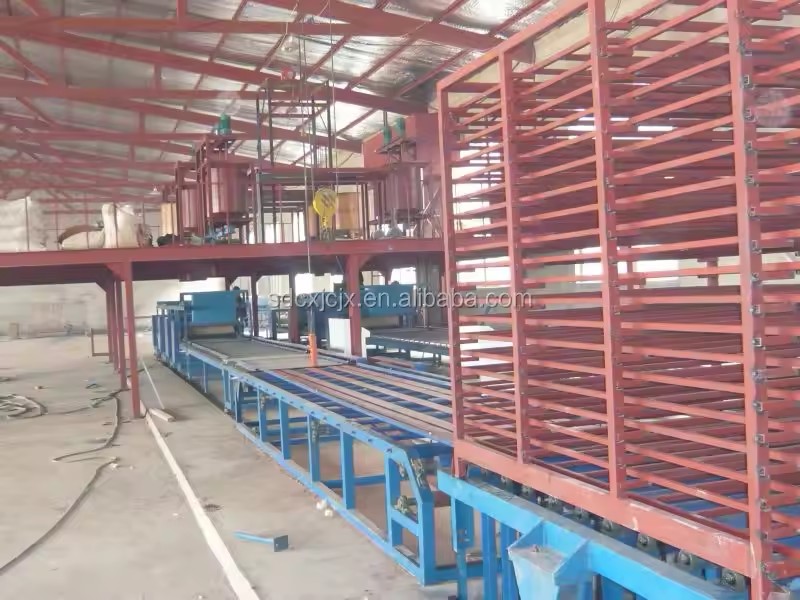

The boards progress down the line and are cut into specified lengths matching the underlying PVC panel. The cut board lengths are then ejected into a drying tray rack that typical holds 18PVC trays and performed boards

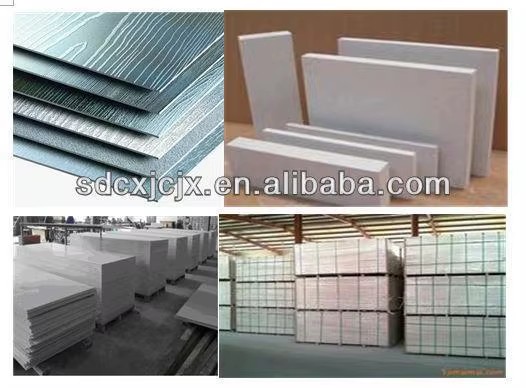

The finished board are then palletized in a palletizing machine and stretch hood wrapped in bundles of mgo board per pallet.for overall product management and quality control board packages are labeled(lot number) per the quality control standards and moved to either indoor warehousing or outside storage area.

The product manufactured by this equipment has following features:fireproof,waterproof,environment protection and no toxicity.at the same time it is resistant against acid,alkali and aging. This product can be nailed,planed,sawed and the view of that its fireproofing grade is A.so our product will not be combustible when the fire is 800-1000C.at the same time when our product is fell to the water for a week,there are not the following phenomenon such as chalking,deformation and light of there is not glue in the raw materials.so there is not formaldhyde and benzenz for our boards

1)Fully life-cycle value services

2)all-around thechnical service

We provide technical formula for clients,to help clients to occupy the leading position in the market.

3)complete data specification

Provide

4)quality commitment

The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting,wearing parts warranty for one year.
