$2-5 / piece

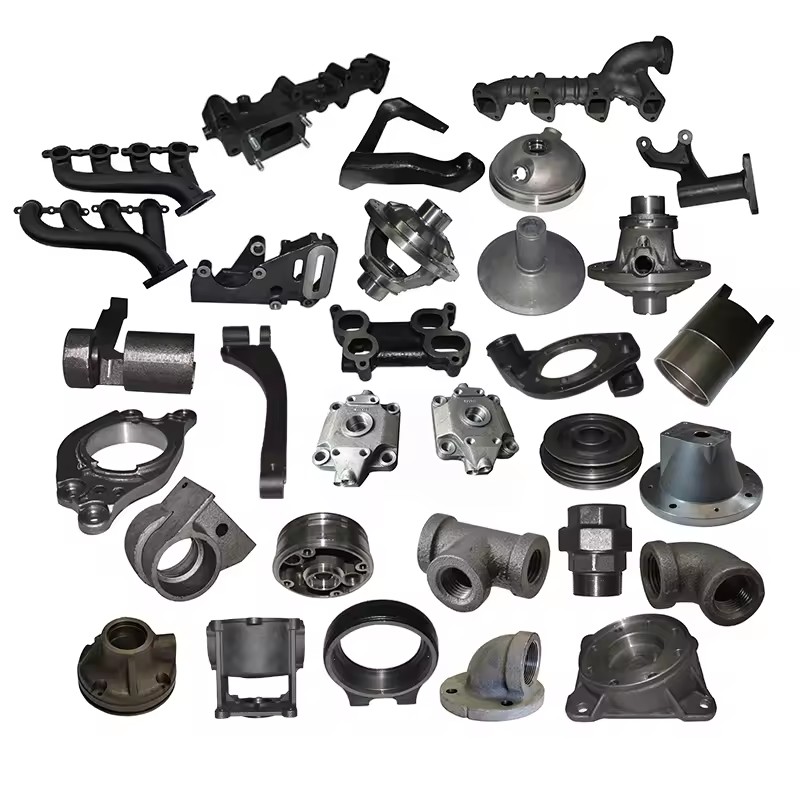

| High Precision Iron Shell Mold Sand Casting Ductile Iron fcd45 |
| Main blank Process for Casting Iron | Sand Casting, Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding |
| Blanks Casting Tolerance | CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process |
| Applicable Material | Ductile Iron, Grey Iron Casting, or as customer request. |
| Casting Blank Size /Dimensions | 2 mm-2000mm / 0.08inch-79inch for casting iron, as per customer requirement |
| Casting Blank Weight | Range from 0.01kg-1000kg for casting iron |

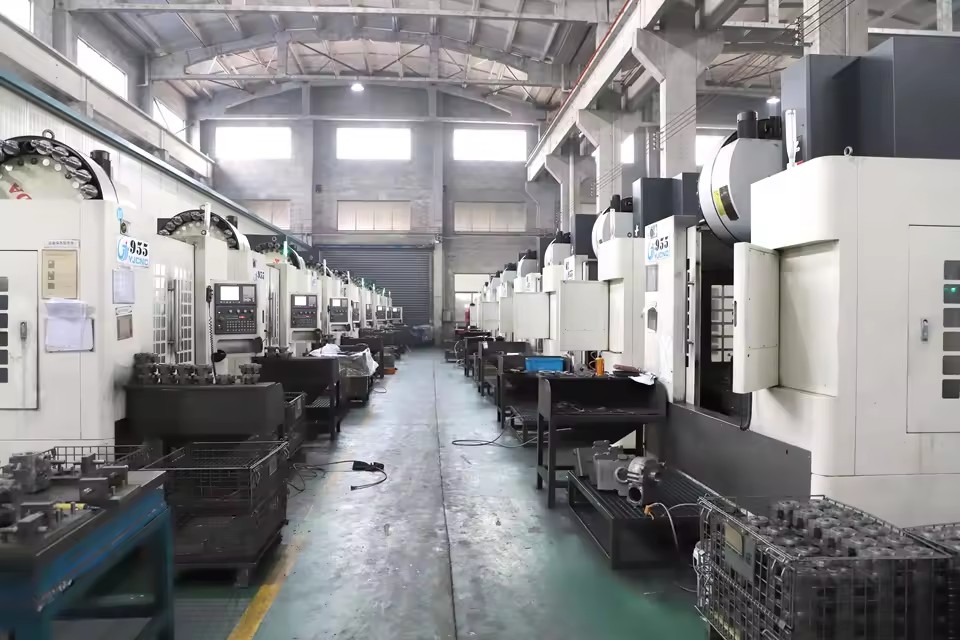

| Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/ Reaming /Grinding/Honing and etc. |
| Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
| Machined Surface Quality | Ra 0.8-Ra3.2, according to customer requirement |
| Applicable Heat Treatment | Normalization, annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching. |
| Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting, Powder coating, ED- Coating, Chromate Plating, zinc-plate,Dacromat coating, Finish Painting. |
| MOQ per batch | For cast iron: 100pcs, or as client require For Machining: 50pcs |
| Lead Time | about 50 days of casting ductile iron fcd45 |

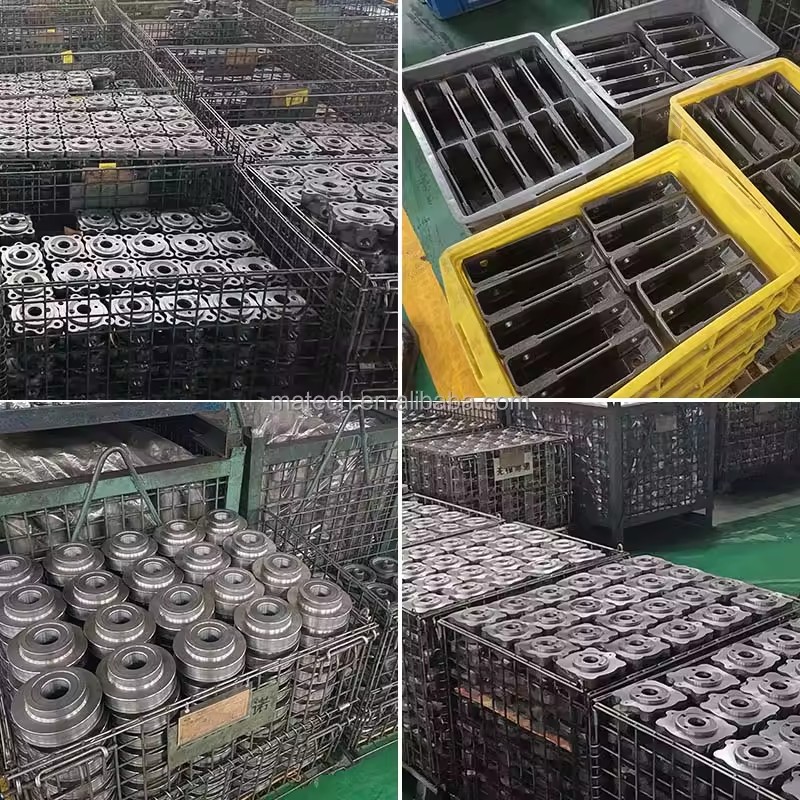

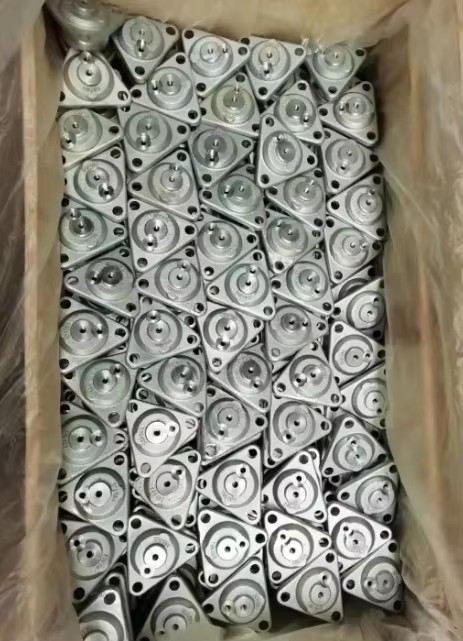

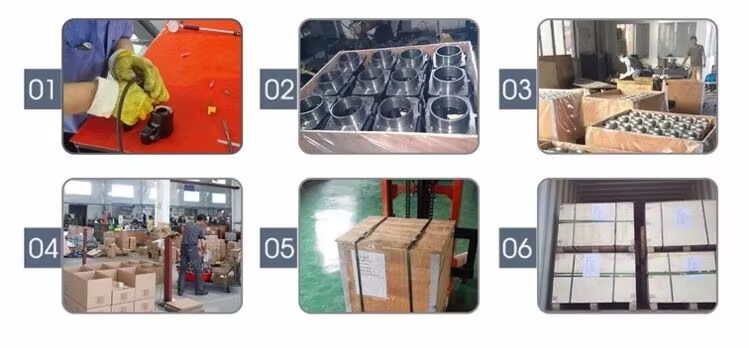

Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.Or as customer requests. Outer Packing →Multilayer wooden box with strong bandages, used for standard export package. Or customized as per customer's requirements.

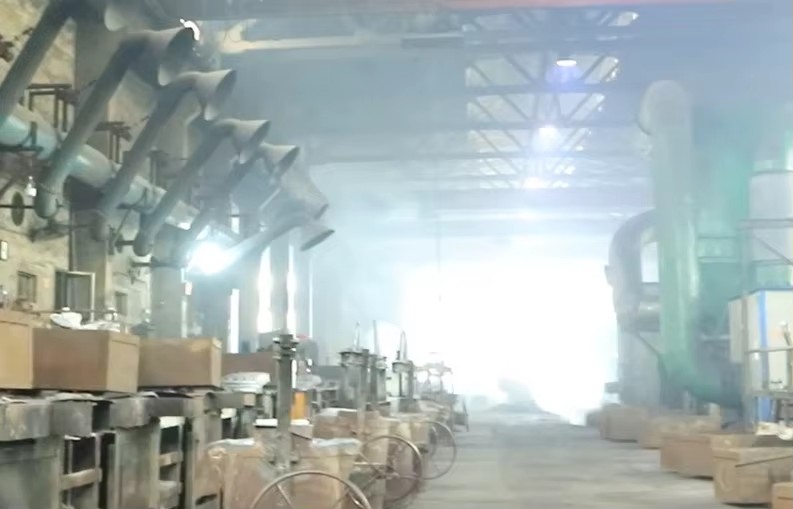

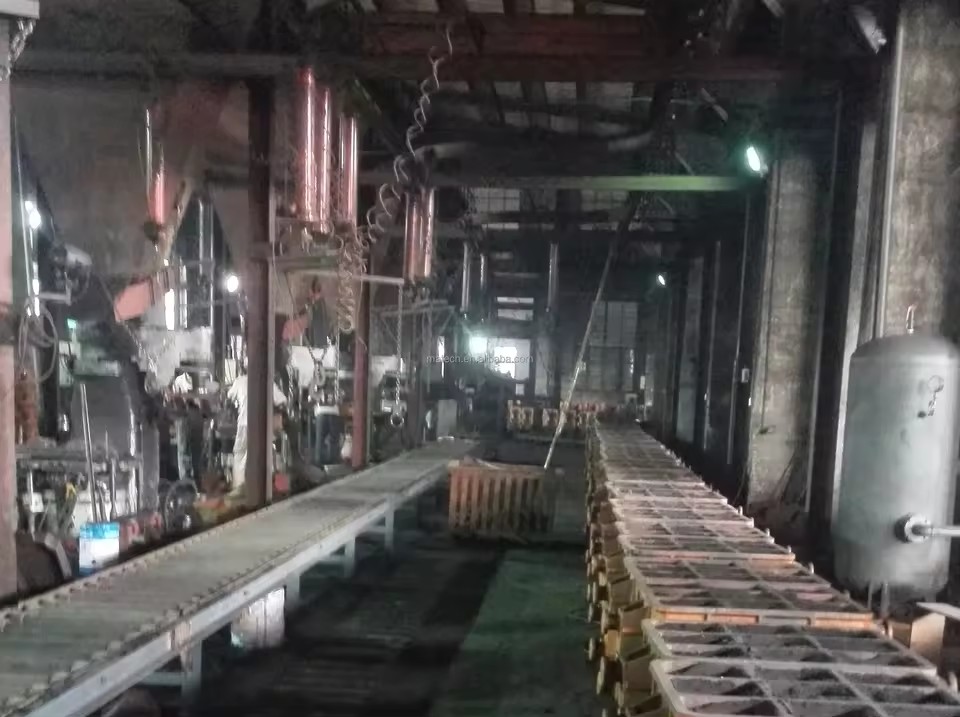

Sand Casting
| Ductile Iron Casting Material Comparison Table |
| Cast iron with nomular graphite DIN EN 1563 | DIN 1693 | NF | Great Britain BS | NEN | MNC | ASTM A536 |
| EN-GJS-350-22-LT | GGG-35.3 | FGS 370-17 | 370/17 | GN 38 | 0717-15 |
| EN-GJS-400-18-LT | GGG-40.3 | 60-40-18 |
| EN-GJS-400-15 | GGG-40 | FGS-400-12 | 420/12 | GN 42 | 0717-02 | 60-40-18 |
| EN-GJS-400-10 | 420/12 | 65-45-12 |
| EN-GJS-500-7 | GGG-50 | FGS-500-7 | 500/7 | GN 50 | 0727-02 | 65-45-12/ 80-55-06 |
| EN-GJS-600-3 | GGG-60 | FGS-600-3 | 600/3 | GN 60 | 0732-03 | 80-55-06 |
| EN-GJS-700-2 | GGG-70 | FGS-700-2 | 700/2 | GN 70 | 0737-01 | 100-70-03 |
| EN-GJS-800-2 | GGG-80 | FGS-800-2 | 800/2 | 120-90-02 |
| EN-GJS-1000-5 (DIN EN 1564) | GGG-100B/A | 850-550-10 |
| EN-GJS-AX NiSiCr35 5 2 | GGG- NiSiCr 35 5 2 | FGS- Ni35Si5Cr2 | S5S | Type D-5S |
| Grey Iron Casting Material Comparison Table |
| Cast iron with lamellar graphite DIN EN 1561 | DIN 1691 | NF | Great Britain BS | NEN | MNC | ASTM A48 |
| EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B |
| EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B |
| EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B |
| EN-GJL-300 | GG 30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B |
Core Competence
1. Over 15 years professional manufacture experience. → We know better to your needs.
2. One-stop Service of Custom mold design from Initial drawing design, Material selection assistance, Mold structure/Mold flow analysis, Trial & mass production to Final assembly & shipment. → To ensure you get finished products with good assembly function.
3. High skilled and well-trained working team under good management environment. → To make sure high quality of your products.

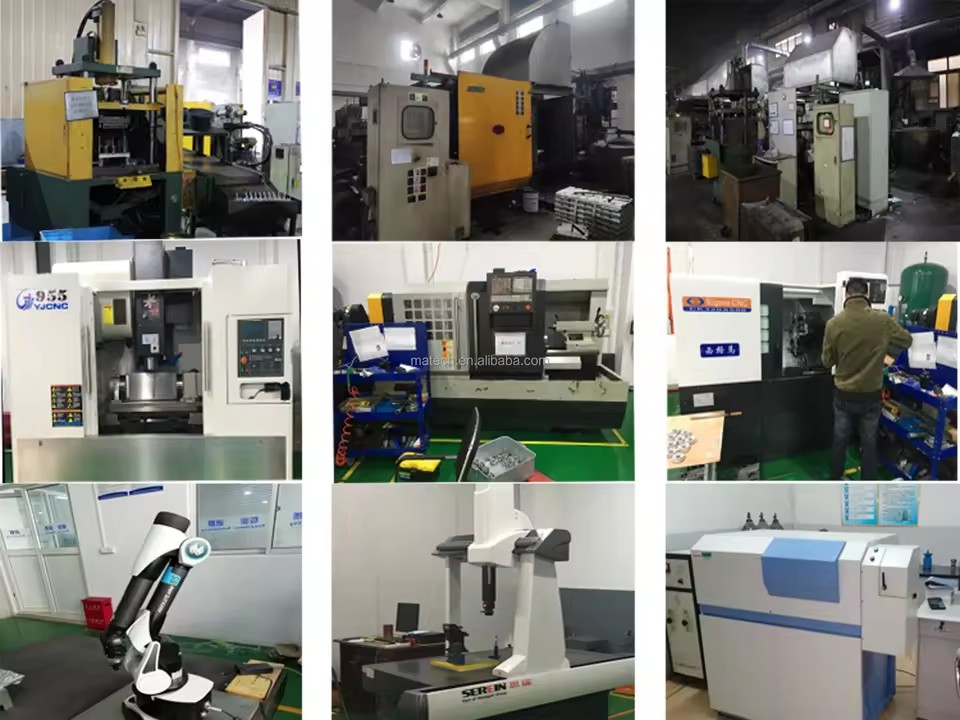

4. Large and strong production capacity. → To meet your high demands very well.
5.Best price based on same quality requirements. →To help your project with most economical solution.
6. We have very strict quality control process included IQC/IPQC/FQC/OQC. → To deliver the qualified products for you.
7.Reliable Package & flexible in-time delivery. →To guarantee the product are well received in your side.
8. 24 hours on-line service with quick response. → To support your any inquiry or question.
Our Core Value: Sincerity Quality Competence!!!
