Product description

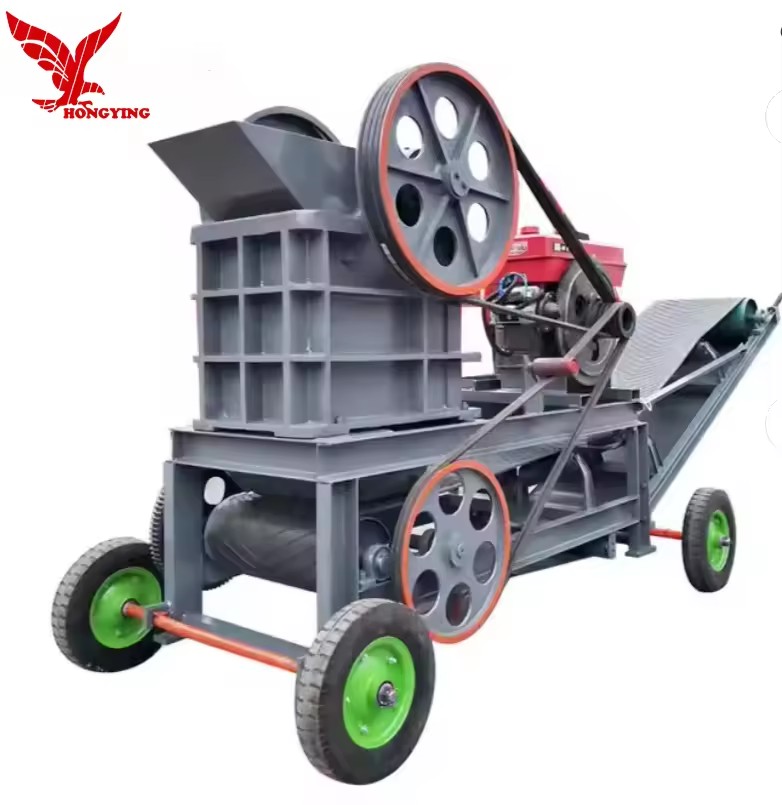

High efficiency jaw crusher gold mining

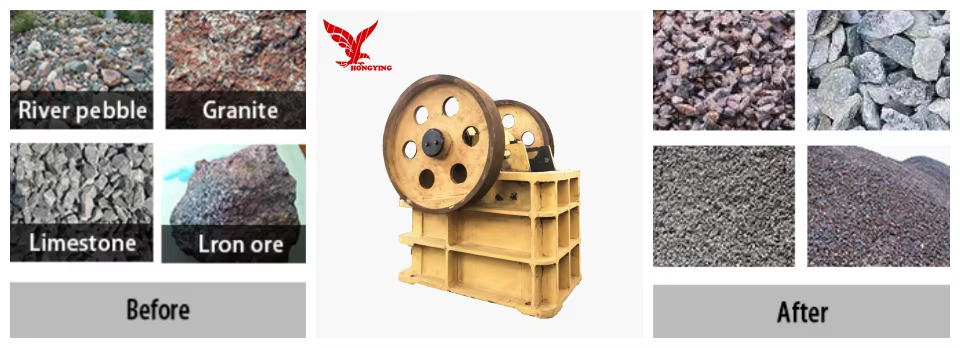

Raw materials and Application

This series of Jaw rougher crushers are widely used in mining, smelting, building materials, roads, railways, water conservancy, and chemical industries.

Main advantages

This series of crushers has the characteristics of large crushing ratio, uniform product size, simple structure, reliable performance, easy maintenance and economical operation cost.

Working principle

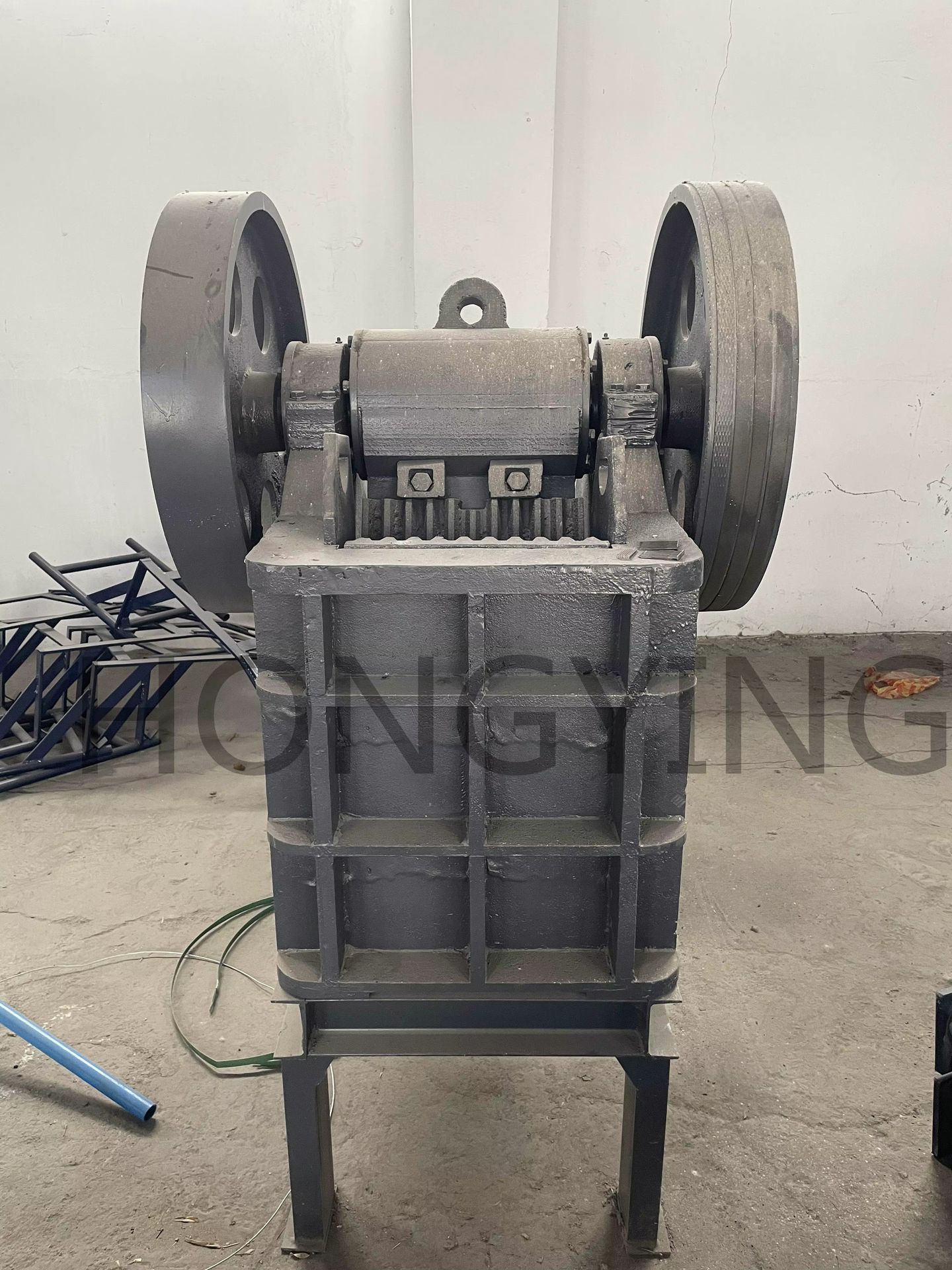

The working part of the jaw crusher is two jaws, one is a fixed jaw, which is fixed vertically on the front wall of the body, and the other is a movable jaw, which is inclined at an angle to form a large and small crushing cavity with the fixed jaw. The movable jaws periodically reciprocate against the fixed jaws, sometimes separated and sometimes close. When separated, the material enters the crushing chamber, and the finished product is discharged from the lower portion; when close, the material contained between the two jaws is crushed by bending, bending and splitting.

Notice

The highest compressive strength of the crushed material is 320Mpa and can not exceed 320Mpa. The maximum speed of the crushed materials shall not exceed the specifications of the technical parameters.

Model	Max Feeding Size(mm)	Output Size(mm)	Capacity(t/h)
PE 150*250	125	15-45	1.7-5.6
PE 250*400	210	20-60	5-22
PE 400*600	340	40-80	10-50
PE 750*1060	630	80-180	122-223
PE 1200*1500	1020	150-300	425-765
PEX 100*600	80	10-40	1-8
PEX 250*1000	210	15*50	20-50
PEX 300*1300	250	15-60	45-110

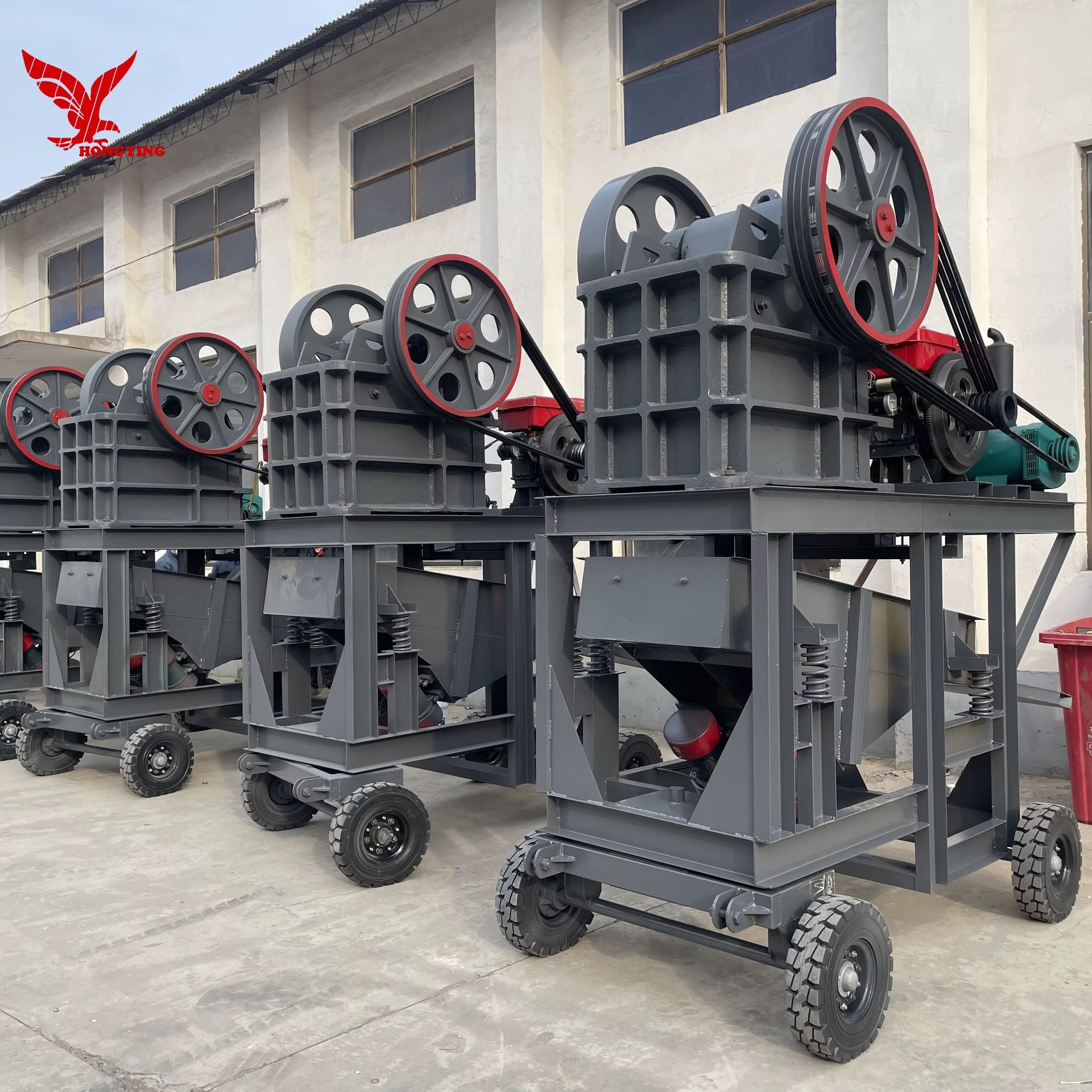

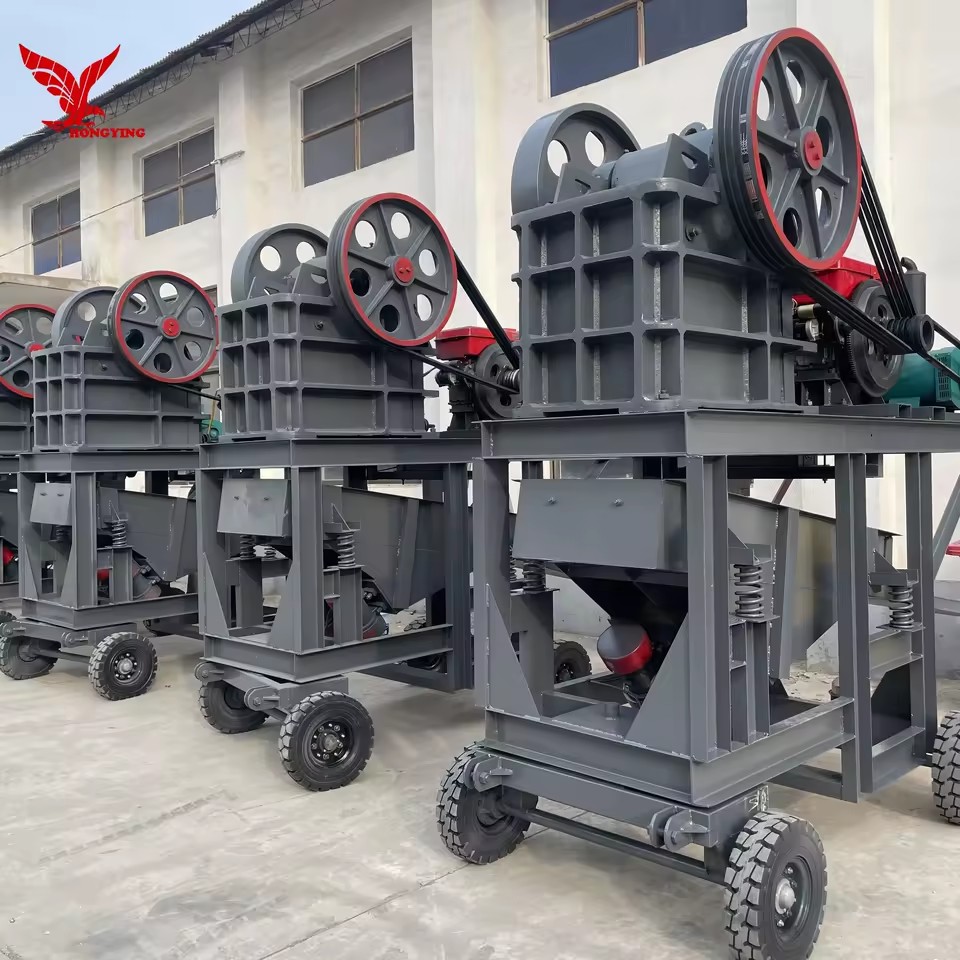

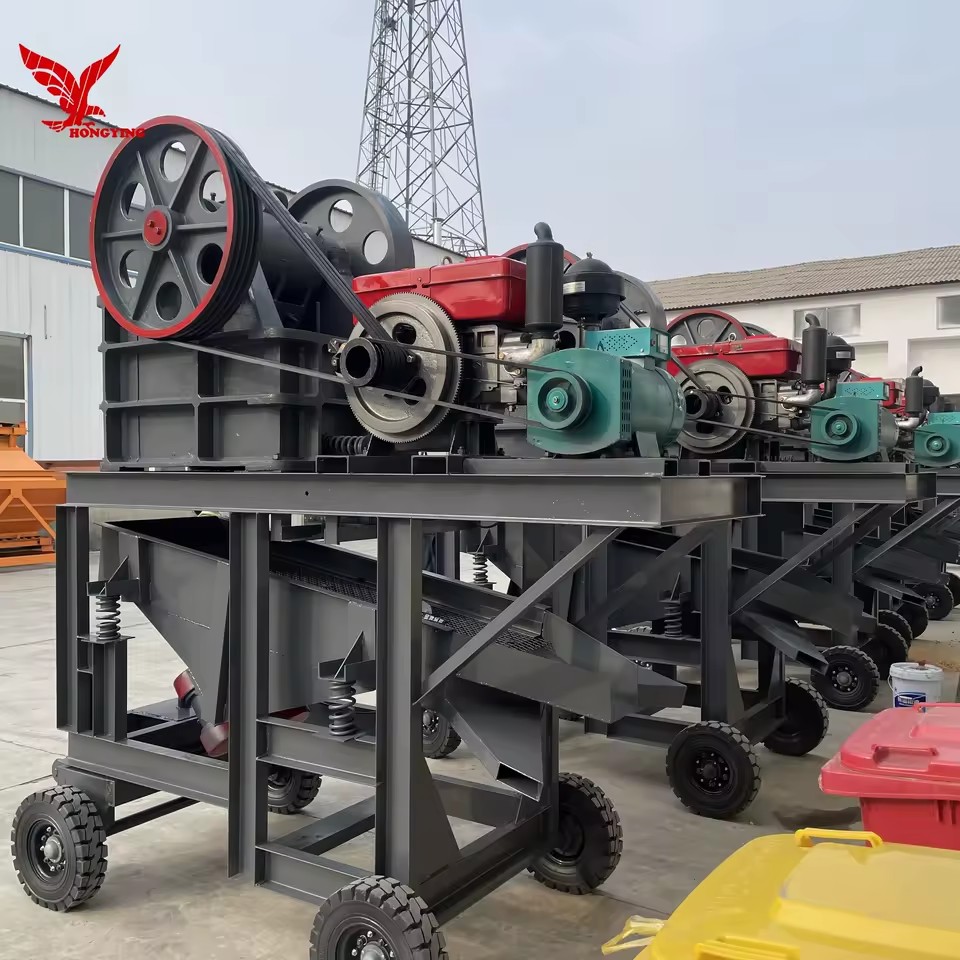

Our workshop

Packing details: 1.Standard export packing or according to customer's requirements. 2.If bulk purchasing,we will use standard container.

Shipping details: 1.Lead time for mass production:within 3 days afterreceived 30% deposit. livery date:within 5 days after received balance payment. 3.After the confirmation of the order,the buyers should pay 30% deposit,the rest can be pay off in two weekdays before shipping the goods off.

Hammer crusher

Before-sale services

(1)Guide customers to choose the best appliable machine type; provide the advanced,energy -saving and practical technological process.

(2)We are responsible for the process chart and design.

Sale services

(1)Products must be inspected strictly before selling

(2)In accordance with the agreements stipulated in the contract.

(3)We will organize delivery.

After-sale services

(1)

(2)The quality guarantee period for machines is one year except the wearing parts.

HongYing machinery factory, located in, Henan province,, Specialized in brick machinery for over 14 years. We have rich experience and enjoy good reputation and foreign market. Since our establishment, we have regarded quality as the most important and eternal principle in production.Our products include brick making machine, Concrete mixer, Stone Crusher, Oil press, etc. We have sold products to more than 30 countries, including,,,,,,,, and so on.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Jaw Crusher

Capacity(t/h)

1-800

Motor Type

National standard copper wire motor

Machinery test report

Provided

Warranty

1 Year

Core components

Motor, Engine, Other

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China

Weight

1000 kg

Application

Construction, Road, stones, Railway Building

Dimension (L*W*H)

720*660*850mm

Color

Customizable

Max. feeding size

125mm

Discharge range opening

15-45mm

Max. motor power

5.5kw

Speed of mainshaft

285 r/min

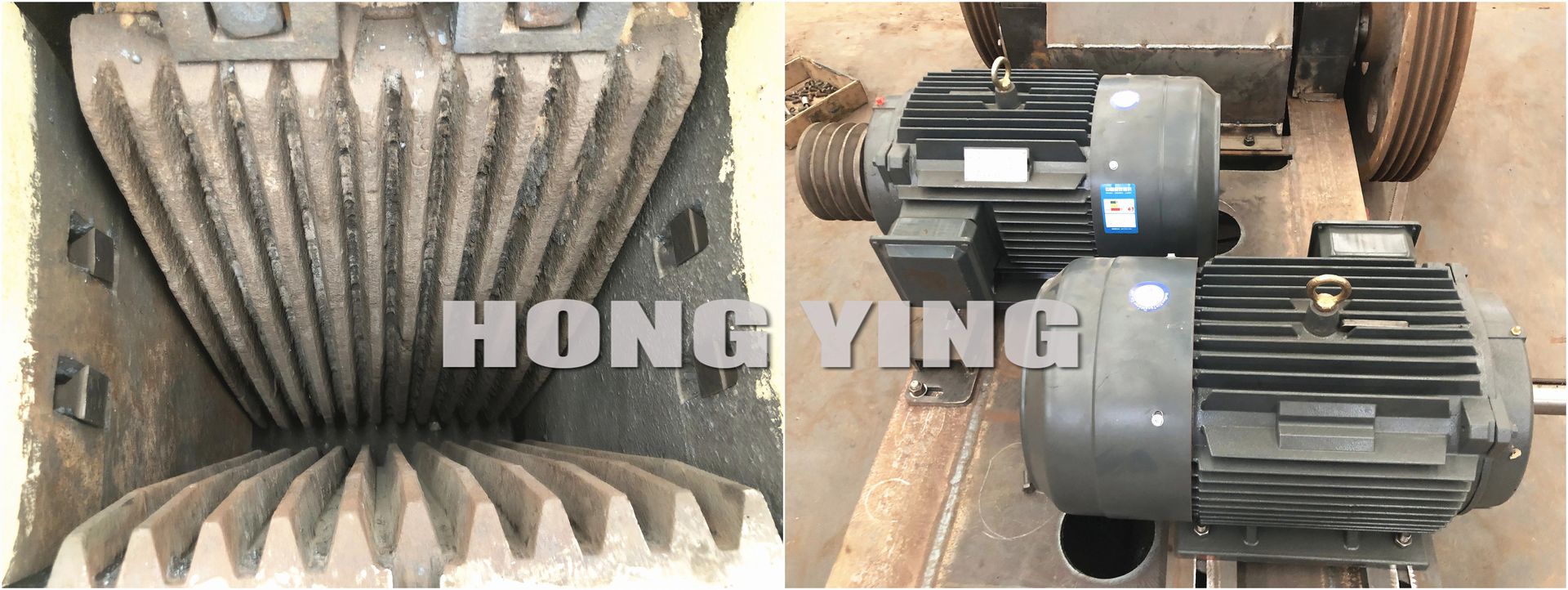

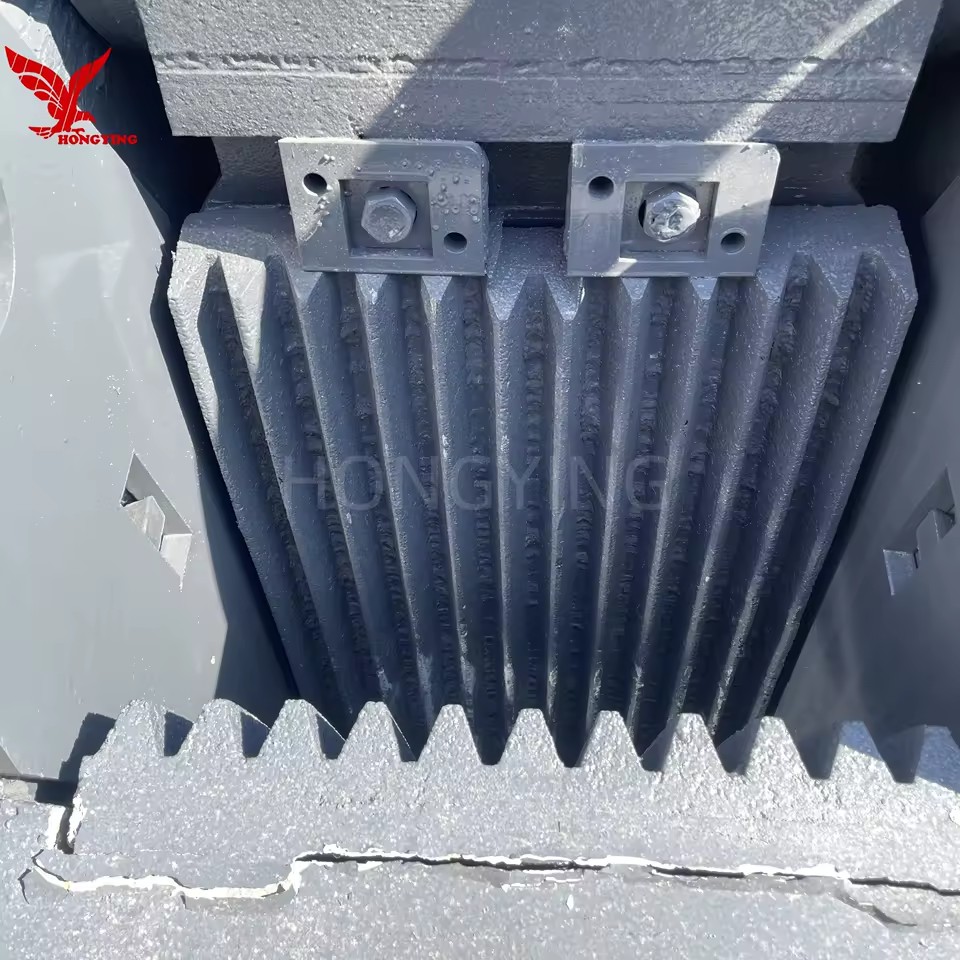

Jaw Plate Materials

High manganese steel

Crusher type

Coarse crusher/fine crusher

Spare parts supply

Lifelong Time

Factory Visit

Welcomed Warmly

Selling Units

Single item

Power (W) (Product option)

5.5KW

Model number

PE-150, jaw crusher gold mining

Lead time

7 days

Minimum order

1 Units
