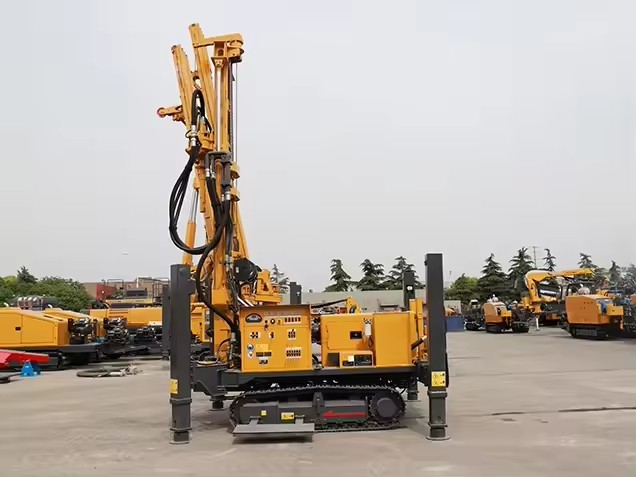

Product Importer Gallery 01 · 3e59ce637d

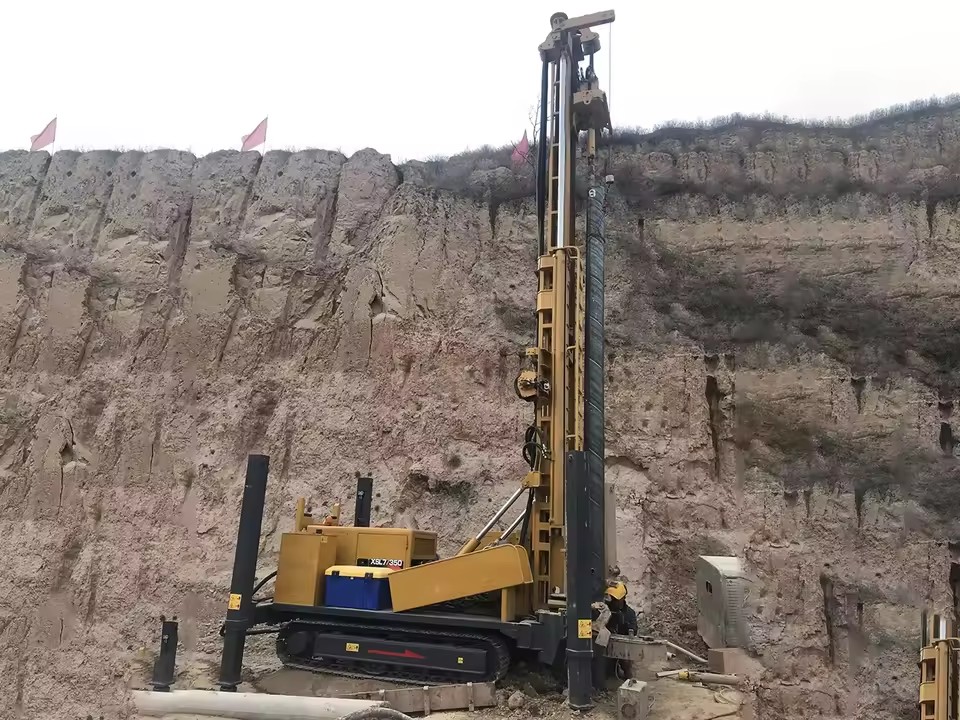

Product Importer Gallery 02 · 142e58970a

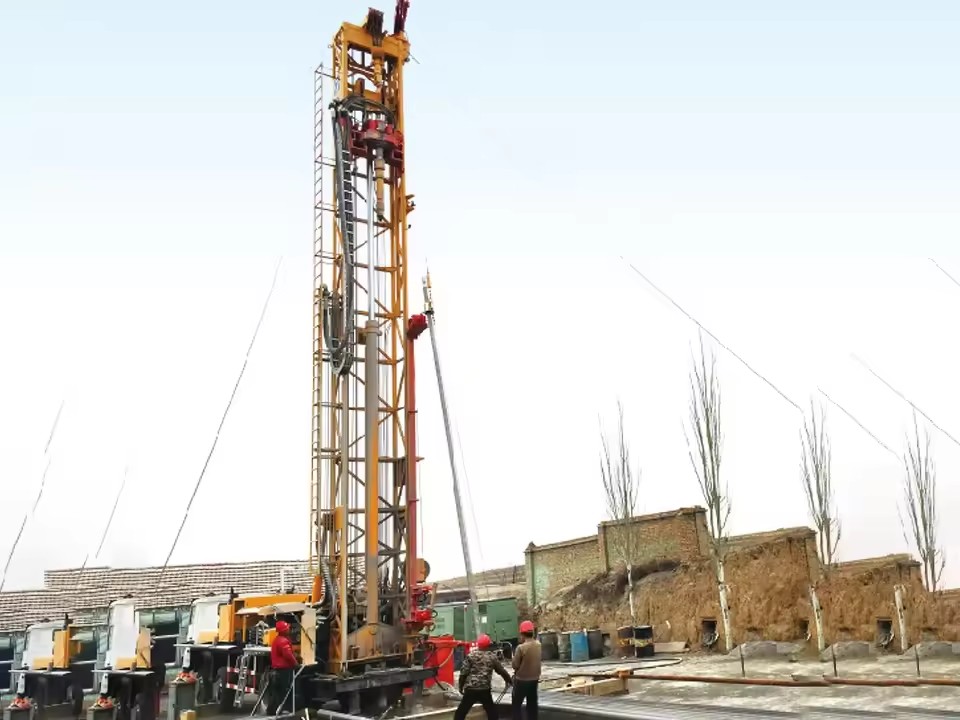

Product Importer Gallery 03 · 12538c0870

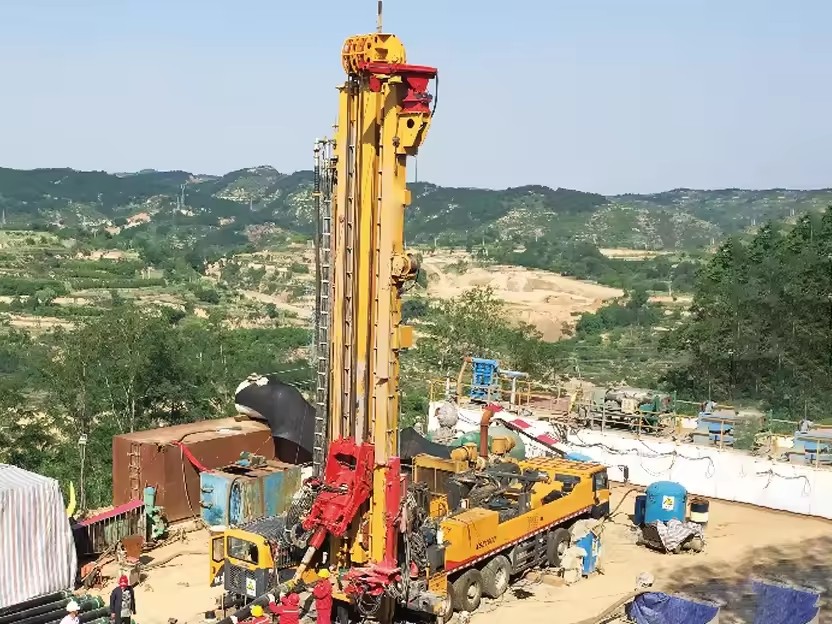

Product Importer Gallery 04 · 32fd8587fd

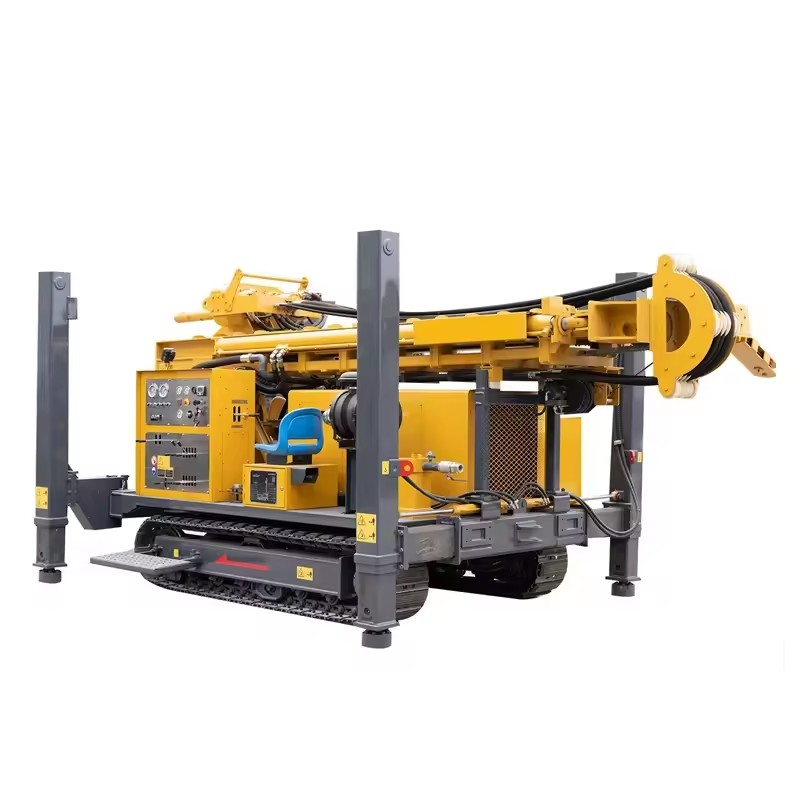

Product Importer Gallery 05 · e77b9348bb

Product video

High Efficiency Down-the-Hole Drill Rig with Air & Mud Dual System

Name: High Efficiency Down-the-Hole Drill Rig with Air & Mud Dual System
SKU: 5WVP-DP35-HQ7J
Price: 135870.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 135,870.00 135870.0 USD $ 135,870.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Water Well

Type

water well drilling rig

Drilling Depth

1200 m (with drill pipe 89)

Drilling Diameter

500 mm

Power Type

Diesel

Voltage

380 V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Express · Approx. shipping fee: $ 13.21 for 1 unit · Estimated delivery in 7-13 business days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Roin Cheng / Sales Manager

Parameter	Unit	Value
Drilling Performance
Drilling depth	m	1200 (Φ89)
Max. diameter of working floor	mm	Φ500
Feeding System
Max. pulling force	kN	600
Max. feeding force	kN	160
Max. pulling speed	m/min	31
Max. feeding speed	m/min	45
Stroke	mm	7000
Top Drive
Max. torque	Nm	20000/10000
Max. speed	r/min	70/140
ID	mm	Φ105
Floating distance	mm	60
Max. tilting angle	°
Engine
Type	YCA08260-T301
Rated power	kW	191
Winch System
Main winch hoisting capacity	kN	42
Tool winch hoisting capacity	kN	15
Breakout Device
Max. breakout torque	Nm	95000
Vise clamping range	"	2-7/8"~10-6/8"
Foam Pump
Max. flow	L/min	50
Max. pressure	MPa	21
Mud Pipe
ID	mm	Φ76
Max. pressure	MPa	21
Chassis
Drive mode	crawler chassis
Rated power	kW
Max. speed	km/h	2
Max. climbable gradient	%	39
Overall Dimensions & Weight
Working dimension (Length×Width×Height)	mm	8310×3800×19490
Transport dimension (Length×Width×Height)	mm	12740×2650×3580
Weight	t	22
Remark	optional automatic pipe changing device

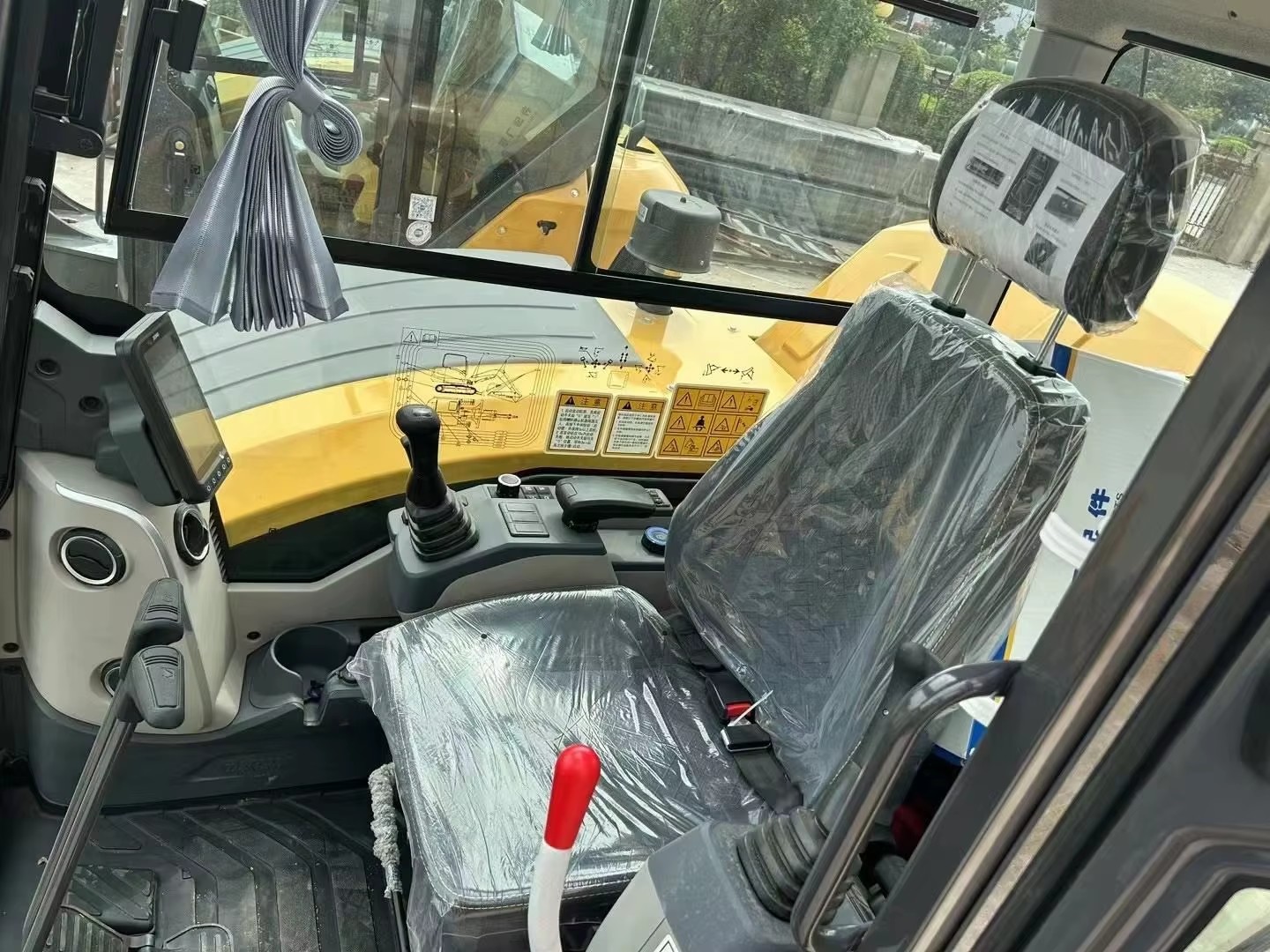

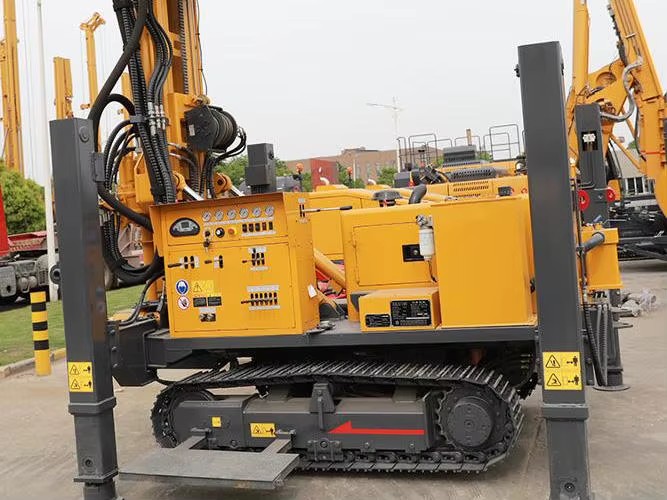

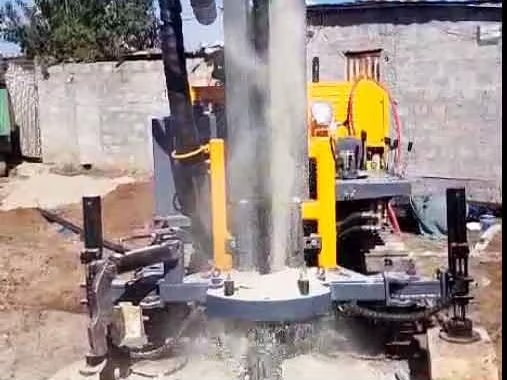

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Express · Approx. shipping fee: $ 13.21 for 1 unit · Estimated delivery in 7-13 business days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Usage

Water Well

Type

water well drilling rig

Drilling Depth

1200 m (with drill pipe 89)

Drilling Diameter

500 mm

Power Type

Diesel

Voltage

380 V

Core components

Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Jiangsu

Weight

22000 KG, 22t

Dimension (L*W*H)

12740*2650*3580mm

Max pulling force

600kN

Max feeding force

160KN

Max pulling speed

31m/min

Rated power

191kw

Main Winch Hoisting Capacity

42KN

Max pressure

21Mpa

Max Speed

2km/h

Selling Units

Single item

Single package size

1X1X1 cm

Single gross weight

1.000 kg

Model number

XSL600A

Power (W) (Product option)

191KW

Lead time

7 days

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

High Efficiency Down-the-Hole Drill Rig with Air & Mud Dual System

Open URL

Price

$ 135870.00

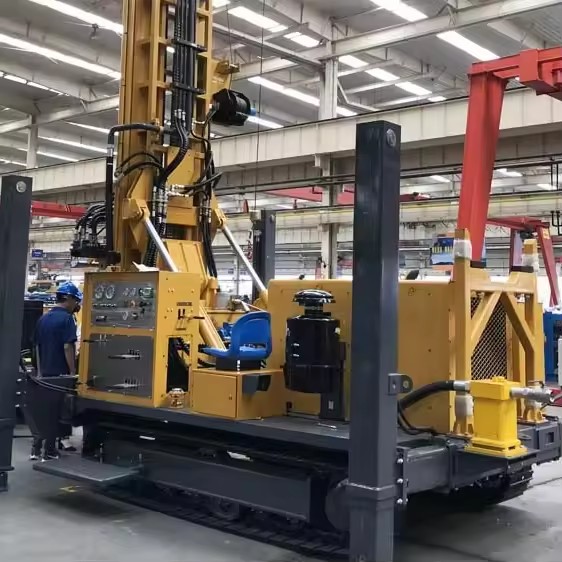

High Efficiency Down-the-Hole Drill Rig with Air & Mud Dual System product image
