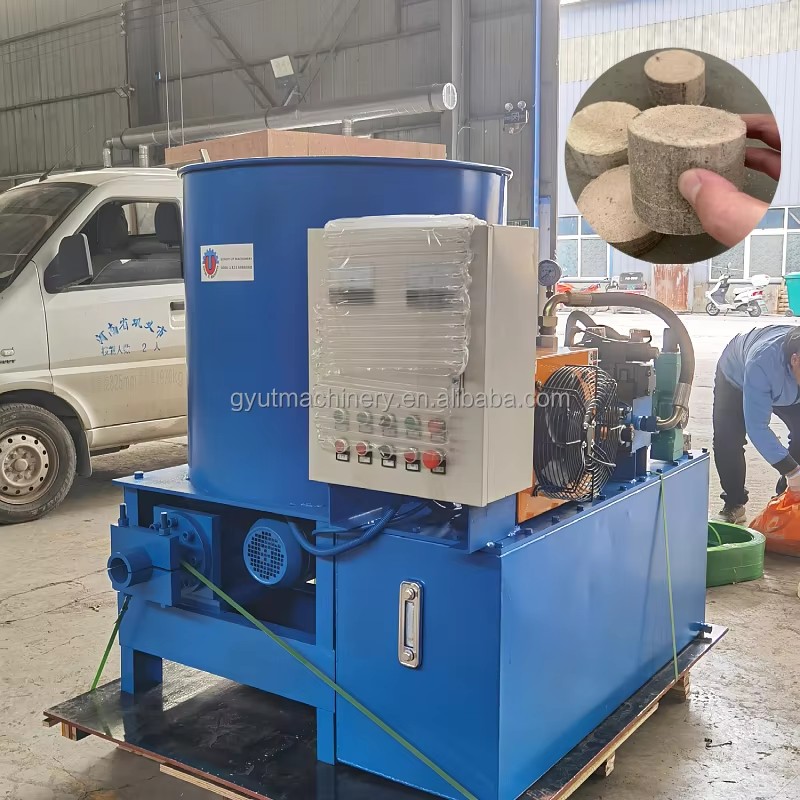

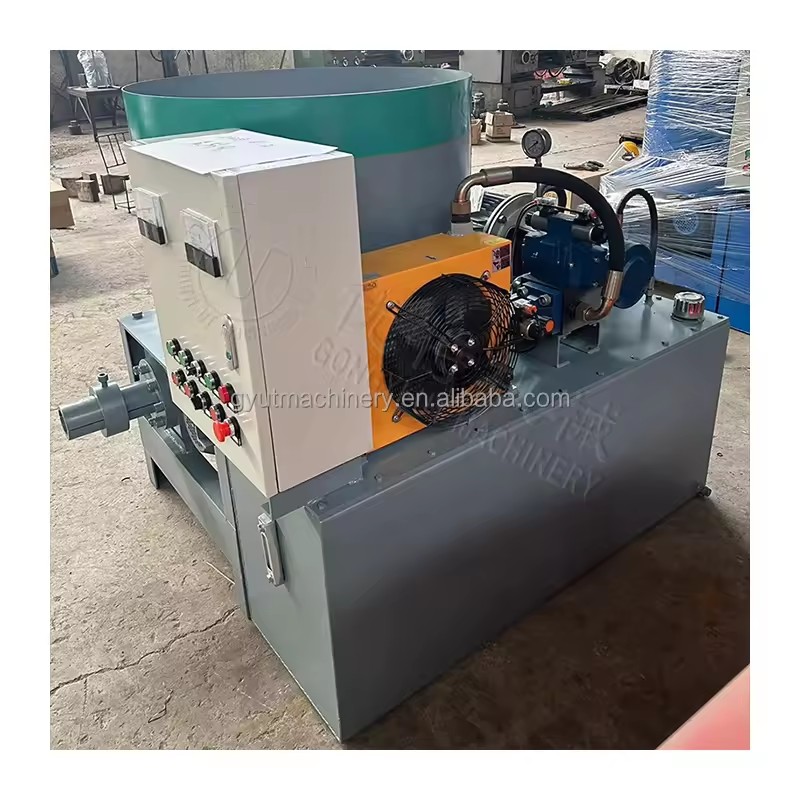

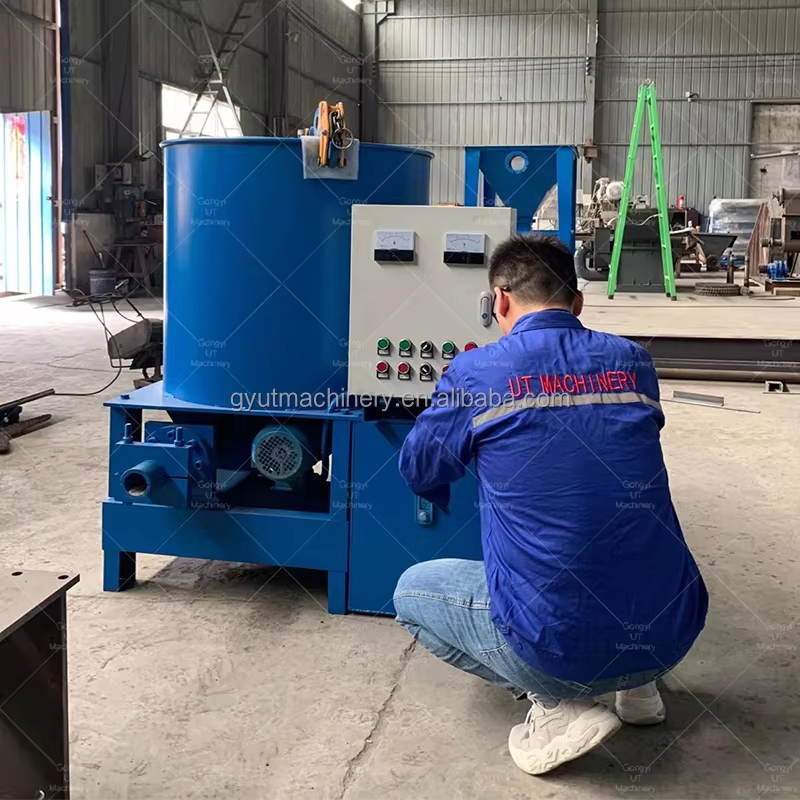

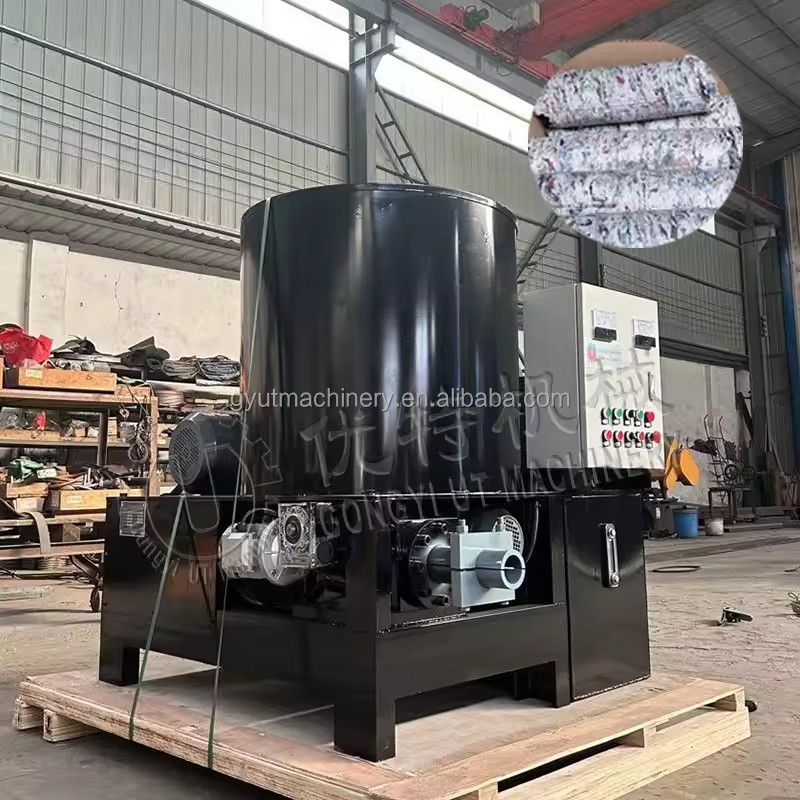

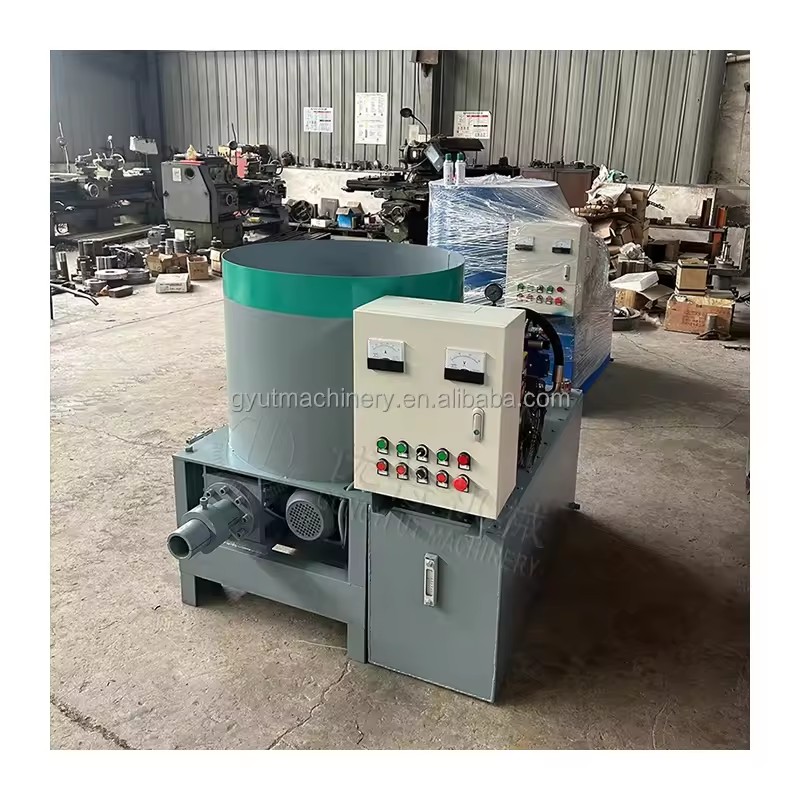

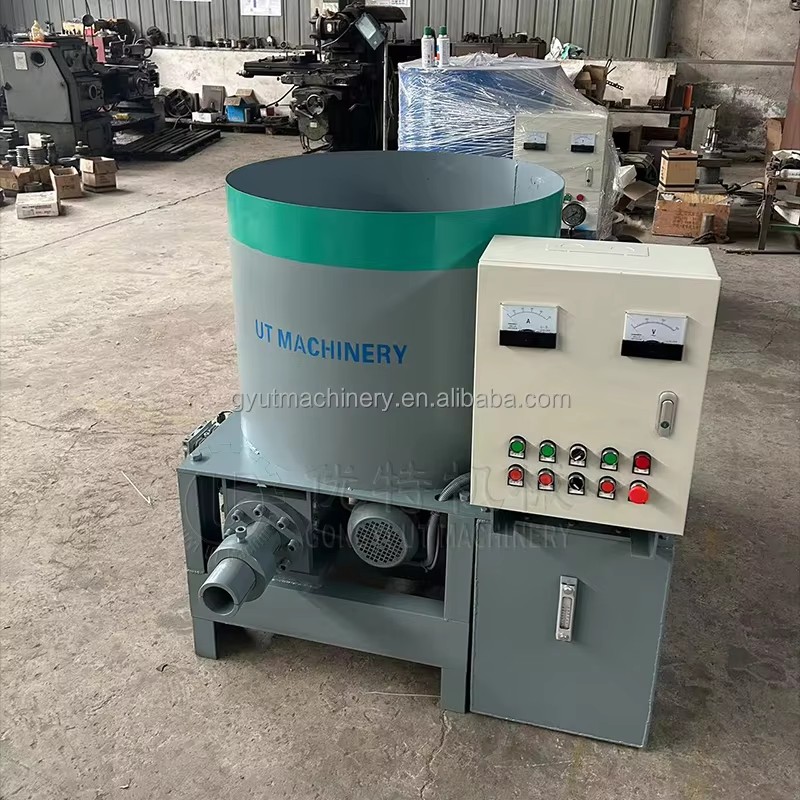

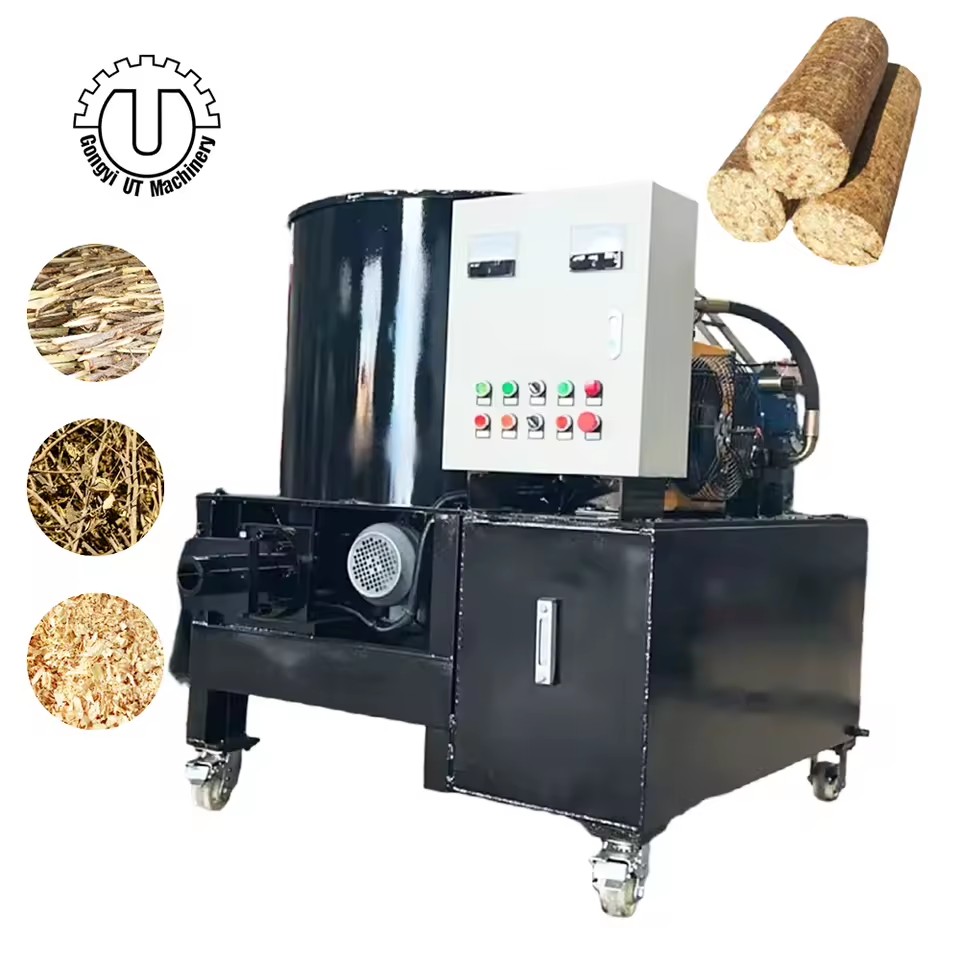

Hydraulic Wood Briquetting Machine Agricultural Biomass Briquette Press Machine Wood Chips Briquette Press

Hydraulic Wood Briquetting Machine Agricultural Biomass Briquette Press Machine

The briquetting presses machine are able to compact materials like wood shavings, sawdust, wood chips, dust and other residual materials into stable, cylindrical briquettes. Compared to loose material, the initial volume will be reduced by up to 90%.No chemical binder for making the wood briquette rods.

There are several methods available for densifying biomass. Screw press briquetting is a popular densification method. This process can produce denser and stronger biomass briquettes compared with piston presses. After feeding into the hopper, the raw material is conveyed and compressed by piston press worm in biomass briquetting.

By changing individual parameters, the briquetting presses can be adapted to customer materials, required throughput performances and individual conditions. It’s possible to choose from various cylinder sizes, drive engine variants and silo shapes. The filling of the briquetting press can take place manually or automatically.

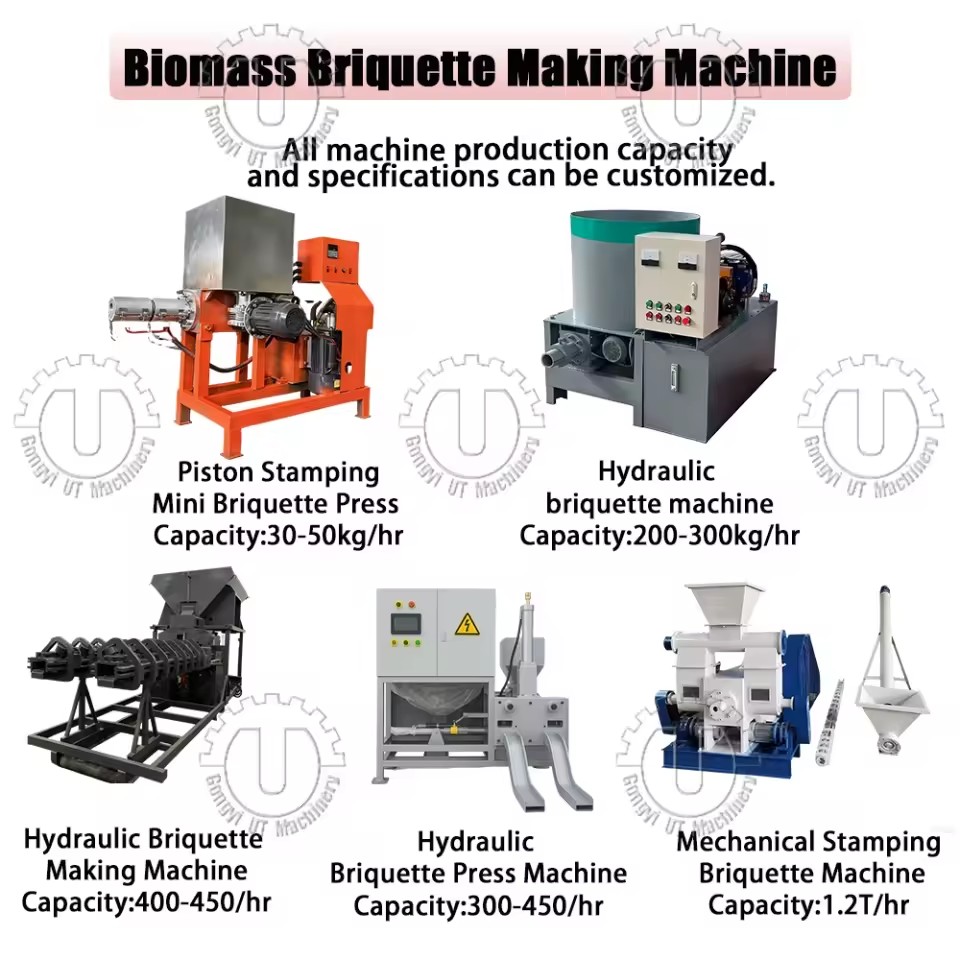

100 kg Per Hour Wood Block Briquetting Machine Hydraulic Piston Press Sawdust Briquette Press Machine

Some characteristics have to be checked for all type of raw materials prior to considering briquetting.

Biomass briquette making machines are used to make briquettes from biomass wastes. The finished briquettes are hollow. In general, the outer diameters of the finished briquettes range from 50-80mm. Besides, the shape of the finished briquettes can be varied through changing different mould.

A further advantage based on briquetting is the reduction in the danger of fires and explosions. Because of the fact that briquettes are considered as low-flammable like solid wood there aren’t any additional costs for complex fire protection regulations.

Ÿ Particle size

Generally the max particle size is 20x5x3 mm in order to avoid feeding problems for the briquette press.

Ÿ Moisture content

As the optimum moisture content for briquetting purposes varies with the raw material, we know from experience that the recommended water content is from min. 6% to max. 16%.

From 16% and higher quality will deteriorate considerably until briquetting becomes hard.

Ÿ Wood waste Material Most wood waste is suitable for briquetting depending on its content of lignin as well as the moisture content and particle size etc.

Ÿ Demolition wood

Different kinds of demolition wood are available in an increasing amount around us and it can be turned into valuable fuel briquettes for private consumers or industrial use.

Ÿ Agricultural waste

Agricultural wastes such as organic wastes typically animal wastes or dead plants, are usually not harmful to the environment; on the contrary, they can enrich the soil with nutrients and minerals.

Alternatively agricultural waste like straw and stalks etc. is also very suitable for production of briquettes.

Ÿ Paper and cardboard

Ÿ Plastic

Ÿ Others

Flow chart

The whole charcoal

Feartures of Mechanical stamping briquette pressing machine

• Optional mixer for adding moisture to the raw material • Flexible die system. • Easy commissioning as factory tested with your raw material • Easy to relocate. • Sturdy design - Suitable for running 24hours. • Easy to service and low maintenance costs

• NO binder needed during production to make clean & green fuel briquette.

• Quantity of heat of final product is 500-1000Kcal higher than raw material.

Specifications of Briquette Machine Cheap Price

Detail Quotation Solutions for you.

(1). What capacity do your prefer? · The Capacity Range of Wood Briquettes Machine:500Kg/Hour;1000Kg/Hour;2000Kg/Hour.

(2).What is your raw material? · According to different raw material(such as hard wood, soft wood, straw, sawdust, ricehust ). We need to make sure whether need Wood Crusher or not. The Final Materials Size should be less than or equal to 30mm. MC(Moisture Content) should be Less than or equal to 12%.

(3).Final Briquettes Size Demand? · We have different diameters of final briquettes.(Such as:50mm, 70mm, 80mm, 90mm, 100mm). Length of Briquettes:Adjustable.
