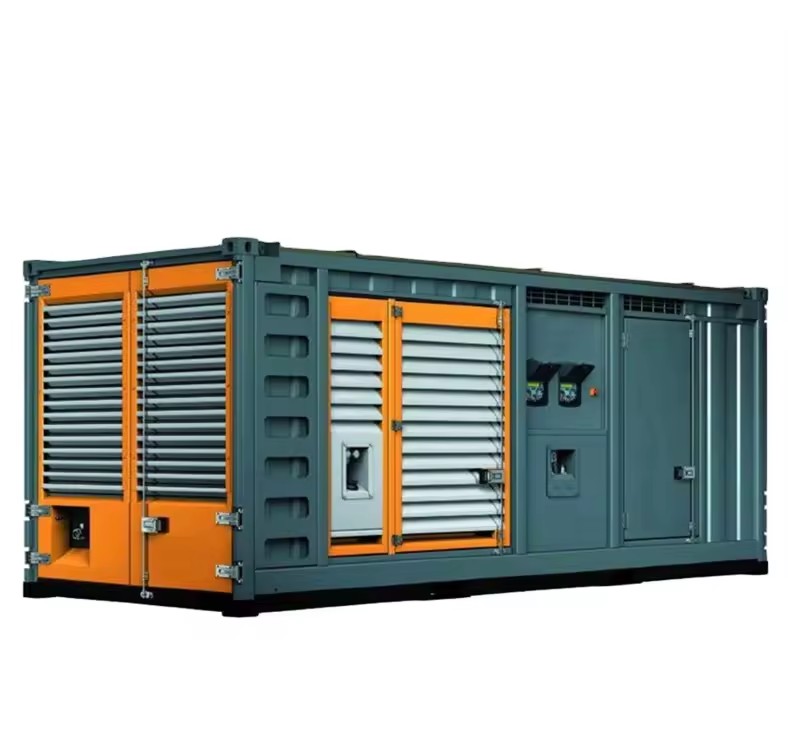

Natural Gas Turbine Generation System

Product Introduction

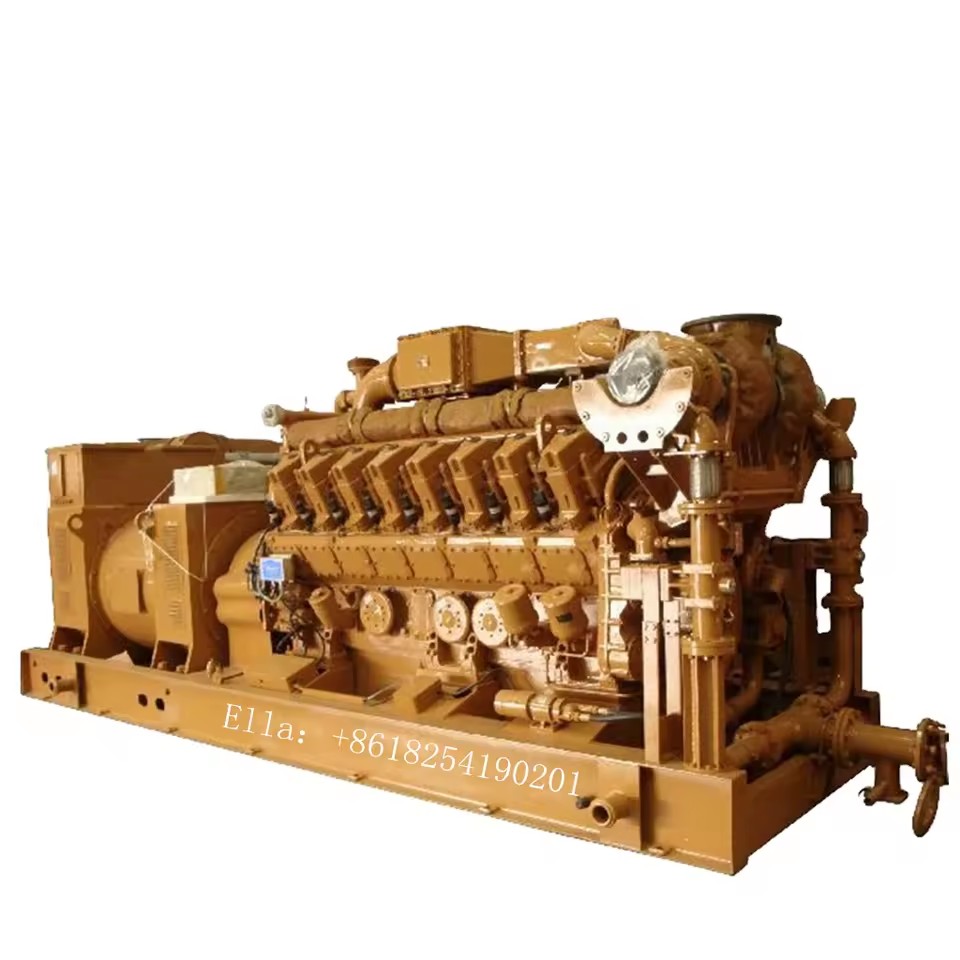

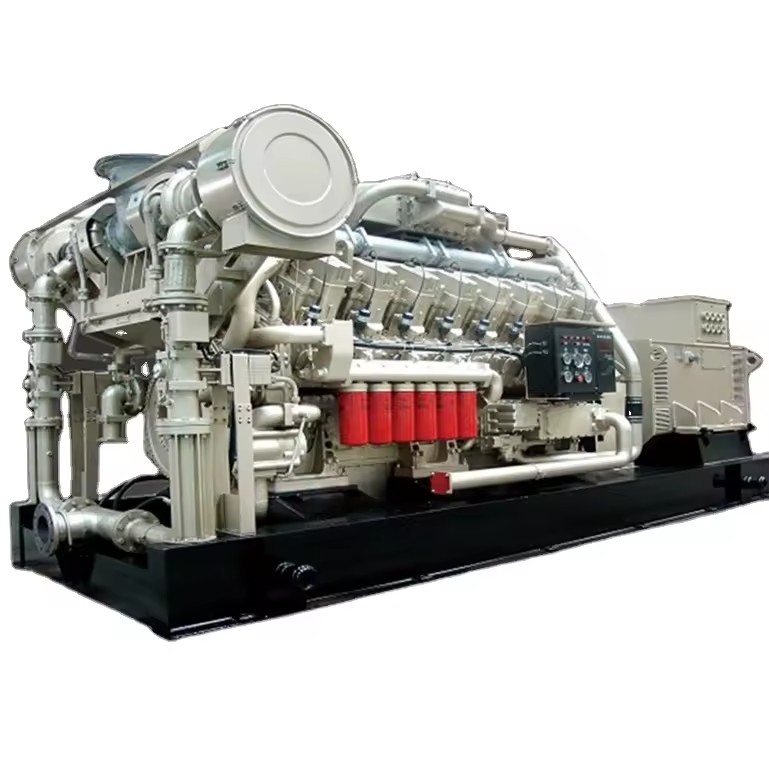

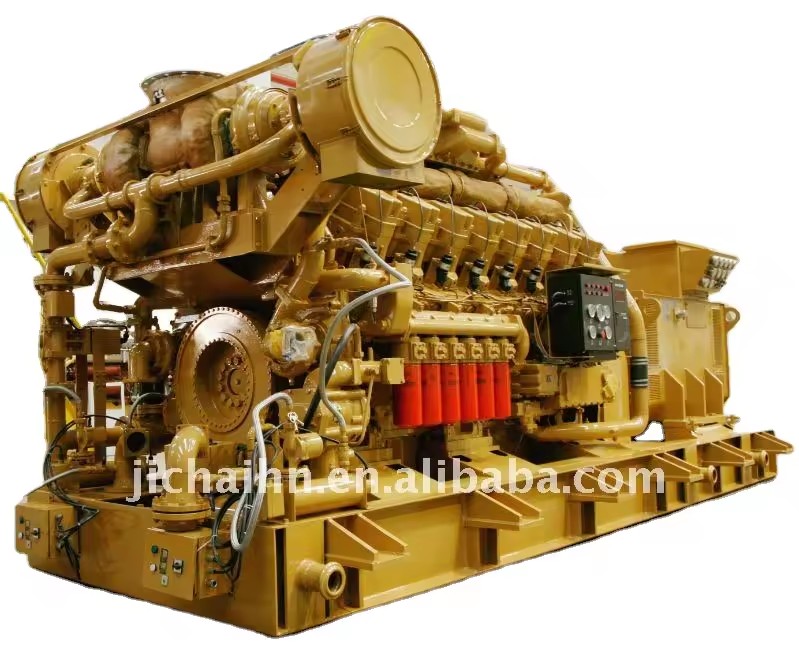

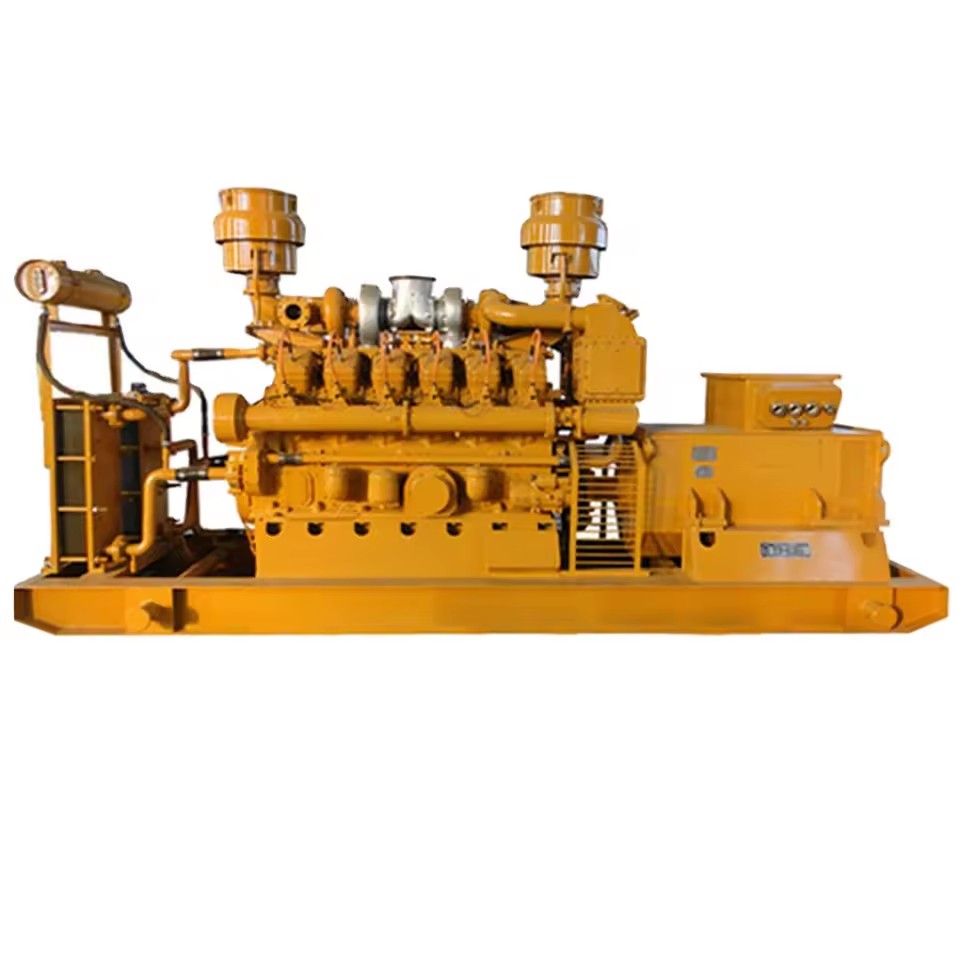

This natural gas generator adopts 12V190ZL engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 12V gas engine. 12V190ZL electrical control and external mix engine owns speed 1000r/min, single unit power 700kW.

Main Requirements

Gas The quality requirements of Natural Gas are (1m distance before inlet valve): · dewatered by drying process, no free water, crude oil and light oil · pressure within 100~200kPa · temperature within -20~40℃ · low heating value ≥30 MJ/m3; · total sulfur ≤200mg/m3. Note: The standard reference condition for gas volume is 100kPa at atmospheric pressure, 20℃ of ambient temperature, 30% relative humidity. Lubrication oil and Cooling Water Luboil consumption ratio ≤0.3g/kW·h; Type & Grade: Mobil Pegus 705 or 15W40CD High and low temperature circulation of engine need soften water. Cooling water should select clean water that has slight alkaline. Corrosive compound such like chloride, sulfate or sour could not be contained. The main norms as below: Hardness 0.7~5.3me/L Chloridion content <150mg/L PH value 7~8.5 Environment The natural gas generator set can operate stable, reliable, continuously with the condition of ambient temperature -40℃~+40℃, relative humidity<90%(20℃), altitude ≤2000m. The rated power can be output stable under the standard environment condition (atmospheric pressure: 100kPa. Ambient temperature: 25℃, relative humidity: 30%).

Machine Parts

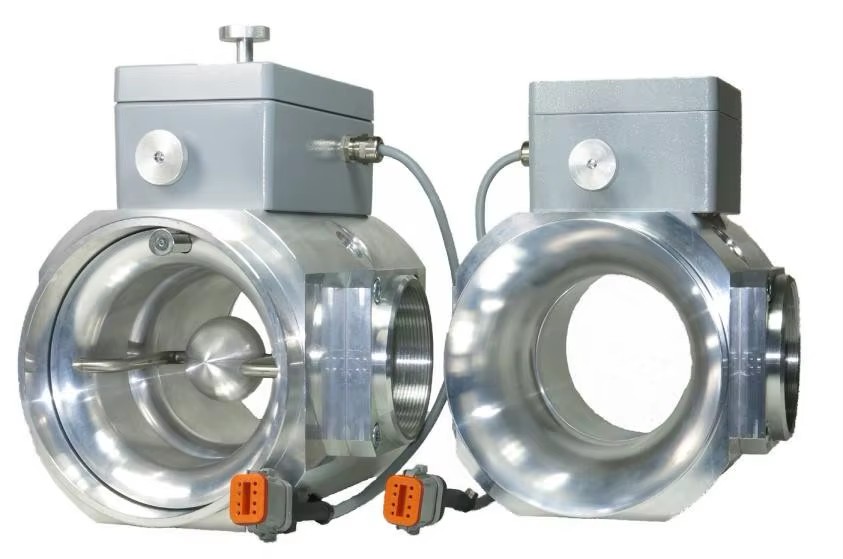

Name: SPEED GOVERNING control system

Brand: AMERICAN Woodward EGS

Original

Electronic governing system: World make, auto speed governing of engine, stable and reliable performance. Meet the need of increase/decrease power.

Main Features

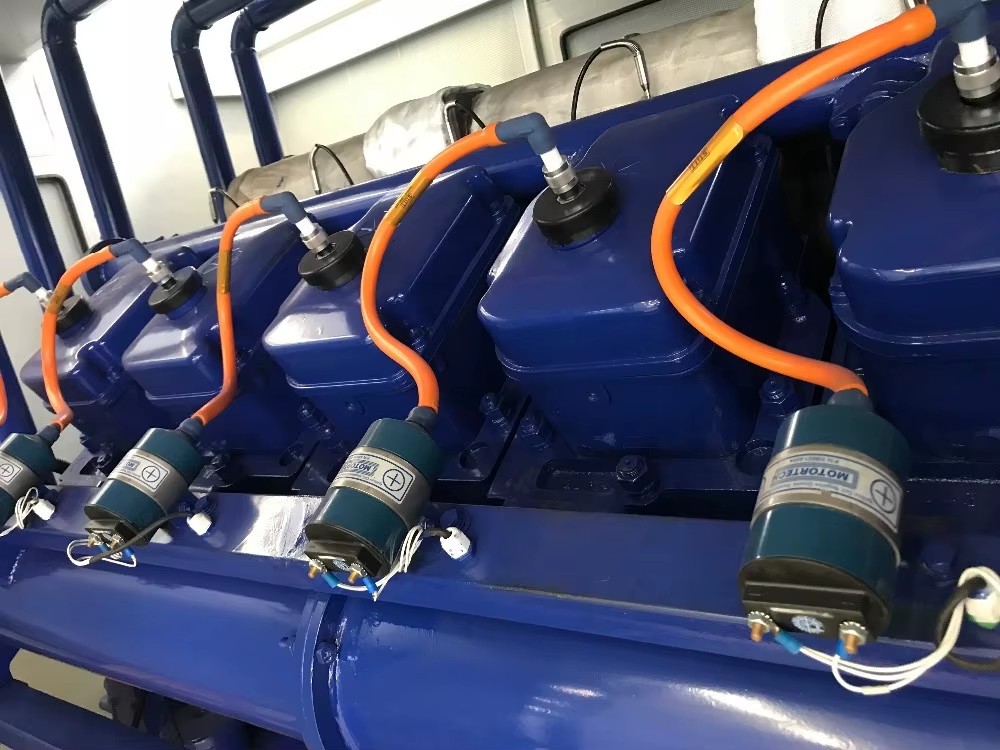

Name: IGINITION SYSTEM Brand: MOTORTECH intelligent MIC3+ Original: Digital Ignition Controller is controlled by micro programming, can provide energy needed by coil of gas engine and designed special for 4 stroke gas engine. Features: The ignition energy can be set separately for start stage and normal operation stage; Various Ignition timing adjusting function; Shutdown engine when engine failure happens; Safety and auxiliary function.

Name: Master screen Brand:Comap Original: Automated Operation Botton start, automatic distribute load Automatic adjust air-fuel ratio and power factor Automatic synchronization The main parts are top world make with stable and reliable performance.

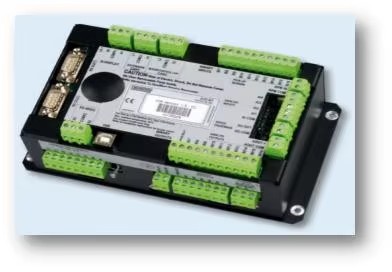

Name: Control module Brand: IGNT Original: Control panel is equipped with controllers, kinds of display instruments, adjusting buttons, protection indication lamps, emergency shutdown buttons etc, to control and monitor working condition of the generator set. It is equipped with automatic synchronization IG-NT or IC-NT (according to customers demand) with the function of automatic synchronizing and load sharing.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
