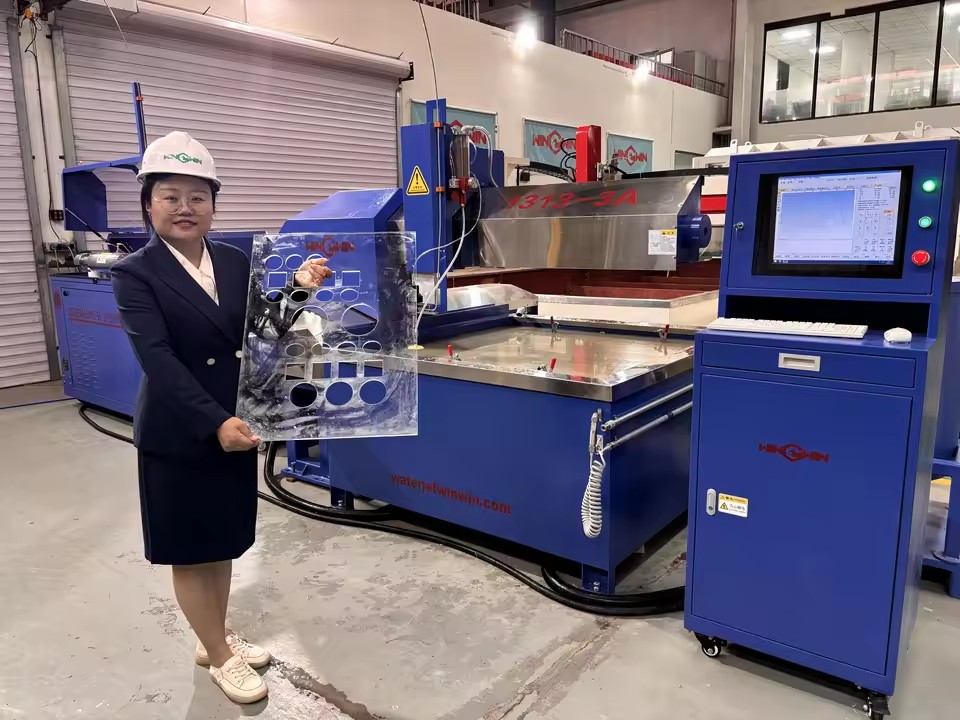

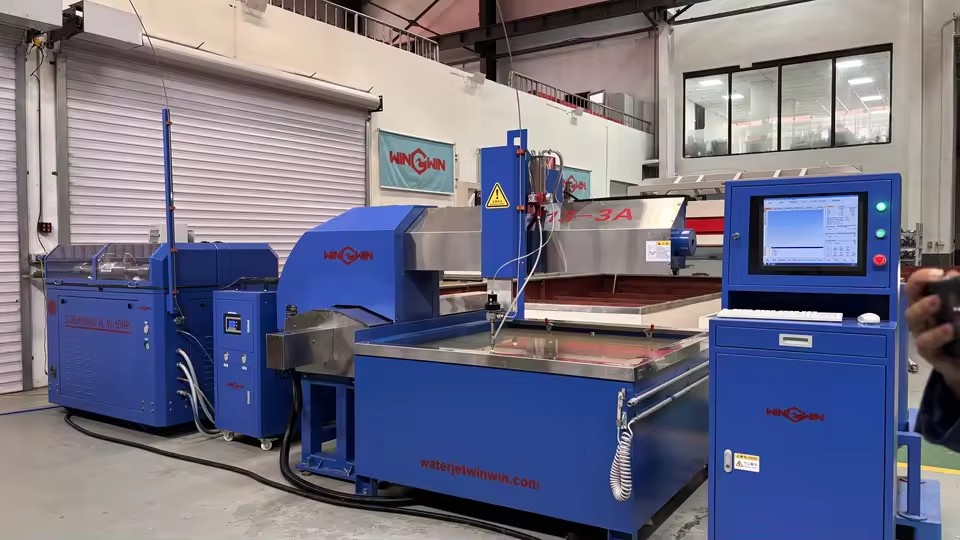

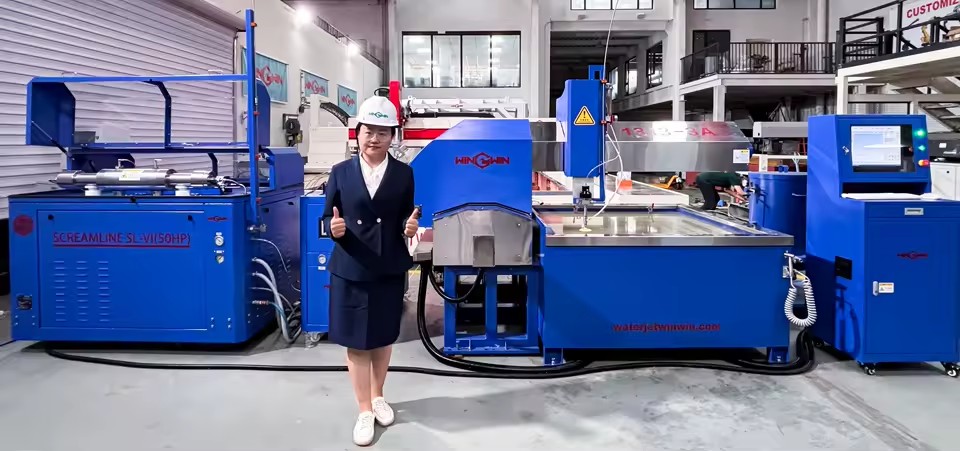

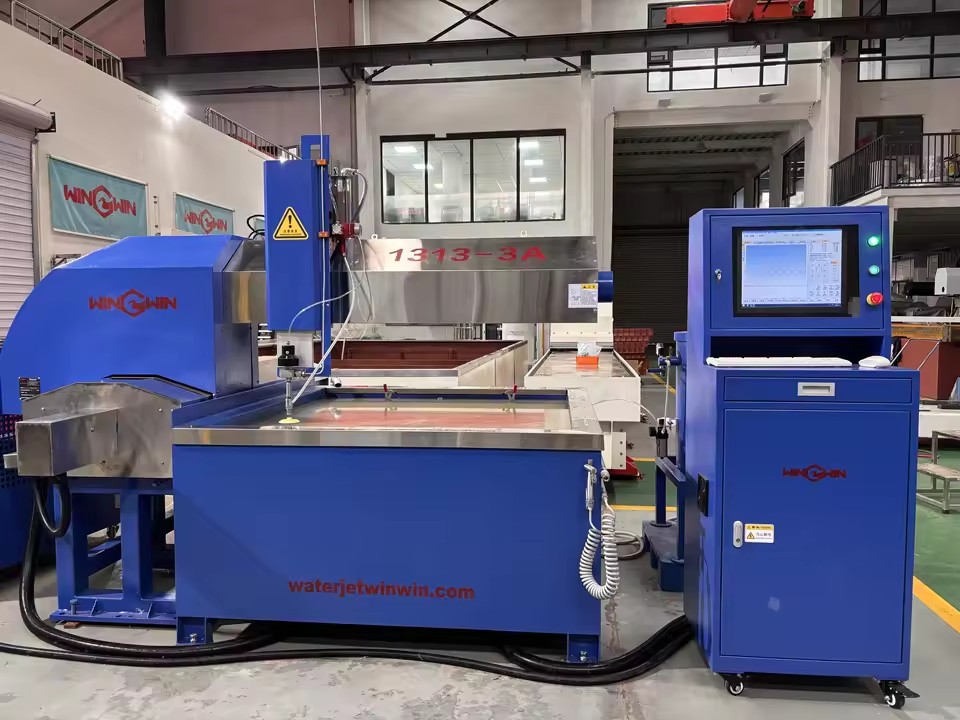

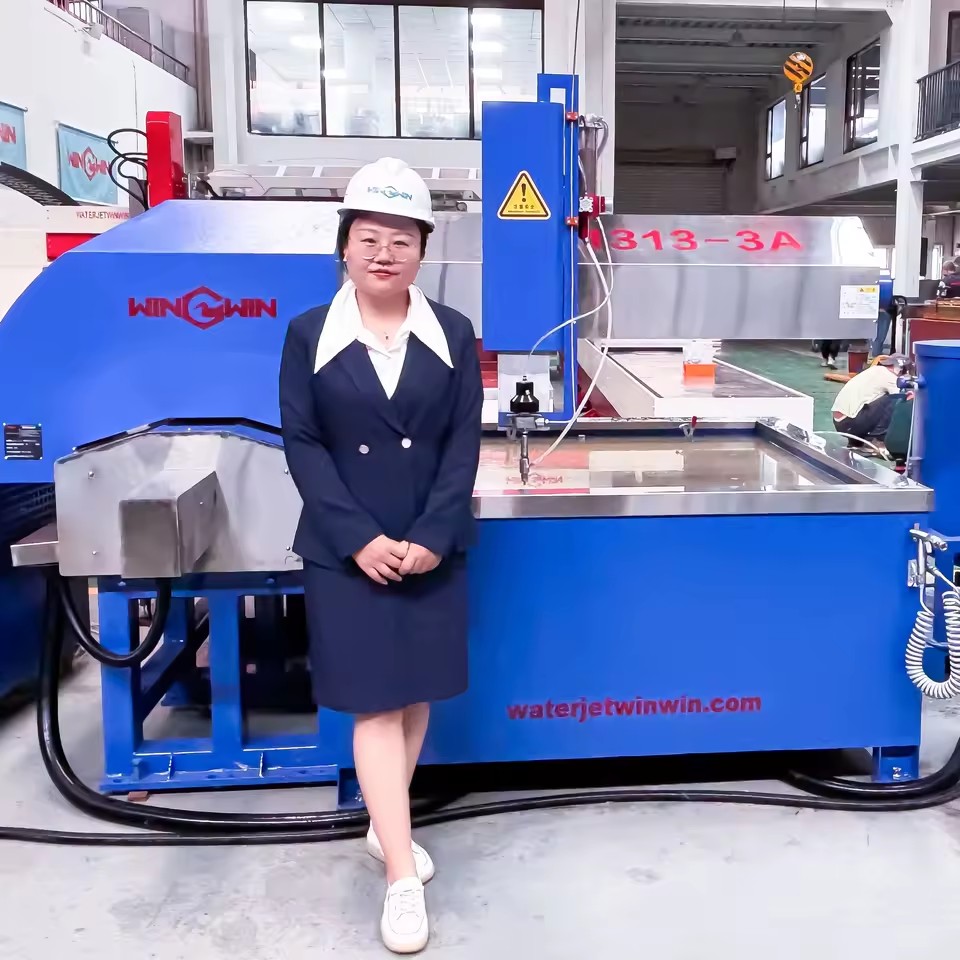

1300x1300mm Small Waterjet Cantilever Type Glass Waterjet Cutter Kitchenware Water Jet Cutting Solutions

1300x1300mm Small Waterjet Cantilever Type Glass Waterjet Cutter Kitchenware Water Jet Cutting Solutions

3 Axis small waterjet 1300x1300mm

Type

cantilever

Effective Working Area

X-Axis 1300mm, Y-Aixs 1300mm, Z-Axis 200mm

Swivel Angle Resolution

±0.01°

Cutting Accuracy

0.1mm

Control Accuracy

0.01mm

Repeatability of Positioning

0.025mm

Max. Travel Speed

10000mm/min

WWJET50 Intensifier Pump

Nominal Power Rate

50HP (37 kW)

Max. pressure

420Mpa /4200bar/60,000psi

Working pressure

360-380Mpa

Max. diameter of orifice

0.33mm

Max.Flowrate

3.8L/min

Accumulator capacity

1L

Size

1600mm*1200mm*1100mm

Weight

0.9t

00:00

Product Description

Key Features

* Cutting Area: 1300mm × 1300mm – Compact yet powerful, perfect for small-to-medium scale projects.

* Structure: Cantilever Type – Easy loading/unloading of materials, space-efficient design.

* Material Compatibility: Specially optimized for glass, ceramics, stone, metal, and kitchenware components.

* Precision: High-pressure waterjet stream ensures clean, burr-free cuts without thermal distortion.

* Control System: Advanced CNC control with intuitive interface; supports DXF, DWG, and other standard CAD file formats.

* Pump Options: Compatible with ultra-high pressure intensifier or direct-drive pumps (up to 60,000 PSI).

* Safety Features: Enclosed cutting zone options, emergency stops, and water recycling system available.

Applications

* Kitchenware: Sinks, countertops, ceramic utensils, backsplash panels.

* Architectural Glass: Decorative glass panels, shower screens, and tabletops.

* Industrial Prototyping: Custom parts for appliances, small components, and more

A.

High Performance and Standard Design

Universal Structure Design, International Standard Spare Parts. High versatility of accessories, customers can purchase the corresponding parts in any waterjet machine market.

B. Double Oil-Filtration System

Double filtration devices are set at the oil inlet and oil return port to ensure the oil path is clean, smooth and not blocked

and prolong the service life of the Intensifier Pump.

C. Double-Level Water-Filtration System

WW5060JET adopts double layers of water filtration in low pressure water transport to remove hard metal elements from industrial water. The waterjet is less likely to produce scale, protecting important high pressure components and extending the service life of the entire Waterjet Cutting Machine.

D. 1L Large Capacity Accumulator

1L capacity accumulator, eliminate the fluctuation of the cutting, integral forging, no rubber seals, maintenance-free.

*

Brand

WEIHONG

Industrial-grade display, waterjet special software, easy to operate.

* Simulation operation, pause and start at any time, continue to cut from any position and point.

Wall Thickness

4.5mm ( Explosion-proof)

Air Pressure

0.4-0.8Mpa

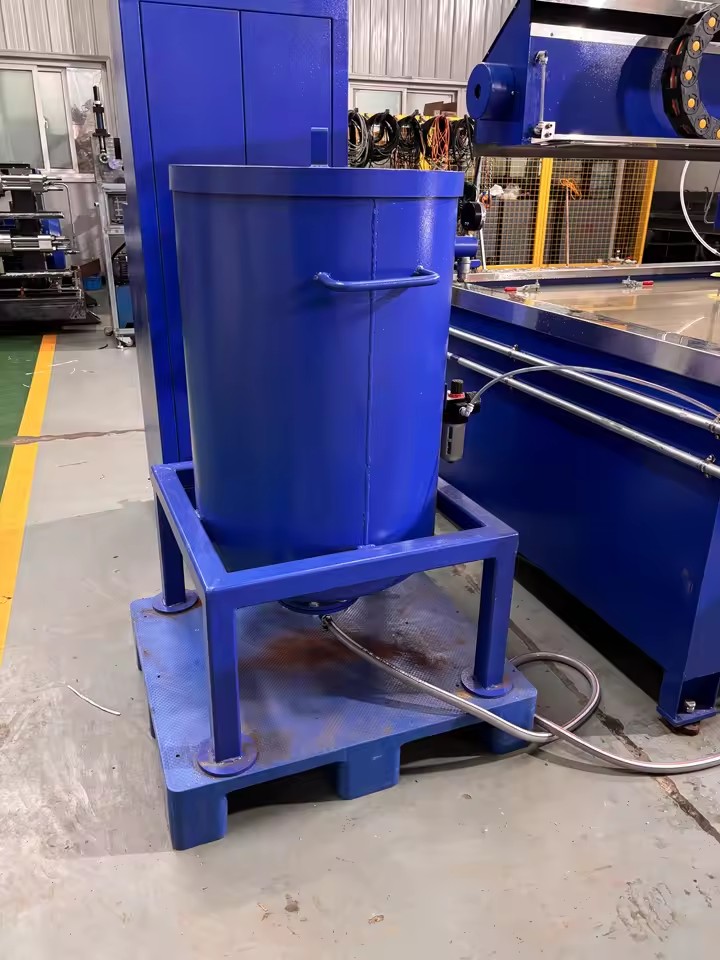

Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.

Large diameter flange at the bottom, easy to remove the debris.

The industrial chiller adopts automatic temperature control, which can meet continuous operation 24 hours a day.

Adopts shell-and-tube two-device linkage technology, low vibration, low noise, high-efficiency heat exchange material, and high energy efficiency ratio.

Use a water filtration system to remove calcium and magnesium ions from water to prevent scaling.

Good water quality will not only increase the life of the seal but also prolong the reliability and life of the nozzle, orifice

high pressure seal etc. resulting in more efficient cutting.

Optional Devices

Abrasive Removal System

When the waterjet cutting machine operates, the large-scale abrasive removal system operates automatically without affecting each

other.

The device can be installed within 10m of the waterjet cutting machine.

The flow rate can reach 162L/min.

The abrasive removal rate is more than 90%.

During the entire abrasive removal process, the filtered water continues to be discharged into the water sink, and the water sink

does not need to be replenished after abrasive removal.

Waterjet Parts Warehouse
