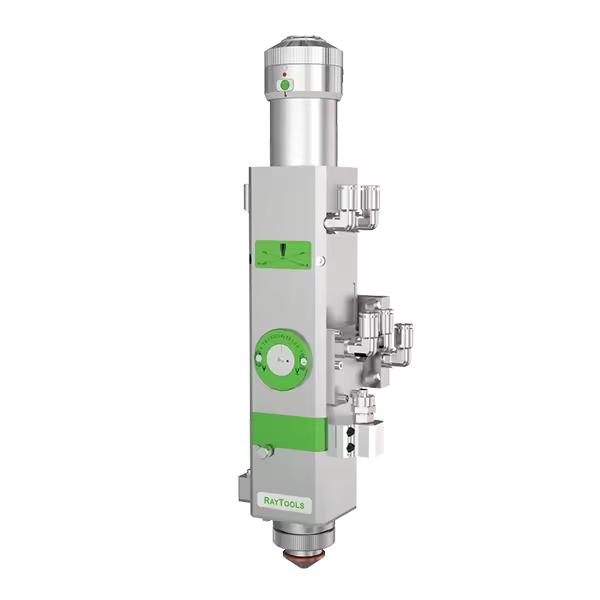

Manual Focus Raytools Fiber Laser Cutting Head BT220 for Fiber Laser Cutting Machine

Product Importer Gallery 01 · 92d1fcbf05

Product Importer Gallery 02 · 3c4aa41154

Product Importer Gallery 03 · 446f49c874

Product Importer Gallery 04 · 630e940a55

Product video

Certifications CE(2)

Manual Focus Raytools Fiber Laser Cutting Head BT220 for Fiber Laser Cutting Machine

Name: Manual Focus Raytools Fiber Laser Cutting Head BT220 for Fiber Laser Cutting Machine
SKU: 5BJD-GMKN-Z4S5
Price: 1410.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 1,410.00 1410.0 USD $ 1,410.00

Minimum order quantity: 1 Units

Key attributes

View all

Spare parts type

cutting head

Key selling points

Competitive Price

Warranty

2 Years

Condition

New

Place of origin

China, Hubei

Weight (kg)

2.6 KG

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 3.47 for 1 set · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Excellent design

High cost performance

Compact structure

High adaptability

Fiber Optic Interface	QBH
Applicable wavelength	1064nm
Laser power	2kw
NA	0.13
Optical ratio Collimation focal length (fC) Focal length (fF)	75 75 100 100 100 125 100 125
Focus adjustment range Level Vertical	1 ~ +1mm -8 ~ +7mm
Install Number/size of screws for back panel mounting holes Number/size of back panel mounting pins Number/size of screws for amplifier mounting holes	4×M6.6 2×∅6 4×M3
Pipeline interface Cutting gas Water cooling (cocurrent and countercurrent)	Φ8 connector, maximum 25bar Φ6 connector, maximum 5bar, minimum volume flow rate 1.8L/min
Operating temperature	5℃～55℃
Humidity	30%～95%, no frost

Optical ratio fC:fF	L1	L2
75:100	293	99
75:125	318	124
100:100	318	99
100:125	343	124

Cutting gas	Purity	Maximum water vapor content (ppm)	Maximum content of hydrocarbons (ppm)
Oxygen	＞99.95%	＜5ppm	＜1ppm
Nitrogen	＞99.995%	＜5ppm	＜1ppm
Argon, Helium	＞99.998%	＜5ppm	＜1ppm

Minimum flow rate	1.8 L/min
Inlet pressure	170-520kPa
Inlet temperature	≥Room temperature /＞Dew point
Hardness (relative to CaCO3)	＜250mg/L
PH range	6 to 8
By particle size	Less than 200 microns in diameter

Certifications & compliance

CE(2)

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 3.47 for 1 set · Estimated delivery: Sep 29–Oct 16 (28–45 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Spare parts type

cutting head

Key selling points

Competitive Price

Warranty

2 Years

Condition

New

Place of origin

China, Hubei

Weight (kg)

2.6 KG

Clear Aperture

25mm

Auxiliary gas pressure

≤25bar

Laser power

2000W

Nozzle specifications

Single layer, double layer, non-standard

Weight

~2.6kg

Nozzle hole diameter

0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm,5.0mm

Application

Metals Cutting

Focal Length

150mm

Collimation Lens

75mm

Selling Units

Single item

Single package size

50X30X22 cm

Single gross weight

15.0 kg

Model number

BT220

Certifications & Compliance

CE(2)

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Manual Focus Raytools Fiber Laser Cutting Head BT220 for Fiber Laser Cutting Machine

Open URL

Price

$ 1410.00

Manual Focus Raytools Fiber Laser Cutting Head BT220 for Fiber Laser Cutting Machine product image

Product information

Attributes

Spare parts type

cutting head

Key selling points

Competitive Price

Warranty

2 Years

Condition

New

Place of origin

China, Hubei

Weight (kg)

2.6 KG

Clear Aperture

25mm

Auxiliary gas pressure

≤25bar

Laser power

2000W

Nozzle specifications

Single layer, double layer, non-standard

Weight

~2.6kg

Nozzle hole diameter

0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm,5.0mm

Application

Metals Cutting

Focal Length

150mm

Collimation Lens

75mm

Selling Units

Single item

Single package size

50X30X22 cm

Single gross weight

15.0 kg

Model number

BT220
