Crawler Mounted Diesel Mine Surface DTH Drill Rig with Gearbox and Motor Max 40m Drilling Depth for Sale

Product Importer Gallery 01 · 39d5f8e9b9

Product Importer Gallery 02 · d5cb097e83

Product Importer Gallery 03 · fff9e09633

Product Importer Gallery 04 · f2f58eddcf

Product video

Certifications CE

Crawler Mounted Diesel Mine Surface DTH Drill Rig with Gearbox and Motor Max 40m Drilling Depth for Sale

Name: Crawler Mounted Diesel Mine Surface DTH Drill Rig with Gearbox and Motor Max 40m Drilling Depth for Sale
SKU: 52BK-X733-YPCP
Price: 26930.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 26,930.00 26930.0 USD $ 26,930.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

DTH drilling rig

Drilling Depth

Max.40m, 40m

Drilling Diameter

90-130mm(3.54-5.12in)

Power Type

Diesel

Voltage

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Multimodal transport · Approx. shipping fee: $ 91.98 for 1 unit · Estimated delivery in 32-43 business days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

DTH Drilling Rig Machine

ltem	Unit	HF89S
operation parameters
Drilling range	mm	76-115
Economic hole diameter	mm	76,89,102
Dill pipe specification	T45/T51
Drill pipe length	mm	3660
Drilling depth	m	24
Hydraulic rock drill
lmpactpower	KW	21
Slewingtorque	Nm	883
Slewingspeed	rpm	0-150
Engine
Brand	CUMMNS
Model	qsc8.3
Power	kW/rpm	179/2200
Fuel tank	L	45o
Air compressor
Working pressure	Bar	10
Displacement	mmin	10
Drill boom
Type	Folding arm
Lifting angle	°	70 · 10
Foldingangle	°	65~165
Swingangle	°	20 · 30
Propulsion
Total length of propukion beam	mm	7300
Compensation stroke	mm	1200
Forward tiltingargle	°	14o
Turringangle	20~90
Maximum propulsion rate	m/s	o8
Maximum propulsion	kN	25
Traveling capability
aximum travcling speed	km/h	4.2
Max.traction	kN	1oo
Gradeability	°	25
Swingangle of crawler rame	7-12
Chassisground cleararce	mm	4oo
Dimension
weight	kg	15000
L×W× H(Working	m	92×2.6×8.6
L×w× H(Transportation)	m	112×2.6×3.5

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Multimodal transport · Approx. shipping fee: $ 91.98 for 1 unit · Estimated delivery in 32-43 business days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Usage

Ore

Type

DTH drilling rig

Drilling Depth

Max.40m, 40m

Drilling Diameter

90-130mm(3.54-5.12in)

Power Type

Diesel

Voltage

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Henan

Weight

4170 KG(9193.28lb)

Dimension (L*W*H)

4460*1950*2460(mm)

Drilling range

76-115mm

Economic hole diameter

76,89,102mm

Dill pipe specification

T45/T51

Drill pipe length

3660mm

Lmpact power

21KW

Slewing torque

883Nm

Selling Units

Single item

Single package size

22X22X22 cm

Single gross weight

58.0 kg

Model number

HF89S

Certifications & Compliance

Lead time

20 days

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Crawler Mounted Diesel Mine Surface DTH Drill Rig with Gearbox and Motor Max 40m Drilling Depth for Sale

Open URL

Price

$ 26930.00

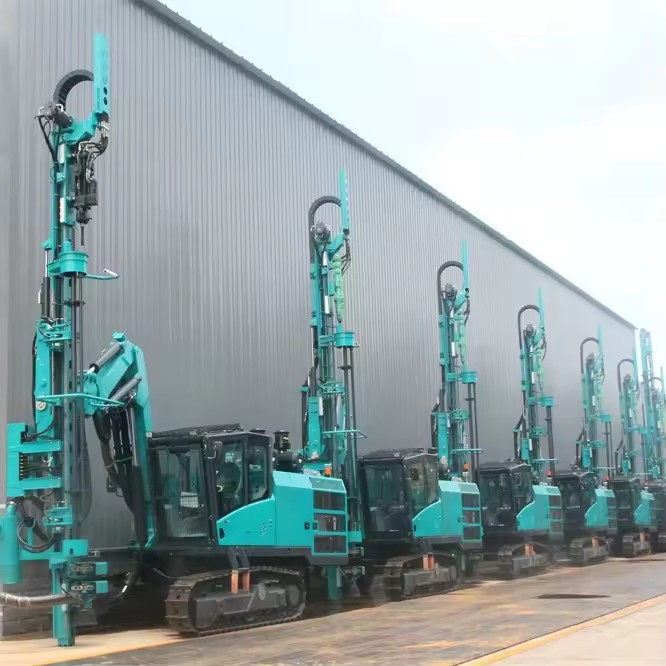

Crawler Mounted Diesel Mine Surface DTH Drill Rig with Gearbox and Motor Max 40m Drilling Depth for Sale product image
