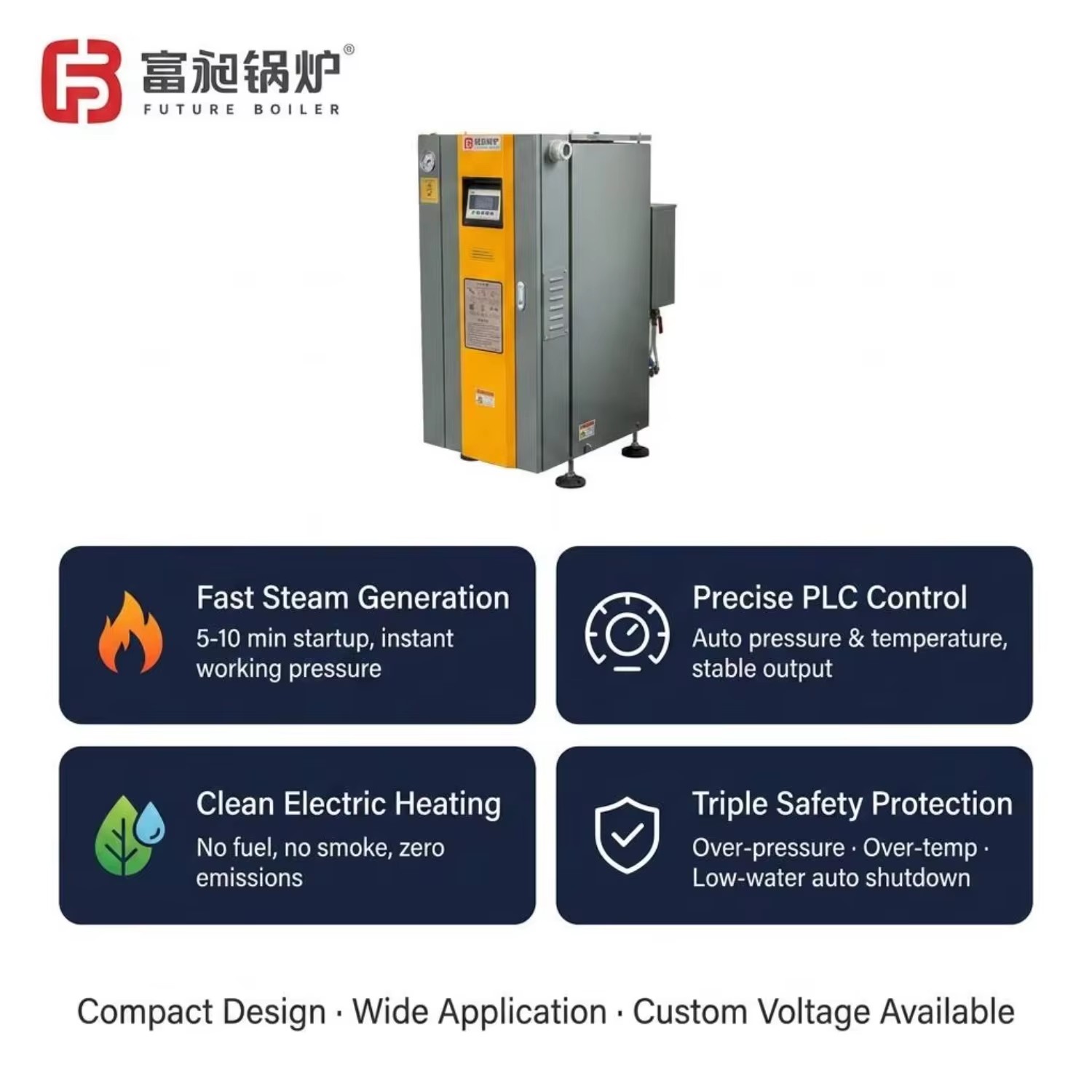

Name: 50kg/h Vertical Industrial Steam Generator FoodGrade Steam Generator Food Processing Beverage Meat Sterilization Yuanda Supplier
SKU: B2B-44962
Price: 2450.0 USD
Availability: PreOrder

Product description

Food-Grade Pure Steam, Safe for Food Production Designed specifically for the food and beverage industry. Equipped with high-efficiency steam-water separation and purification structure. The generated steam is oil-free, odorless, impurity-free and dry, fully complying with food hygiene standards. Safe for direct contact food processing including steaming, sterilization, blanching, curing and heating.

Stable 50kg/h Steam Output, Consistent Performance Rated 50kg/h continuous steam output with stable pressure and fast steam generation. Supports 24-hour uninterrupted operation, perfectly matching the continuous production demand of small and medium food processing lines, avoiding steam fluctuation that affects product quality.

Vertical Compact Structure, Space & Cost Saving Vertical integrated design with small footprint, no need for a dedicated boiler room. Easy to place in food workshops, saving factory construction and layout costs. Plug-and-play integrated structure, simple installation and no complicated civil engineering work.

High Thermal Efficiency & Low Energy Consumption Optimized heat exchange and combustion structure minimizes heat loss. Higher thermal efficiency than traditional small boilers, effectively reducing fuel and electricity consumption. Greatly lowers long-term operational costs for food factories.

Full Automatic Intelligent Control, Labor-Saving Adopts intelligent PLC automatic control system, realizing automatic water feeding, pressure stabilization, temperature control and automatic operation. Simple human-machine interface, no professional boiler operator required, easy for workshop staff to operate.

Multiple Safety Protection, Zero Safety Risks Built-in overpressure protection, over-temperature protection, water shortage protection, leakage protection and automatic alarm & shutdown system. Effectively prevents equipment failure and safety accidents, ensuring stable and safe operation in food workshop environments.

Eco-Friendly & Low Noise, Workshop-Friendly Low noise operation and low emission design, meeting industrial environmental protection standards. No pollution, no impact on workshop working environment and food production cleanliness.

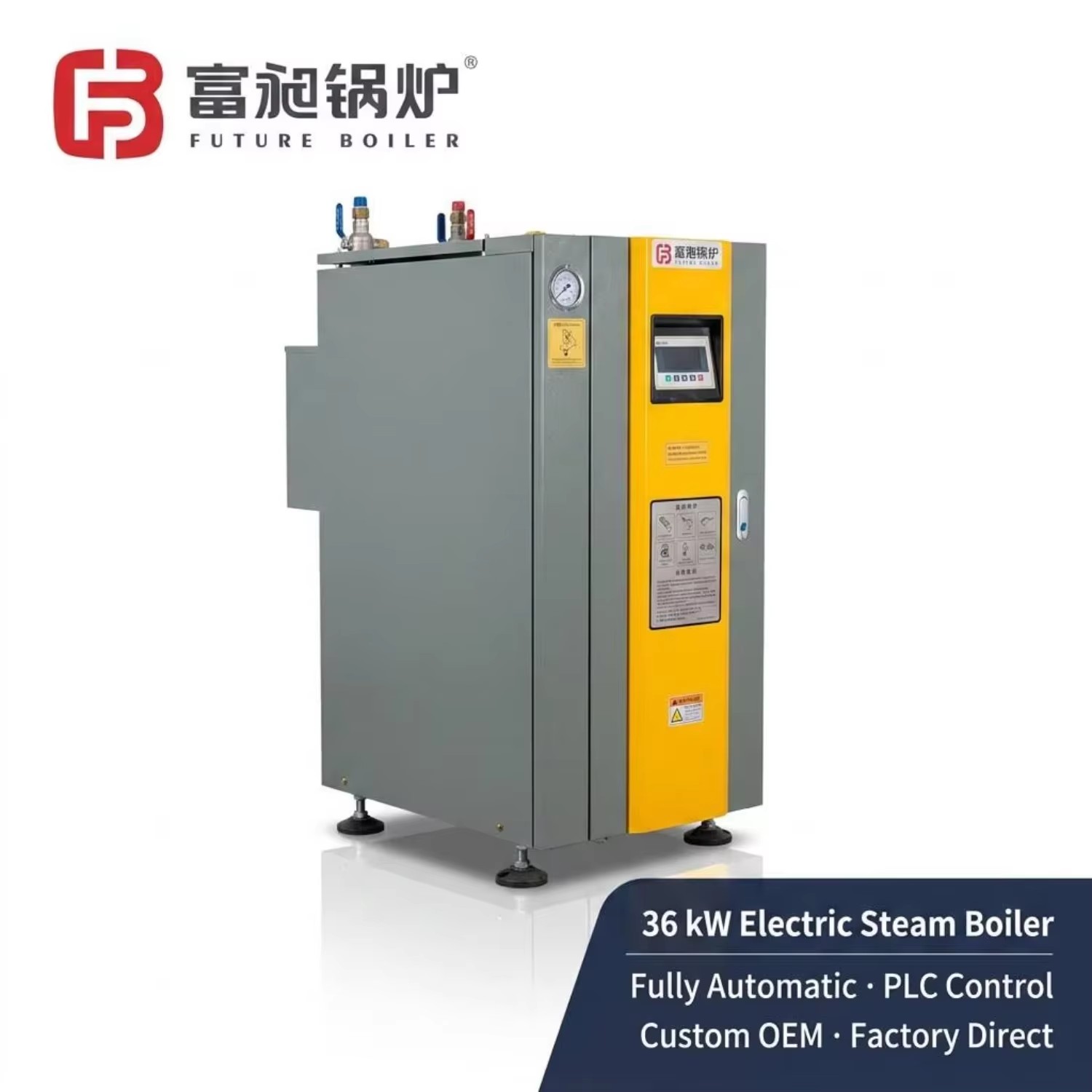

Model	LDR0.05-0.7
Rated Power	36KW
Steam Output / Evaporation	50Kg/hr
Rated Working Pressure	0.7MPa
Saturated Steam Temperature	171℃
Power Supply	3P 380V 50Hz / 60Hz
Rated Current	54A
Control Mode	English PLC Touch Screen BP/Siemens
Thermal Efficiency	≥98%
Steam Generation Time	≤3 minutes
Structure Type	Low Profile Vertical
Application	Raw meat thawing & preheating tank,Meat emulsifier & mixing machine with steam heating jacket, Casing soaking & softening tank,Sausage steam cooking oven / Steam curing chamber,Pre-steam heating before smoking,Smoke oven steam heating system,Pasteurization water bath tank,High-temperature steam cleaning & sanitizing,Factory hot water boiler support,Steam jacket cooking kettle
Hygiene Standard	GMP Compliant
HS Code	8402190000
Warranty Period	2Years Whole Machine
Certificates	CE, ISO9001, B-class Boiler Manufacturing License CE

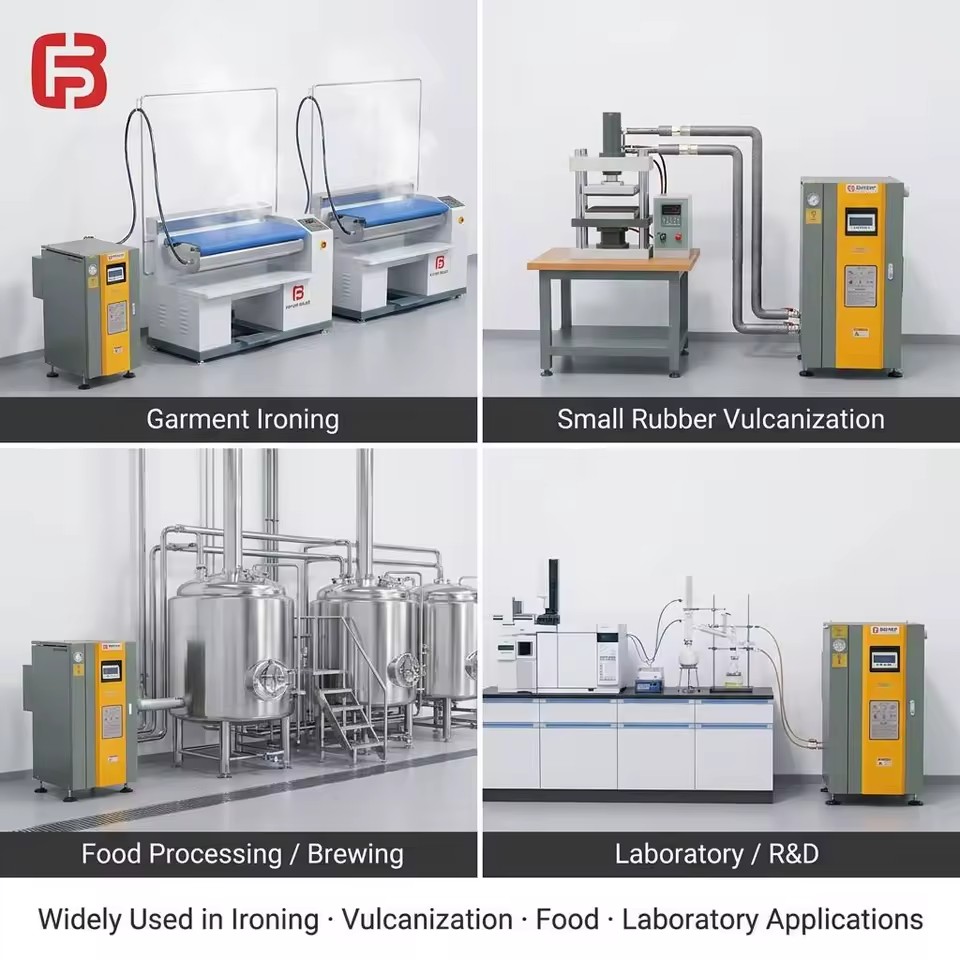

Industry Sector	Main Supporting Equipment & Application Scenarios
Beverage Machinery Industry	Sugar melting tank, sleeve labeling machine, instantaneous sterilization, spray sterilization line, UHT ultra-high temperature sterilization, bottle warming machine, blending tank, jacketed kettle, hot water tank, pipeline sterilization, etc.
Laundry & Washing Industry	Dehydrator, industrial washing machine, barrier washing machine, dry cleaning machine, ironing machine, steam pressing machine, vacuum ironing table, stain removal station, body form finisher, flat press, tumble dryer, washer-extractor, high-speed ironing equipment, tunnel washing system, water washing machine, trough ironer, roller ironer
Food Processing Industry	Cooking, drying, sterilization, disinfection, distillation, fermentation, heat preservation Jacketed kettle, soup boiler, frying wok, steam cabinet, rice
Biochemical Industry	Material heating, reactor heat preservation, raw material concentration, distillation & purification, pipeline heating Reactor, distillation tower concentrator, extraction equipment, fermentation tank, MVR evaporator
Building Materials Industry	Asphalt heating, concrete curing, gypsum board drying
Textile Printing & Dyeing Industry	Fabric setting, drying, cooking, dyeing
Rubber & Plastic Industry	Vulcanization, hot press forming, drying Rubber vulcanizing equipment, rubber vulcanizer, flat vulcanizing machine Injection mold heating, plastic foaming board
Medical & Pharmaceutical Industry	Medical device disinfection & sterilization, laboratory steam supply Sterilization equipment, autoclave, vacuum sterilizer, sterilization cabinet, coating pan, herb moistening machine, pure water machine

After-Sales Service ✅ Full technical drawings & operation manuals provided for free remote installation guidance ✅ 12-month full machine warranty, free original spare parts for quality defects ✅ 7/24 online technical support, quick remote video troubleshooting ✅ Free English training tutorials for boiler operators & maintenance staff ✅ Sufficient original spare parts stock, fast global delivery at cost price ✅ Lifelong low-cost maintenance consultation after warranty expiration ✅ Regular follow-up service to optimize laundry steam supply efficiency ⚠ Reminder: Buyer arranges local piping & pump installation complying with local laws; we do not provide overseas on-site installation work

Certifications & compliance

PED(2014/68/EU)

Pressure Equipment Directive compliant

Description images

50kg/h Vertical Industrial Steam Generator FoodGrade Steam Generator Food Processing Beverage Meat Sterilization Yuanda Supplier

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

OUTPUT

Steam

Usage

Processing Beverage Meat Sterilization

Fuel

electric

Pressure

Low Pressure

Structure

heating elements

Type

Natural Circulation

Material

Stainless Steel, Carbon Steel

Core components

PLC, Pressure Vessel, Pump

Key selling points

Automatic, Easy To Operate, High-Accuracy, Long Service Life, High Safety Level, Energy Saving, Remote Monitoring, Low Maintenance Cost, Remote Control, Patented Product, Accurate Temperature Control, Famous Brand PLC

Style

VERTICAL

Warranty

2 year

Video outgoing-inspection

Provided

Machinery test report

Provided

Weight (kg)

120

Place of origin

China, Jiangsu

Dimension(L*W*H)

900*600*1300mm(35.43*23.62*51.18in)

Steam Temperature

171

Working pressure

0.4/0.7 MPa

Advantages

Environmental Friendly

Application field

Processing Beverage Meat Sterilization

Keywords-1

steam generator, industrial steam generator,50kg/h steam generator

Keywords-2

food grade steam generator, steam generator for sterilization

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Steam production

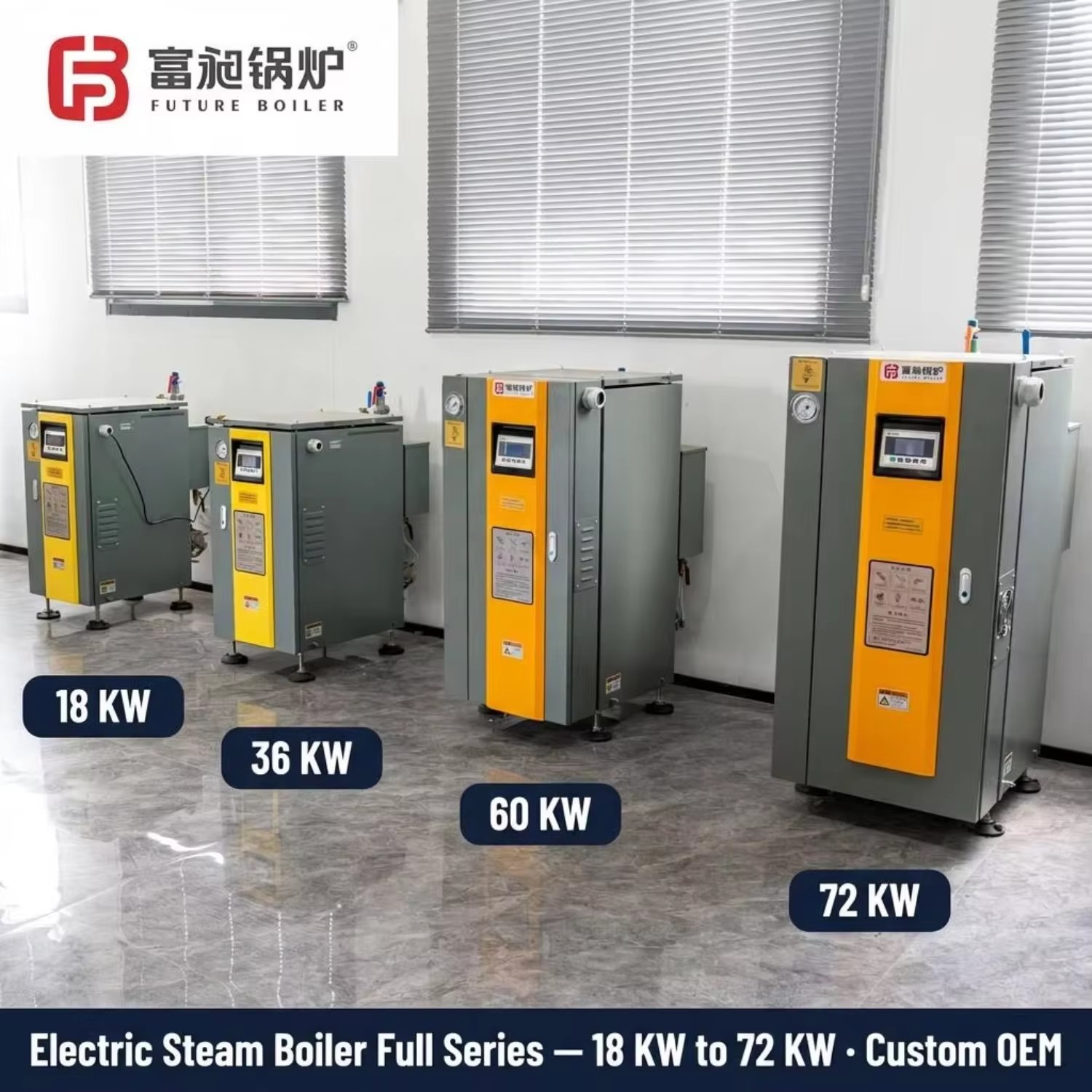

Max.50Kg/h, Max.65kg/h, Max.75kg/h, Max.85kgh, Max.125Kg/hr, Max.150Kg/hr, Max.200Kg/hr

Model number

LDR0.05-0.7, LDR0.065-0.7, LDR0.075-0.7, LDR0.085-0.7, LDR0.125-0.7, LDR0.15-0.7, LDR0.2-0.7

Certifications & Compliance

PED(2014/68/EU)

Lead time

35 days

Minimum order

1 Units
