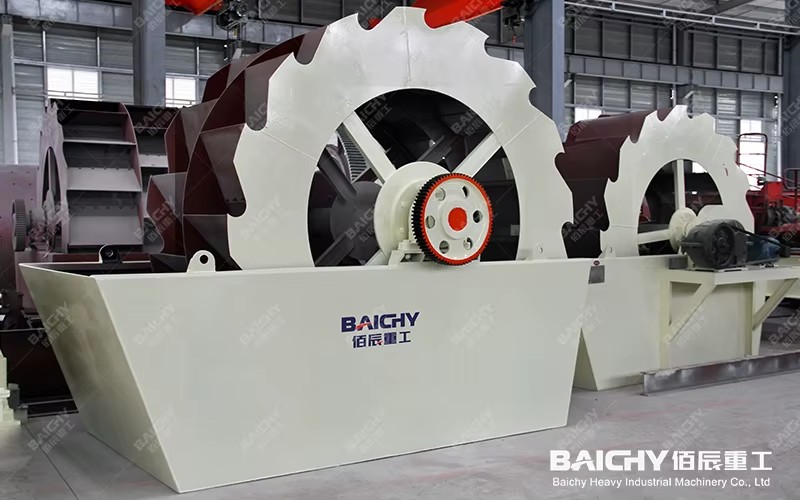

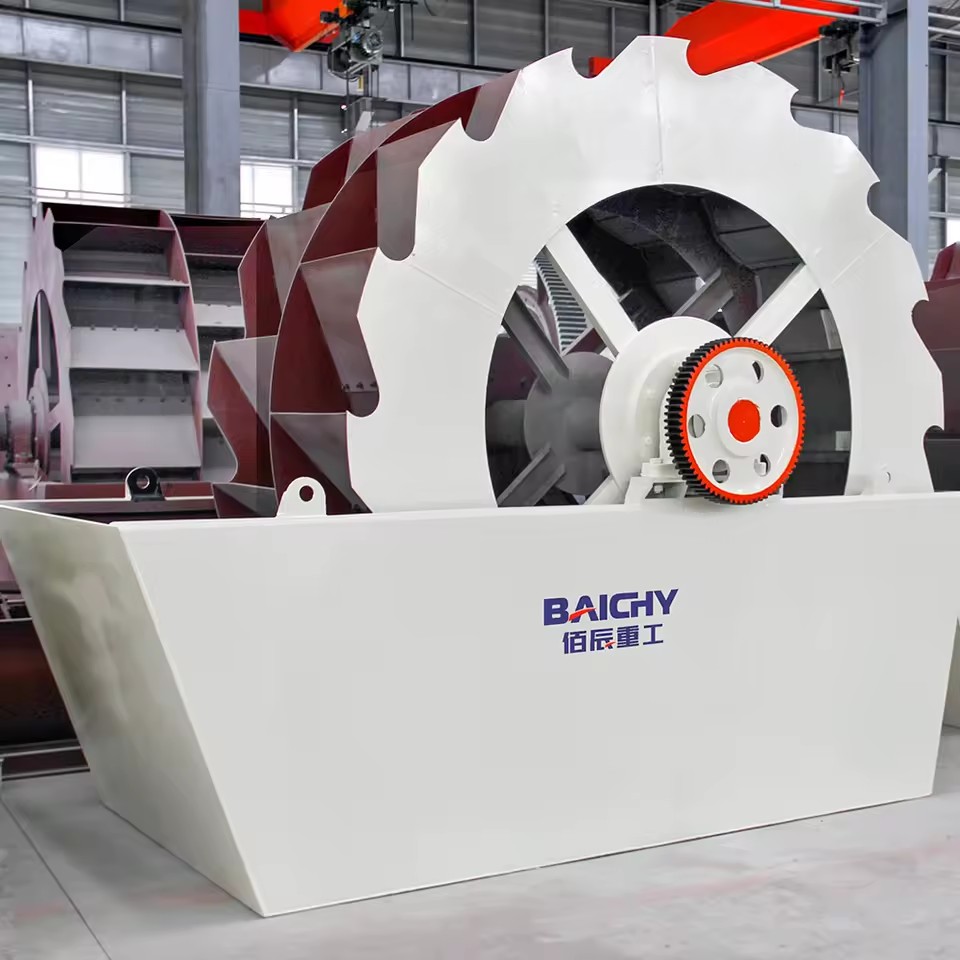

50-100tph River Sand and Gravel Processing Wheel Bucket Sand Washing Machine Plant Price Sand Washer Systems for Mine & Quarry
What is a wheel sand washer?
Wheel sand washer is a mechanical device specially used for cleaning sand and gravel. It mainly removes dirt, dust, and other impurities in sand and gravel through the combined action of mechanical force (such as impeller rotation) and water flow, thereby improving the cleanliness and quality of sand and gravel.
Advantages of wheel sand washer
High cleaning degree, large processing capacity, low power consumption, low failure rate, etc. It is widely used in construction, roads, railways, water conservancy, concrete mixing stations, and other industries, providing these industries with high-quality sand and gravel raw materials.
Environmental protection of wheel sand washer
The wheel sand washer also has certain environmental protection performance. During the cleaning process, it can effectively reduce the emission of dust and wastewater and reduce pollution to the environment. At the same time, through reasonable equipment design and operation management, it can also realize the recycling of water resources and improve resource utilization efficiency.
Maintenance of wheel sand washer
In order to keep the wheel bucket sand washer in good operating condition, regular maintenance and maintenance are required. It mainly includes checking the wear of the bearings, cleaning the debris inside the equipment, and replacing severely worn parts. At the same time, attention should also be paid to the lubrication and sealing of the equipment to ensure efficient and stable operation of the equipment.

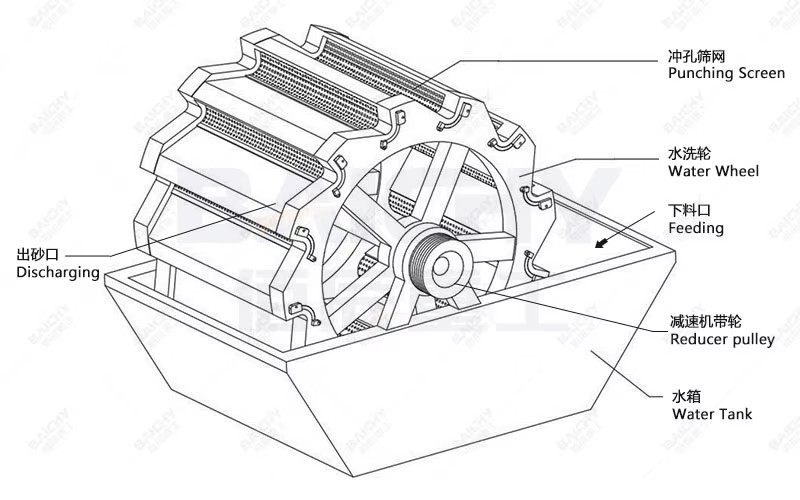

What Is The Working Principle Of The Wheel Sand Washing Machine
When the wheel-type sand washing machine is working, the motor drives the impeller to rotate slowly after being decelerated by the V-belt, the reducer, and the gear. At the same time, add water to form a strong water flow, take away impurities and foreign matter with a small specific gravity in time, and discharge them from the washing tank at the overflow port to complete the cleaning function. The clean gravel is taken away by the blades and poured into the discharge chute from the rotating impeller to complete the cleaning of the gravel.
Technical Parameters
| Model | Impeller Dia.(mm) | Feeding Size(mm) | Capacity(t/h) | Motor Power(kw) |
|---|
| XSD2300 | Φ2300 | ≤ 10 | 20-30 | 4 |
| XSD2610 | Φ2600 | 30-80 | 7.5 |
| XSD2915 | Φ2900 | 60-120 | 11 |
| XSD3016 | Φ3000 | 80-160 | 15 |
| XSD3218 | Φ3200 | 130-220 | 22 |
| XSD3420 | Φ3400 | 160-300 | 22-30 |

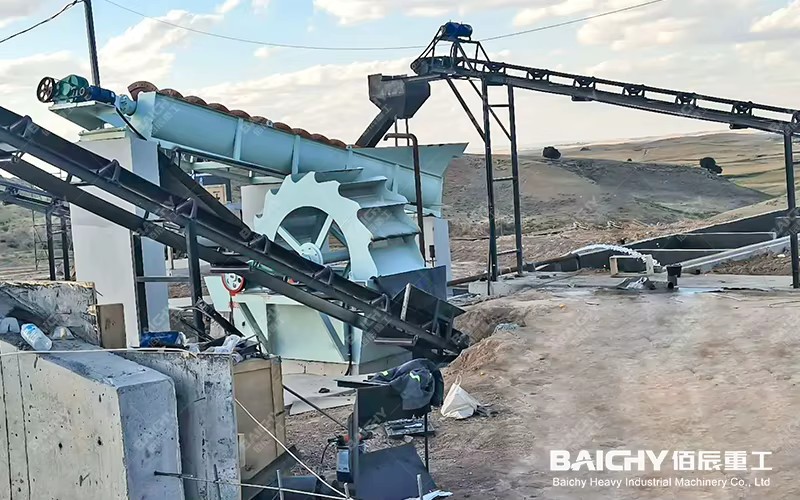

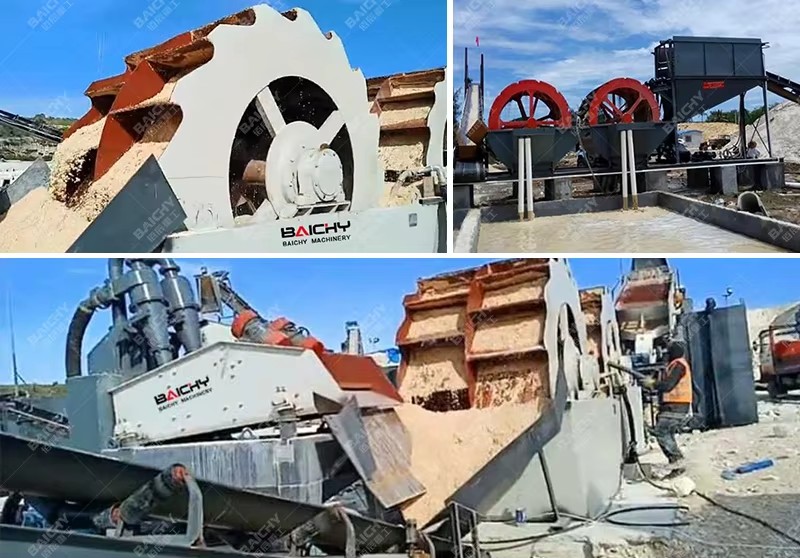

Bucket wheel sand washing machine application scenarios
Gravel material washing: Bucket wheel sand washing machine plays an important role in the gravel field. It is used to clean and separate the mined gravel, remove impurities such as soil and stone powder on the surface, and improve the quality of gravel.
Improve the value of gravel: Through cleaning, gravel can be made cleaner, meeting the demand for high-quality gravel in industries such as construction and road paving, thereby improving the market value of gravel.
What is the processing capacity of a Wheel sand washer?
The production capacity of a wheel sand washer is roughly between 20-250 tons/hour. Of course, the actual processing capacity is also affected by the following factors
1. Equipment model and specifications: Different models of bucket wheel sand washers have different power, speed, impeller diameter, tank size, etc., which directly affect the processing capacity of the equipment. Generally speaking, large wheel sand washers have relatively large processing capacity.
2. Raw material characteristics: The particle size, humidity, mud content, and other characteristics of the raw materials will also affect the processing capacity of the wheel sand washer. For example, raw materials with small particle sizes, high humidity, and high mud content may reduce the processing efficiency of the equipment.
3. Working time: Under the same conditions, the longer the working time, the greater the processing capacity of the wheel sand washer. However, it should be noted that long-term continuous work will cause certain wear and tear on the equipment, so it is necessary to arrange the working time and equipment maintenance plan reasonably.
Related Recommendations
| Jaw Crusher | Impact Crusher | Hydulic Cone Crusher |
| Sand Making Machine | Reversible Hammer Crusher | CI Series Impact Crusher Plant |
Perfect after-sales service
Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
To prevent the rights and interests of customers from being infringed, Industry reminds customers: please contact
All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.
About Customer Visits
Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.
Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.
Frequently Asked Questions
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete
