Automatic Economical PSA Nitrogen Gas Generation Plant for Oil Industry Core Components Including Pump and PLC

30years MANUFACTURER

CAPACITY

Note: If more pressure,need extra GAS booster

N2 APPLICATION

Food Industry

Nitrogen gas filling in food industry is rapidly replacing the traditional vacuum packaging, which is used in fried food, baked food, sliced fresh agricultural products and etc. It can keep the food fresh, great taste, and nutrition. As a suffocating inert gas, nitrogen contributes to resist the growth of bacteria, so it is a kind of good food antisepsis gas. Also such gas filling for food has good protection of the shape of packed food,especially for fragile food.

It has same advantage for storage rice, wheat, barley, corn and rice and etc, which will make such foods be prevented from moth, heat, mildew.

Liquor

Nitrogen can prevent no carbonated drinks and edible oil from oxidation, spoilage and faded. It can prevent cork from mildew for liquor bottle with cork.

Chemical industry

Mainly used in airway purging, atmosphere replacement and protectiveness, product delivery, rubber vulcanization, tire shattered, high temperature and high pressure molding anti-oxidation, wire and cable gas protection and etc in chemical materials.

Fertilizer industry

Nitrogen gas can be used in fertilizer raw materials like replacement, seal, washing, and protection of the catalytic.

Fiber

Nitrogen gas can be used in fiber industry, preventing the chemical fiber products affected by oxidation and protect the color in production.

The higher the nitrogen purity, the chemical fiber is whiter and more transparent.

Nitrogen is the important raw materials for synthetic fiber (nylon, acrylic), synthetic resin, synthetic rubber and etc.

Electronic parts industry

Nitrogen can be used in the production process of electronic product packaging, sintering, annealing, reduction, storage, wave soldering, reflow soldering, electronic copper tape, batteries, SMT, electronic alloy material, to prevent oxidation.

Pharmaceutical Industry

Nitrogen are needed to prevent oxidation during the following production

Chinese traditional medicine storage and preservation, also good effective for injection and transfusion protection, medicine and medicine material anti-oxidation during production.

Metallurgy, metal processing industry

Nitrogen is used for soldering, annealing, protection of gas, sintering gas, nitrogen treatment, wash the furnace and purging gas, etc.

Widely used in metal heat treatment, powder metallurgy, magnetic materials, copper processing, wire mesh, galvanized wire, etc

Glass industry

Gas protection during glass production.

Storage

Nitrogen gas filling for warehouse and cellar will be a fire and explosion prevention.

Tire

Nitrogen gas filling inside tyre instead of air filling can diminish the influence of expansion and contraction of tyre, also keep the good shape of tyre. Because of stable properties of nitrogen gas, alloy steel and iron steel ring of tyre is not easy to be rusted and corroded. Therefore the useful life of tyre is enlarged. In addition, it can reduce the tyre noise effectively.

Oil

In this field, nitrogen is mainly used in gas drilling, well-completion and restoration of well, also for oil extraction and pressurizationfor oil storage and oil well, pipeline cleaning and purging, solvent recovery and so on.

Coal mine explosion-proof

Nitrogen gas filling for coal mine can be effective for decreasing the oxygen levels to be less than 7% or 3%, to achieve the purpose of fire prevention, avoid gas explosion and natural heat and spontaneous combustion of coal. Such filling also will reduce the intensity of combustion.

To create a low oxygen environment for sports project

Nitrogen gas filling to a certain space will make the oxygen level to be less, which will train the racing horse or athletes in low oxygen environment, in order to increase the endurance.

Bulb

Nitrogen is chemically inert, not easy to react with the ingredients in air, it can prevent the oxidation of tungsten wire and slows the volatilization of tungsten filament, to prolong the service life of the bulb.

Collection

Nitrogen gas filling can be used into the cylinder of some valuable and rare page in the museum, so that it can make the moth smothered in nitrogen.

OTHERS: Chemical industry/ Electronic parts industry / Laser cutting/ cylinder filling/

Analytical laboratories/ Plastic injection molding/ Metallurgy, metal processing industry/

Glass industry/ Oil/ Thermal analysis/ Gas chromatography/Cutting and beam ventilation/ Bulb/

Coal mine explosion-proof/ Collection

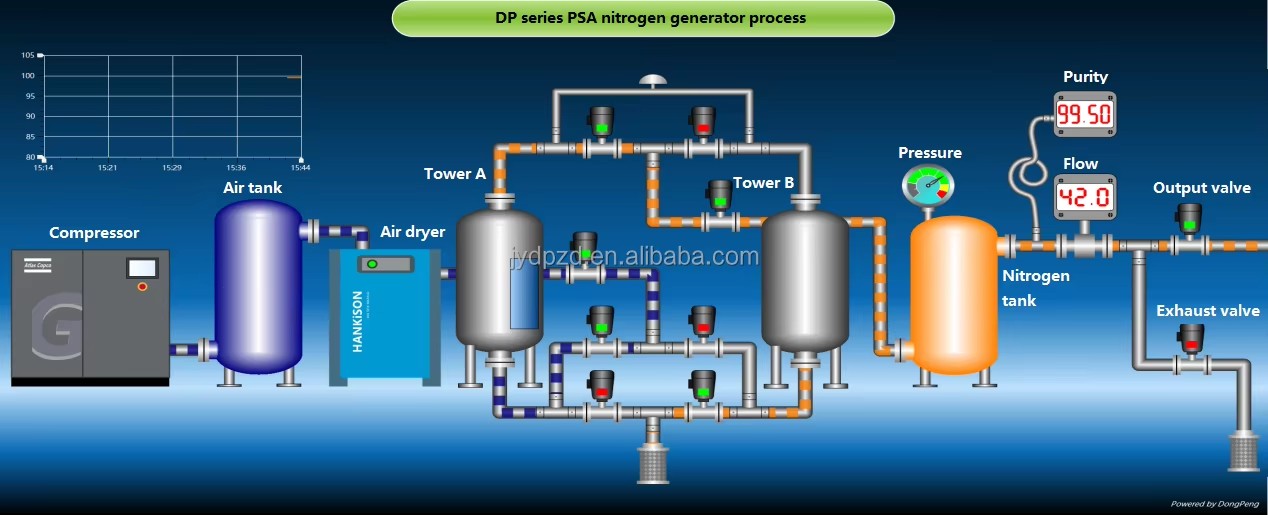

OPERATION PRINCIPLE

PSA (Pressure Swing Absorption) nitrogen making uses the AIR as its raw material

by use of the selective absorption character of CMS(carbon molecular sieve)

which will absorb O2 by means of PRESSURE from compressor.

As a result, separated N2 produced.

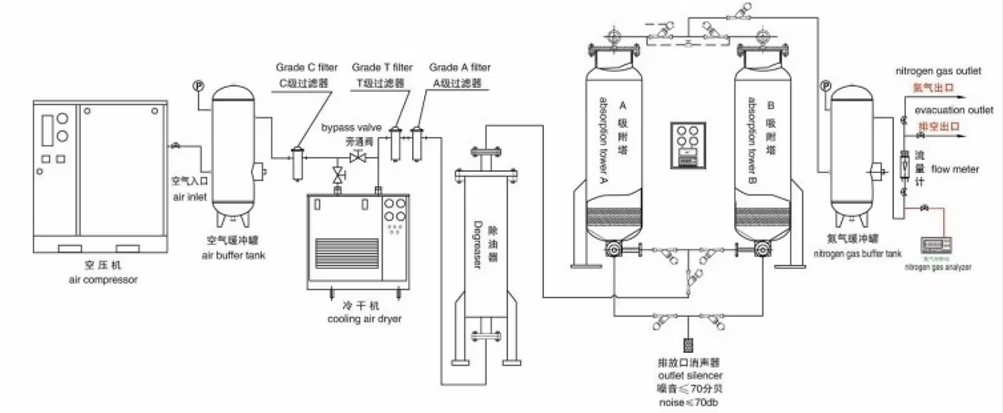

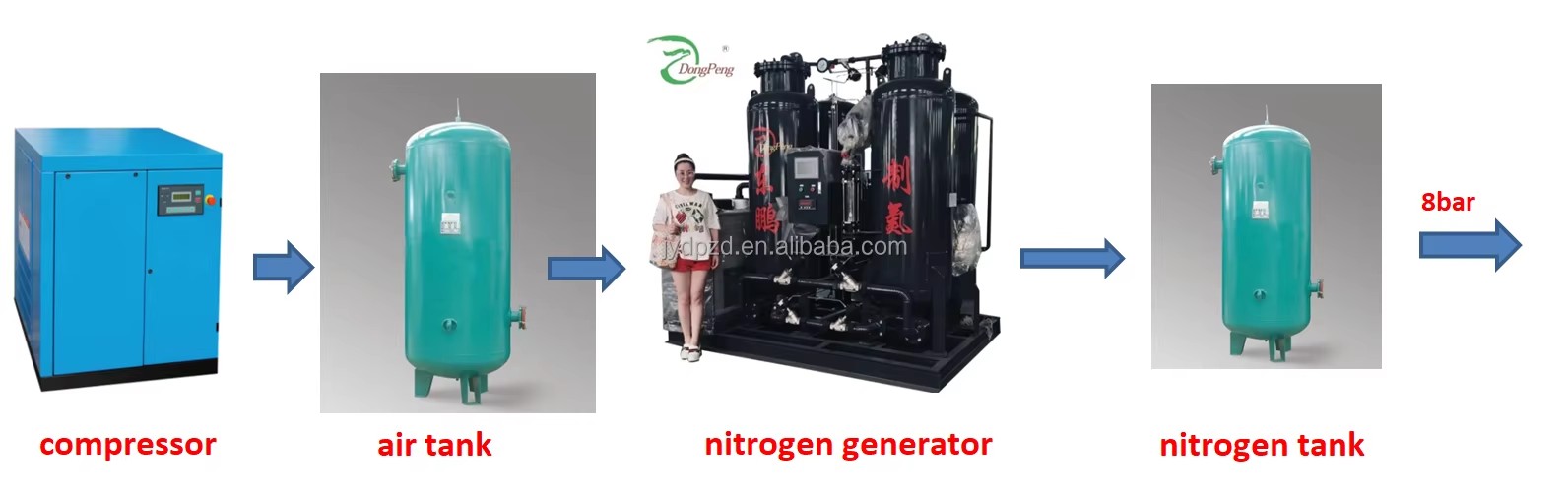

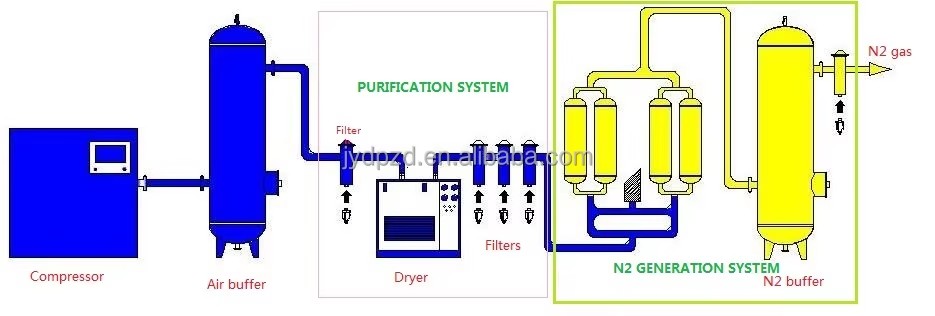

FLOW CHART

************************************************
