Electricity Generation Power Plant Small for Municipal Waste Landfill Biogas Generator

Electricity generation power plant small for municipal waste landfill biogas generator

Core Features

Manufacturer supply for more 10 years

Max power supply range:10-1100kw Continuous power supply range: 8-1000kw Standard component and assembly

Multi-option of control panel With CE and ISO certificate

Biogas generator parameter

(Single set power supply range: 10 - 1000 kw, ≥2 sets parallel together to form large power, Eg. 600kw*2 sets = 1200 kw)

Machine supply details: Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug. Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current. Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate. Speed regulating system: EGS gas controller of American WOODWARD Company.

Features of our generator

1.Pure copper water tank for best cooling effect

2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stanford.

3.Expansion fitting combined with shrinking fitting give high tightness to the system.

4.Safety guarantee form electromagnetic valve as well as back-fire relief valve

5.Residual heat CHP recycle system available for choice.

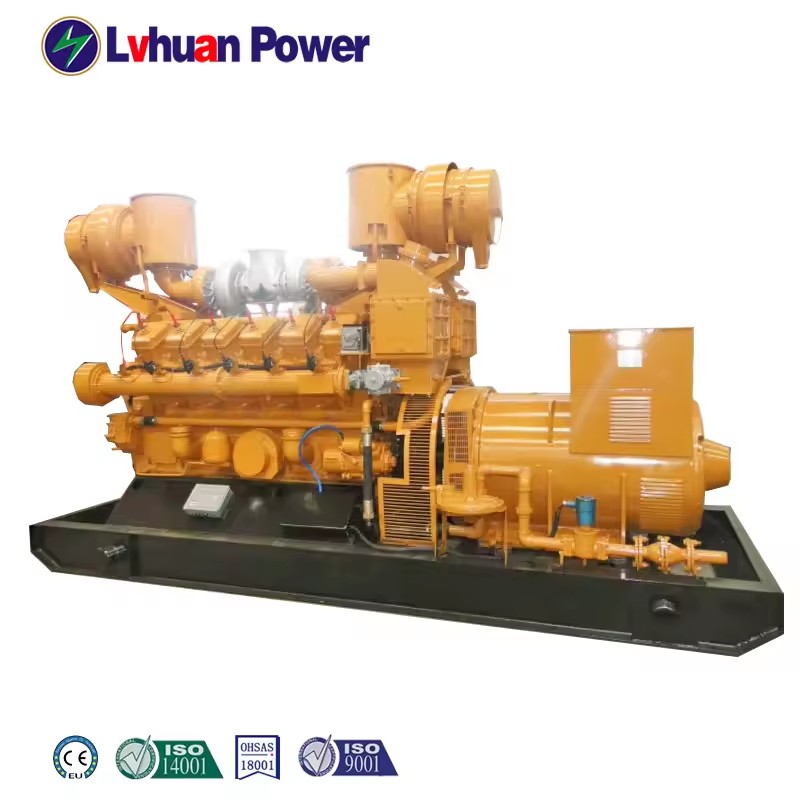

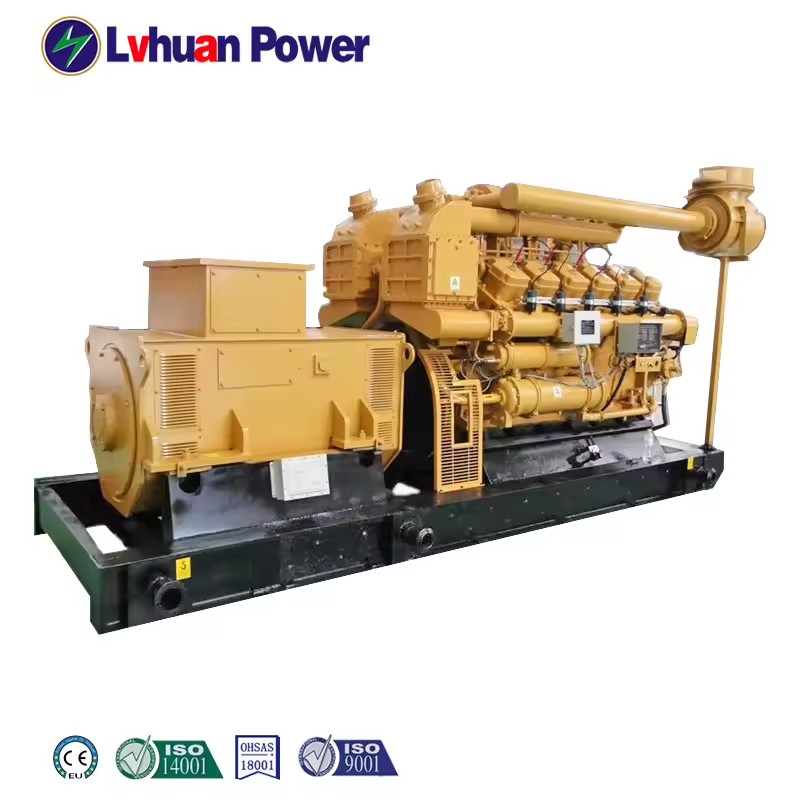

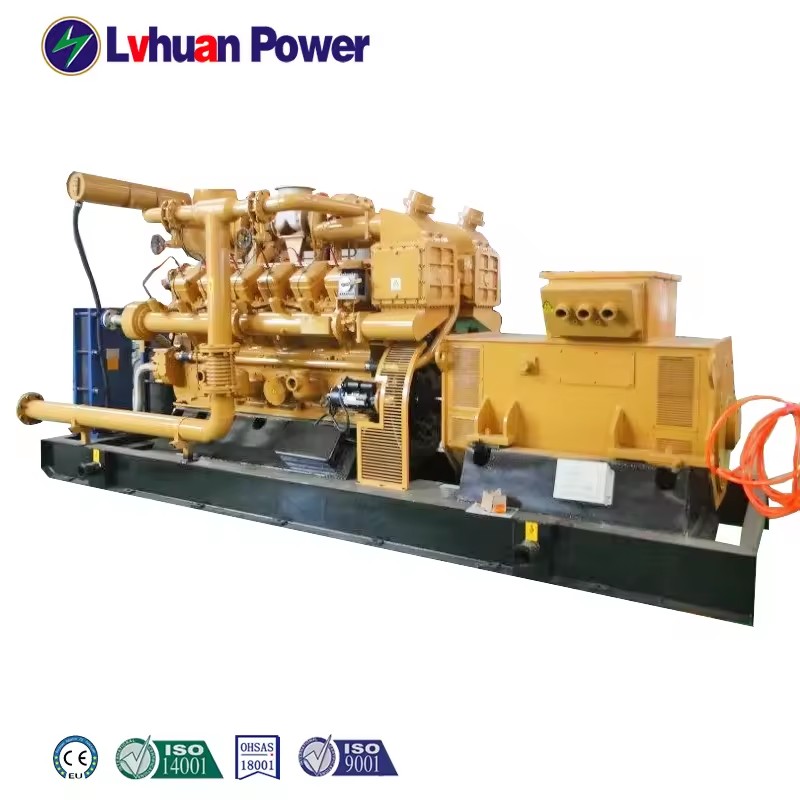

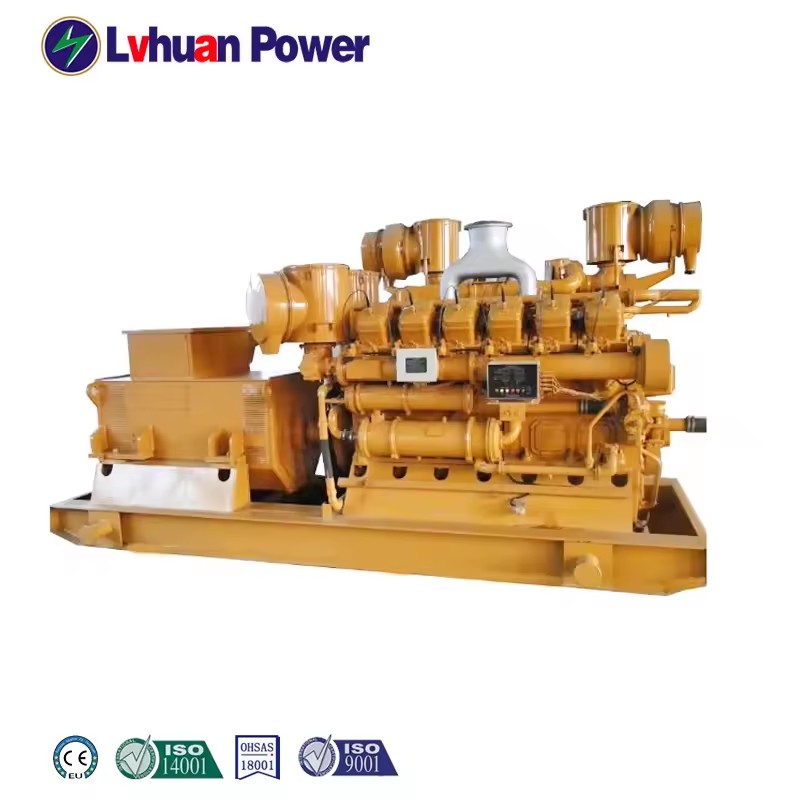

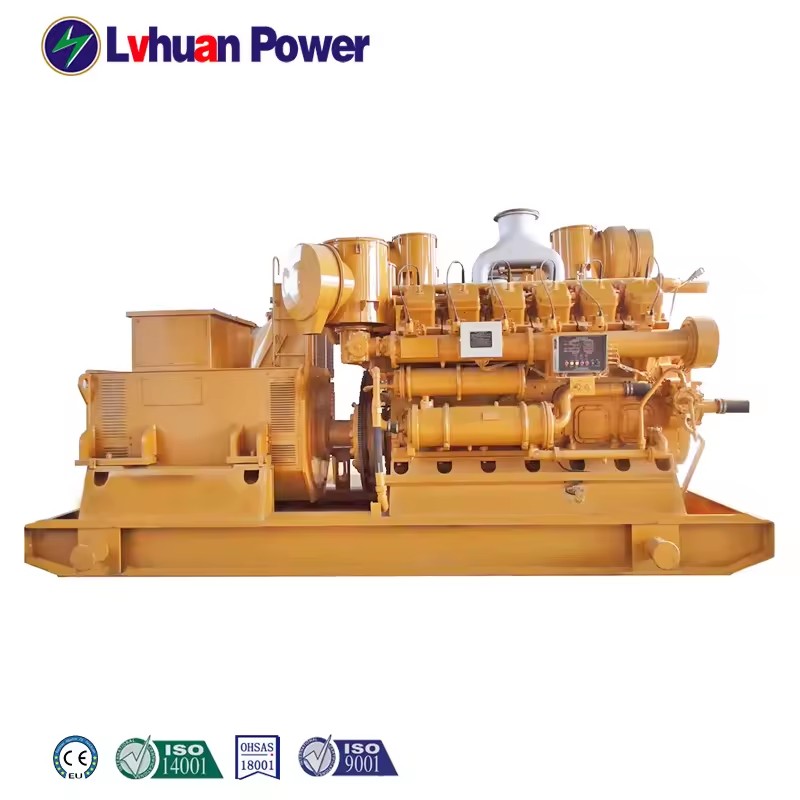

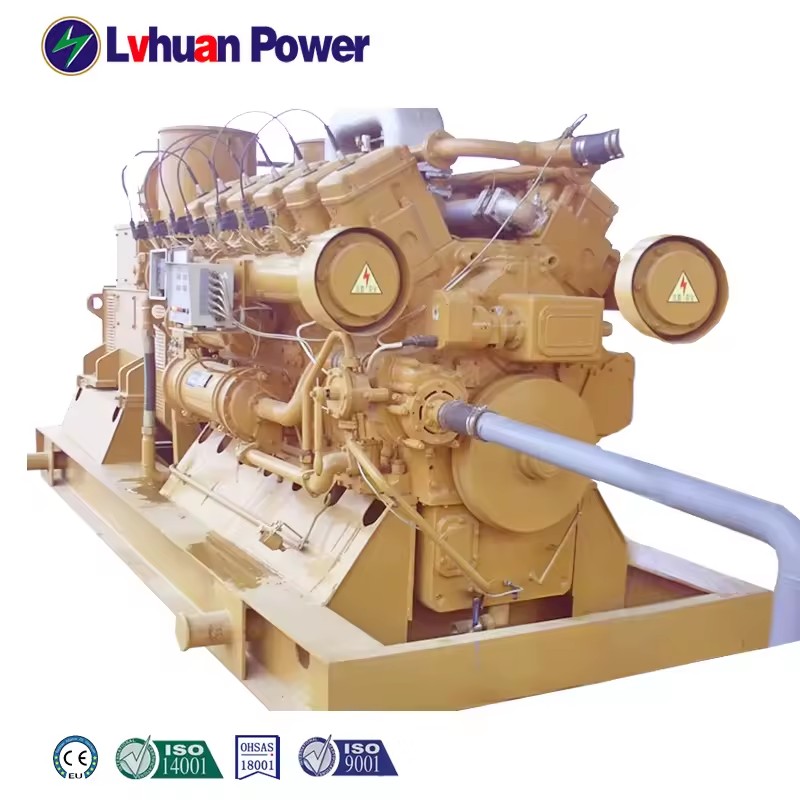

Biogas generator photo

Biogas generator spare parts

R equirements for gas

Within 1 m eter from gas intake valve of generator

1. Gas temperature ≤ 40℃

2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min

3. H 2 S ≤ 200mg/Nm 3

4. NH 3 ≤ 20mg/Nm 3

5. CH 4 content ≥ 40%, changing rage ≤ 2 %/min

6. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3

7. Moisture content ≤ 40g/Nm3

W orking principle

1. Use biogas project equipment change material into gas.

2. Gas mix with air outside of engine's cylinders.

3.Mixed gas into cylinder and explode inside of cylinders to change gas energy into power force.

4.Power force drive alternator to generator electric power

5.Water circles form water tank to engine to bring the engine heat

6. Optional device of CHP, silent canopy and

7. Control panel system control all operation

F AQ

1.How to choose the right model?

A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material ( like wood, grass, nutshell and so on) The right model of generator will be recommend soon.

A: It depends

Me and our engineers are always available at your service.

2.What is the oil consumption and capacity per hour?

A: 1.0-1.63g of lubricant oil consumption per hour.

1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h

3.What is the overhaul?

A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.

4. What is the warranty?

A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.

5. How is the after sale service and maintenance?

A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.

6. What products we offer?

Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.

Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.

Our Services

1. P re-sale service

A.O ur engineer s are available for onsite prospect before installation free to charge.

B. Foundation drawing and detailed Dimension free form us.

sale service

A. Onsite overall guide installation,operation and maintenance training.

B. Assistance and instruction of trial running.

3.After-sale service

A. 24 hours online or in person after sale service.

B.12 months warranty. We take care of all errors/breakdowns in this period.

4.Spare parts service

A.All spares parts on our gensets supplied by us.

B. Free spare parts together with genset when shipping.

Please feel free to ask question and quotation.
