Name: 40 50 70 100 150 200 250 300 350 400 450 500 550 600 700 800 900 1000 1200 1500 Bhp Hp Natural Gas Lpg Diesel Steam Boiler
SKU: B2B-66049
Price: 7970.0 USD
Availability: PreOrder

Product description

Large capacity: 1-30 t/h, pressure 0.7-2.0 MPa, temperature 184-204℃.

A wide range of fuels: natural gas, liquefied gas, biogas, diesel, heavy oil, etc.

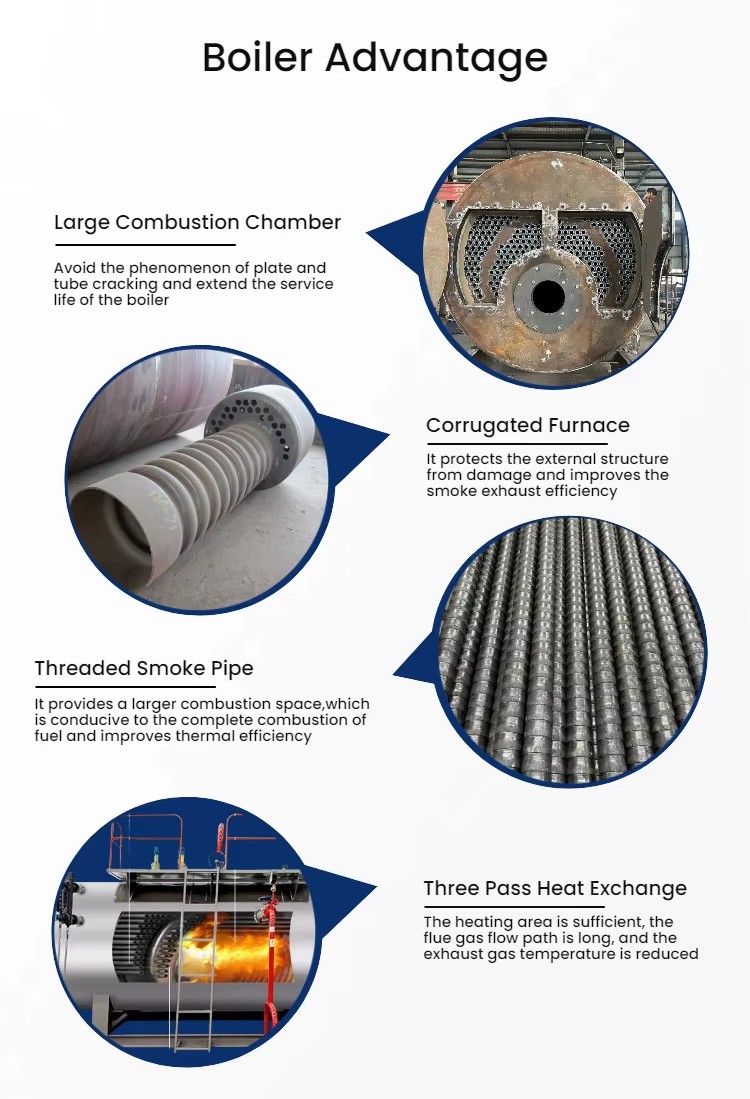

High efficiency and energy saving: Wave-shaped furnace tube + threaded smoke tube + tail waste heat recovery, thermal efficiency 80% - 98%.

Environmental protection and cleanliness: The combustion process of gas boilers does not emit smoke, dust, ash, etc., reducing air pollution and the impact on the environment. Meanwhile, the content of emission substances produced during the combustion of gas boilers is low, meeting environmental protection standards.

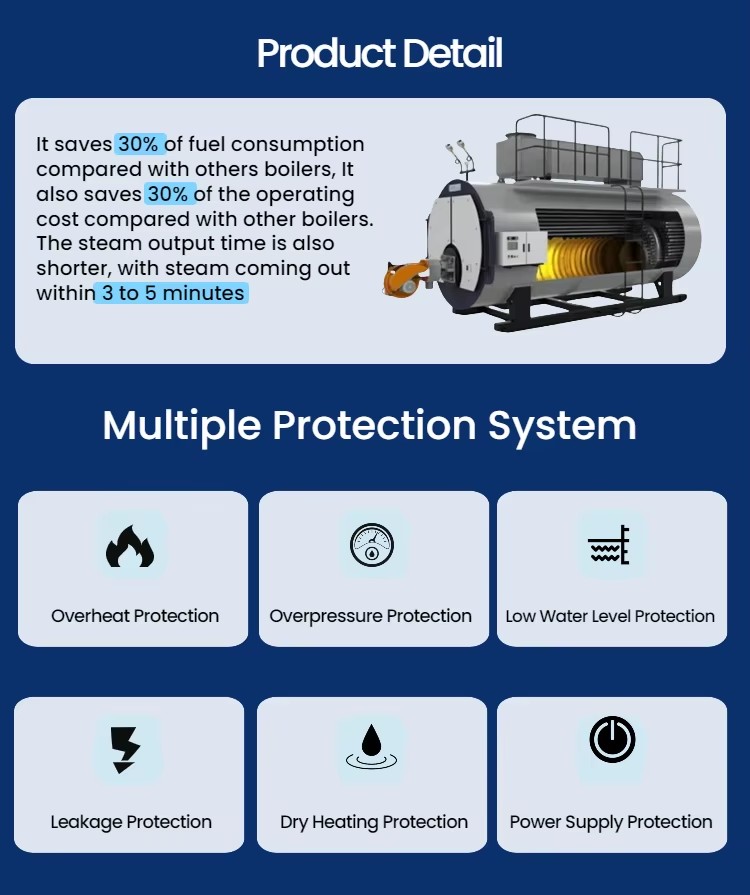

Safe and reliable: Fully automatic PLC control, equipped with water level, pressure, temperature, flameout and other protection systems, allowing for unattended operation.

Quick installation: Factory-assembled as a whole, only water, electricity and gas connections are required on site, with a short cycle.

Widely applied: heating (residential areas/shopping malls/hospitals), food processing, chemical industry, textile printing and dyeing, building materials, pharmaceuticals, etc.

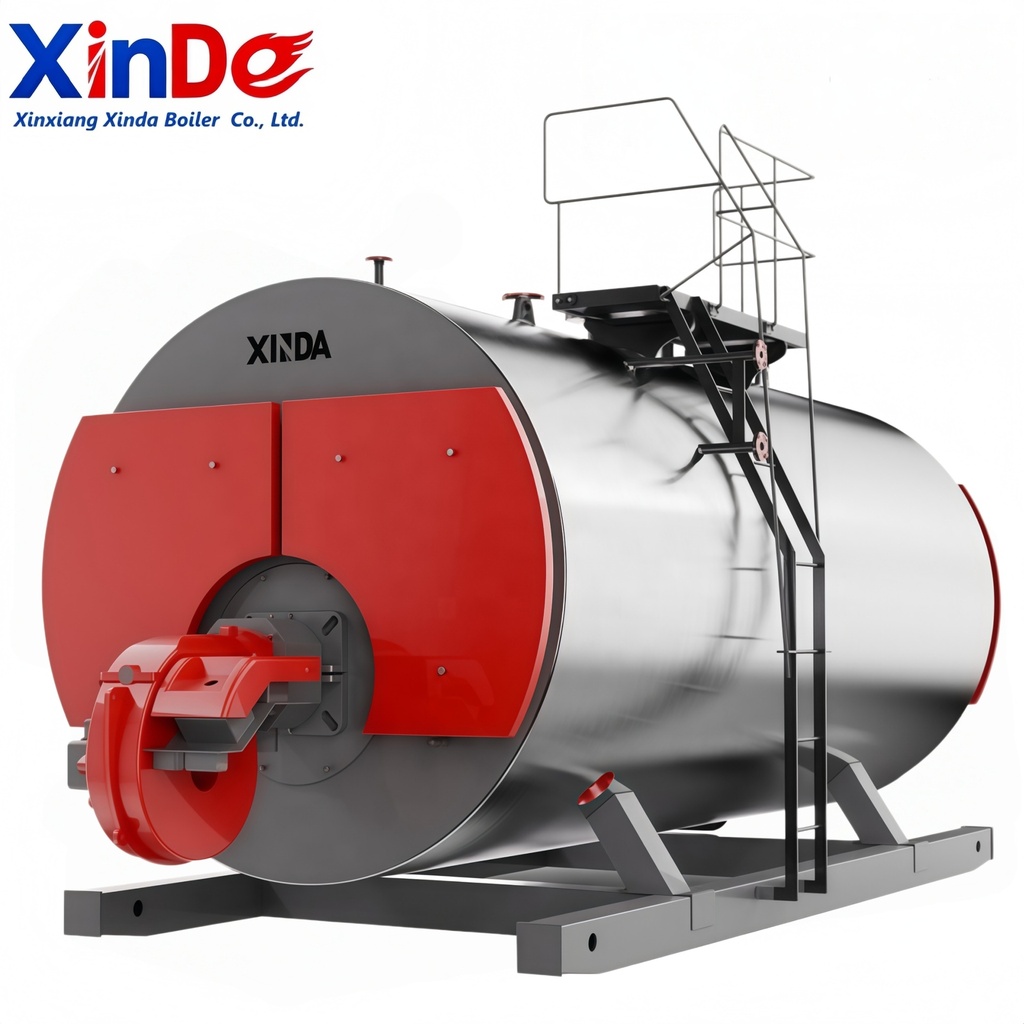

Type	Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler
Model	WNS1	WNS2	WNS 3	WNS4	WNS5	WNS6	WNS8	WNS10	WNS20
Rated Steam Capacity (t/h)	1	2	3	4	5	6	8	10	20
Rated Steam Pressure(Mpa)	0.7/1.0/1.25/1.6	1.25/1.6/2.5
Rated Steam Temperature(C)	170/184/194/204	194/204/225
Feed Water Temperature(C)	20
Weight(T)	6.8	8.2	9.9	12.7	14.2	17.5	21.3	22	45
Note: Parameter is for reference only, we can design the boilers based on customers' needs.

Description images

40 50 70 100 150 200 250 300 350 400 450 500 550 600 700 800 900 1000 1200 1500 Bhp Hp Natural Gas Lpg Diesel Steam Boiler

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean + Truck via Maersk · Approx. shipping fee: $ 880.73 for 1 set · Transit time: Est. 20-27 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

OUTPUT

Steam

Usage

Industrial

Fuel

gas oil

Pressure

Max. 1.6MPa

Structure

fire and water tube

Type

Natural Circulation

Material

Boiler material

Core components

boiler

Key selling points

Easy To Operate, High-Accuracy, Long Service Life, High Safety Level, Remote Monitoring, Patented Product

Style

Horizontal

Warranty

3 Years

Video outgoing-inspection

Provided

Machinery test report

Provided

Weight (kg)

5000

Place of origin

China, Henan

Dimension(L*W*H)

Depend on the boiler capacity

Steam Capacity

1-20 Ton/h

Steam Temperature

170-225°C

Rated Working Pressure

0.7Mpa(7bar)-1.25Mpa(12.5bar)

Fuel consumption

154-1580kg/h

Advantages

Environmental Protection

Operation

Industrial Intelligent Controller

Combustion method

Chamber Combustion Furnace

Selling Units

Single item

Single package size

135X180X225 cm

Single gross weight

2000.000 kg

Steam production

1-30TON/H

Model number

Horizontal Natural Gas Fired boiler, Horizontal Diesel Oil Fired boiler, Horizontal LPG (Liquefied Petroleum Gas) Fired boiler, Horizontal LNG (Liquefied Natural Gas) Fired boiler, Horizontal CNG(Compressed Natural Gas) Fired boiler, Horizontal Methanol Fired boiler, Horizontal Industrial Waste Oil Fired Boiler

Lead time

7 days

Minimum order

1 Units
