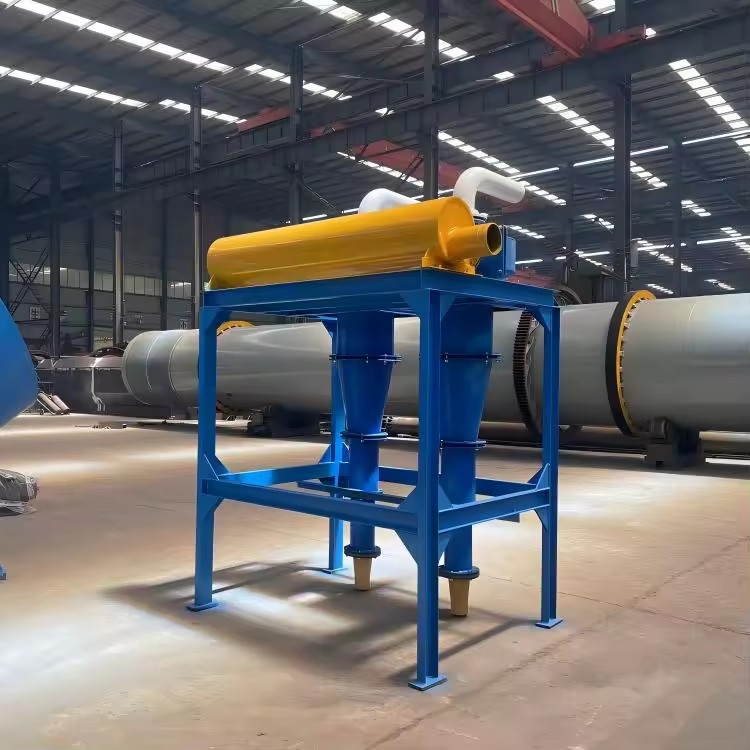

High Quality 24-300 M3/H Hydrocyclone With Steel Structure

Product Introduction

[Introduction]

A hydrocyclone with involute feeding

[ Capacity ]

≤542m3/h

[Improvement]

Unique wraparound feed that eliminates disturbance, reduces wear and improves rating efficiency

Advantages

The form of enveloping feeding through the inlet branch reduces the turbulence of the burst of the emanating flow when the materials enter, makes a smooth movement of the liquid inside the cyclone, so it gives an accurate classification. The ratio of the rational length of the column and cone and the reasonable insertion depth of the vortex locator Wear-resistant rubber, as the coatings extend the service life by 2-4 times.

Working principle

The working principle of the hydrocyclone is centrifugal sedimentation, when the mixed liquid of two phases (or three phases) is fed into the hydrocyclone by a liquid of a certain pressure and produces a strong three-dimensional elliptical rotational movement. Due to the different density of the particles, the centrifugal force, centripetal buoyancy and drag force are different. Thus, most of the coarse particles (or heavy phase) are discharged from the cyclone's underflow outlet, and the fine particles (or light phase) of the overflow tube, in order to achieve separation.

Application

Technical Data of Vibrating Feeder
