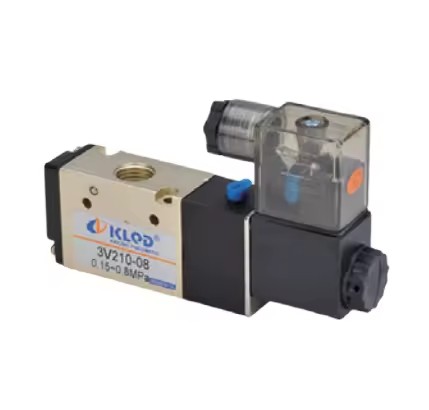

3V210-08 3/2 Way air Valve Solenoid Pneumatic Flow Control Valves

• Structure
  • Control
• Operational Pressure Range
  • 0.15-0.8MPa(21.76-116.03psi)
• Operating Temp. Range
  • 5°C-50°C(9°F-90°F)
• Media
  • air
• Power
  • pneumatic
• Port Size
  • 1/8
  • Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"
• Customized support
  • OEM
  • ODM
• Temperature of media
  • Medium Temperature
• Application
  • General
• Model number (Specification)
  • 3V
• Place of origin
  • Zhejiang
  • China
• Model
  • 3V210-08
• Position and way No.
  • 3/2 Way
• Effective Section Area (mm)
  • 16mm2 (CV=0.89)
• Working medium
  • 40 Micron Filtered Air
• Motion Pattern
  • Inner Guide Type
• Working pressure
  • 0.15~0.8Mpa
• Max. Pressure Resistance
  • 1.2MPa
• Ambient temperature
  • 5~50°C
• Power Consumption
  • AC: 4.5VA DC: 3W
• Selling Units
  • Single item
• Single volume
  • 0 cm3
• Single gross weight
  • 0.0 kg
• Material (Product option)
  • Alloy
• Pressure (Product option)
  • Medium Pressure
• Size (Product option)
  • 1/4 in
  • 1/8in
• Certifications & Compliance
  • CE
  • RoHS
