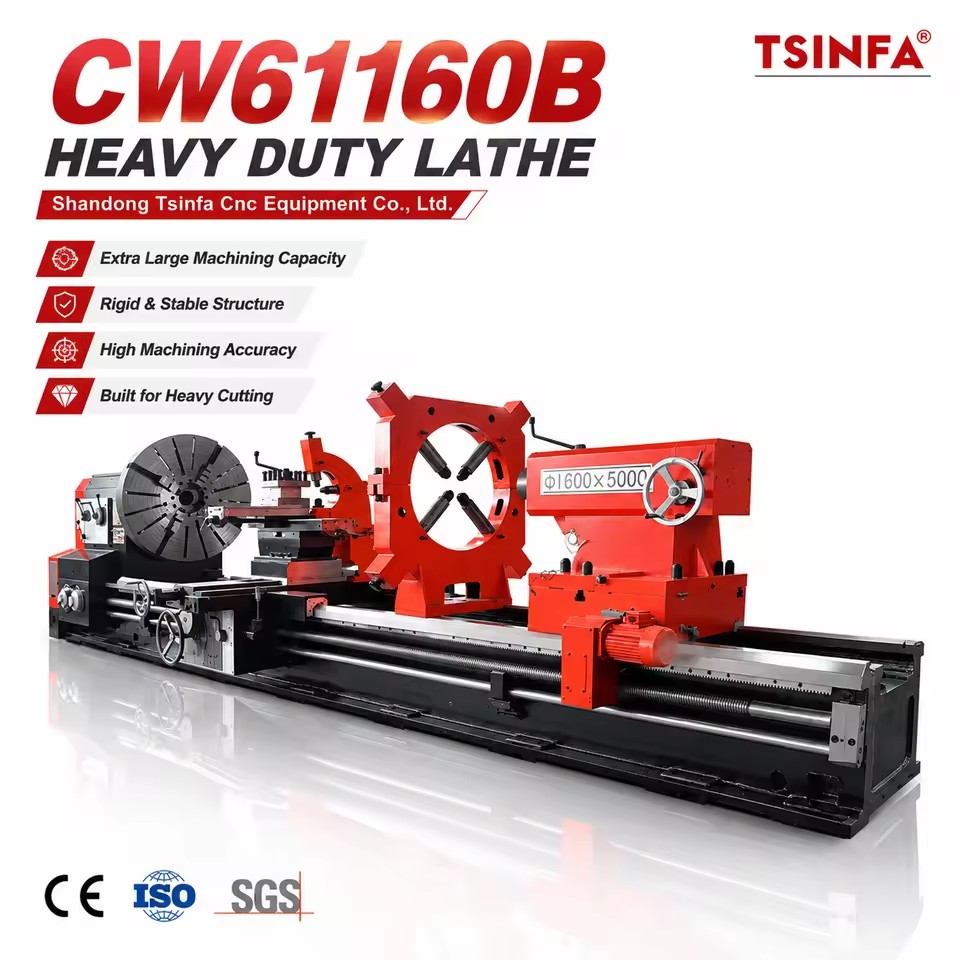

Heavy Duty Horizontal Lathe CW61160 Swing 1600mm Large Shaft Ship Wind Power Hardened Guideway Steel Cast Iron Batch

Available for enquiry 0.0 · 0 reviews
USD

$ 44,120.00 44120.0 USD $ 44,120.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Horizontal
Machining capacity
Heavy Duty
Max. length of workpiece (mm)
6000, 10000, 5000, 4000
Voltage
220V/380V/400V/415/440V
Spindle taper
Other
Machinery test report
Provided
Product description
  • Heavy Duty Structure: CW61160 heavy duty lathe adopts high strength cast iron bed structure with excellent rigidity and stability. It supports powerful cutting loads for large shafts, flanges, gears and mechanical components, ensuring long service life and reliable industrial operation.
  • Large Workpiece Machining: CW61160 heavy duty lathe is designed for large workpiece machining with wide processing capacity and strong load bearing ability. It is widely used in steel, energy, shipbuilding and mining industries for oversized shafts and components.
  • High Precision Turning: With precision manufacturing technology and optimized transmission system, CW61160 provides stable machining accuracy for large metal parts, meeting industrial requirements for dimensional accuracy and superior surface finishing quality.
  • Powerful Cutting Performance: CW61160 heavy duty lathe features powerful drive performance with high torque and heavy cutting capability. It efficiently machines various metal materials while reducing production time and improving machining productivity.
  • Wide Application Fields: CW61160 heavy duty lathe is widely applied in oil equipment, shipbuilding, mining machinery, power equipment and construction machinery industries, making it an ideal solution for heavy component manufacturing.
    • ItemsUnitCW61160CW61200CW61250
    Swing over bedmm160020002500
    Swing over carriage/cross slidemm120015802100
    Guide rail widthmm110011001100
    Max. Weight of work pieceton161616
    Max. Length of work piece between two centersmm3000-200003000-2000030-20000
    Spindle hole diametermm130130130
    Spindle hole taperMetric 140Metric 140Metric 140
    Spindle forward turning kindskinds21 kinds 2-200r/min21 kinds 2-200r/min21 kinds 2-200r/min
    Spindle reverse turning kindkinds12 kinds 2.25-178r/min12 kinds 2.25-178r/min12 kinds 2.25-178r/min
    Number of feeds per revolution (longitudinal/ transverse)kinds565656
    longitudinal feed of knife rest for spindle per revolutionmm0.10-120.10-120.10-12
    traverse feed of knife rest for spindle per revolutionmm0.025-30.025-30.025-3
    Feed quantity of upper knife rest for spindle per revolutionmm0.025-30.025-30.025-3
    Metric threads mm44 Kinds 1-12044 Kinds 1-12044 Kinds 1-120
    Inch threads TPI31 Kinds/24-1/4t.p.i31 Kinds/24-1/4t.p.i31 Kinds/24-1/4t.p.i
    Module threads45 Kinds/0.5-6045 Kinds/0.5-6045 Kinds/0.5-60
    Diametric threads DP38 Kinds /1/2-56DP38 Kinds /1/2-56DP38 Kinds /1/2-56DP
    Max. travel of lower tool holdermm96010101010
    Max. travel of middle tool holdermm300300300
    Max. travel of top tool holdermm200200200
    Quick longitudinal move speed of tool restmm/min374037403740
    Quick cross move speed of tool restmm/min187018701870
    Dia. of tail stock sleevemm240(When within 4m):265(When more than 4m), Built-in center.
    Max. travel of tail stock sleevemm300300300
    Taper of Tail stock sleeveMetric 80(When within 4m):Metric 100(When more than 4m), Built-in center.
    Main motor powerkw222222
    Certifications & compliance
    CE
    Complies with EU standards
    Description images
    Heavy Duty Horizontal Lathe CW61160 Swing 1600mm Large Shaft Ship Wind Power Hardened Guideway Steel Cast Iron Batch
    Heavy Duty Horizontal Lathe CW61160 Swing 1600mm Large Shaft Ship Wind Power Hardened Guideway Steel Cast Iron Batch
    Heavy Duty Horizontal Lathe CW61160 Swing 1600mm Large Shaft Ship Wind Power Hardened Guideway Steel Cast Iron Batch
    Heavy Duty Horizontal Lathe CW61160 Swing 1600mm Large Shaft Ship Wind Power Hardened Guideway Steel Cast Iron Batch
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 32 fields
    Type
    Horizontal
    Machining capacity
    Heavy Duty
    Max. length of workpiece (mm)
    6000, 10000, 5000, 4000
    Voltage
    220V/380V/400V/415/440V
    Spindle taper
    Other
    Machinery test report
    Provided
    Warranty
    1 Year
    Key selling points
    High Productivity
    Tool post stations
    4
    Video outgoing-inspection
    Provided
    Max. weight of workpiece(kg)
    6000
    Range of spindle speed(r.p.m)
    2 - 200 r.p.m
    Place of origin
    China, Shandong
    Weight (kg)
    10000
    Width of bed (mm)
    755
    Model number (Specification)
    CW61160B
    Dimension(L*W*H)
    9100 * 2250*2150
    Cutting torque
    0 N.m(0lb.ft)
    Cnc or not
    Normal
    Automatic grade
    Manual
    Function
    Machining Metal
    Product Type
    Metal Cutting
    Color
    Customized Option
    Machine type
    Horizontal Metal Turning Lathe Machine
    Marketing Type
    Ordinary Product
    Warranty of core components
    1 Year
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Max. swing diameter (mm)
    1600mm(62.99in)
    Spindle motor power(kw) (Product option)
    22kw(29.50hp)
    Certifications & Compliance
    CE
    Lead time
    30 days
