50TPD Professional Crude Palm Oil Refinery Machine and Fractionation Machine Stearin Olein Oil Processing Production Line

Palm Oil F ractionation Machine / Palm Oil F ractionation P roduction Line

Fats and oils fractionation is a physical separation method, where different triglycerides in fats and oils are crystallized by controlling the temperature, and then the parts with different melting points are separated. Common applications include palm oil, shea butter, fish oil, cocoa butter and animal fats.

oil fractionation machine or f ractionation

Conventional fractionation products (mainstream products)

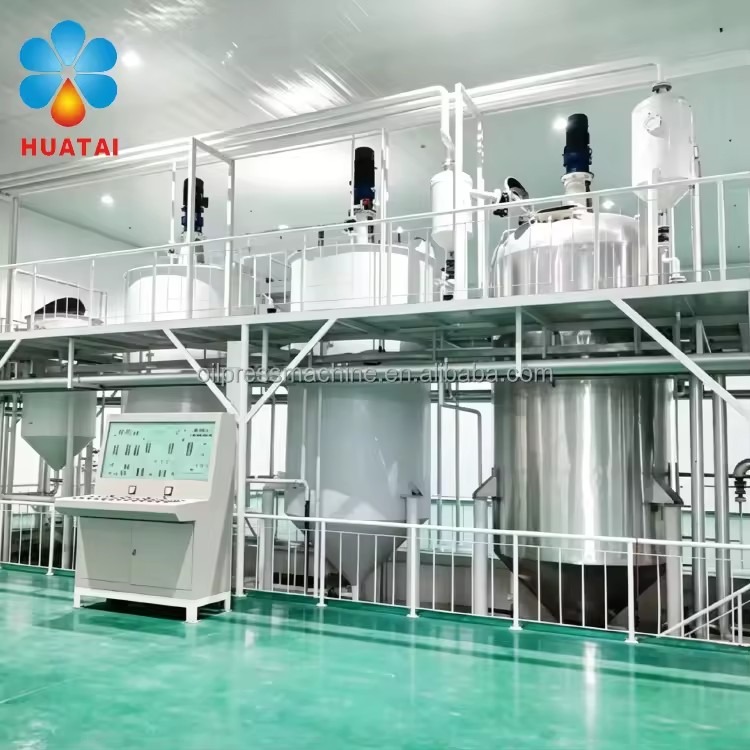

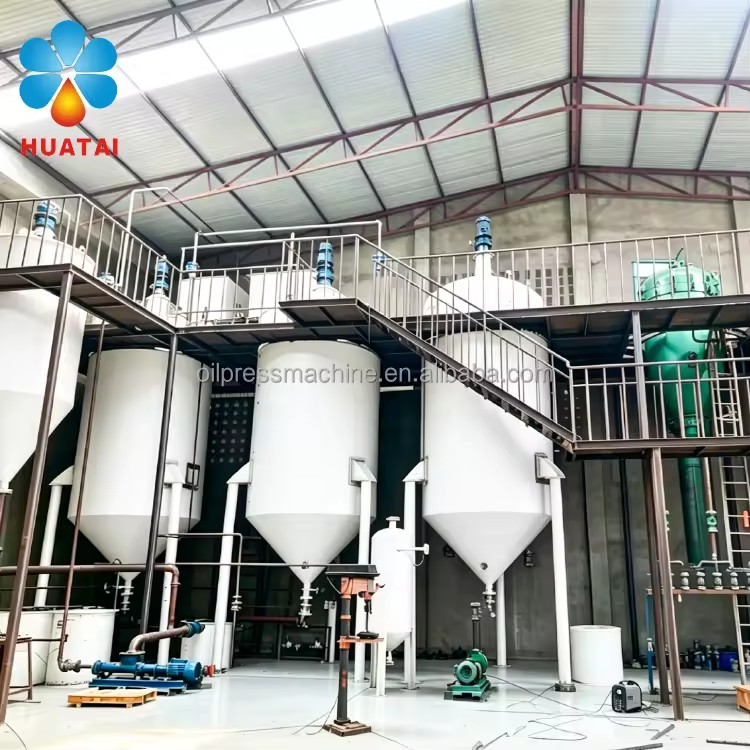

Palm Oil Fractionation Machine

Capacity: 1 ton per hour - 100 ton per hour Customizable

Voltage: Customizable

Power: Customizable

Automatic: Customizable

Process Description of Palm Oil Fractionation Equipment

Natural oil is a mixture of mixed triacylglycerol; Because of fatty acid chain length, no saturation, the constitution and the location of a double bond and the fatty acid distribution in triacylglycerol is different. Which make triacylglycerol components exist differences in physical and chemical properties. Fractionation is according to the melting point of difference in physical properties and its solubility, make oil into solid, liquid (under a certain temperature).Despite two operation of fractioantion and winterizationare similar, but it has different purposes.

Freeze Crystallization

After heat change and heating, Oil is pumped to cystallizer. Starting the stiring and chilling water circle pumop. Then the crytallization is beginning.when the chilled water is not enough,open the chilled water to add.The design of crystallization processing is based on ration of oleine, stearin and liquid oil.The whole crystallization process is controled by computer curve.This ensure the crystal maturing and furture filtering.

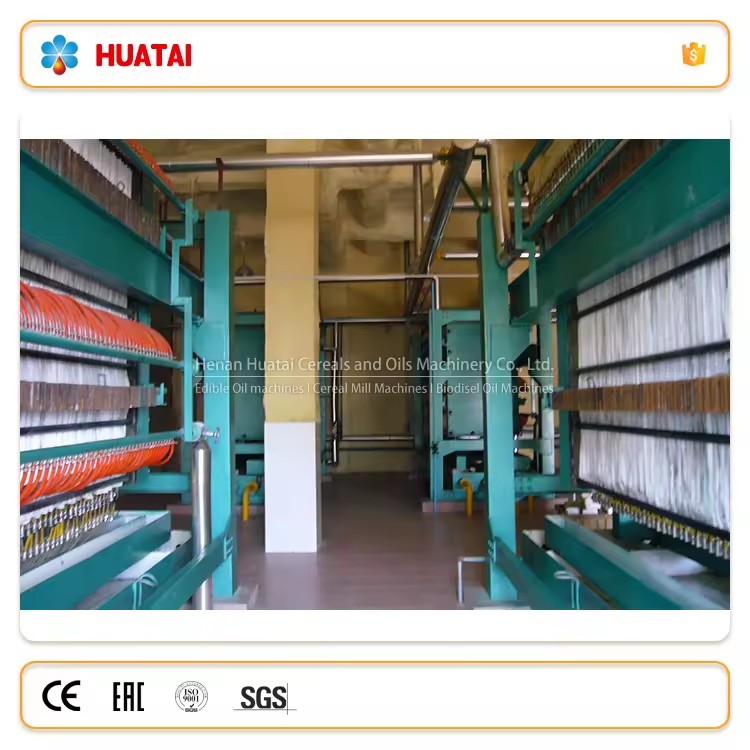

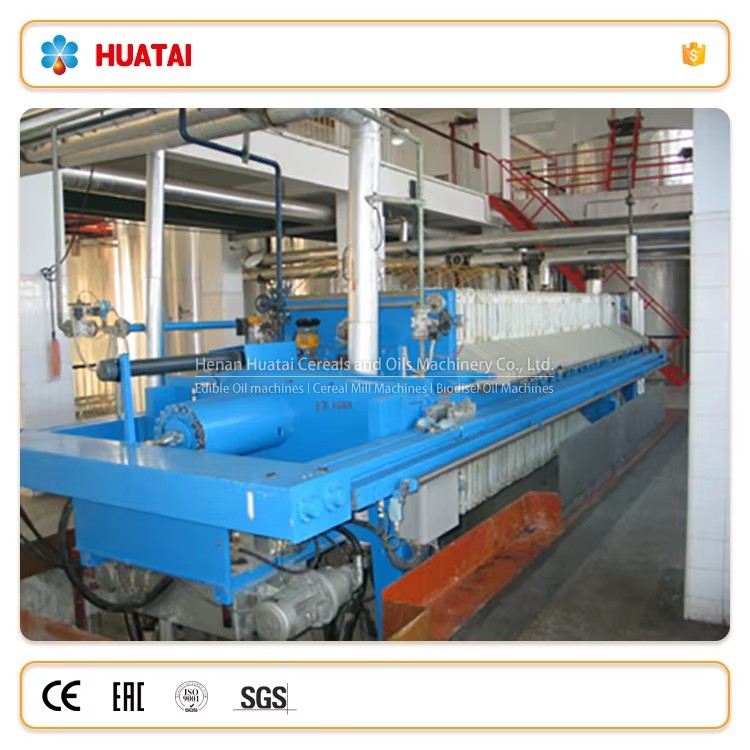

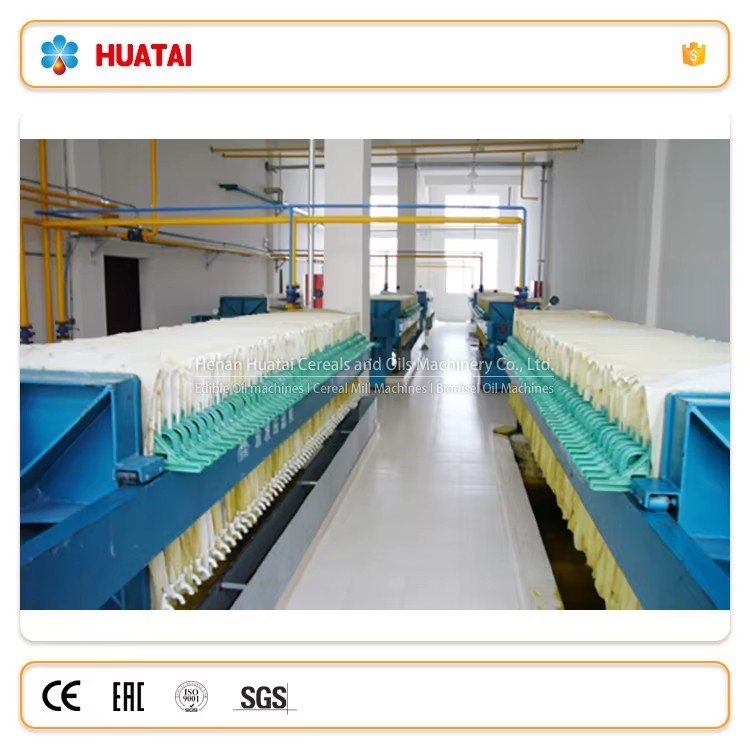

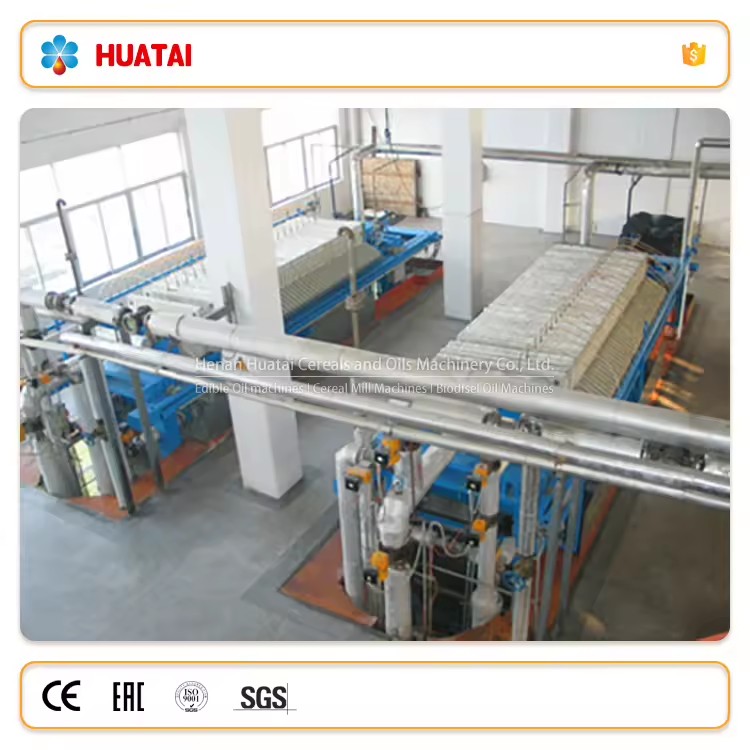

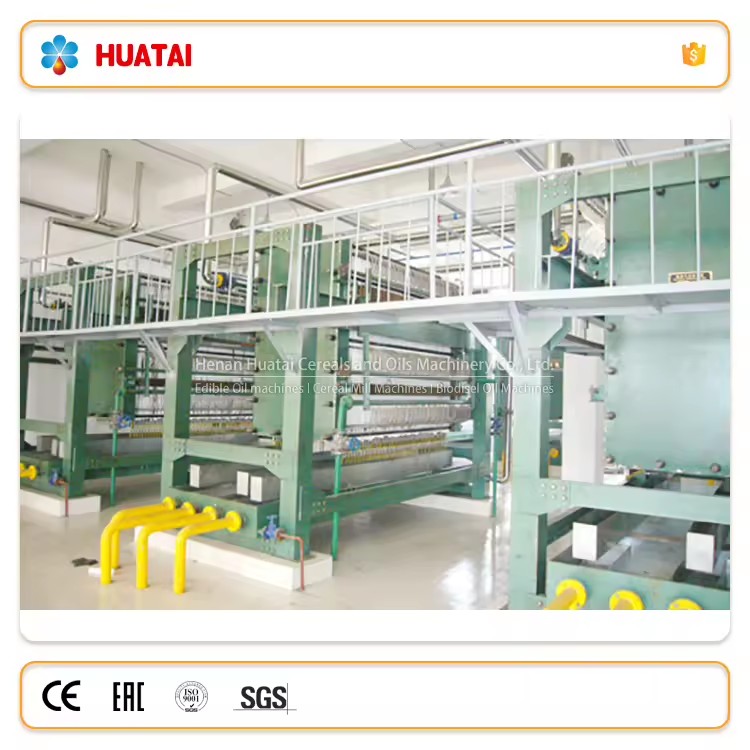

Filter of Palm Oil Fractionation Equipment

When the temperrature is reached to required remperature, the oil is pupmed to filter. When the compressed air is ready, the filter start the squezzing,discharging cake operation. When in the winter, we can use another filter to filter oil to get required oil.after filtering, the oil is sent to storage tank. The stearin is melted. Then sent to storage tank.

what is more

In addition to the fractionation equipment, also provides a complete palm oil solution, including all the required equipment, and provides customization, design, installation and construction services.

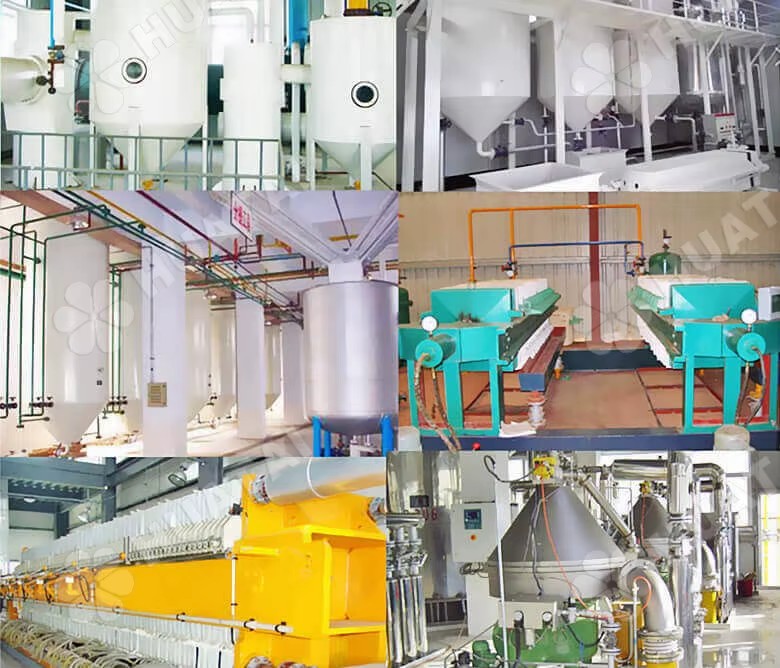

The Crude Palm Oil Refinery Plant includes following sections

Section1. Crude Palm Oil

Section2. Crude Palm Oil Refinery Machine

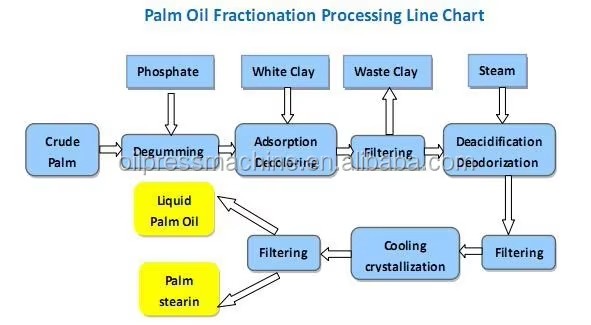

Flow Chart

The whole process mainly includes the following processes

1). Degumming and Water Washing, Drying Process

2). Bleaching Process

3). Deacidification and Deodorization Process

Main Projects Scope: · 30-5000T/D oilseeds pretreatment project · 30-5000T/D oilseeds extraction project · 10-500T/D crude oil refining project · 10-500T/D crude oil fractionation project · Oil interesterification project · Oilseeds protein, phospholipid project · Natural pigment extraction project · Grain deep processing project Typical Project: · 30-1000T/D rice bran pretreatment, expanding, extraction project · 30-600T/D rice bran oil refining project · 150-1000T/D cottonseed dephenolizing protein · 10-1000T/D palm fruit oil pressing project · 10-500T/D Non acid method biodiesel production project · 10-2000T/D corn deep processing p r oject Newest Technology: · Energy saving oil vacuum deodorization technology · Concentrated protein extraction technology · Mixed oil extraction technology · Mixed oil refining technology · Molecular distillation technology · Broken rice desaccharification technology · Continuous lignite extraction technology

About

Quality and Service Commitment

We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments as follows

1. Ensure to timely provide complete sets of equipment and accessories. 2. Ensure that one-time installation debugging acceptance. 3. To provide high quality material with preferential price. 4. Priority to provide customer our new craft works and products. ee training technological operator to ensure the trained staff can independent operation. the installation process, we will appoint a installation supervision staff on the spot. we will offer an experienced project manager, organize a good installation team for the work of field installation debugging. 7.After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, on-line debugging and Feeding trial operation,to ensure that equipment can normal operate in full load conditions. We will provide all kinds of information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements within one month after acceptance. 8.Warranty period, all because of the quality of products has caused the damage or failure of equipment, suppliers responsible for the free repair and replacing spare part. Due to the damage caused by the customer, we only charge material costs for repair and replacement. After the receipt of customers notice, suggest the method to solve problem within six hours, or send personnel to the site to solve the problem within twenty four hours.
