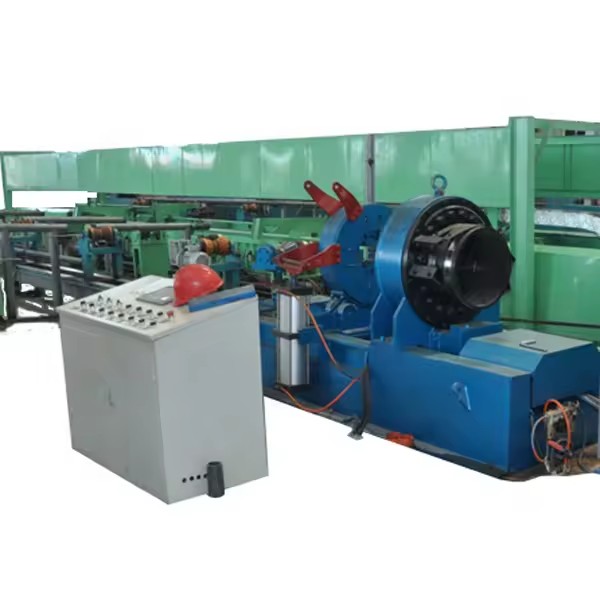

High Torque API Bucking Machine for Petroleum Machinery and Oilfield Forging Processing Bucking Unit Breakout Machine

Petroleum machinery hydraulic Breakout Machine with PLC control

BHJG230/30 Breakout Machine has six parts: driving clamp system,backup clamp system,hydraulic system,pneumatic system,manipulating platform and frame base.The Driving clamp is driven by hydraulic motor and it is used to screw on and tighten (screw off) the coupling. The Buck up clamp is driven by pneumatic cylinder and it is used to fix the pipe. the screw on torque value is output by tension sensor and controlled by PLC system.

BHJG230/30 Breakout Machine produced by

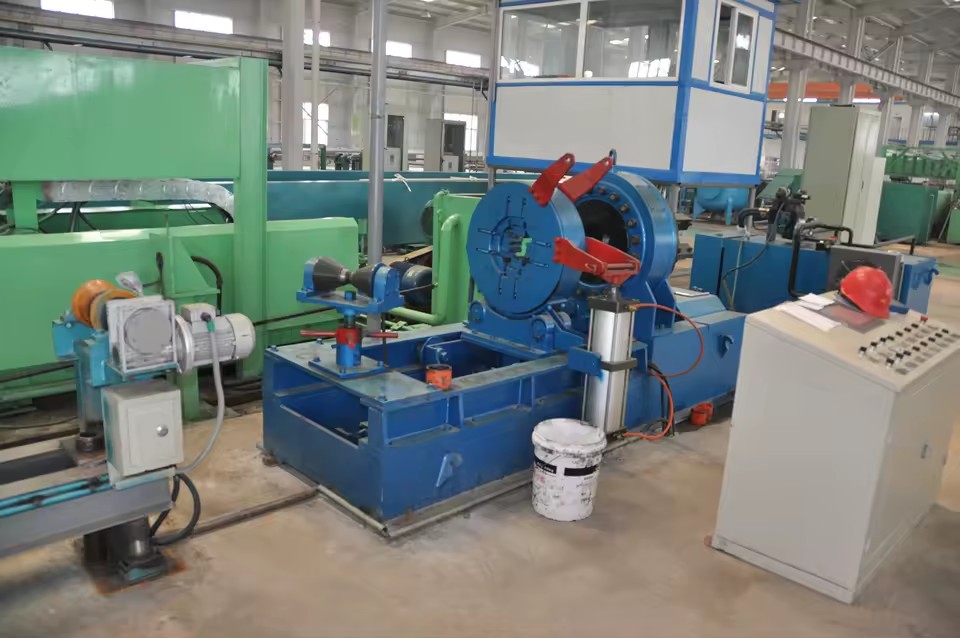

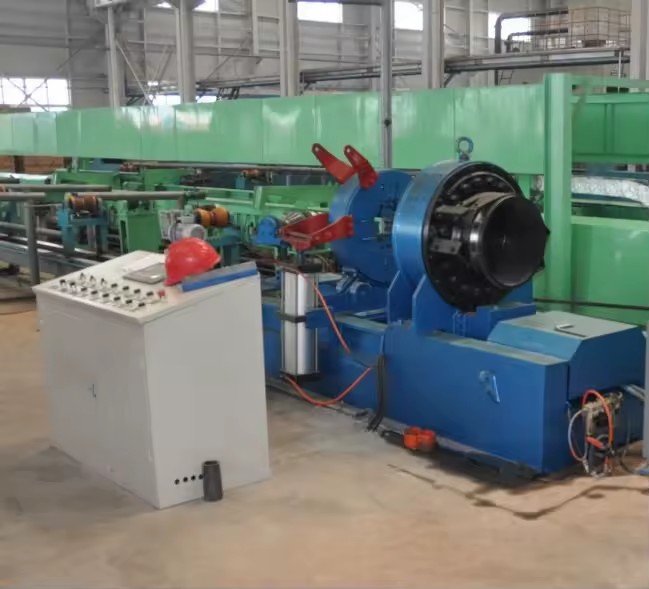

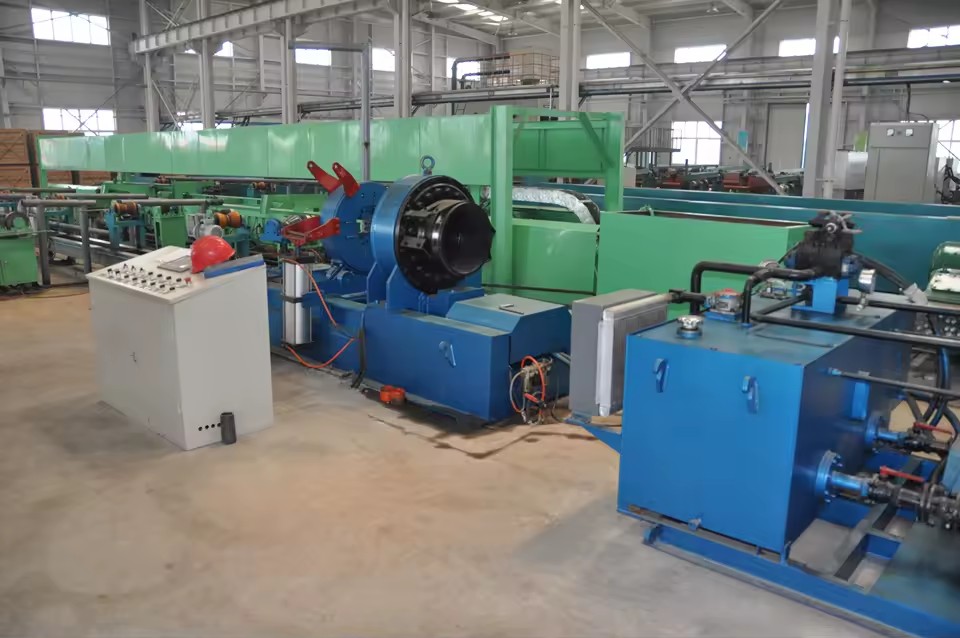

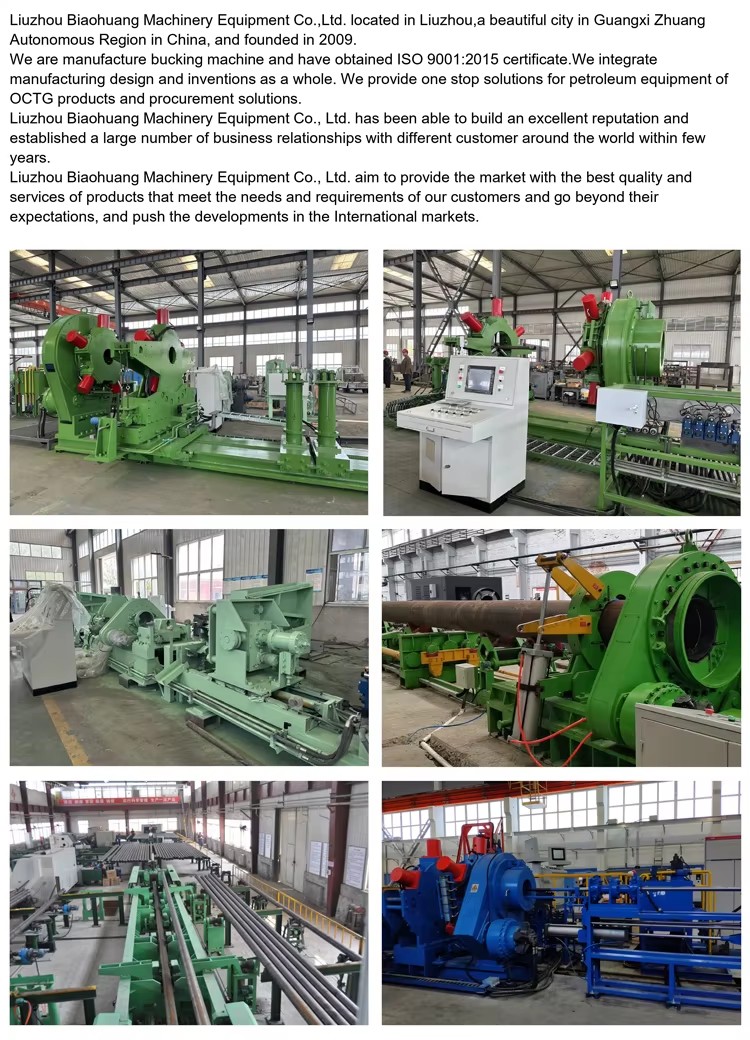

On site installation of Breakout Machine

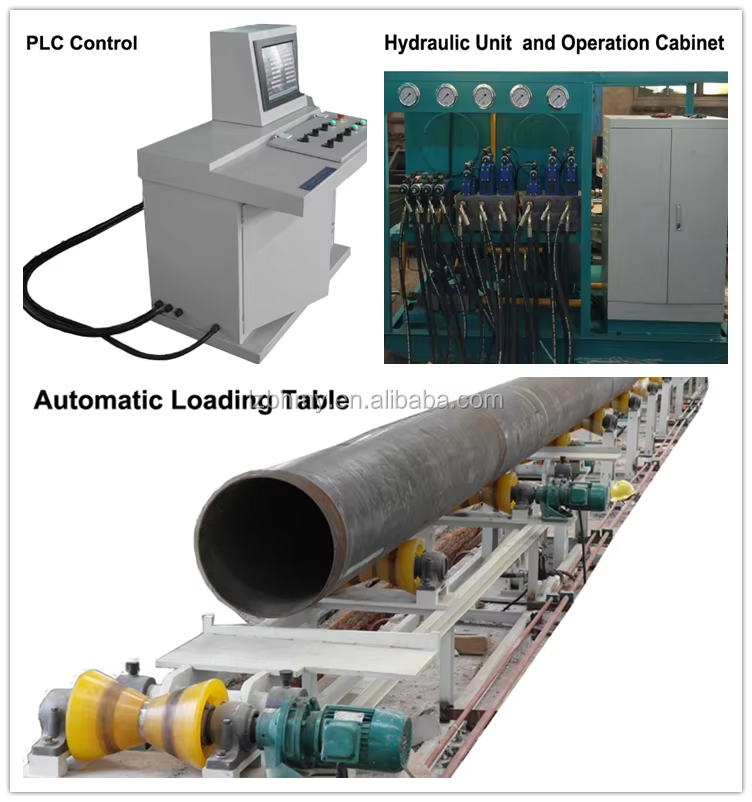

The configuration of the Breakout Machine

1.BHJG230/30 Breakout Machine is driven and controlled by hydraulic and pneumatic system, the system is easy and convenient to operate.

2.The system is controlled by hydromantic except for the driving clamp which driven by hydraulic motor, it can greatly reduce the oil leakage.

3.The Driving clamp uses closed structure, it is driven by hydraulic motor, the clamp head has 3 jaw plates with 120º distributing, every jaw plate has 2-3tooth, totally 6-9 tooth contacting the coupling surface, the teeth marks are according to API standard, the clamp head can reset automatically.

4.Back up clamp is similar to the driving clamp,but it is driven by the pneumatic cylinder.The driving clamp and backup clamp can regulate their center in one line automatically to meet the requirements of using.

a)It is easy to change the tooth.

b)The backup clamp is equipped with tension sensor used to measure torque (the unit is KN.m). The control system will contrast the torque value and screw circles with the setted value, control the machine operating automatically.

c)Double pumps oil supply, adjust speed automatically, high speed screw, low speed torque, to meet the demand of special threads.

1.The bore diameter is 230 mm, which is applied to 2 " -7″ casing, the 6 sets of jaw plates 2 3 / 8 " — 2 7 / 8 " — 3 1 / 2 " — 4 1 / 2 " — 5 1 / 2 " — 7 " are delivered with the machine.

2. S teel grade of the applicable pipe: H40,J55,K55,N80,L80,C90,95,P110,Q125.

3. T he screw on torque is applicable for API standard connection or premium connection.

4. Take double-pump as power, and the speed is stepless changed manually.

The rotate speed of driving clamp:0.7-24r/min.

1. Nude cargo,plywood wooden case and free fumigating wooden case.We can supply fumigation package and certificate.

rton packing.

3. Shipping, train, express or upon clients' demands.
