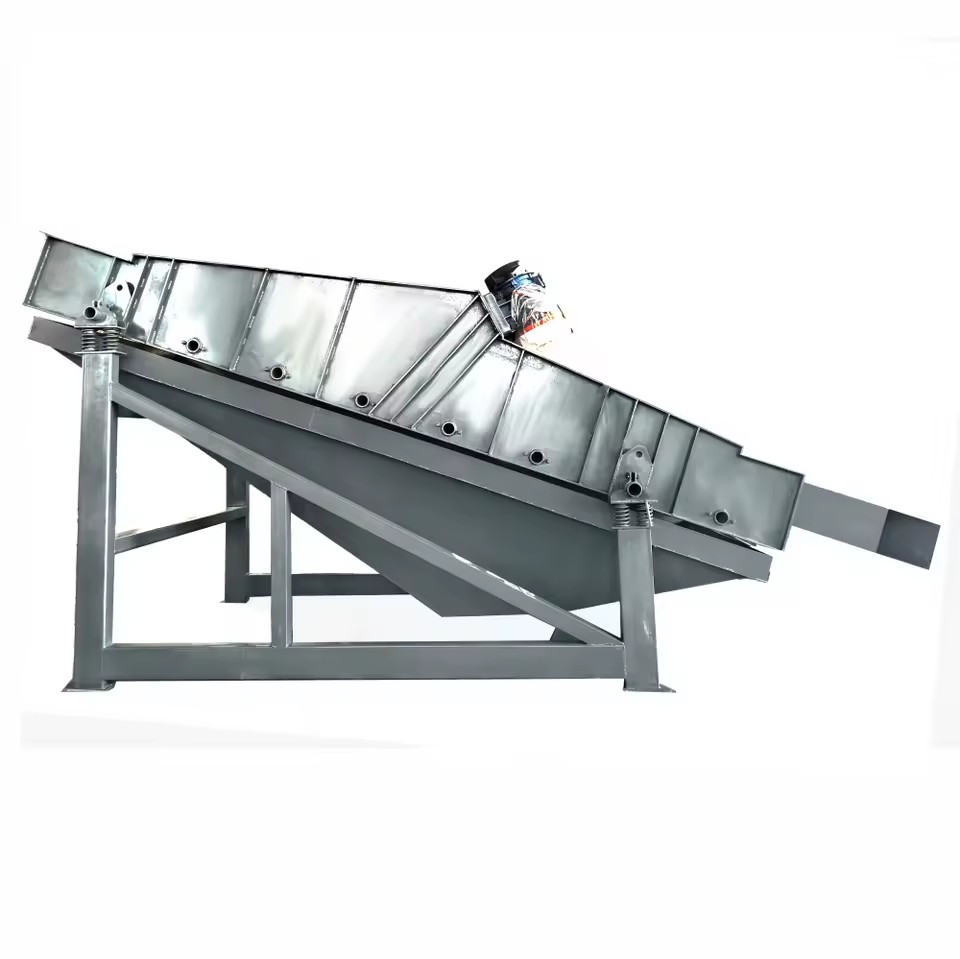

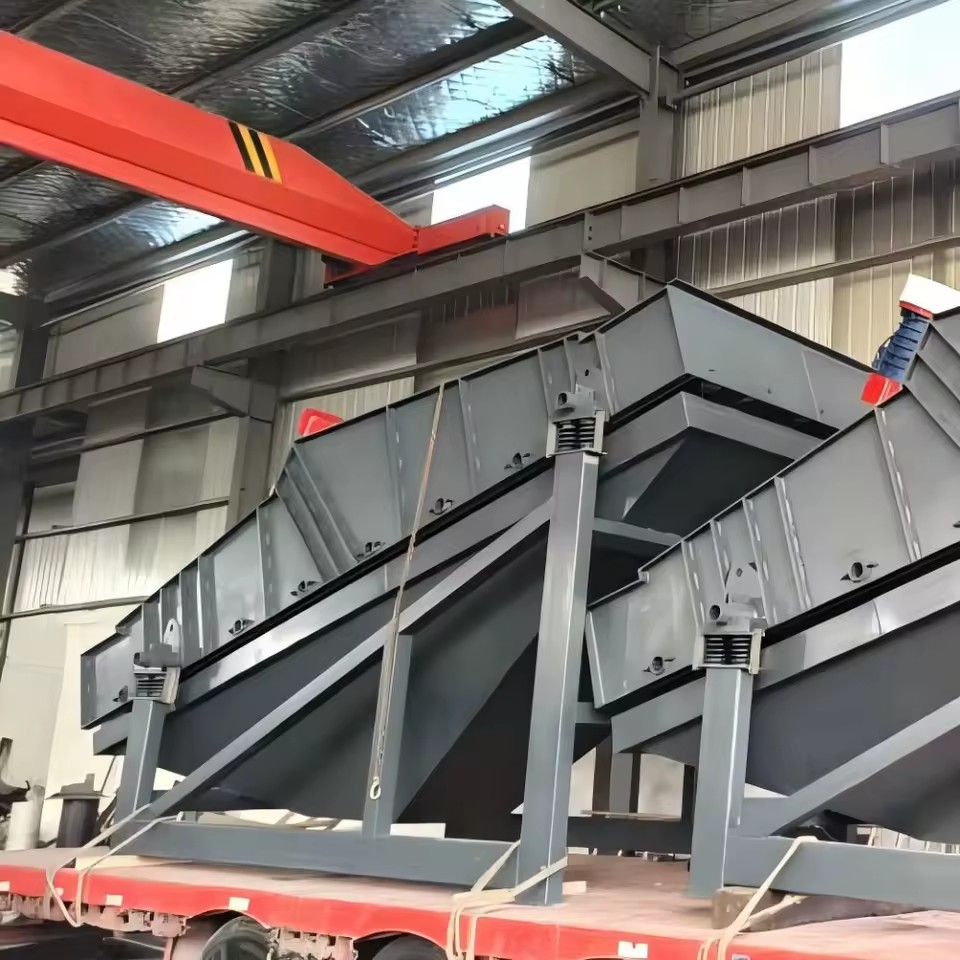

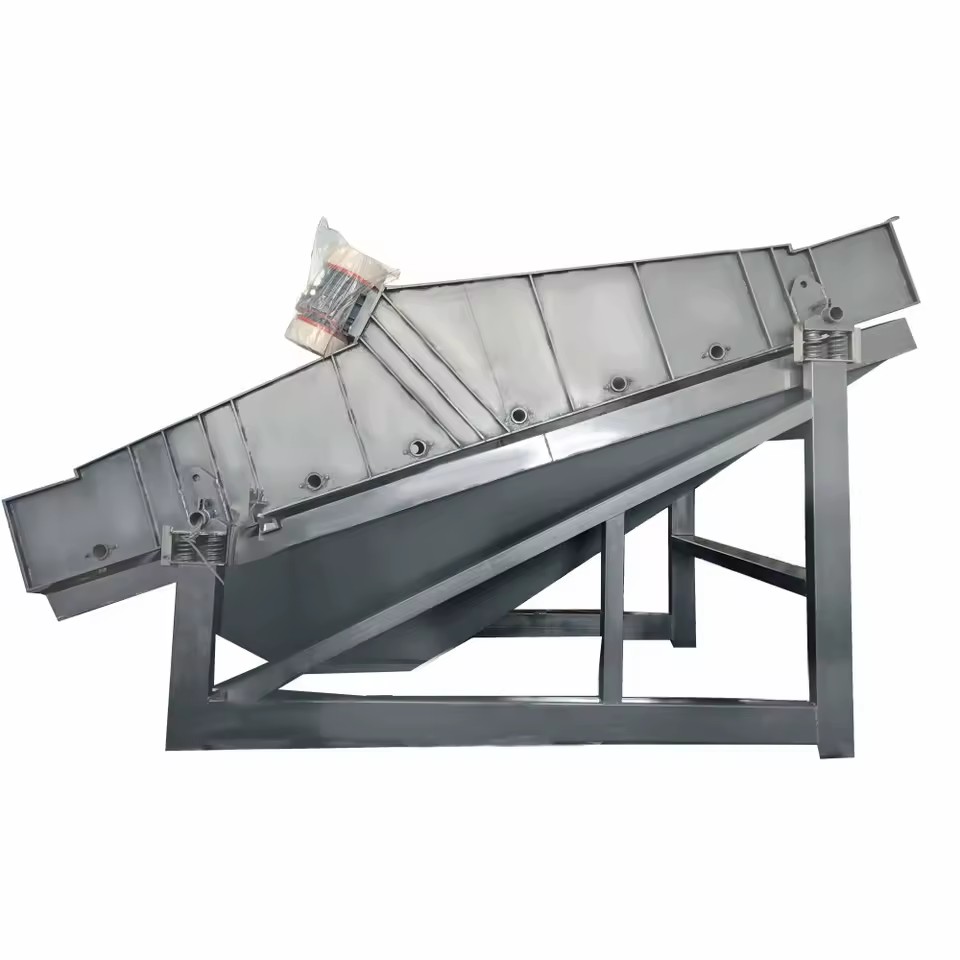

High-Duty Vibrating Screen
The heavy-duty vibrating screen is mainly used in industries such as metallurgy, mining, coal, building materials, power, and chemical engineering for screening large lump materials and small-to-medium-sized granular materials. It is widely applied in the metallurgical industry and is commonly used as screening machinery in blast furnace troughs, coking plants, and ore dressing plants.

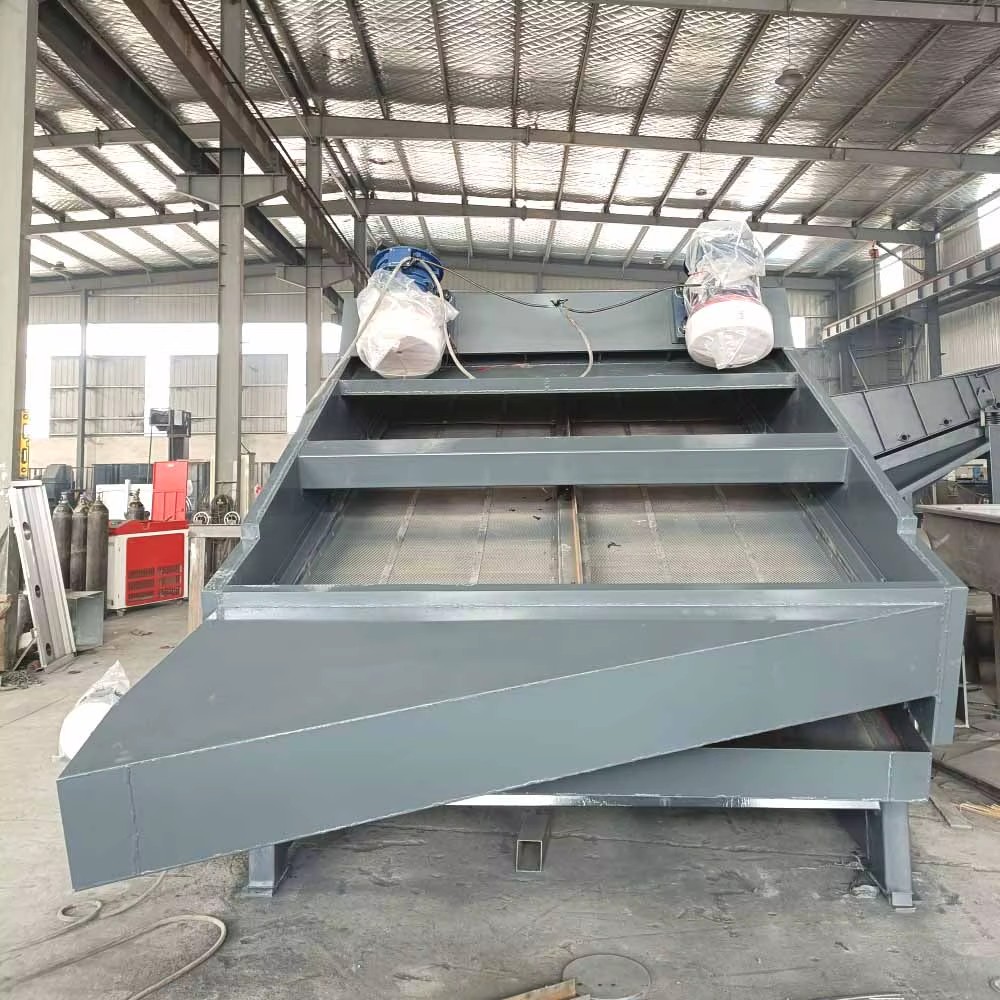

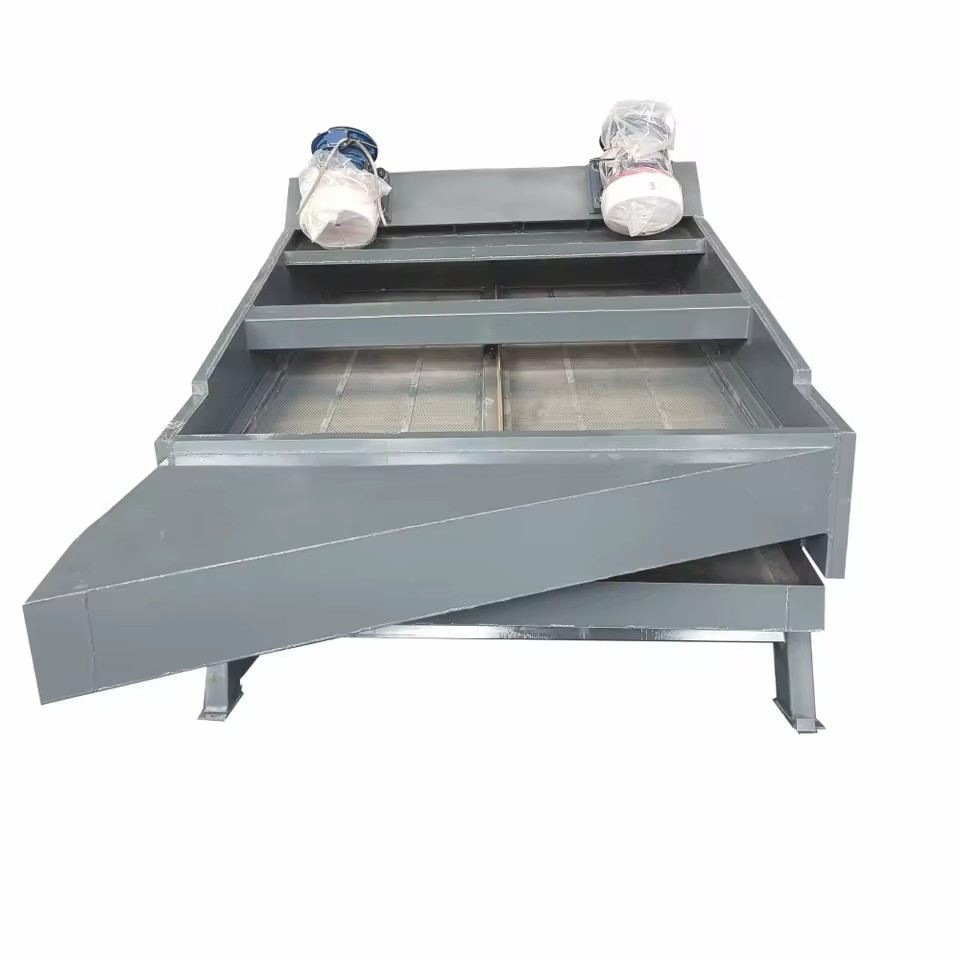

This product features compact size, lightweight, low energy consumption, easy installation, and flexible process layout. It adopts an energy-saving vibration motor as the vibration source and is supported and isolated by rubber springs. With high processing capacity and screening efficiency, the screen mesh is installed at a large inclination angle. The modular assembled screen panels are easy to replace and have a long service life.
Key Advantages
1. Simple structure and sleek appearance
Combines functionality with modern aesthetics.
2. Compact size with high screening capacity
Delivers efficient performance in space.
3. Lightweight design for easy installation and flexible layout
Simplifies integration into various production lines.
4. Low energy consumption
Significantly reduces operating costs and saves energy.
5. Cost-effective with minimal spare parts required
Lowers maintenance expenses and downtime.
6. Modular screen panels for quick and easy replacement
Extends service life and minimizes maintenance effort.

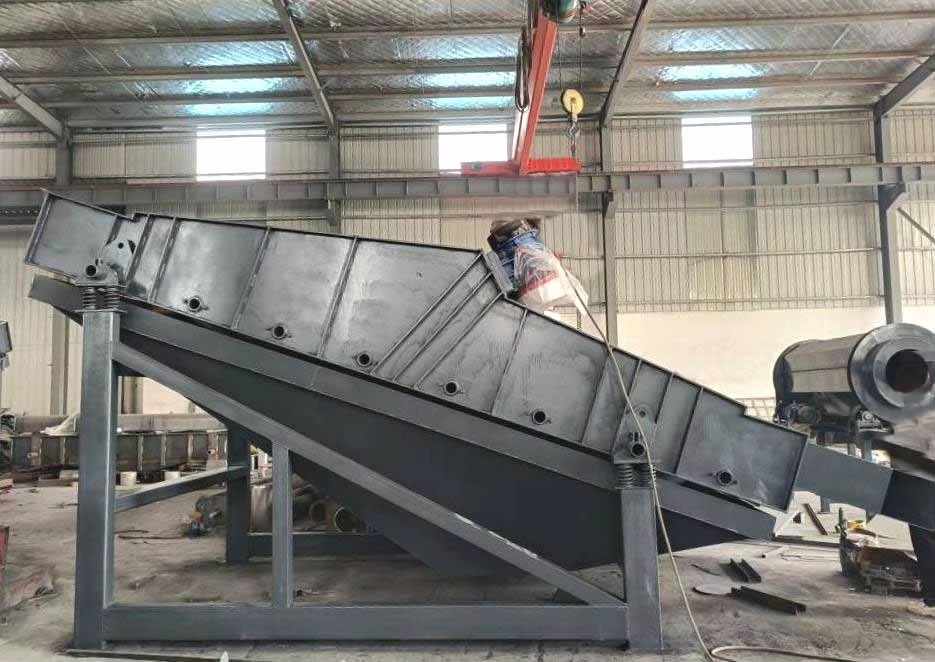

Heavy-duty vibrating screens utilize vibrating motors or externally driven ordinary motors, as well as self-vibration sources, to drive the screen body in periodic reciprocating motion along the direction of the excitation force. The material moves along the screen surface in a straight-line parabolic trajectory, achieving the purpose of screening.

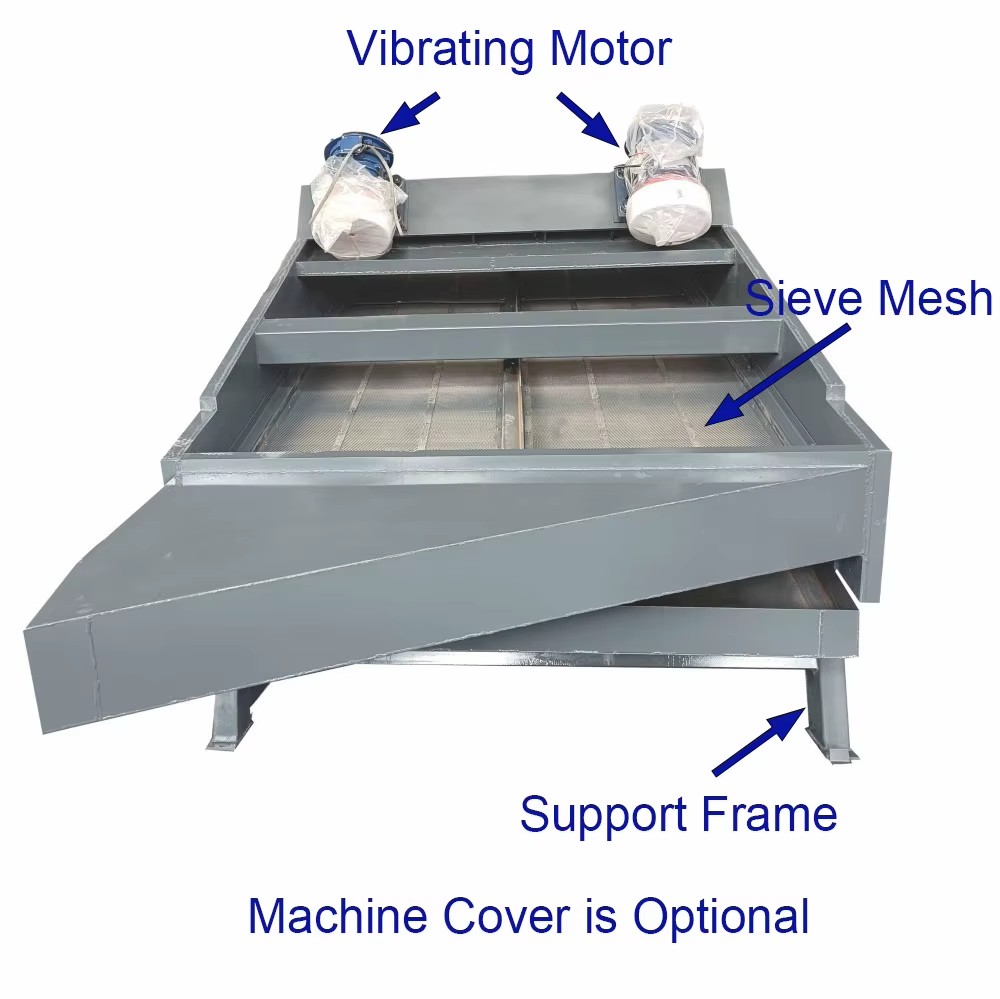

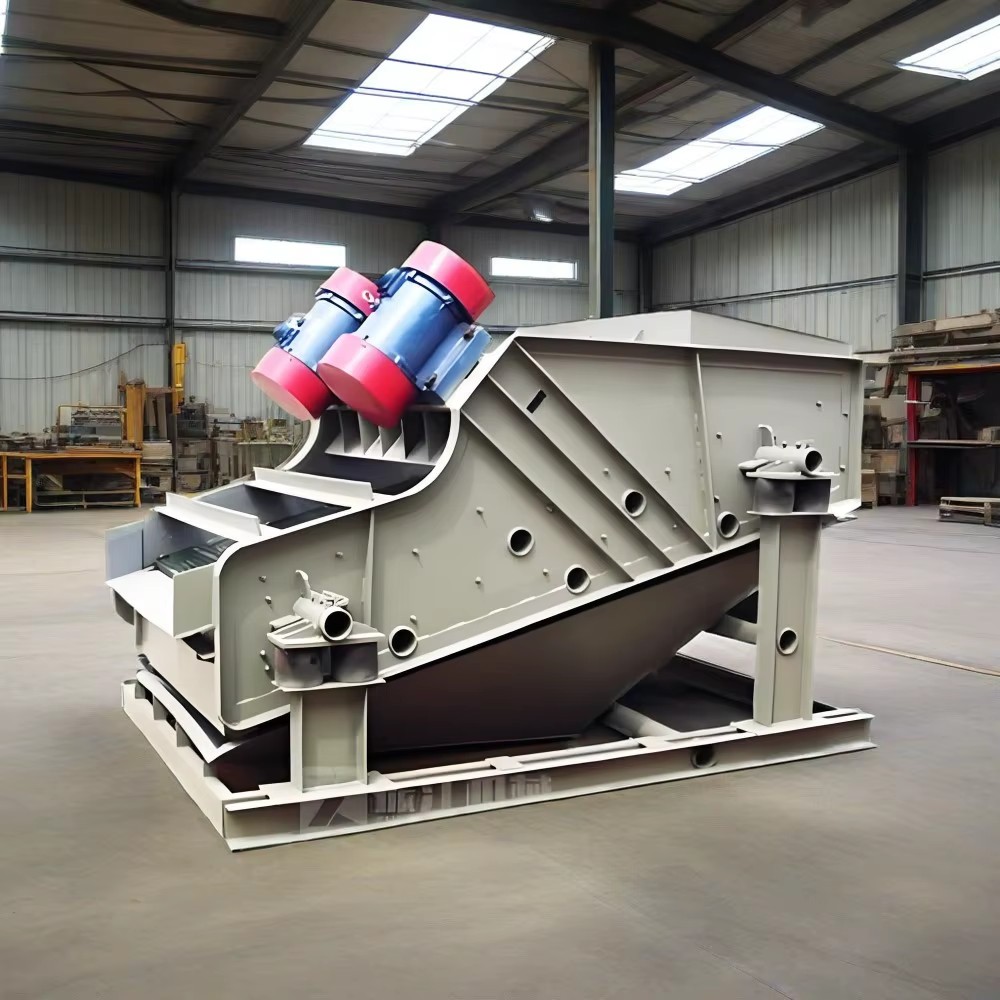

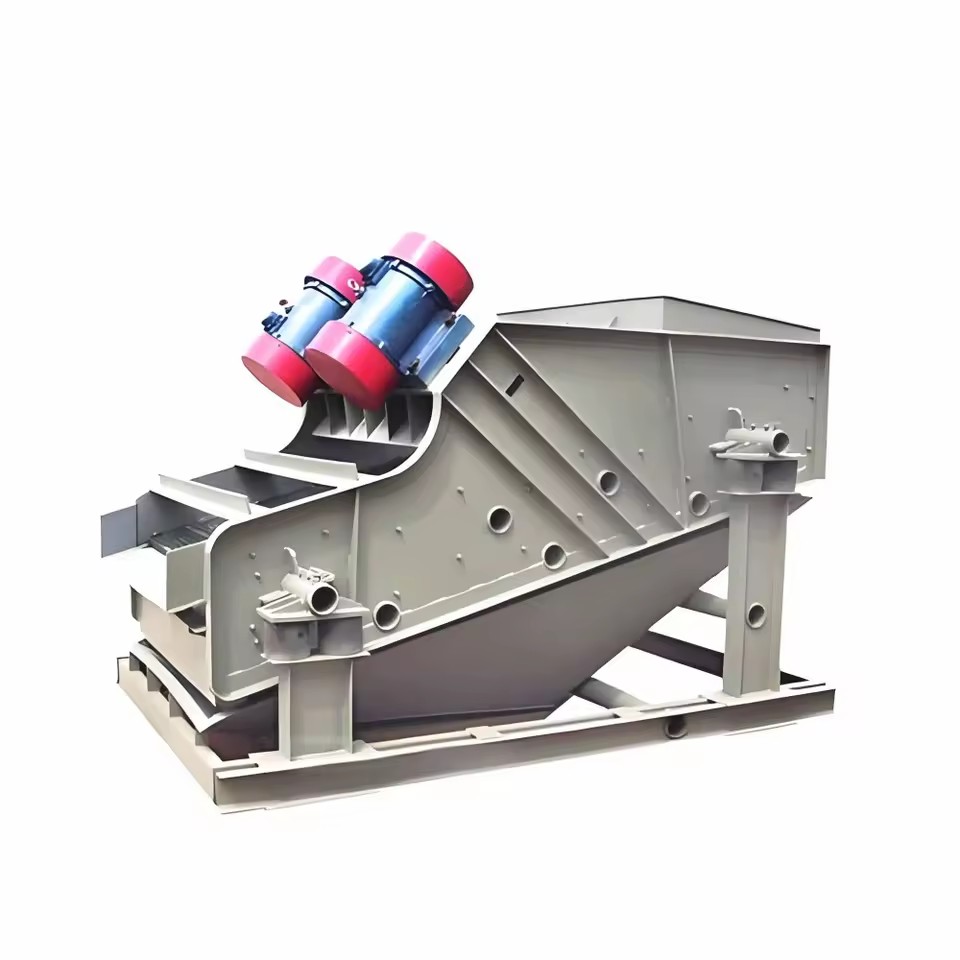

The heavy-duty screen consists of an excitation device, screen box, dust cover, discharge hopper, damping device, and base. During operation, the excitation force generated by the vibrator is transmitted through the screen box to the screen surface inside. Since the vibrator produces a longitudinal force, the screen box—along with the screen mesh—moves back and forth longitudinally. Under these conditions, the material on the screen surface is propelled forward by the excitation force. When the material falls back, particles smaller than the mesh size pass through the screen to the lower layer. The material's motion trajectory on the screen follows a parabolic path.
Through this cyclic material movement, the feed rapidly advances, disperses, and passes through the screen after entering the screen box from the feed end, completing the screening process.
| Model | Capacity (t/h) | Screen Area (m²) | Particle Size (mm) | Double Amplitude (mm) | Power (kw) |
| ZSG09-18 | 50-100 | 1.62 | ≤120 | 5-10 | 1.5×2 |
| ZSG09-24 | 50-100 | 2.16 | ≤120 | 5-10 | 1.5×2 |
| ZSG09-30 | 50-100 | 2.70 | ≤120 | 5-10 | 1.5×2 |
| ZSG10-20 | 50-100 | 2.00 | ≤150 | 5-10 | 1.5×2 |
| ZSG10-24 | 50-100 | 2.40 | ≤150 | 5-10 | 1.5×2 |
| ZSG10-30 | 50-100 | 3.00 | ≤150 | 5-10 | 1.8×2 |
| ZSG12-24 | 80-200 | 3.60 | ≤150 | 5-10 | 2.2×2 |
| ZSG12-30 | 80-200 | 3.60 | ≤150 | 5-10 | 3.0×2 |
| ZSG15-30 | 120-300 | 4.50 | ≤150 | 5-10 | 3.7×2 |
| ZSG15-36 | 120-300 | 5.40 | ≤150 | 5-10 | 5.5×2 |
| ZSG15-40 | 120-300 | 6.00 | ≤150 | 5-10 | 5.5×2 |
| How to Choose the Suitable Products? |
Pls offer us the info as below
1> Material name: _____, bulk density: _____kg/m³ or ____g/cm³ and water content about _____%.
2> Capacity required: ___kg/h. 3> How many layers?____ layers. 4>The mesh size for each layer: ____ mm, ____ mm, ____mm Or ____ mesh, ____ mesh, ____ mesh. 5> Voltage and frequency: ____V, ___HZ.
6> Hazardous working material: Yes or No: ______.
7> Product temperature: _____°C.
Customization Options
1. Screen mesh material: stainless steel.
2. Machine material: carbon steel, stainless steel 304/316.
3. Machine color:blue, white or other colors/ support customization.
4. Vibrating motor installation methods: Top-mounted / Upper vibration type, Side-mounted / Side vibration type.
5. Vibration damping installation methods: Seat-type / Base-mounted, Suspension-type / Hanging-mounted.
6. Machine cover.
(1) 14 Years professional experience of vibrating equipme n ts.
(2) Source Factory Price, 1 Year Warranty, 14-day delivery (expedited options available for urgent projects).
(3) Our Own R&D ee Design Service and Free Professional Solutions.
(4) Support Customization.
(5) 3-stage quality inspection: raw material → production → final testing (video report available).
(6) Passed SGS Verified Inspection.
(7) Excellent Pre-sales & After-sales Customer Services.
1. Pre-Sales Services
Free technical consultation, solution design, sample testing services to help customers select the most suitable equipment.
2. In-Sales Services
Production progress follow-up, factory inspection reports and relevant certificates, Test-running,Free spare parts package and on-time delivery.
3. After-Sales Services
1 Year warranty, free operation training, 24/7 remote technical support, on-site assistance upon request, complete spare parts inventory, regular follow-ups, transparent and reasonably priced paid repair services.
