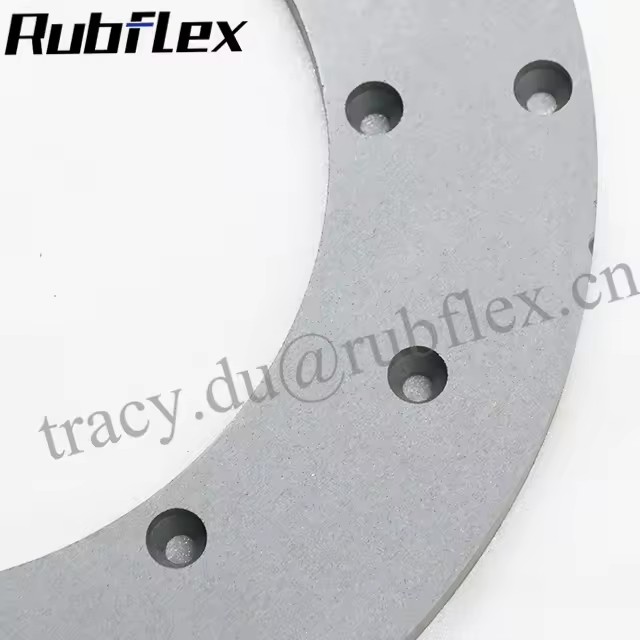

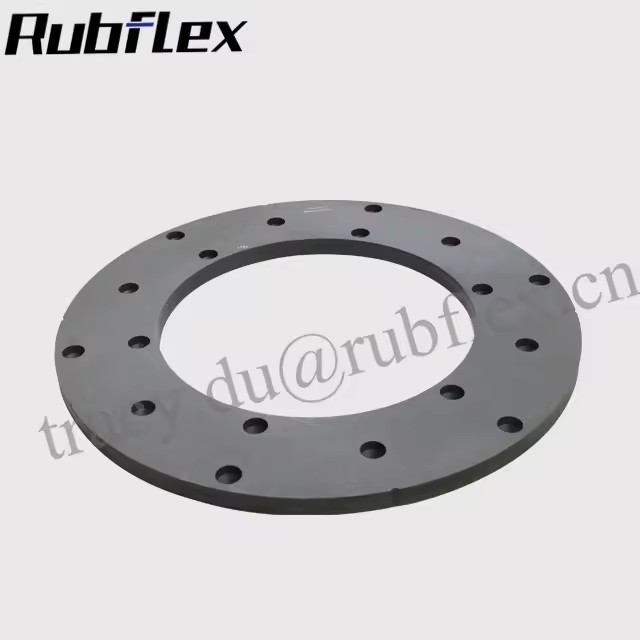

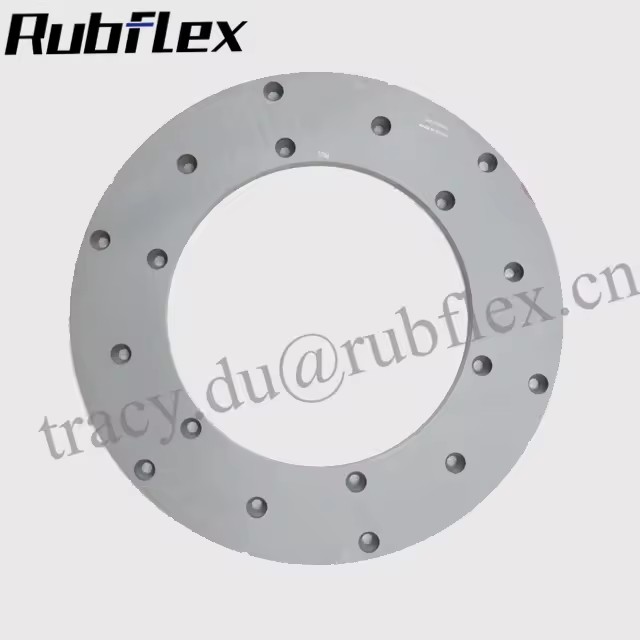

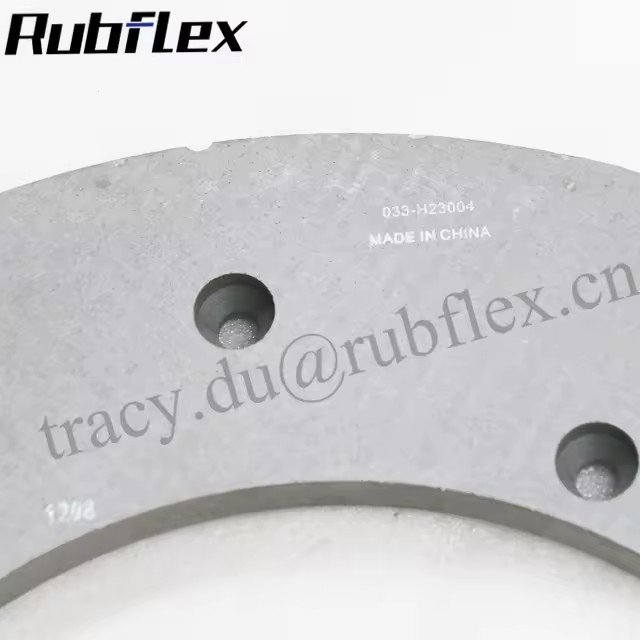

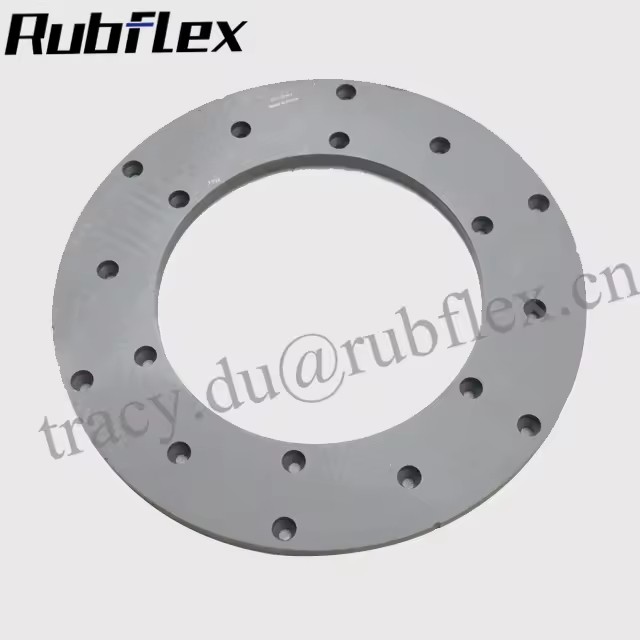

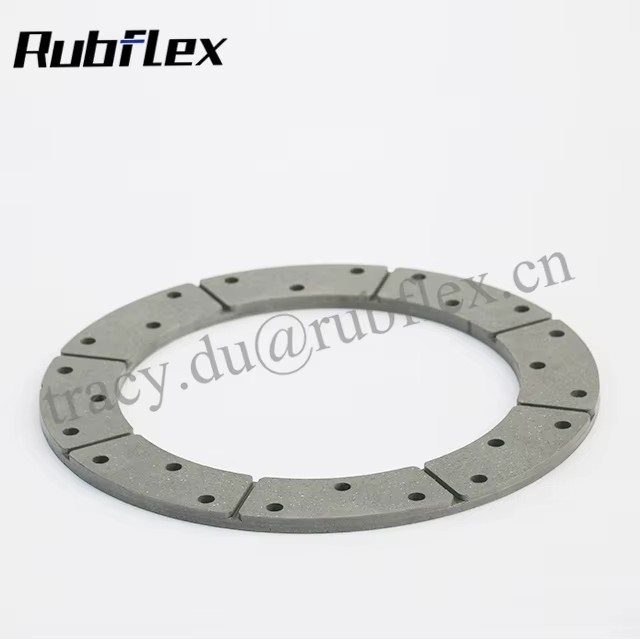

508725 Friction Disc WCB 324 224 424

Name: 508725 Friction Disc WCB 324 224 424
SKU: 36NB-8Z64-QZ9G
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 2 Units

Key attributes

View all

Type

pneumatic, Piston type & Tube type

Voltage

contact Tracy

Applicable Industries

DRAWWORKS, Oil drilling rigs, Metal processing, Paper Processing, Logging, Marine mooring

Condition

New

Core components

Friction disc, Wear plate

Place of origin

China, Henan

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

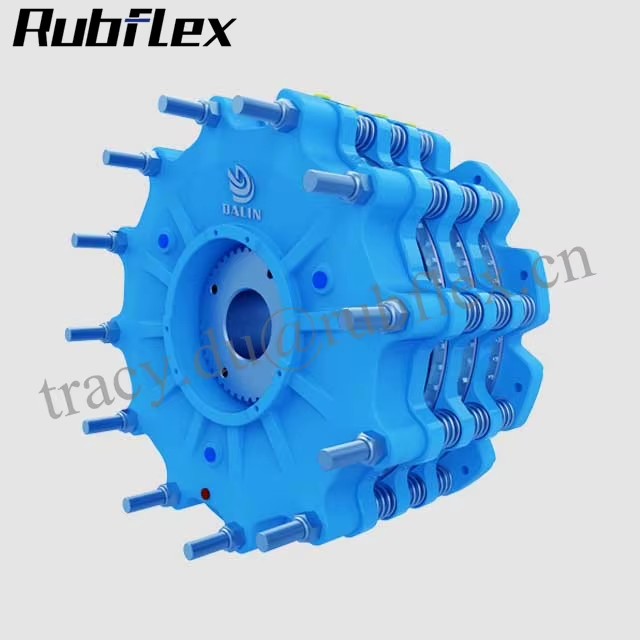

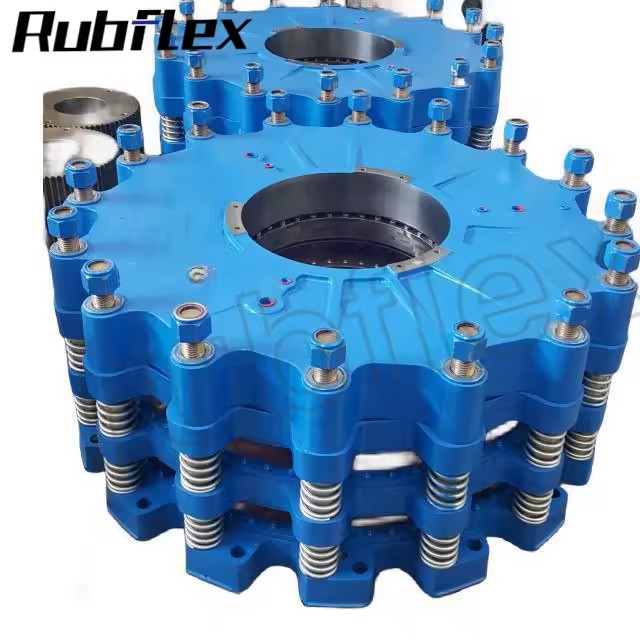

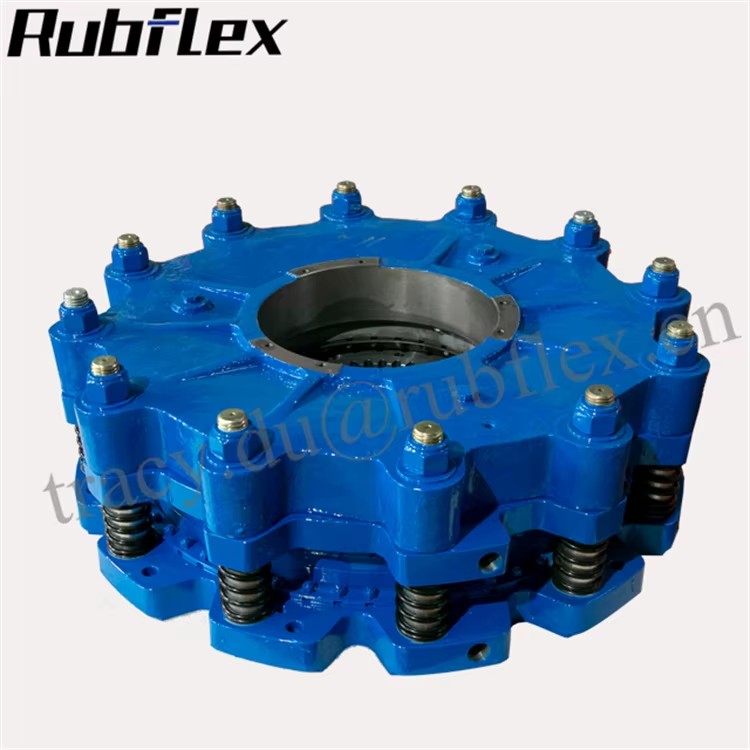

Type of WCB(Water Cooled Brakes)

Model	108WCB	208WCB	114WCB	214WCB
Description	Part No.	Part No.	Part No.	Part No.
Mounting flange sub-assy	512508-01	512508-01	512300-01	512300-01
Mounting flange	512496	512496	512375	512375
Wear plate	512507	512507	415212	415212
Friction disc sub-assy	512512	512512	415208	415208
Firction disc	512509	512509	415227	415227
Friciton disc core	512510	512510	415207	415207
Pressure plate sub-assy	512508-03	512508-03	512300-03	512300-01
Pressure plate	512502	512502	512377	512377
Cylinder	512483	512483	512296	512296
Polypak seal	000402X0001	000402X0001	000402x0003	000402x0003
Polypak seal	000402X0002	000402X0002	000402x0004	000402x0004
Reaction plate sub-assy	512508-02	512400-02
Reaction plate	512504	512380
Piston	512500	512500	512302	512302
Model	118WCB	218WCB	318WCB	418WCB
Description	Part No.	Part No.	Part No.	Part No.
Mounting flange sub-assy	513232-01	513232-01	513232-01	513232-01
Mounting flange	513207	513207	513207	513207
Wear plate	412953	412953	412953	412953
Stud	000245 x 0057	000245 x 0057	000245 x 0057	000245 x 0057
Firction Block	513657	513657	513657	513657
Friciton disc core	513666	513666	513666	513666
Pressure plate sub-assy	513232-03	513232-03	513232-03	513232-03
Pressure plate	513214	513214	513214	513214
Cylinder	512693	512693	512693	512693
Polypak seal	000402x0021	000402x0021	000402x0021	000402x0021
Polypak seal	000402x0022	000402x0022	000402x0022	000402x0022
Reaction plate sub-assy	513232-02	513232-02	513232-02	513232-02
Reaction plate	513217	513217	513217
Piston	512761	512761	512761	512761
release spring	307629	307629	307629	307629
Inner support ring	413105	413105	413105	413105
Outer support spring	413106	413106	413106	413106
Model	124WCB	224WCB	324WCB	424WCB
Description	Part No.	Part No.	Part No.	Part No.
Mounting flange sub-assy	513348-0	513348-01	513348-01	513348-01
Mounting flange	513337	513337	513337	513337
Wear plate	508459	508459	508459	508459
friction disc	508725	508725	508725	508725
friction disc core	510745	510745	510745	510745
Pressure plate sub-assy	513348-03	513348-03	513348-03	513348-03
Pressure plate	513345	513345	513345	513345
Cylinder	513264	513264	513264	513264
Polypak seal	000402*0023	000402*0023	000402*0023	000402*0023
Polypak seal	000402*0024	000402*0024	000402*0024	000402*0024
Reaction plate sub-assy	N/A	513348-02	513348-02	513348-02
Reaction plate	N/A	513343	513343	513343
Piston	513317	513317	513317	513317
release spring	307073	307073	307073	307073
Inner support ring	413107	413107	413107	413107
Outer support spring	413108	413108	413108	413108
Model	136WCB	236WCB	336WCB	436WCB
Description	Part No.	Part No.	Part No.	Part No.
Mounting flange sub-assy	513284-01	513284-01	513985-01	513985-01
Mounting flange	512815	512815	512815	512815
Wear plate	414026	414026	414026	414026
Friciton disc core	513667	513667	513667	513667
Pressure plate sub-assy	513284-03	513284-03	513284-03	513284-03
Pressure plate	512860	512860	512860	512860
Flate washer	000067*0042	000067*0042	000067*0042	000067*0042
Lock nut	000110*0075	000110*0075	000110*0075	000110*0075
Cylinder	512809	512809	512809	512809
Polypak seal	000402*0005	000402*0005	000402*0005	000402*0005
Polypak seal	000402*0006	000402*0006	000402*0006	000402*0006
wear spacer	N/A	307094-02	307094	307094
Reaction plate sub-assy	N/A	513284-02	513284-02	513284-02
Reaction plate	N/A	512318	512813	512813
Piston	512858	512858	512858	512858
release spring	307175	307175	307175	307175
Inner support ring	414032	414032	414032	414032
Outer support spring	414033	414033	414033	414033

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 17 fields

Type

pneumatic, Piston type & Tube type

Voltage

contact Tracy

Applicable Industries

DRAWWORKS, Oil drilling rigs, Metal processing, Paper Processing, Logging, Marine mooring

Condition

New

Core components

Friction disc, Wear plate

Place of origin

China, Henan

Weight (kg)

Name

Friciton disc

Size

424 WCB 224 WCB 324 WCB

Part number

508725

Equivalent Brand

Airflex, WPT

Supply type

Manufacturer supply

Quality

USA OEM quality

Delivery Time

in stock

Application

Metal, marine, paper, oilfield, Logging

Selling Units

Single item

Model number

424 WCB 224 WCB 324 WCB

Lead time

7 days
